95W High-power PoE Splitter
95W High-power PoE Splitter
95W High-power PoE Splitter

95W High-power PoE Splitter

Model NO.:
PM9501GSP V1

Product Overview


The PM9501GSP V1 PoE Splitters will work with any Power Sourcing Equipment (PSE) that also supports the 802.3at/bt standards.
PoE (Power over Ethernet) technology allows the existing Ethernet infrastructure to transmit electrical power, along with data,

to remote IP endpoints over the Ethernet cables, which can greatly save the cost of the external power cables.

Your network can benefit from PoE technology for it will ensure the normal working status of your network while keeping the existing Ethernet infrastructure secure.

Product Features

  • 2* 10/100/1000Mbps RJ45 Port;
  • 1 DC power output interface;
  • Support IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at , IEEE802.3bt Standards;
  • PD voltage input range 36~57V, power 95W;
  • Data and power carried over the same cable;
  • Support Plug-and-play for the devices without any configuration;

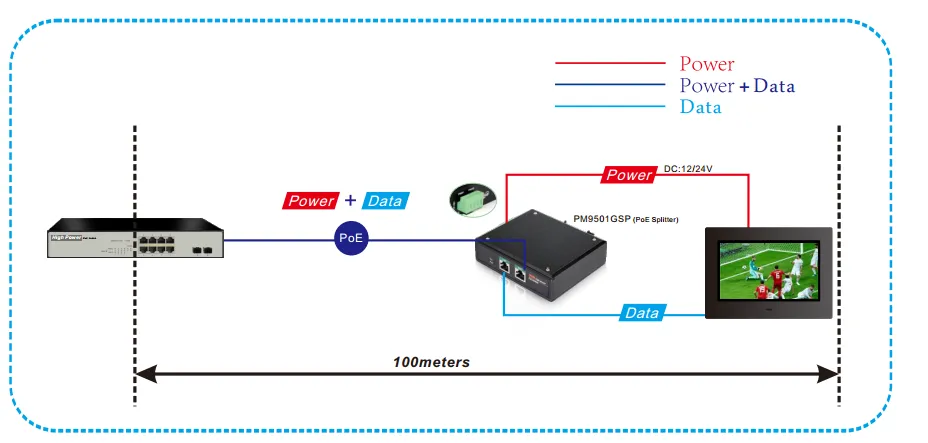

Application

Product Specifications

Model

PM9501GSP V1

Standard

IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at,

IEEE802.3bt

Network Media(Cable)

10BASE-T: UTP category 3, 4, 5 cable (≤100m)

100BASE-TX: UTP category 5, 5e cable (≤100m)

1000BASE-T: UTP category 5e, 6 cable (≤100m)

LED

Vout1(Green), Power(Green)

Dimensions (L*W*H)

120 *100 *32 mm

RJ45 PoE

RJ45 Pin: 4/5(+)7/8(-) and 1/2(+)3/6(-)
Data Pairs 1/2 and 3/6, 7/8and 4/5

PoE input Budget

95W

Output Power

72W  DC: 12V/6A full load

Operating Temperature

-40°C ~ 75 °C

Storage Temperature

-40 °C ~ 80 °C

Operating Humidity

10% ~ 90% RH  non-condensing

Storage Humidity

5% ~ 90% RH non-condensing

Surge Protection

±4KV

MTBF

>50000 hour

Electrostatic standard

Contact 4KV, air 6KV

Ordering information

Model

Product information

PM9501GSP V1

95W High-power PoE Splitter (Support 802.3af/at/bt Standard)
