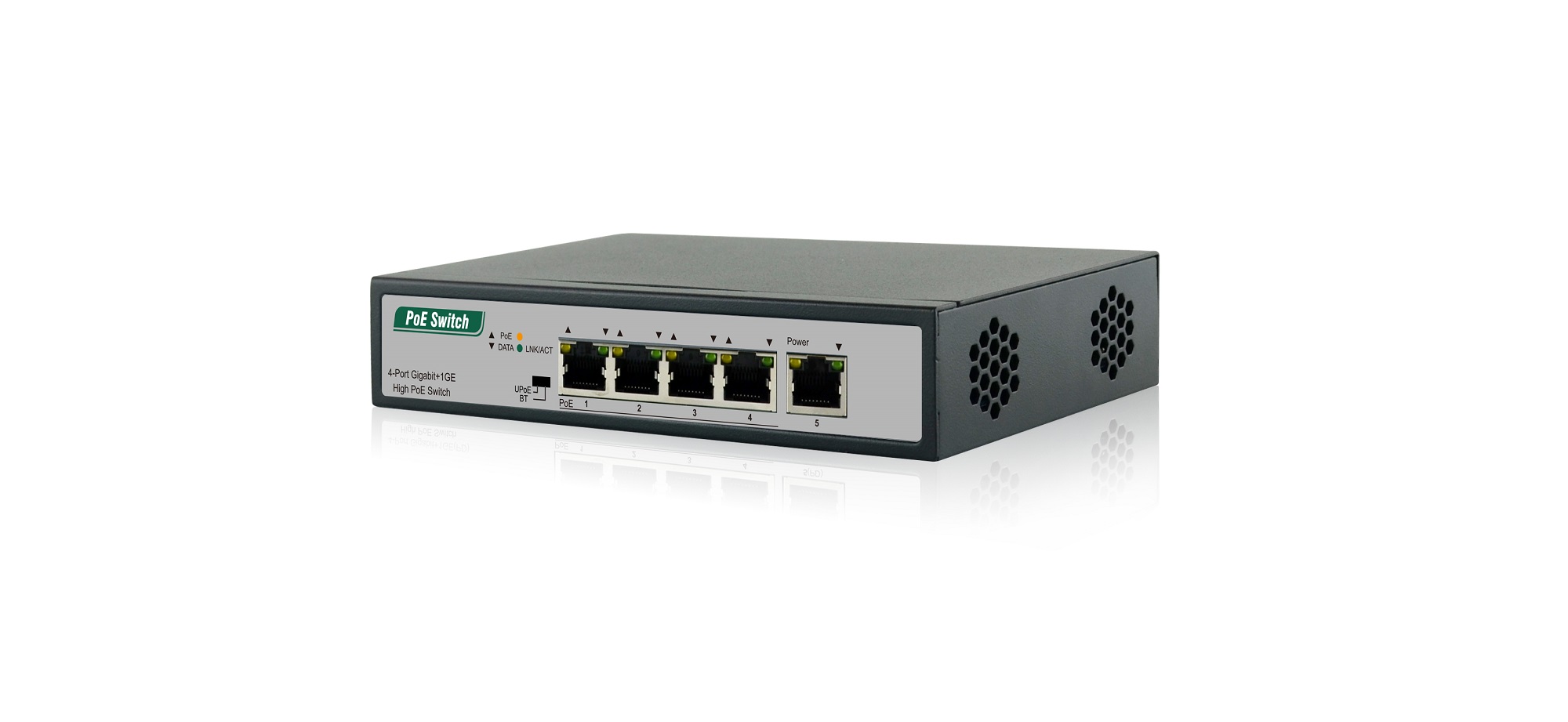

4-Port Gigabit+1GE High PoE Switch
4-Port Gigabit+1GE High PoE Switch
4-Port Gigabit+1GE High PoE Switch
4-Port Gigabit+1GE High PoE Switch
4-Port Gigabit+1GE High PoE Switch

4-Port Gigabit+1GE High PoE Switch

Model NO.
PM9005GSN V1

Product Overview

The PM9005GSN V1 is 5-Port 10/100/1000 Mbps auto-negotiation RJ45 Port. Port1-4 is PSE port, This conforms to IEEE802.3af/at/bt standard. and each RJ45 port supports MDI/MDIX automatic flip and wire speed forwarding functions. Among them, port1-2 support IEEE802.3bt standard output (up to 90W).

This switch has the function of one-key bt and UPoE high-power power supply, which mainly solves the problems of high deployment cost, long construction period, unstable power supply, difficult operation and maintenance management, low safety factor caused by the power supply system that needs to be deployed separately for high-power terminal power supply.It can be widely used in the new and reconstruction scenes of weak current to meet the power supply demand of high-power terminal in monitoring, access control, information release, parking lot, DDC and other systems.

Product Features

  • 5 *10/100/1000Mbps RJ45 Ports;
  • 4 PSE Ports (Port1~4);
  • Complies with IEEE802.3af/at/bt Power over Ethernet;
  • Use 4 pairs of power supply, and output power more;
  • Auto detect power device;
  • Remote power and Data feeding up to 100m;
  • Flow Control for Full Duplex operation and back pressure for Half Duplex Operation;
  • 2K MAC address, automatic address learning and address aging;

Product Specification

Hardware information


PM9005GSN V1


IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3bt

Network Media(Cable)

10BASE-T: UTP category 3,4,5 cable (≤100m)

100BASE-TX: UTP category 5,5e cable (≤100m)

1000BASE-T: UTP category 5e,6 cable (≤100m)


Power ,PoE ,LNK/ACT

Key function


Jumbo frame

9K Byte

MAC Address Table

2K, Auto-learning, Auto-aging

Packet buffer

1M bit

Forward rate


Transfer mode


Switching Capacity


Dimensions (L*W*H)




Power Supply

External 150W

External 185W(Optional)

PoE power Budget



PSE port


PoE Power Output

Port 1-2( Max.90W); Port 3-4(Max.30W)

PSE Power on RJ-45

Port1-2 4Pairs power lines 1/2(-),3/6(+) and 4/5(+),7/8(-)

Port3-4 2Pairs power lines 1/2(-),3/6(+)

Operating Temperature

0°C ~ 40 °C (32 °F ~104°F )

Storage Temperature

-40 °C ~ 70 °C (-40 °F ~158°F )

Operating Humidity

10% ~ 90% non-condensing

Storage Humidity

5% ~ 90% non-condensing

Surge Protection

Difference Mode:±2KV, Common mode:±4KV


>50000 hour

Electrostatic standard

Contact 4KV,air 6KV

Ordering information


product information

PM9005GSN V1

4-Port Gigabit+1GE High PoE Switch

Note: all other trademarks or registered trademarks mentioned in this document are owned by their respective owners!
