Product Overview

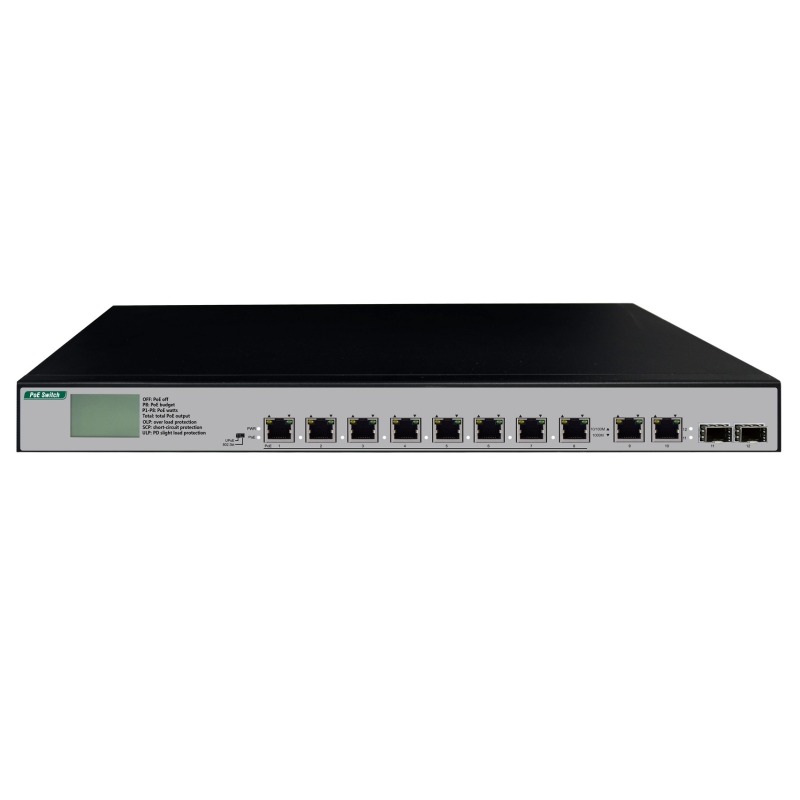

PM6012GSFL V2 is my company independent development of high power PoE switch with LCD display, provides 10- 10/100/1000Mbps RJ45 port and 2 -Port 1000Mbps SFP Slot, all RJ45 ports support MDI/ MDIX function. Among them 1-8 ports have PSE function, using 4 twisted-pair cable to the terminal equipment of power supply at the same time, the output power up to 90 W, complies with IEEE802.3af/at/bt standard, can automatically detect identification standard of electrical equipment and through the cable power supply to them.
The LCD not only can display the PoE work status, accurate judgment port of load, can also help customer and engineer timely discover and solve the network failure, improve work efficiency and quality.
Product Features
- Support IEEE802.3bt,complies with IEEE802.3af/at Standard;
- Auto detect power device;
- Supports PoE power up to 90W for each PoE port;
- Support port power supply prioritization, guarantee the continuous power supply of key nodes;
- Remote power and Data feeding up to 100m;
- Flow Control for Full Duplex operation and back pressure for Half Duplex Operation;
- Support PD Type:IEEE802.3af/at/bt PD and Pre-Standard PD;
- Smart Fan Function;
- Support LCD display;
- Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az);
Product Specifications
Model | PM6012GSFL V2 |
Port | 10x10/100/1000Mbps RJ45 Port 2x1000Mbps SFP Slots |
PoE Standard | IEEE802.3af/at/bt |
PoE Port | Port 1~8 |
PSE Power on RJ-45 | 4Pairs power lines 1/2(-),3/6(+) 4/5(+),7/8(-) |
PoE Power Output | Per port 55V DC Max.90W |
Power supply | 390W |
PoE Power Budget | 370W |
PoE LCD | Support |
Forwarding Mode | Storage-and-Forward |
Key function | 802.3bt/UPoE |
Switching Capacity | 24G |
MAC address table | 8K, Auto--learning, Auto-aging |
Jumbo frames | 9216Byte |
Buffer | 4.1Mbit |
Forwarding Rate | 17.85Mpps |
Input Power Supply | AC 100-240V 50/60Hz |
Operation Temperature | 0℃~40℃ |
Storage Temperature | -40℃~70℃ |
Operation Humidity | 10%~90% RH non-condensing |
Storage Humidity | 5%~90% RH non-condensing |
Dimensions(L*W*H) | 440*232*45mm |
Fan Qty | 3 |
Weight | <5Kg |
LED Indicator | PWR, LNK/ACT, PoE |
Network Media | 10BASE-T: UTP category 3, 5 cable (≤100m) 100BASE-TX: UTP category 5,5e cable (≤100m) 1000BASE-T: UTP category 5e,6 cable(≤100m) 1000BASE-X: MMF, SMF |
Surge Protection | ±6KV |
MTBF | >50000 hour |
Electrostatic standard | Contact 4KV,air 6KV |
Green energy saving | Support IEEE(802.3az) |
LCD Features
PM6012GSFL V2 is with the function of the LCD display and PoE Ethernet switch. The LCD can display the working condition of PoE port not only, still can accurately show the state of each port, such as: Output power, Overload, Short circuit, Light load, Low voltage, Over voltage,High temperature, and so on...


PoE Feature
The PM6012GSFL V2 can provide up to 90 Watts of power to attached devices, such as POS,PTZ cameras, Notebook Laptops, Thin Clients, Information Kiosks, WiMax, VoIP phones, wireless access points, surveillance cameras etc, all over existing cat. 5cables. The switch eliminates the need for individual power sources for devices in the network, saving on costs for power cables and avoiding power outlet availability issues.
Ordering information
Model | Product Information |
PM6012GSFL V2 | 8-Port Gigabit+2GE+2G SFP PoE Switch with LCD display (8-Port PoE,Support 802.3af/at/bt Standard) |
