Model NO.:
PM6001GIN-W V1
Quantity:

Product Overview

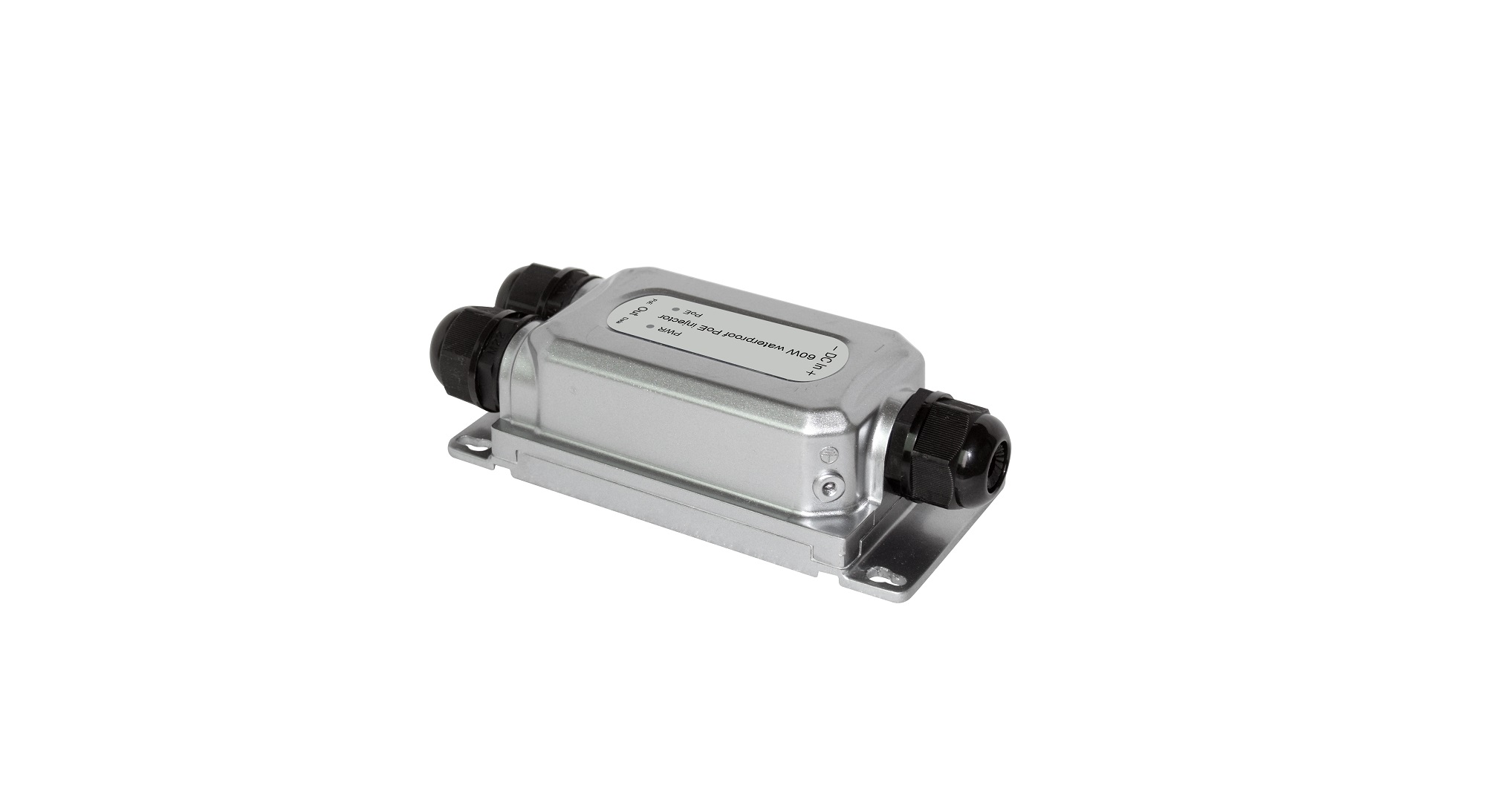

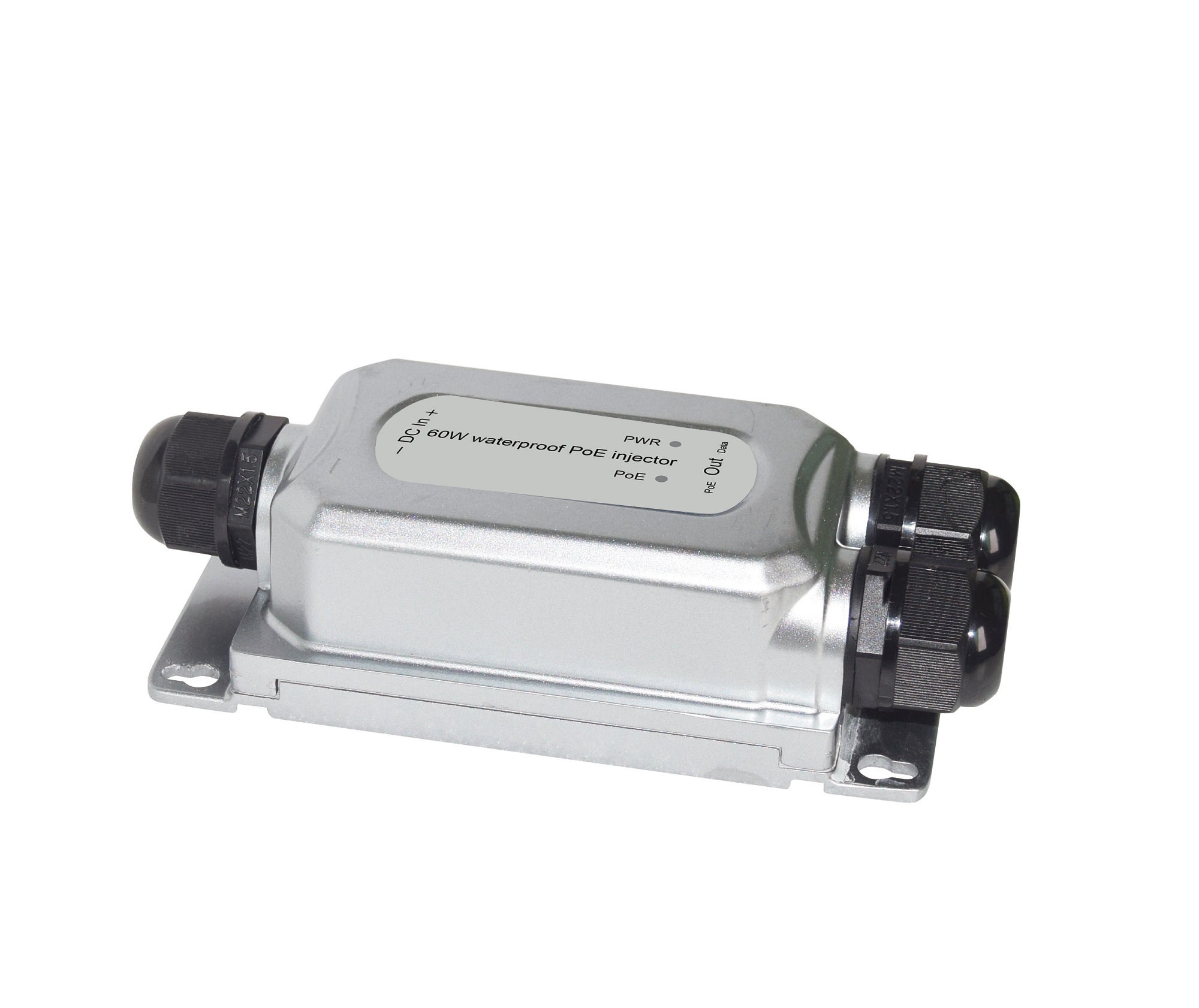

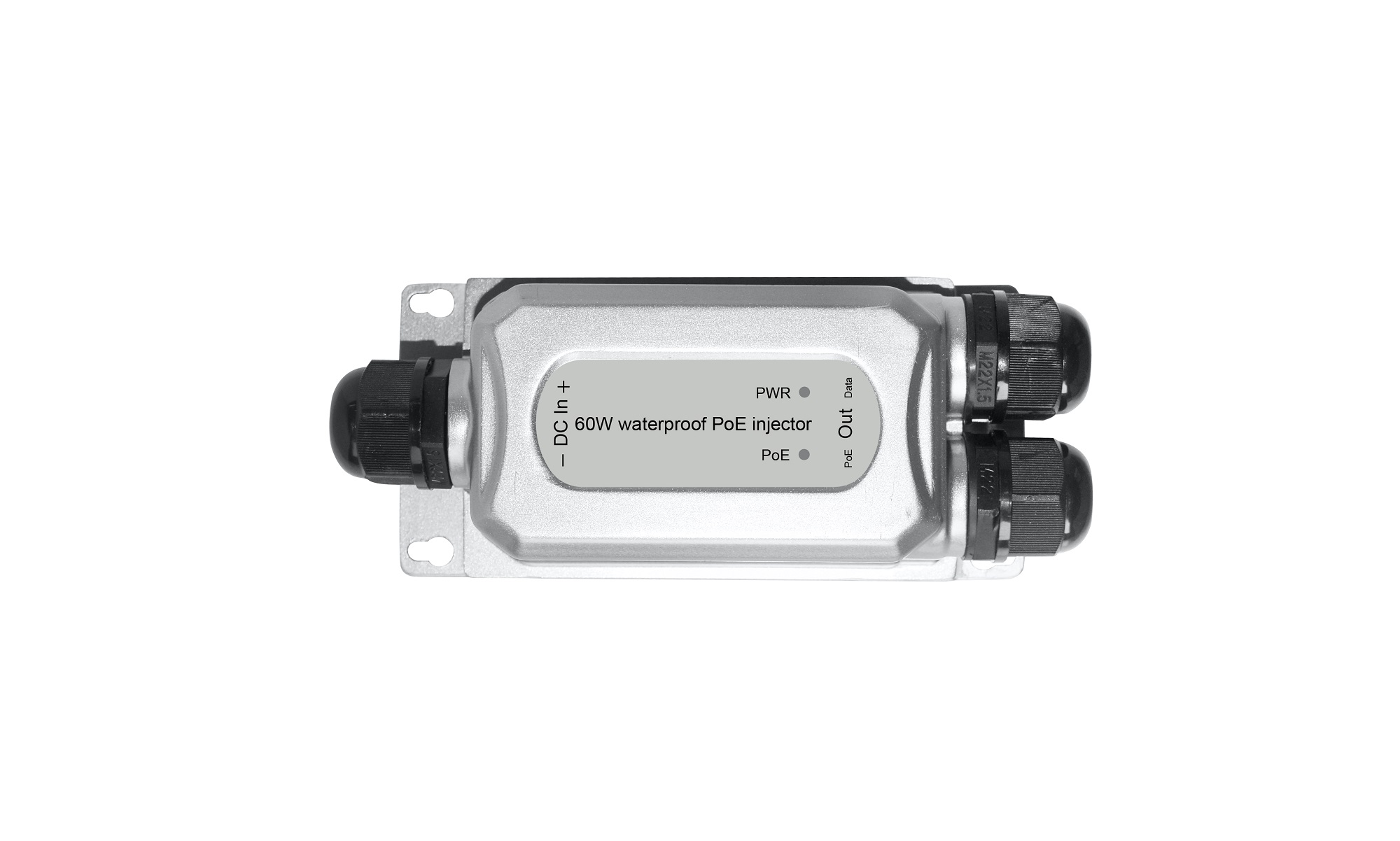

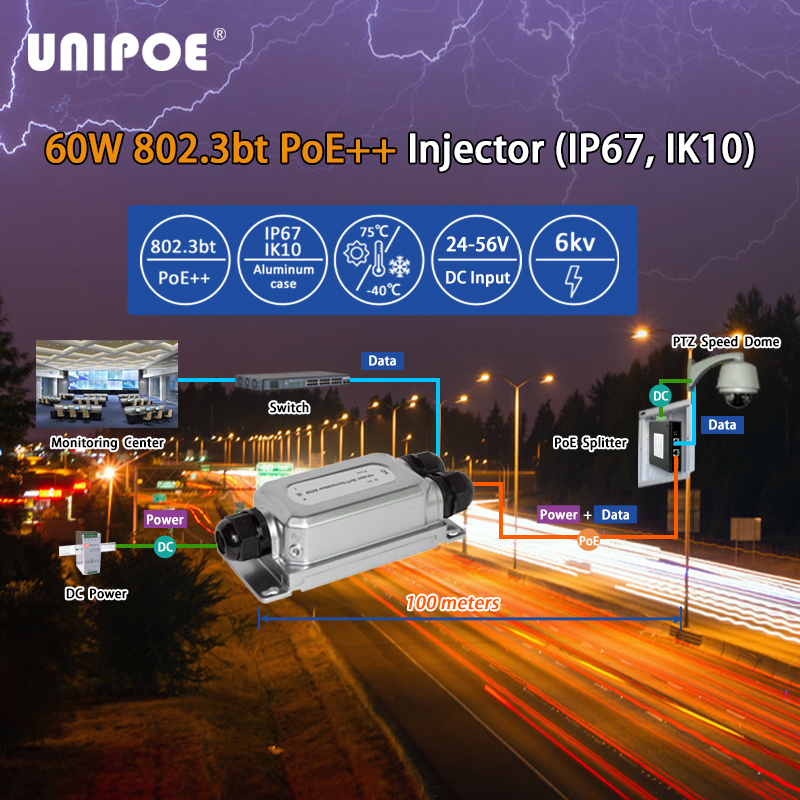

The PoE Injector PM6001GIN-W V1 fully complies with IEEE 802.3af/at/bt standard, and can work with all IEEE 802.3af /at /bt PoE compliant PD (Powered Devices) or PoE Receiver Adapters or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

Professional outdoor shell design, adapt to a variety of harsh environment, with high stability, reliability, industrial level, wide temperature. The whole machine does not need power adapter, convenient outdoor environment and indoor monitoring equipment is not easy to take electricity.

Product Features

  • Complies with IEEE802.3af/at/bt Standard;
  • Metal shell, protection level IP67, IK10 vandal proof;
  • Use 4 pairs of power supply, and output power more;
  • Auto detect power device;
  • Support PoE power up to 60W;
  • Remote power and Data feeding up to 100m;
  • Gigabit Internet port;
  • built-in Power, Plug-and-play, requires no configuration;
  • Intelligent protection and power supply;
  • Working temperature:-40 ℃ to 75℃or -20 ℃ to 60℃(Optional);
  • Short Circuit Protection;
  • It's ideal for harsh outdoor environment.

Product Specifications

Model

PM6001GIN-W V1

Port

Data out: 1x10/100/1000Mbps RJ45 Port

PoE Out: 1x10/100/1000Mbps RJ45 Port

DC IN port

PoE Standard

IEEE802.3af/at/bt

PSE Power on RJ-45

Data Pairs 1/2(-), 3/6(+)

Spare Pairs 4/5(+), 7/8(-)

PoE Power Output

DC 48-56V, 60W

Input Power Supply

DC 24-57V 75W Max

Input Current

3.05Amax, @24VDC (Full Load)

Output Voltage

DC55V±5%

Output current

1.2A Max

output ripple voltage

≤200mV, Test conditions: rated input voltage, full load output, Tested with 20MHz bandwidth oscilloscope,  Parallel connected a 0.1uF ceramic capacitor and a 10uF electrolytic capacitor to the output

Operation Temperature

-40℃~75℃

-20℃~60℃(Optional)

Storage Temperature

-40℃~80℃

Operation Humidity

10%~90% RH  non-condensing

Storage Humidity

5%~90% RH  non-condensing

Dimensions(L*W*H)

150*73*44MM

LED Indicator

PWR(Green) , PoE (Bt: Green, UPoE: orange)

Network Media(Cable)

10BASE-T: UTP category 3, 5 cable (≤100m)
100BASE-TX: UTP category 5, 5e cable (≤100m)

1000BASE-T: UTP category 5e, 6 cable(≤100m)

Surge Protection

Difference Mode: ±4KV, Common mode: ±6KV

MTBF

>50000 hours

Electrostatic standard

Contact 6KV, air 8KV

waterproofing grade

IP67

anti-hazard classification

IK10

Ordering information

Model

Product Information

PM6001GIN-W V1

60W Waterproof PoE Injector
