Product Overview

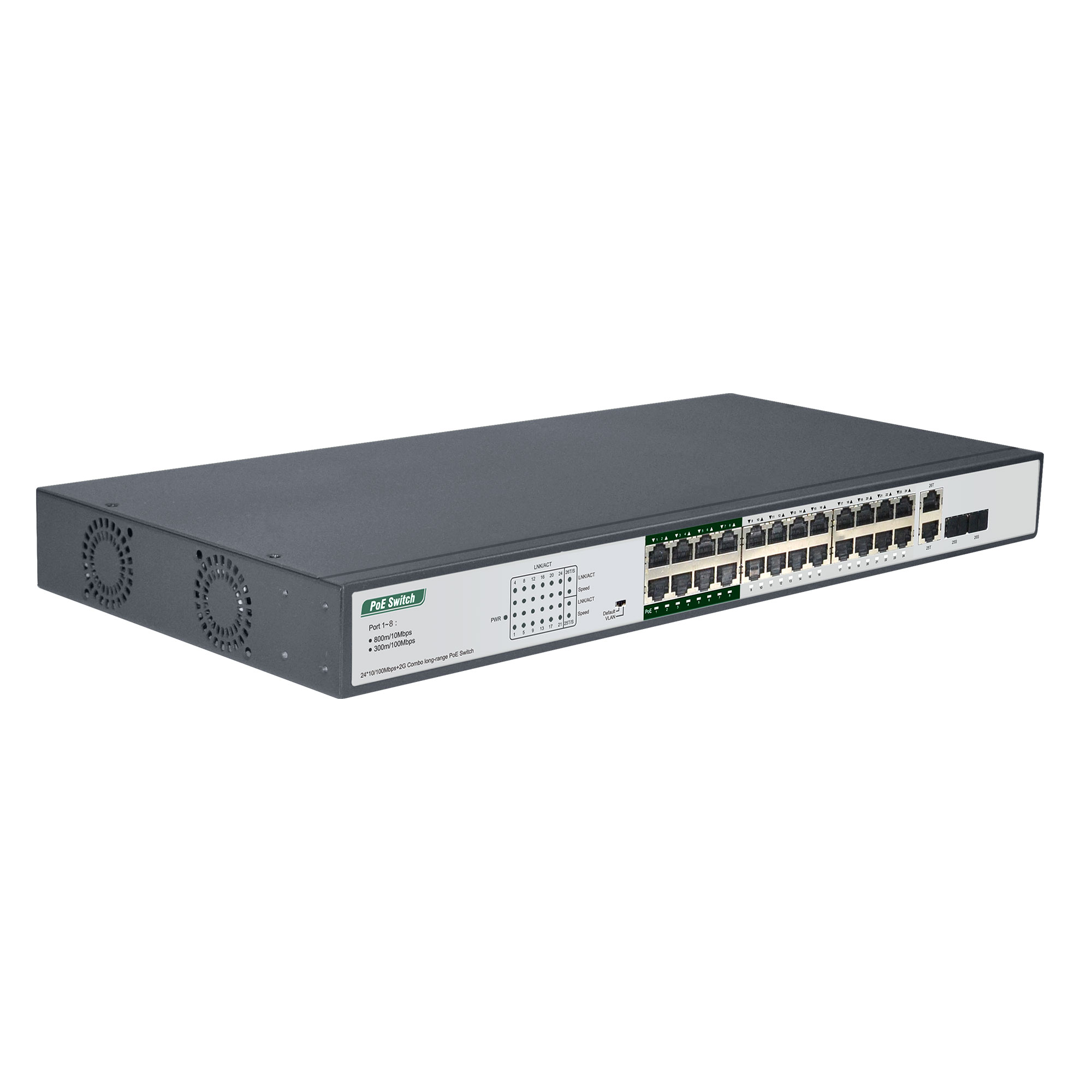

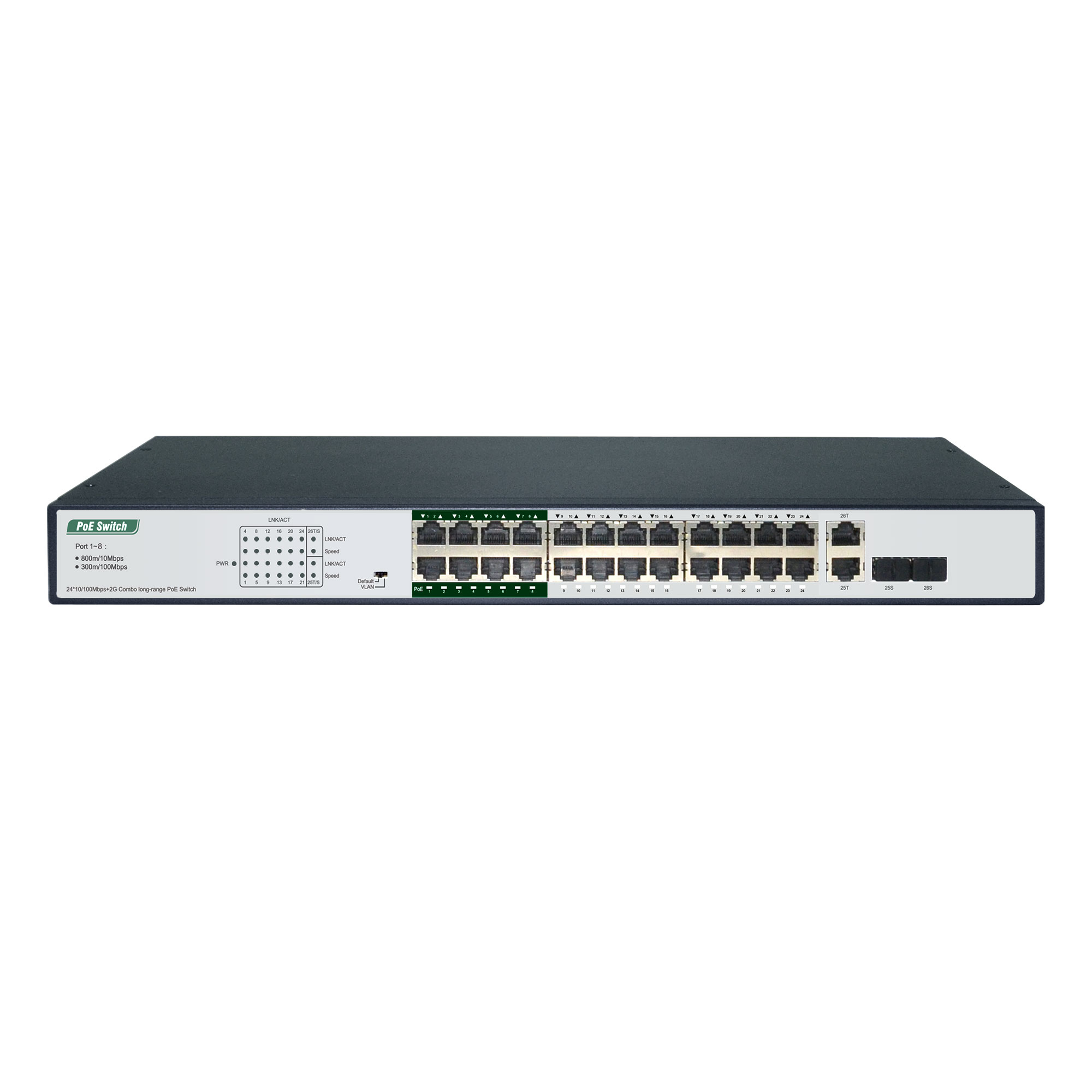

PM3028FSNR V1 PoE Switch is 24-port 10/100Mbps PoE + 2G Combo Ethernet Switch. Among them port1-8 PoE ports support long-distance transmission of 800 meters(optional)(with long-range Equipment)， The PoE ports can automatically detect and supply power to IEEE802.3af/at compliant Powered Devices (PD). The electrical power and data transmission on the same cable can expand your network to the places where no power lines or outlets, where you can install devices such as APs, IP cameras, or IP phones etc.
The PoE Switch provides a simple, cost- effective, and non-blocking wire-speed performance with 19-inch metal shape for rack deployment in office or department network application.
Features
- 24*10/100Mbps PoE RJ45 Ports;
- 2*10/100/1000Mbps Combo Ports;
- Complies with IEEE802.3af/at Power over Ethernet;
- Supports PoE Power up to 32W for each PoE port;
- Auto detect power device;
- Delivers full POE Plus power at 300-500m(By module);
- Unrestricted 10Mbps with POE at over 800m;
- Flow Control for Full Duplex operation and back pressure for Half Duplex Operation;
- Supports port power supply prioritization, guarantee the continuous power supply of key nodes;
- Support VLAN function;
- 16K MAC address, automatic address learning and address aging;
- Support Energy-Efficient Ethernet (EEE) function EEE802.3az;
- Support PD Alive function(the switch port is disconnected will automatically connected);
Specification
Model | PM3028FSNR V1 |
Standard | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af, IEEE802.3at |
Interface | 24*10/100Mbps RJ45 port 2*10/100/1000Mbps TP/SFP Combo port |
Network Media | 10BASE-T: UTP category 3,4,5 cable (≤100m) 100BASE-TX: UTP category 5,5e cable (≤100m) 1000BASE-T: UTP category 5e,6 cable (≤100m) 1000BASE-X: SMF, MMF |
LED | PWR, PoE, LINK/ACT, Speed |
Key Function | VLAN |
MAC Address Table | 16K, Auto-learning, Auto-aging |
Transfer mode | Store-and-Forward |
Maximum packet length | 16K |
Switching Capacity | 8.8G |
Packet forwarding rate | 6.5Mpps |
Packet buffer | 4M bit |
Dimensions (L*W*H) | 440*207*44mm |
Fan Qty | 2 |

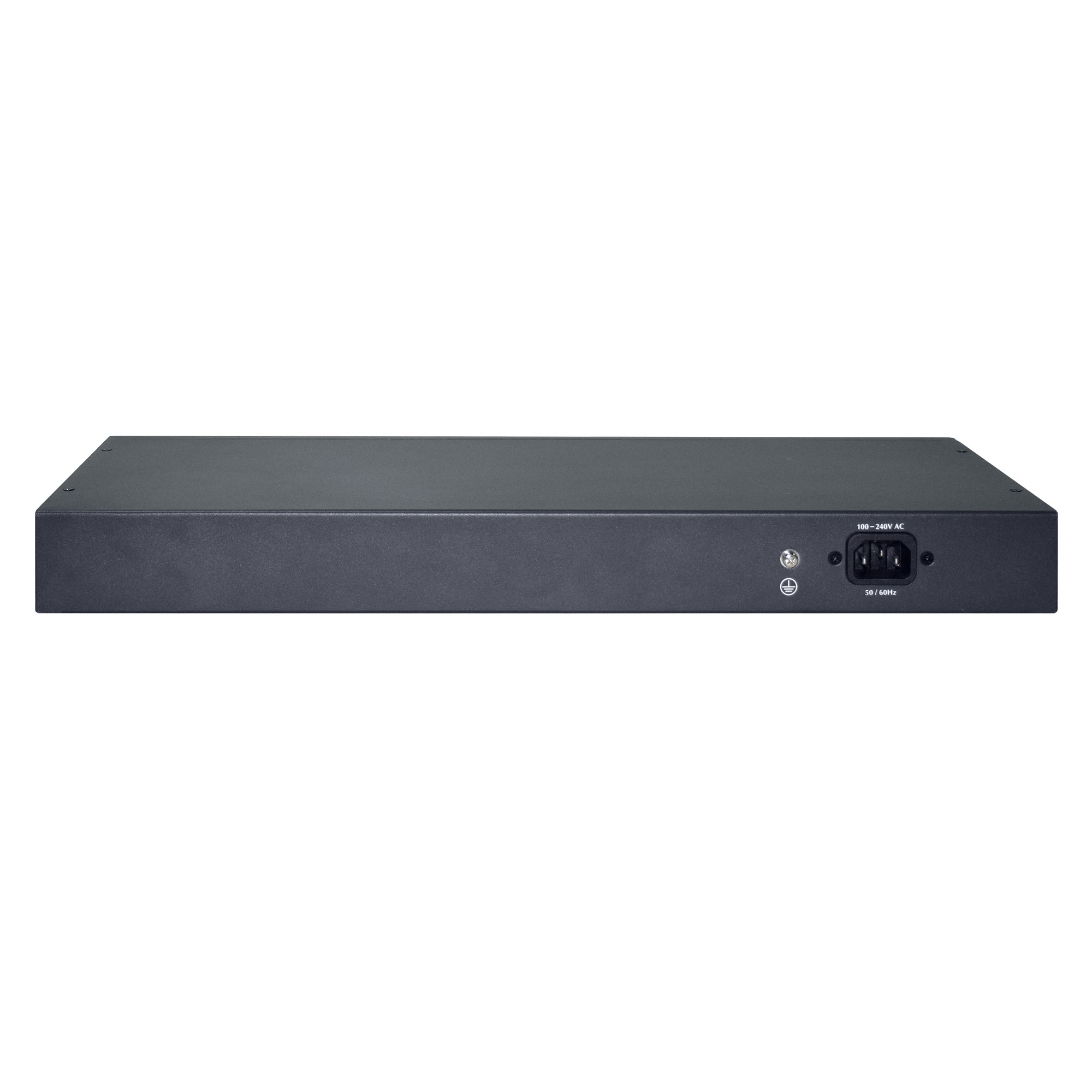

Power Input | AC: 100~240V, 50/60Hz 5A（Max） |
PoE port | Port1~24(port1-8 can choose 4 or 8 port to support 800 meters of long-distance transmission) Used with long-range Equipment |
PoE Power on RJ45 | Mode A 1/2(+),3/6(-) |
PoE Power Output | Voltage: 55V DC Power: 32W(Max) |
Power supply | 270W | 390W(optional) |
PoE Power Budget | 250W | 370W(optional) |
Operating Temperature | 0°C ~ 40 °C (32 °F ~104°F ) |
Storage Temperature | -40 °C ~ 70 °C (-40 °F ~158°F ) |
Operating Humidity | 10% ~ 90% non-condensing |
Storage Humidity | 5% ~ 90% non-condensing |
Surge Protection | Different mode±2KV common mode±6KV |
MTBF | >50000 hours |
Electrostatic standard | Contact 6KV,air 8KV |
green energy saving | Support IEEE 802.3az |
Ordering information
Model | product information |
PM3028FSNR V1 | 24*10/100Mbps+2G Combo Long-Range PoE Switch(Used with long-range Equipment) |
