Model NO.:
PM3028FSN V4

Product Overview

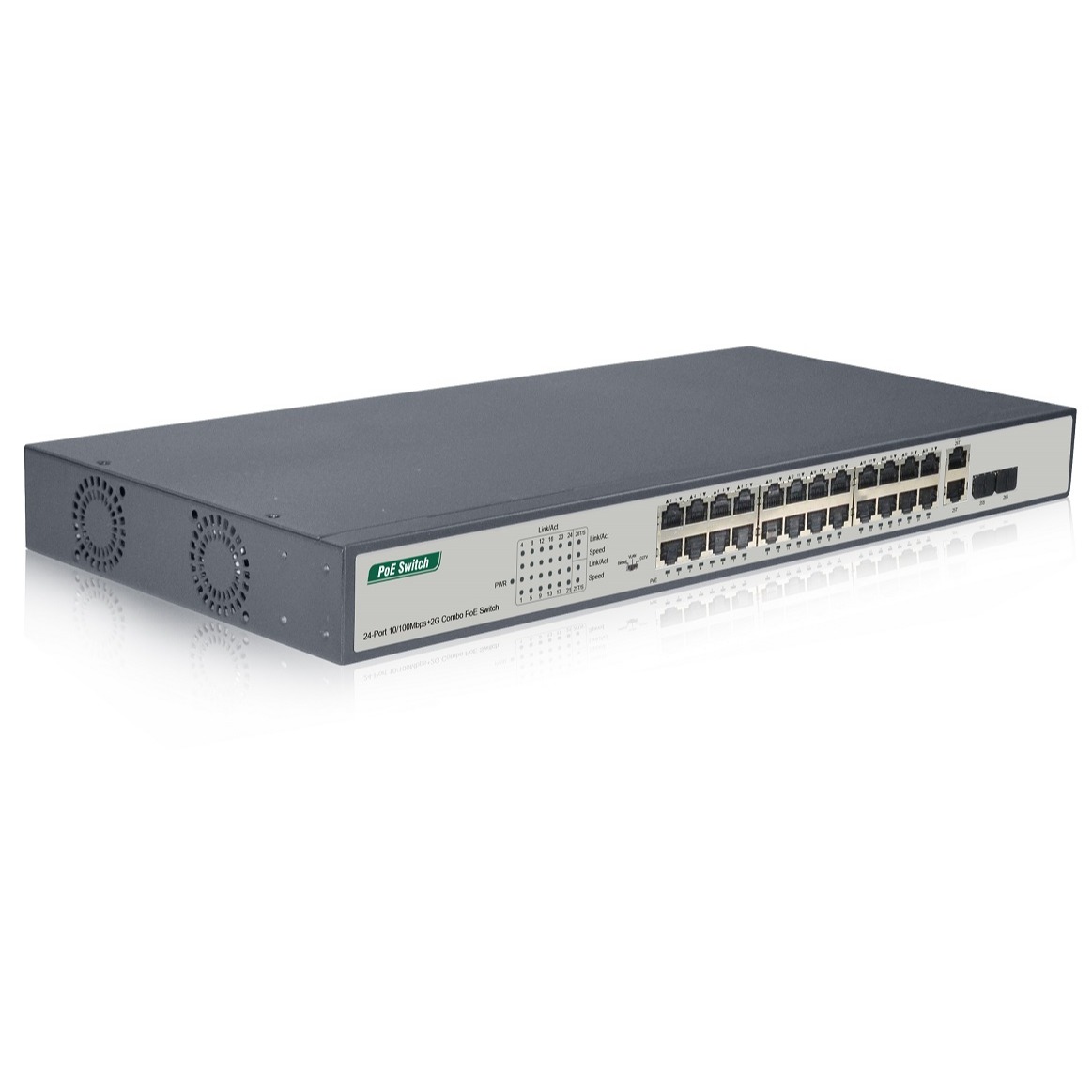

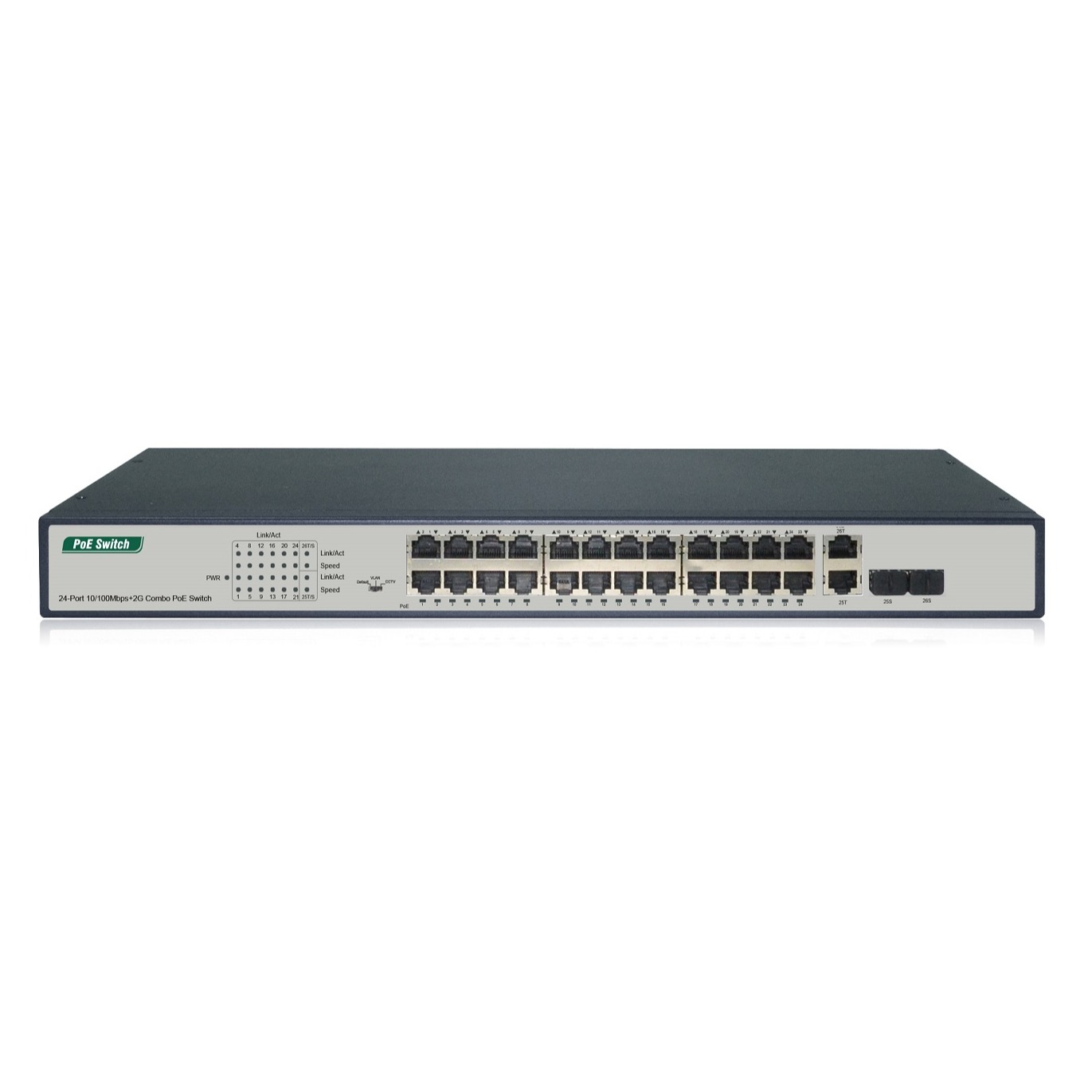

PM3028FSN V4 PoE Switch is 24-port 10/100Mbps PoE + 2G Combo Ethernet Switch. The PoE ports can automatically detect and supply power to IEEE802.3af/at compliant Powered Devices (PD). The electrical power and data transmission on the same cable can expand your network to the places where no power lines or outlets, where you can install devices such as APs, IP cameras, or IP phones etc.

The PoE Switch provides a simple, cost- effective, and non-blocking wire-speed performance with 19-inch metal shape for rack deployment in office or department network application.

Features

  •  24*10/100Mbps PoE RJ45 Ports:
  •  2*10/100/1000Mbps Combo Ports:
  •  Complies with IEEE802.3af/at Power over Ethernet:
  •  Supports PoE Power up to 32W for each PoE port:
  •  Auto detect power device:
  •  Remote power and Data feeding up to 100m:
  •  Flow Control for Full Duplex operation and back pressure for Half Duplex Operation:
  •  Support VLAN and CCTV function:
  •  16K MAC address, automatic address learning and address aging:
  •  Support Energy-Efficient Ethernet (EEE) function EEE802.3az:
  •  Support PD Alive function(the switch port is disconnected will automatically connected);


Specification

Model

PM3028FSN V4

Standard

IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af, IEEE802.3at

Interface

24*10/100Mbps RJ45 port

2*10/100/1000Mbps TP/SFP Combo port

Network Media

10BASE-T: UTP category 3, 4, 5 cable (≤100m)

100BASE-TX: UTP category 5, 5e cable (≤100m)

1000BASE-T: UTP category 5e, 6 cable (≤100m)

1000BASE-X: SMF, MMF

LED

PWR、 PoE 、LINK/ACT、 Speed

Key Function

VLAN & CCTV

MAC Address Table

16K, Auto-learning, Auto-aging

Transfer mode

Store-and-Forward

Maximum packet length

16K

Switching Capacity

8.8G

Packet forwarding rate

6.5Mpps

Packet buffer

4M bit

Dimensions (L*W*H)

440*207*44mm

Fan Qty

2

Power Input

AC: 100~240V, 50/60Hz 5A(Max)

PoE port

Port1~24

PoE Power on RJ45

Mode A  1/2(+), 3/6(-)

PoE Power Output

Voltage: 55V DC Power: 32W(Max)

Power supply

270W/390W(optional)

PoE Power Budget

250W/370W(optional)

Operating Temperature

0°C ~ 40 °C (32 °F ~104°F )

Storage Temperature

-40 °C ~ 70 °C (-40 °F ~158°F )

Operating Humidity

10% ~ 90% non-condensing

Storage Humidity

5% ~ 90% non-condensing

Surge Protection

Different mode±4KV common mode±6KV

MTBF

>50000 hours

Electrostatic standard

Contact 6KV, air 8KV

green energy saving

Support IEEE 802.3az

Ordering information

Model

product information

PM3028FSN V4

24*10/100Mbps+2G Combo PoE Switch
