Model NO.:
PM3012FSI
Delivery:
FOB

Product Overview

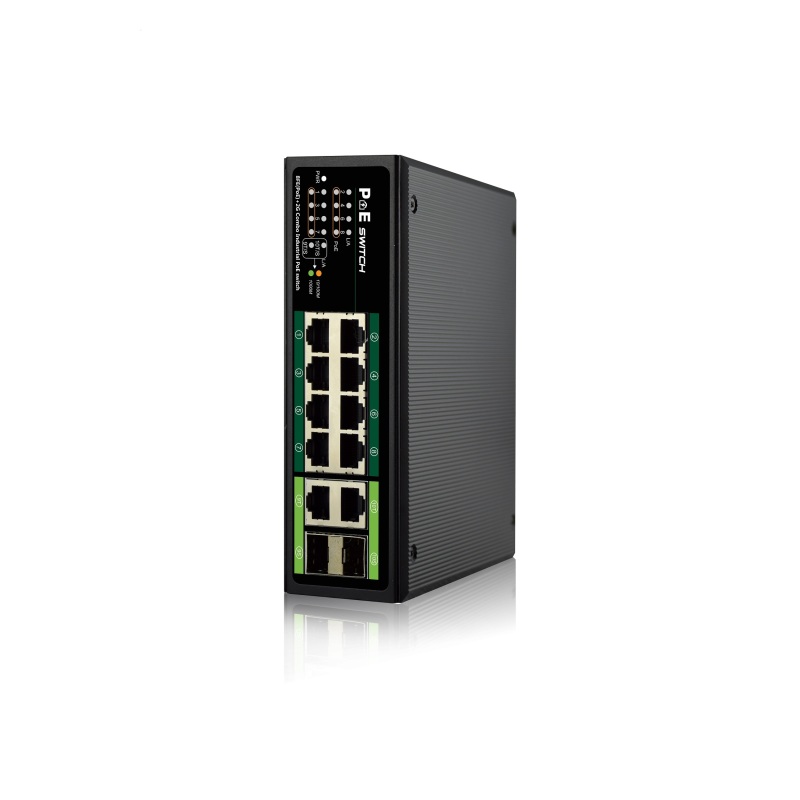

PM3012FSI is optimal at independent research and development of industrial unmanagement PoE switches, have 8*10/100Mbps RJ45 and 2*Gigabit TP/SFP Combo Ports, RJ45 port support MDI/MDIX automatically flip forward capability and line speed. Among them 1-8 port support PoE function, support IEEE802.3af/at standard, can be used as Ethernet power supply devices, can automatically detect identification standard of electrical equipment, and through the cable for the power supply.

This product is designed for severe bad industrial environment design, can support rail installation, Port surge protection can be up to 6kv, Working temperature range -40℃~75℃, can satisfy the special demand of industrial automation control.



Product Features

  •  Support IEEE802.3 at standard, compatible with IEEE802.3 af by electrical equipment (PD);
  •  Stand-up output power up to 32 W;
  •  Automatic detection of PD equipment;
  •  No fan, full metal high energy roof conducting tank;
  •  Auto detect power device; will not burned non-standard PoE device or normal PoE switch:
  •  Support port power supply prioritization, guarantee the continuous power supply of key nodes:
  •  Support IEEE802.3 x full duplex flow control and Backpressure half duplex flow control;
  •  Panel lights to monitor working state and help fault analysis;
  •  Perfect security mechanism;
  •  Operating temperature: -40℃~75℃;


Model

PM3012FSI

Standard

IEEE 802.3、IEEE 802.3u、IEEE 802.3ab 、IEEE 802.3z、IEEE 802.3x、

Interface

8*10/100Mbps RJ45 Port (Auto Negotiation/Auto MDI/MDIX)

2*Gigabit TP/SFP Combo ports

PoE Standard

IEEE802.3af/at

PoE  Port

1-8 Port

PoE output-port

Max 32W

Transfer Mode

Store-and-forward

Switching Capacity

5.6Gbps

MAC Address Table

8K, Auto-learning, Auto-aging

jumbo frame

1632 Byte

Packet buffer

1M bit

Packet Forward Speed

4.17 Mpps

Input Power Supply

DC:48-57V or (24-55V booster module) optional

Operating Temperature

-40℃~75℃

Storage Temperature

-40 °C ~ 80 °C

Operating Humidity

10% ~ 90% non-condensing

Storage Humidity

5% ~ 90% non-condensing

Dimensions(L*W*H)

165*147*54mm

Fan Quantity

Fanless

Machine weight

<2kg

LED Indicator

PWR(Green)、LNK/ACT(10/100M:Green; Gigabit port:10/100M:Orange, 1000M:Green)
PoE(Orange)

Network media

10BASE-T: UTP category 3, 4, 5 cable(≤100m)

100BASE-TX: UTP category 5,  5e cable(≤100m)

1000BASE-T: UTP category 5e,  5 cable(≤100m)

1000BASE-TX: Turn gigabit SFP optical RJ45 electrical module
1000BASE-SX : Gigabit SFP multimode(850nm,  LC,  DDM)

1000BASE-LX : Gigabit SFP mode (1310nm,  LC,  DDM)

1000BASE-ZX: Gigabit SFP single mode (1550nm,  LC,  DDM)

Surge Protection

Differential mode ±4KV  Common mode ±6KV

EEE

IEEE 802.3az

MTBF

>100000 hours

Electrostatic standard

Contact 8KV, air 10KV



Ordering information

Model

product information

PM3012FSI

8*10/100Mbps+2G Combo Industrial PoE switch(Support 802.3 af/at standard)
