  • Model NO.: PM3010FSNR V1
  • Accept Min order:No

Product Overview

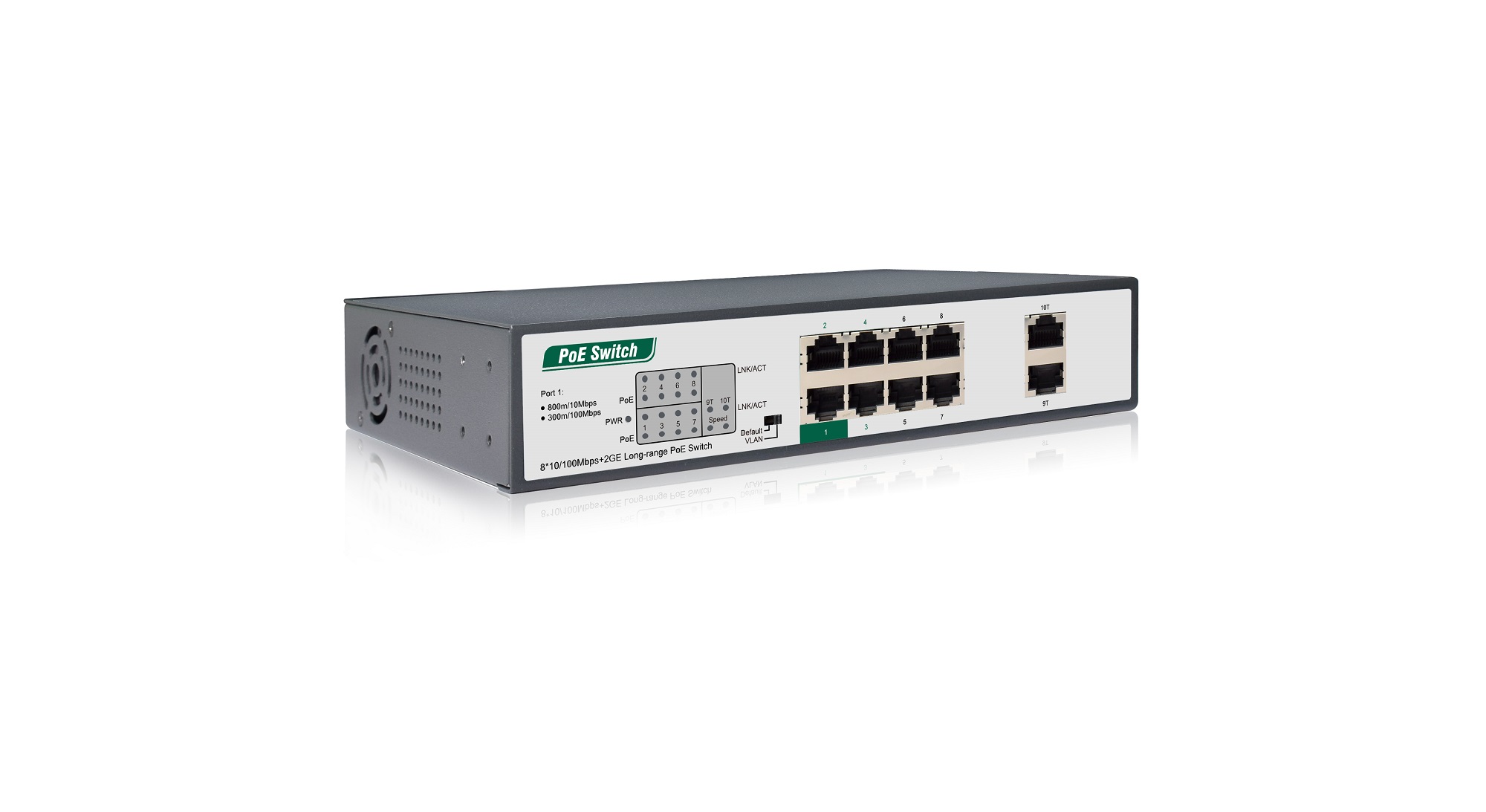

PM3010FSNR V1 have 8-port 10/100Mbps RJ45 and 2-port Gigabit RJ45, switch with 8 port PoE (Port1~8). Among them port1-4 PoE ports support long-distance transmission of 800 meters(optional)(with long-range Equipment), The electrical power and data transmission on the same cable can expand your network to the places where no power lines or outlets, where you can install devices such as APs, IP cameras, or IP phones etc.

PoE, main board and power supply are all in one, PM3010FSNR V1 is easy to install and become smaller and more flexible. In addition, It is easy to manage and maintain which can meet a lot of networking environment, such as Business building, Community, Hotel, Office etc.

Features

  • Complies with IEEE802.3af/at Standard;
  • Supports PoE Power up to 32W for each PoE port;
  • Auto detect power device; will not burned non-standard PoE device or normal PoE switch;
  • Supports port power supply prioritization, guarantee the continuous power supply of key nodes;
  • Delivers full POE Plus power at 300-500m(By module);
  • Unrestricted 10Mbps with POE at over 800m;
  • Supports IEEE802.3 x full duplex flow control and Backpressure half duplex flow control;
  • Line-speed forwarding, intelligent identification;
  • Supports storage – and- forward for Data exchange;
  • Internal power supply with small case;
  • Power supply, PoE module and switch PCBA Three in one.

Product Specifications

Model

PM3010FSNR V1

PoE standard

IEEE802.3af/at

Interface

8*10/100Mbps RJ45 port

2*10/100/1000Mps RJ45 port

PoE port

1-8(port1-4 can choose 2 or 4 port to support 800 meters of long-distance transmission ) Used with long-range Equipment

PoE Total

120W

Power supply

125W

Key function

VLAN

RJ45 PoE power supply

Mode A   Anode1/2   Cathode3/6

PoE output-port

Max 32W

Indicator

PWR, LNK/ACT, PoE

Network media

10BASE-T: UTP category 3, 4, 5 cable(≤100m)

100BASE-TX: UTP category 5, 5e cable(≤100m)

1000BASE-T: UTP category 5e, 6 cable(≤100m)

MAC Address Table

16K, Automatic study, automatic updates

jumbo frame

16K

Packet buffer

4M bit

Transfer Mode

Store-and-forward

Packet forwarding rate

1.488Mpps

Bandwidth

5.6Gbps

Fan

1Fan

Fanless (Optional)

Device Dimension

220*150*44mm

Machine weight

<2.5kg

Input Voltage

AC 100-240V 50/60Hz

Operating Temperature

0°C ~ 40 °C

Storage Temperature

-40 °C ~ 70 °C

Operating Humidity

10% ~ 90%  non-condensing

Storage Humidity

5% ~ 90%  non-condensing

Surge Protection

Differential mode±2KV, Common mode ±6KV

MTBF

>50000 hour

Electrostatic standard

Contact 6KV, air 8KV

With long-range Equipment Test data:

Cable Length

(m)

Negotiating speed (Mbps)

PoE Max Load

Capacity (W)(PD)

Hi-PoE Max Load

Capacity (W)(PD)

50

100Mbps

30

45

100

100Mbps

29

43

150

100Mbps

28

41

200

100Mbps

28

40

250

100Mbps

27

38

300

100Mbps

26

35

350

100Mbps

25

33

400

100Mbps

24

31

450

100Mbps

23

29

500

100Mbps

23

28

550

10Mbps

22

25

600

10Mbps

21

23

650

10Mbps

20

21

700

10Mbps

19

20

750

10Mbps

19

19

800

10Mbps

17

17

Unipoe Power Supply Voltage is 56V.

Adopt PM104MM V1.0 version of the Module.

The cable is CAT.5e, 100m DC impedance is no more than 10.5Ω.

Ordering Information

Model

Product information

PM3010FSNR V1

8*10/100Mbps+2GE long-range PoE Switch (Used with long-range Equipment)



  • PM3010FSNR V1 User Guide.pdf:Download
