Model NO.:
PM3006FSNR V1
Delivery:
FOB

Product Overview

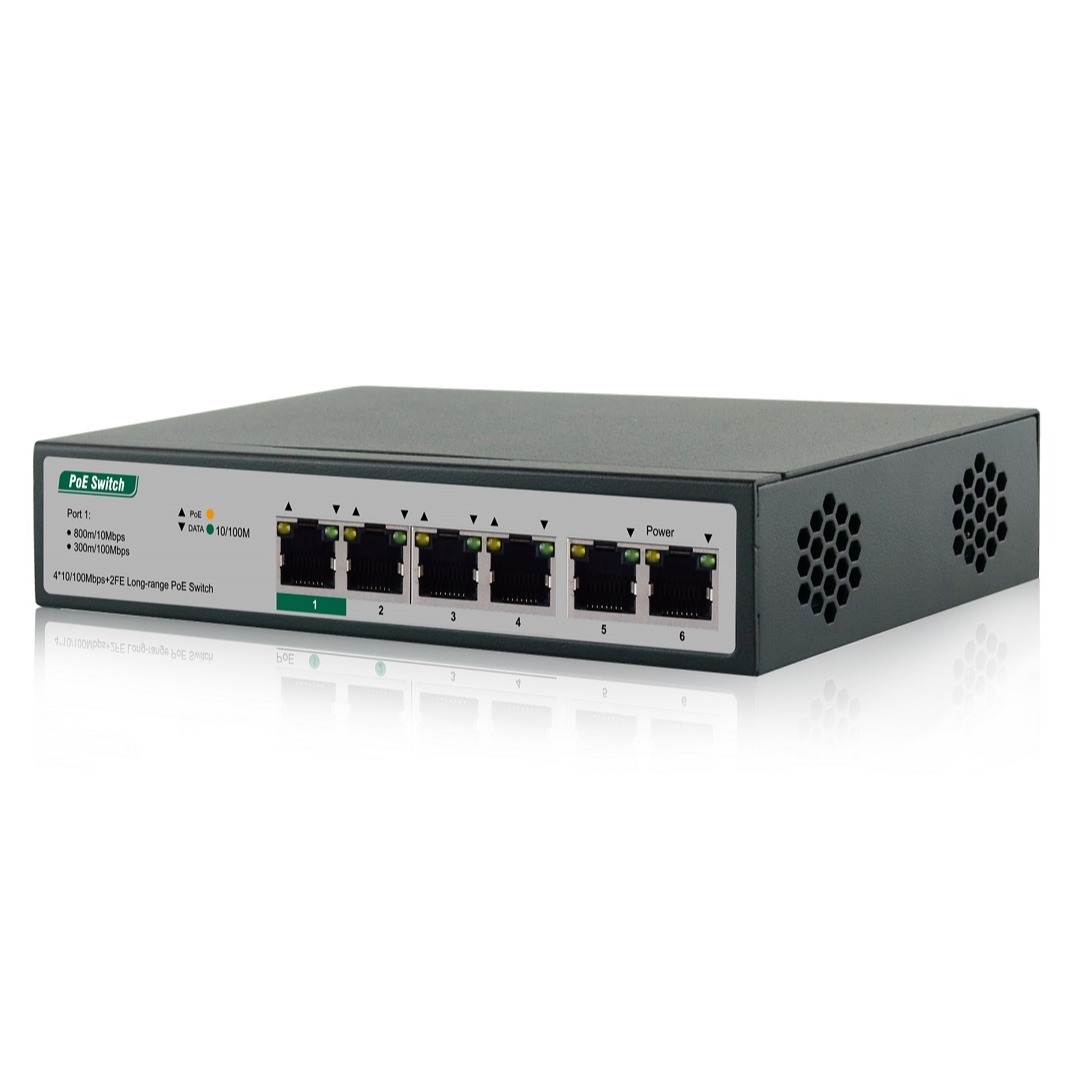

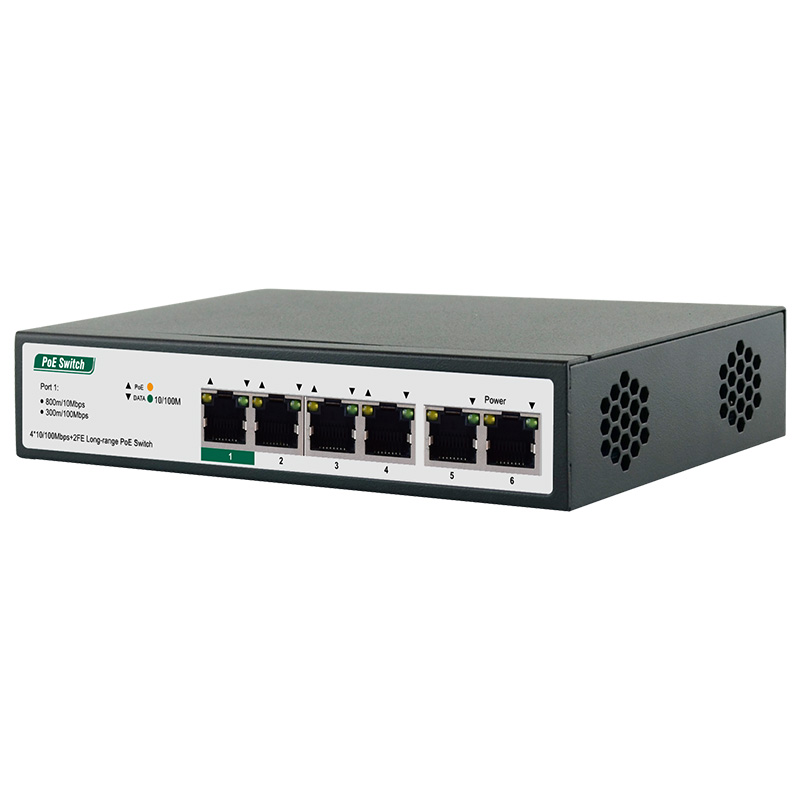

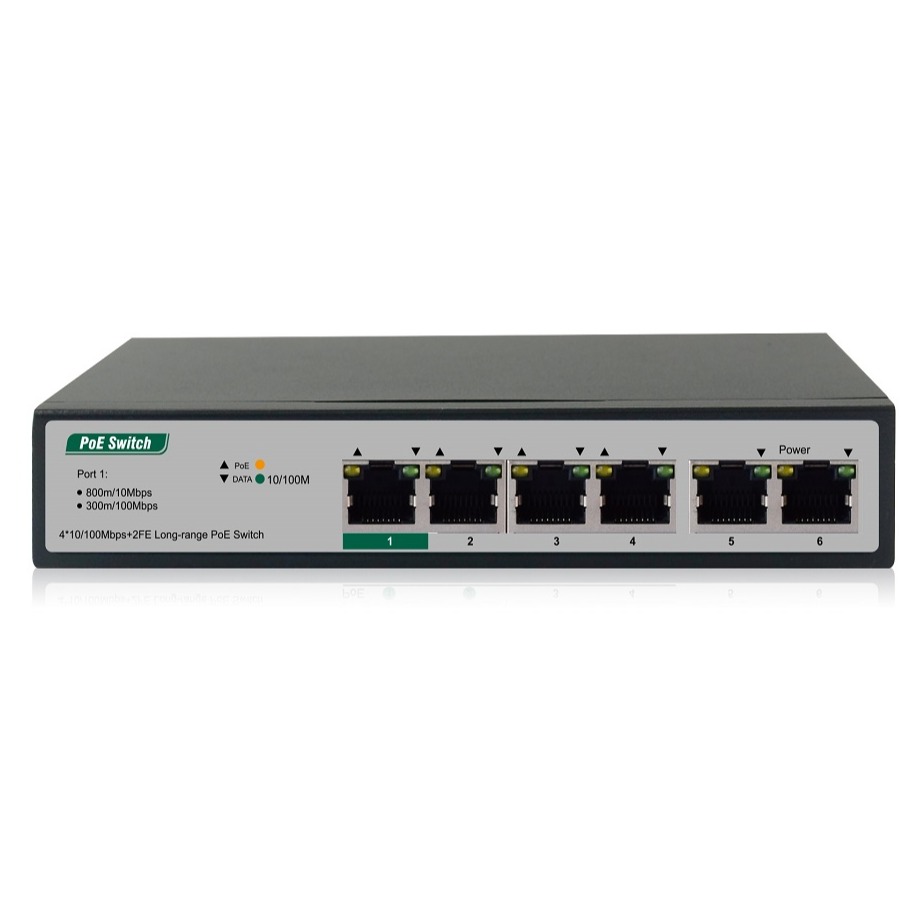

PM3006FSNR V1 is 6-port 10/100Mbps switch with 4 port PoE(Port1~4). Among them port1-2 PoE ports support long-distance transmission of 800 meters(Optional)(with long-range Equipment), The electrical power and data transmission on the same cable can expand your network to the places where no power lines or outlets, with store & forward technology and dynamic memory allocation,M3006FSNR V1 guarantee the bandwidth distributes each port effectively. Where you can install devices such as APs, IP cameras, or IP phones etc.

PoE, main board and power supply are all in one, PM3006FSNR V1 is easy to install and become smaller and more flexible. In addition, It is easy to manage and maintain which can meet a lot of networking environment, such as Business building, Community, Hotel, Office etc.

Features

  • Complies with IEEE802.3af/at Standard;
  • Supports PoE Power up to 32W for each PoE port;
  • Auto detect power device; will not burned non-standard PoE device or normal PoE switch;
  • Supports port power supply prioritization, guarantee the continuous power supply of key nodes;
  • Delivers full POE Plus power at 300-500m (By module);
  • Unrestricted 10Mbps with POE at over 800m;
  • Supports IEEE802.3 x full duplex flow control and Backpressure half duplex flow control;
  • Line-speed forwarding, intelligent identification;
  • Supports storage – and- forward for Data exchange;
  • Internal power supply with small case;
  • Power supply, PoE module and switch PCBA Three in one.


Product Specifications

Model

PM3006FSNR V1

PoE standard

IEEE802.3af/at

Interface

6*10/100Mbps RJ45 port

PoE port

1-4(port1-2 can choose 1or 2 port to support 800 meters of long-distance transmission) Used with long-range Equipment

PoE Total

60W

Power supply

65W

RJ45 PoE power supply

Mode A   Anode1/2   Cathode3/6

PoE output-port

Max 32W

Indicator

PWR, DATA, PoE

Network media

10BASE-T: UTP category 3, 4, 5 cable(≤100m)

100BASE-TX: UTP category 5,5e cable(≤100m)

MAC Address Table

1K, Automatic study, automatic updates

jumbo frame

1536Bytes

Packet buffer

448K bit

Transfer Mode

store-and-forward

Packet forwarding rate

0.89Mpps

Bandwidth

1.2Gbps

Fan

Fanless

Device Dimension

168*93*32mm

Machine weight

<1kg

Input Voltage

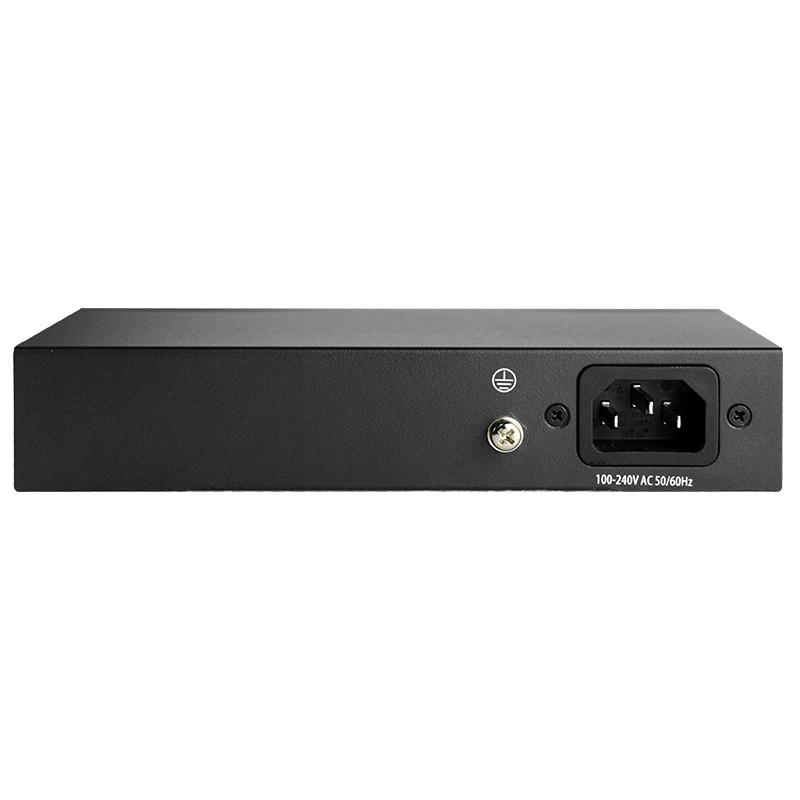

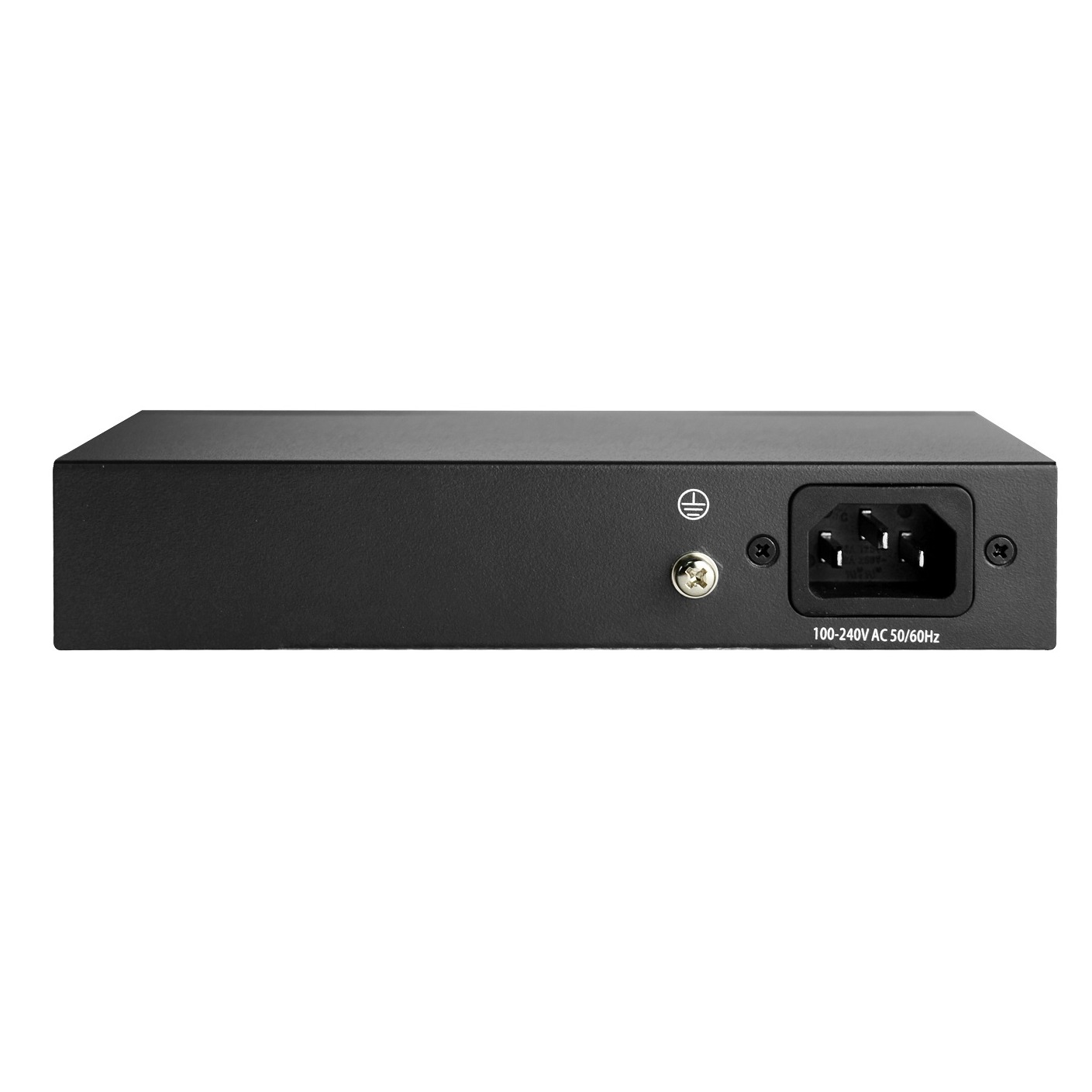

AC 100-240V 50/60Hz

Operating Temperature

0°C ~ 40 °C

Storage Temperature

-40 °C ~ 70 °C

Operating Humidity

10% ~ 90%  non-condensing

Storage Humidity

5% ~ 90%  non-condensing

Surge Protection

Differential mode±2KV, Common mode ±6KV

MTBF

>50000 hour

Electrostatic standard

Contact 6KV, air 8KV



With long-range Equipment Test data:

Cable Length (m)

Negotiating speed (Mbps)

PoE Max Load Capacity (W)(PD)

50

100Mbps

33

100

100Mbps

32

150

100Mbps

32

200

100Mbps

31

250

100Mbps

30

300

100Mbps

28

350

100Mbps

27

400

100Mbps

26

450

100Mbps

25

500

100Mbps

24

550

10Mbps

23

600

10Mbps

22

650

10Mbps

21

700

10Mbps

20

750

10Mbps

19

800

10Mbps

17

Unipoe Power Supply Voltage is 56V.

Adopt PM104MM V1.0 version of the Module.

The cable is CAT.5e,100m DC impedance is no more than 10.5Ω.
