Model NO.:
PM3006FSN V7

Product Overview

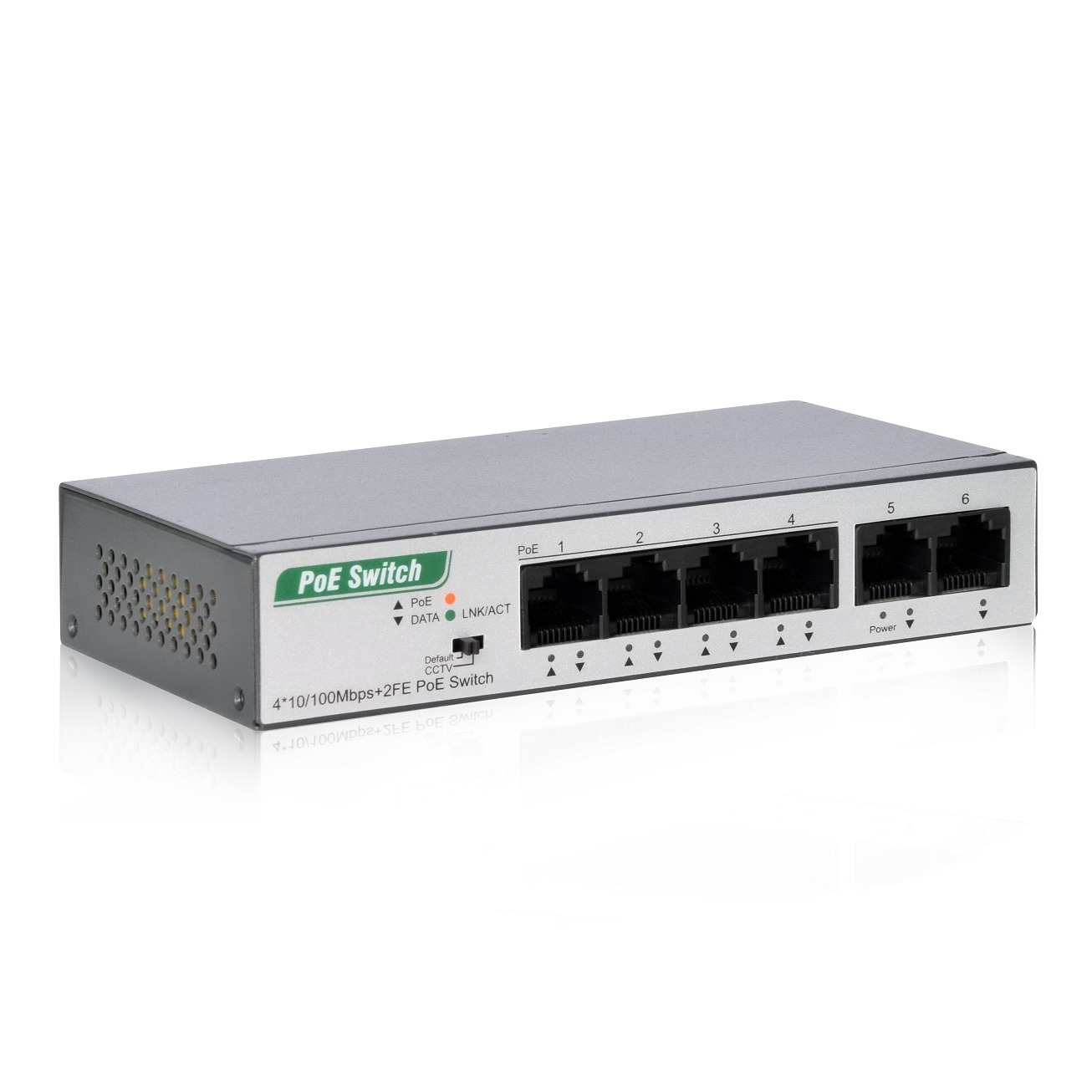

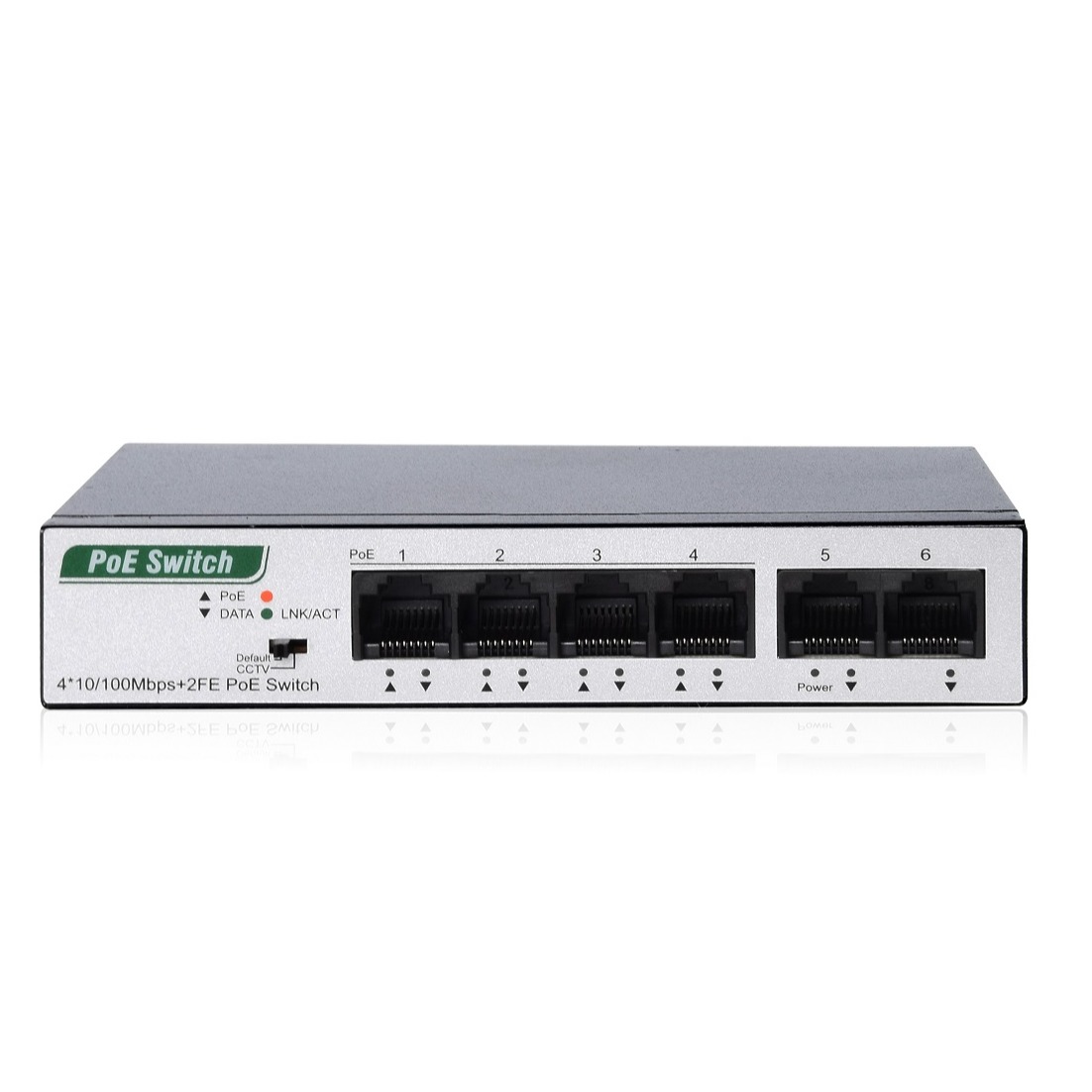

PM3006FSN V7 is 6-port 10/100Mbps switch with 4 port PoE(Port1~4). The electrical power and data transmission on the same cable can expand your network to the places where no power lines or outlets, where you can install devices such as APs, IP cameras, or IP phones etc. With store & forward technology and dynamic memory allocation, PM3006FSN V7 guarantee the bandwidth distribute each port effectively.


With Power supply, PoE module and switch PCBA Three in one, PM3006FSN V7 is easy to install and become smaller and more flexible. In addition, PM3006FSN V7 supports CCTV function which can improve the network environment and reduces network maintenance costs. It is easy to manage and maintain which can meet a lot of networking environment, such as Business building, Community, Hotel, Office etc.

Features

  • Complies with IEEE802.3af/at Standard;
  • Supports PoE Power up to 32W for each PoE port
  • Auto detect power device; will not burned non-standard PoE device or normal PoE switch.;
  • Supports port power supply prioritization, guarantee the continuous power supply of key nodes
  • One key CCTV mode, Remote power and Data feeding up to 250m;
  • Supports IEEE802.3 x full duplex flow control and Backpressure half duplex flow control;
  • Line-speed forwarding, intelligent identification
  • Supports storage – and- forward for Data exchange;
  • Internal power supply with small case.
  • Support PD Alive function(the switch port is disconnected will automatically connected);
  • Power supply, PoE module and switch PCBA Three in one.


Product Specifications

Model

PM3006FSN V7

PoE standard

IEEE802.3af/at

Interface

6*10/100Mbps RJ45 port

key function

CCTV

PoE port

1-4

PoE Total

60W

40W(Optional)

Power supply

65W/45W

45W(Optional)

RJ45 PoE power supply

Mode A   Anode1/2  Cathode 3/6

PoE output-port

Max 32W

Indicator

PWR, LNK/ACT, PoE

Network media

10BASE-T: UTP category 3, 4, 5 cable(≤100m)

100BASE-TX: UTP category 5, 5e cable(≤100m)

MAC Address Table

1K, Automatic study, automatic updates

jumbo frame

1536Bytes

Packet buffer

448K bit

Transfer Mode

store-and-forward

Packet forwarding rate

0.89Mpps

Bandwidth

1.2Gbps

Fan

Fanless

Device Dimension

140*76.7*28mm

Machine weight

<1kg

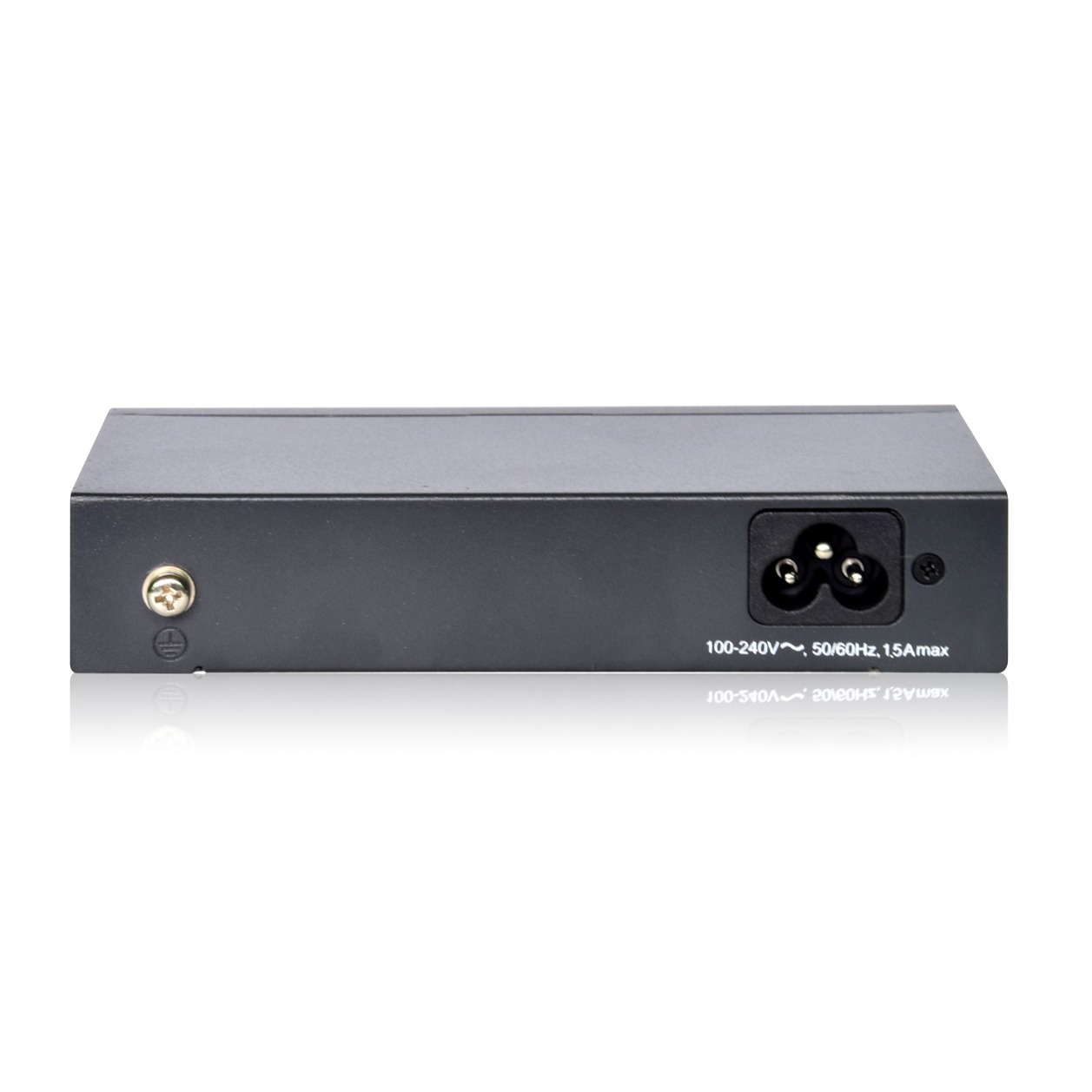

Input Voltage

AC 100-240V 50/60Hz

AC 180-240V 50/60Hz(Optional)

Operating Temperature

0°C ~ 40 °C

Storage Temperature

-40 °C ~ 70 °C

Operating Humidity

10% ~ 90%  non-condensing

Storage Humidity

5% ~ 90%  non-condensing

Surge Protection

Common mode ±6KV, differential mode ±4KV

Certification

CE, FCC Class A

MTBF

>50000 hour

Electrostatic standard

Contact 6KV, air 8KV

Ordering information

Model

product information

PM3006FSN V7

4*10/100Mbps+2FE Uplink PoE Switch
