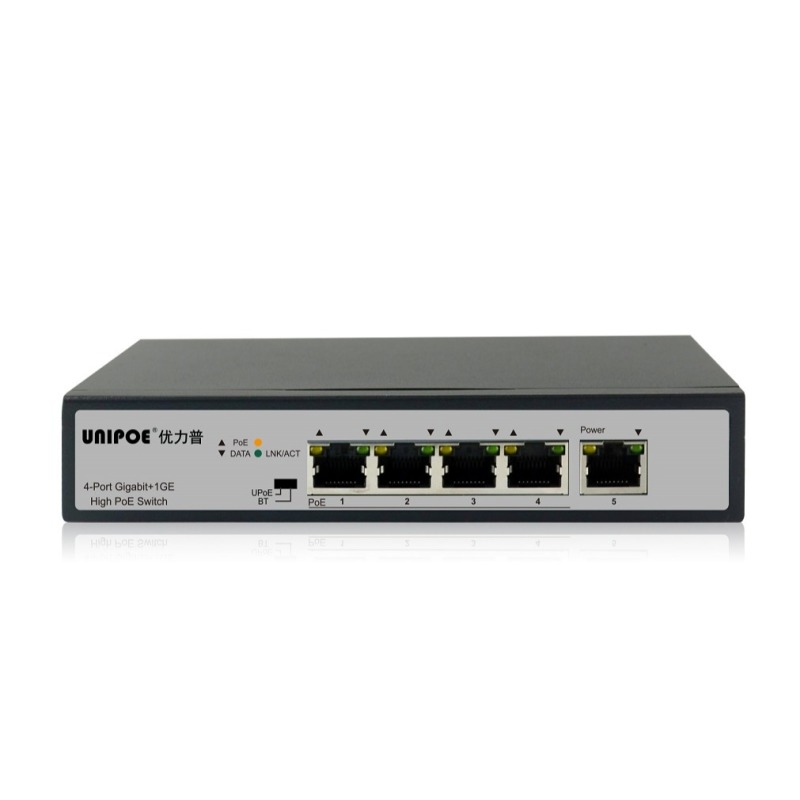

4-Port Gigabit+1GE(PD)High PoE Switch
4-Port Gigabit+1GE(PD)High PoE Switch
4-Port Gigabit+1GE(PD)High PoE Switch
4-Port Gigabit+1GE(PD)High PoE Switch
4-Port Gigabit+1GE(PD)High PoE Switch
4-Port Gigabit+1GE(PD)High PoE Switch
4-Port Gigabit+1GE(PD)High PoE Switch

4-Port Gigabit+1GE(PD)High PoE Switch

Model NO.
PM3005GSN-PD V3
Delivery:
FOB
Quantity:

Product Overview

The PM3005GSN-PD V3 is 5-Port 10/100/1000Mbps auto-negotiation RJ45 Port. Among them, port1~4 is PSE port, support 32W output. Port5 is PD port,
support 72W-95W input. PM3005GSN-PD V3 Power supply support external power supply and PoE.

It is easy to manage and maintain which can meet a lot of networking environment, such as Business building, Community, Hotel, Office etc.

Features

  • 5 *10/100/1000Mbps RJ45 Ports;
  • 4 PSE Ports (Port1~4);
  • PD Port (Port5 support IEEE802.3bt);
  • Complies with IEEE802.3af/at/bt Power over Ethernet;
  • Supports PoE Power up to 32W for each PoE port;
  • Auto detect power device;
  • Remote power and Data feeding up to 100m;
  • Flow Control for Full Duplex operation and back pressure for Half Duplex Operation;
  • 2K MAC address, automatic address learning and address aging;

Specification

Standard

IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3bt

Network Media(Cable)

10BASE-T: UTP category 3,4,5 cable (≤100m)

100BASE-TX: UTP category 5,5e cable (≤100m)

1000BASE-T: UTP category 5e,6 cable (≤100m)

LED

Power 、PoE 、LNK/ACT

Jumbo frame

9K Byte

Packet Buffer

1M

MAC Address Table

2K, Auto-learning, Auto-aging

Transfer mode

Store-and-Forward

Switching Capacity

10G

Dimensions (L*W*H)

168*93*32mm

Fan

Fanless

Power Supply

55VDC or PoE

PSE port

Port1~4

PSE Power on RJ-45

Mode A  3/6 (+),1/2 (-)

PoE Power Output

Per port 55V DC  Max.32W

PoE Power Budget

65W Max

PD port

Port 5

PD Power on RJ45

Support IEEE802.3af/at/bt

PD port input

72W-95W(Max)

Operating Temperature

0°C ~ 40 °C (32 °F ~104°F )

Storage Temperature

-40 °C ~ 70 °C (-40 °F ~158°F )

Operating Humidity

10% ~ 90% non-condensing

Storage Humidity

5% ~ 90% non-condensing

Surge Protection

Differential mode±4KV,Common mode ±6KV

MTBF

>50000 hour

Electrostatic standard

Contact 4KV,air 6KV

Hardware information

PoE Features

The PM3005GSN-PD V3 can provide up to 32 Watts of power to attached devices, such as VoIP phones, wireless access points, surveillance cameras etc, all over existing cat. 5cables. The switch eliminates the need for individual power sources for devices in the network, saving on costs for power cables and avoiding power outlet availability issues.

Ordering information

Model

product information

PM3005GSN-PD V3

4-Port Gigabit+1GE(PD)High PoE Switch
