Model NO.:
PM3002GP-W V1

Product Overview

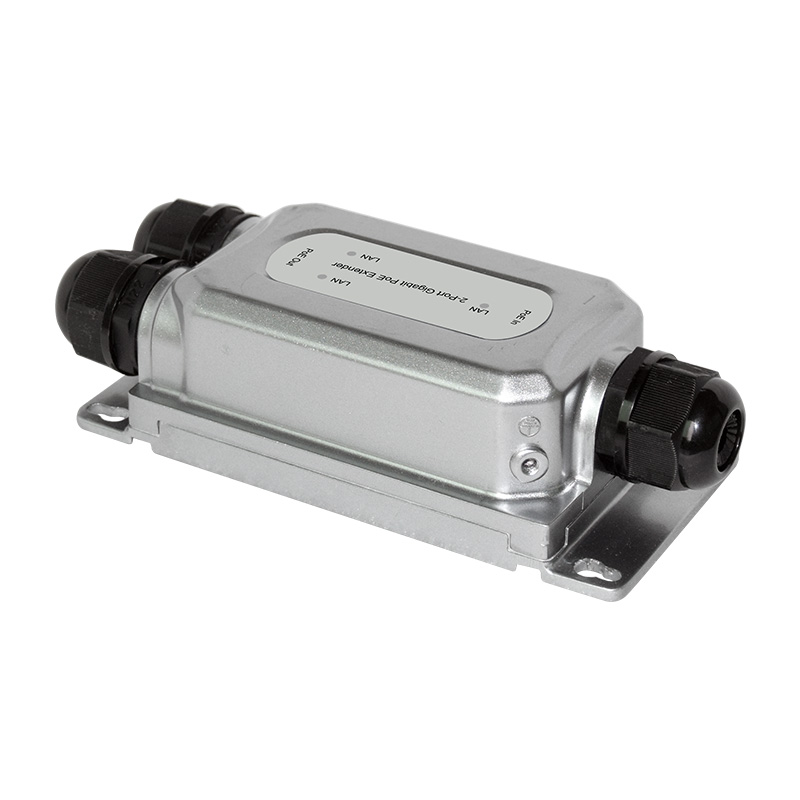

PM3002GP-W V1 is a Gigabit IP67 waterproof PoE extender independently developed by our company. It supports one RJ45 (PD) port in and 60W input (IEEE802.3bt). Two ports have PSE function, each supporting up to 30W output, without configuration, plug and play.

Professional room shell design, adapted to various harsh environments, with high stability, reliability, industrial level, wide temperature. The whole machine does not need power adapter, so it is convenient for harsh outdoor environment, reliable and convenient power for outdoor work AP, cameras etc.

Product Features

  • Complies with IEEE802.3af/at/bt Standard;
  • Metal shell, protection level IP67, IK10 vandal proof;
  • Complete unit does not require power adapter;
  • 60W PD Input, Two PSE output;
  • Data and power carried over the same cable;
  • Complete unit does not require power adapter;
  • Support Plug-and-play for the devices without any configuration;
  • Support 10/100/1000Mbps data transmission;
  • 10/100/1000Mbps data transmission and PoE power supply distance up to 100M;
  • operating temperature: -20°C~60°C;
  • It's ideal for harsh outdoor environment.

Product Specifications

Model

PM3002GP-W V1

Standard

IEEE802.3, IEEE802.3u, IEEE802.3ab, , IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3bt

Port

PoE in port:1 x 10/100/1000Mbps RJ45 port

PoE out port : 2 x 10/100/1000Mbps RJ45 port

Network Media(Cable)

10BASE-T: UTP category 3, 4, 5 cable (≤100m)

100BASE-TX: UTP category 5, 5e cable (≤100m)

1000BASE-TX: UTP category5e cable (≤100m)

LED

LAN

PoE Standard

IEEE802.3af/at/bt

Dimensions (L*W*H)

150*73*44MM

RJ45 PoE

PoE in port:  Anode1/2 Cathode3/6 or Anode4/5  Cathode7/8

PoE out port:  Anode1/2 Cathode3/6

PoE port

2

Power Supply

PoE

PD port input

60W

PoE Power Output

Per port 48-55V DC  Max.30W

Operating Temperature

-20°C ~ 60 °C

Storage Temperature

-40 °C ~ 80 °C

Operating Humidity

10% ~ 90% non-condensing

Storage Humidity

5% ~ 90% non-condensing

Surge Protection

Differential mode±4KV, Common mode±6KV

MTBF

>50000 hour

Electrostatic standard

Contact 6KV, air 8KV

Weather Rating

IP67

Vandal Proof

IK10

Ordering Information

Model

Product Information

PM3002GP-W V1

2-port Gigabit waterproof PoE Extender
