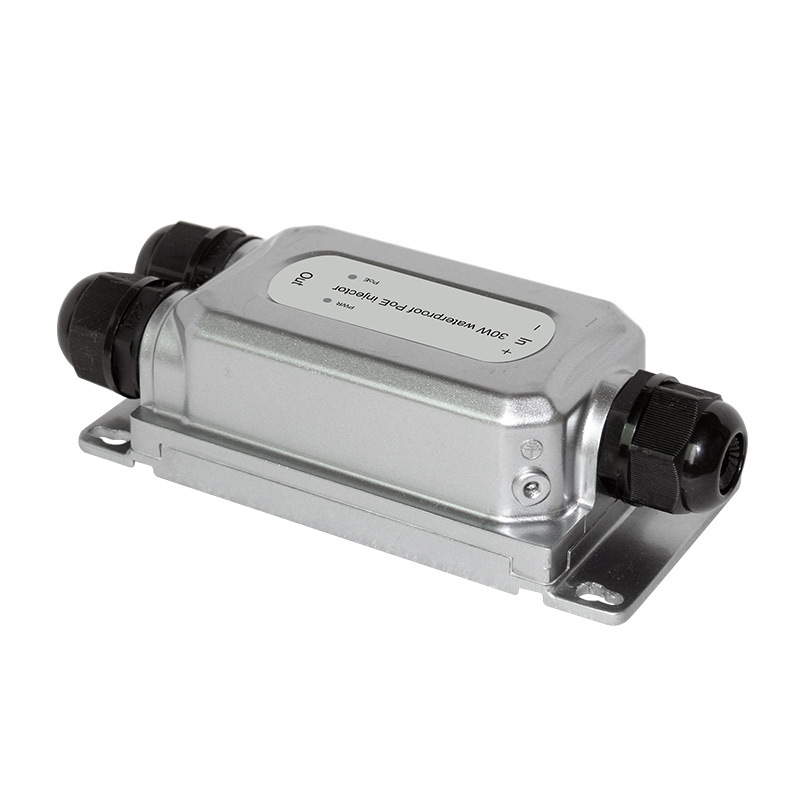

30W Waterproof PoE Injector
30W Waterproof PoE Injector
30W Waterproof PoE Injector
30W Waterproof PoE Injector
30W Waterproof PoE Injector
30W Waterproof PoE Injector
30W Waterproof PoE Injector

30W Waterproof PoE Injector

Model NO.:
PM3001GIN-W V1
Quantity:

Product Overview

The PM3001GIN-W V1 Waterproof PoE Injector fully complies with IEEE 802.3af/at standard, and can work with all IEEE 802.3af /at PoE compliant PD (Powered Devices) or PoE Receiver Adapters or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

Professional outdoor shell design, adapt to a variety of harsh environment, with high stability, reliability, industrial level, wide temperature. The whole machine does not need power adapter, convenient outdoor environment and indoor monitoring equipment is not easy to take electricity.

Product Features

  • Complies with IEEE802.3af/at Standard;
  • Use 2 pairs of power supply, and output power more;
  • Auto detect power device;
  • Support PoE power up to 30W;
  • Remote power and Data feeding up to 100m;
  • Gigabit Internet port;
  • External Power, Plug-and-play,  requires no configuration;
  • Intelligent protection and power supply;
  • Working temperature:  -40 ℃ to 75℃or -20 ℃ to 60℃(Optional);
  • Short Circuit Protection;
  • Professional outdoor shell design,  adapt to a variety of harsh environment.

Product Specifications

Model

PM3001GIN-W V1

Port

Data: 1x10/100/1000Mbps RJ45 Port

PoE Out: 1x10/100/1000Mbps RJ45 Port

1*DC IN

PoE Standard

IEEE802.3af/at

PSE Power on RJ-45

Data Pairs  1/2(+), 3/6(-)

PoE Power Output

30W Max

Input Voltage

DC 24-57V

Input Current

1.5Amax, @24VDC (Full Load)

Output Voltage

DC55V±5%

Output current

0.6A Max

output ripple voltage

≤200mV, Test conditions: rated input voltage,  full load output,  Tested with 20MHz bandwidth oscilloscope,   Parallel connected a 0.1uF ceramic capacitor and a 10uF electrolytic capacitor to the output

Operation Temperature

-40℃~75℃

-20℃~60℃(Optional)

Storage Temperature

-40℃~80℃

Operation Humidity

10%~90% RH non-condensing

Storage Humidity

5%~90% RH non-condensing

Dimensions(L*W*H)

150*73*44MM

LED Indicator

PWR(Green) , PoE(Green)

Network Media(Cable)

10BASE-T: UTP category 3,  5 cable (≤100m)
100BASE-TX: UTP category 5, 5e cable (≤100m)

1000BASE-T: UTP category 5e, 6 cable(≤100m)

MTBF

>50000 hours

Surge Protection

Differential mode±4KV, Common mode±6KV

Electrostatic standard

Contact 6KV, air 8KV

waterproofing grade

IP67

anti-hazard classification

IK10

Ordering information

Model

Product Information

PM3001GIN-W V1

30W Waterproof PoE Injector
