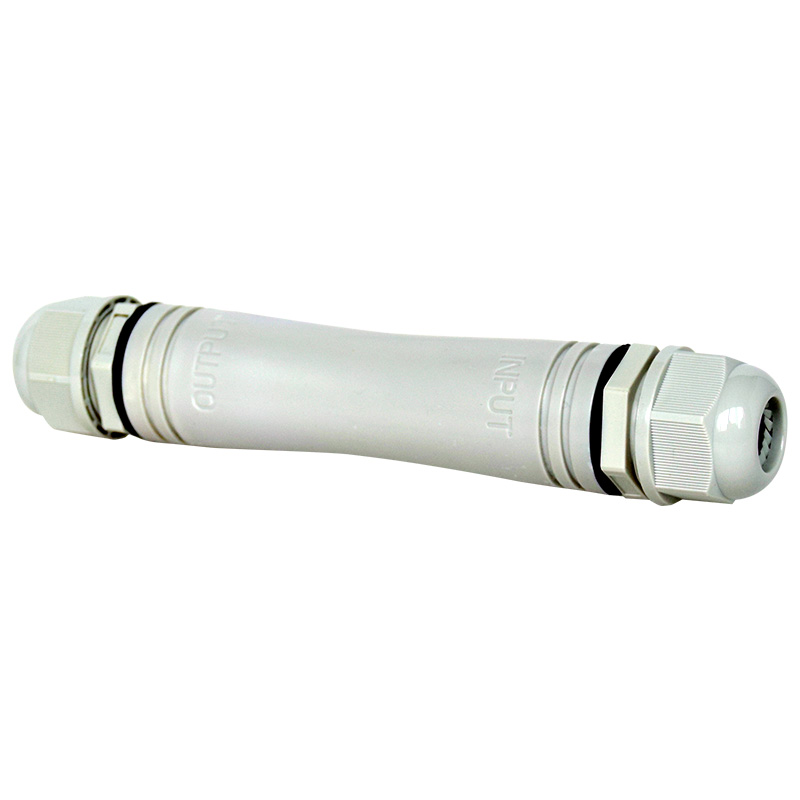

30W Long-Range Waterproof PoE Extender(Used With Long-Range PoE Switch)

Model NO.
PM3001FPR-W V2
Delivery
FOB
Quantity:

Product Overview

PM3001FPR-W V2 is a 30W long-range waterproof PoE extender independently developed by our company. It supports one RJ45 (PD) port in. one port have PSE function, each supporting up to 30W output, without configuration, plug and play.

Professional room shell design, adapted to various harsh environments, with high stability, reliability, industrial level, wide temperature. The whole machine does not need power adapter, so it is convenient for harsh outdoor environment .Reliable and convenient power for outdoor work AP, cameras etc.

Product Features

  • Complies with IEEE802.3af/at Standard;
  • Plastic shell, protection level IP67;
  • Complete unit does not require power adapter;
  • PD Input, one PSE output;
  • Data and power carried over the same cable;
  • Support Plug-and-play for the devices without any configuration;
  • Support 10/100Mbps data transmission;
  • Delivers full POE Plus power at 300m;
  • Unrestricted 10Mbps with POE at 800m;
  • Operating temperature: -10°C~55°C;
  • It's ideal for harsh outdoor environment.

Product Specifications

Model

PM3001FPR-W V2

Standard

IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af, IEEE802.3at

Port

1*10/100Mbps RJ45 port

1 PD IN

Network Media(Cable)

10BASE-T: UTP category 3, 4, 5 cable (≤100m)

100BASE-TX: UTP category 5, 5e cable (≤100m)

PoE Standard

IEEE802.3af/at

Dimensions (L*W*H)

156.5*29*29MM

RJ45 PoE

Data Pairs 1/2(+)3/6(-), 4/5(+)7/8(-)

PoE port

1

Power Supply

PoE

PD port input

30W

PoE Power Output

48-55V DC  Max.30W

Operating Temperature

-10°C ~ 55 °C

Storage Temperature

-40 °C ~ 70 °C

Operating Humidity

10% ~ 90% non-condensing

Storage Humidity

5% ~ 90% non-condensing

MTBF

>50000 hour

Weather Rating

IP67

​Ordering Information

Model

Product Information

PM3001FPR-W V2

30W long-range waterproof PoE Extender(Used with long-range PoE switch)
