Product Overview

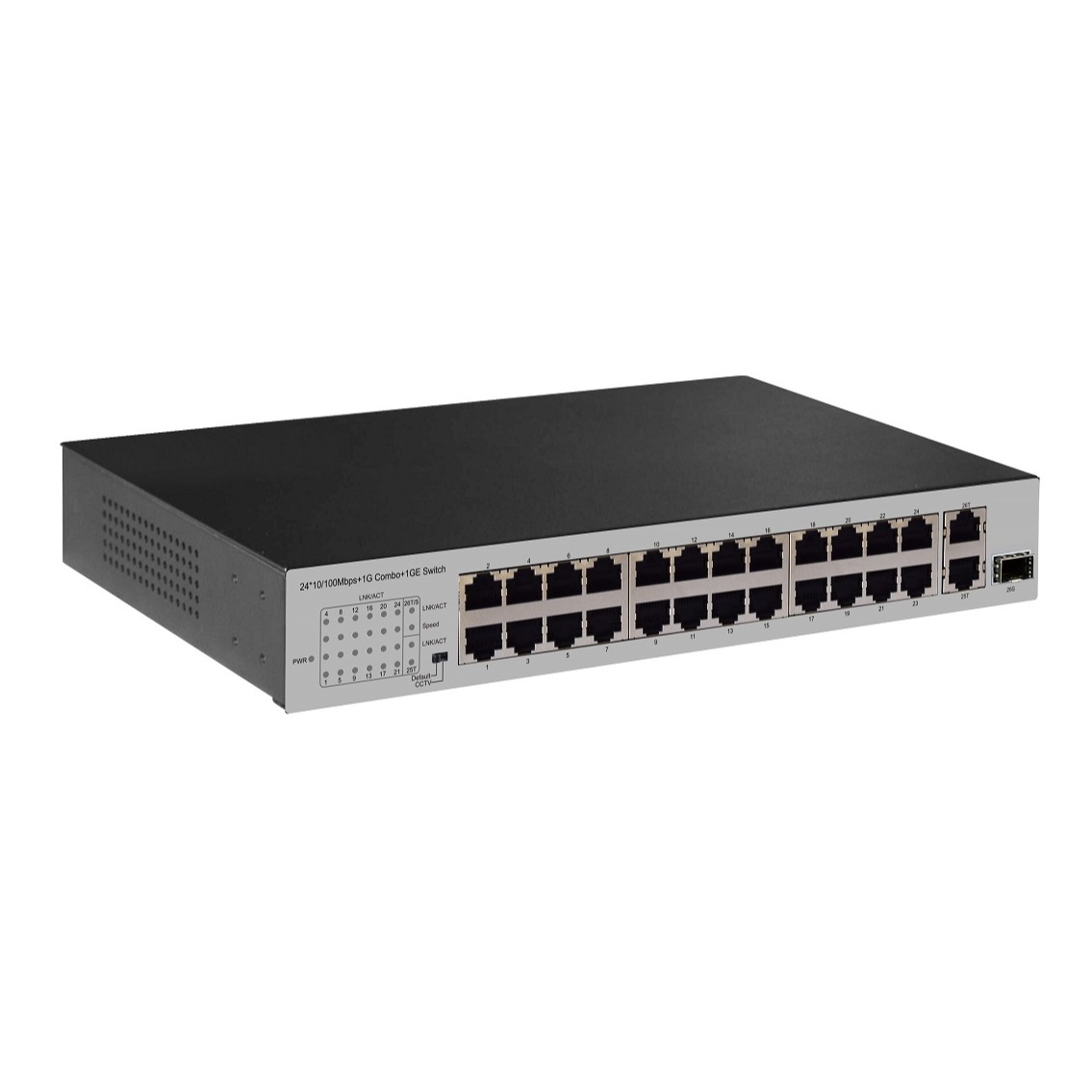

PM127FS V1 Product is 24*10/100Mbps+1G Combo+1GE Switch, Using store and forward technology, combined with dynamic memory allocation, to ensure the effective allocation of bandwidth to each port. This switch is easy to install and does not require configuration, supports CCTV function which can improve the network environment, and reduces network maintenance costs. It is easy to manage and maintain which can meet a lot of networking environments, such as Business building, Community, Hotel, Office, etc.
Product Features
- Support EEE802.3, IEEE802.3u , IEEE802.3z, IEEE802.3x, IEEE802.3az, Standard;
- Flow Control for Full-Duplex operation and backpressure for Half-Duplex Operation;
- Panel lights to monitor the working state and help fault analysis;
- Operation Temperature: 0°C ~ 40 °C;
- Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az) ;
- Line-speed forwarding, intelligent identification;
- One key CCTV mode, Remote power and Data feeding up to 250m;
Product Specifications
Model | PM127FS V1 |
standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3x, IEEE802.3az, IEEE802.3ab |
Port | 24 x10/100Mbps RJ45 Port 1 x 10/100/1000Mbps Combo port 1 x 10/100/1000Mbps RJ45 Port |
Function key | CCTV |
Forwarding Mode | Storage-and-Forward |
Switching Capacity | 8.8 Gbps |
MAC address table | 16K |
Jumbo frames | 16K Bytes |
Packet buffer | 4M bit |
Forwarding Rate | 6.55Mpps |
Input Power Supply | AC 100-240V 50/60Hz |
Operation Temperature | 0℃~40℃ |
Storage Temperature | -40℃~70℃ |
Operation Humidity | 10%~90% RH non-condensing |
Storage Humidity | 5%~90% RH non-condensing |
Dimensions(L*W*H) | 280*180*44mm |
Fan | Fanless |
Weight | <2.5Kg |
Green energy saving | IEEE 802.3az |
LED Indicator | PWR(Green), LNK/ACT(Green) |
Network Media(Cable) | 10BASE-T: UTP category 3, 5 cable (≤100m)
100BASE-TX: UTP category 5, 5e cable (≤100m) 1000BASE-T: UTP category 5e, 6 cable(≤100m) |
Surge Protection | Different mode±1KV, common mode±2KV |
MTBF | >50000 hours |
Electrostatic standard | Contact 6KV, air 8KV |
Ordering information
Model | Product information |
PM127FS V1 | 24*10/100Mbps+1G Combo+1GE Switch |
