Product Overview

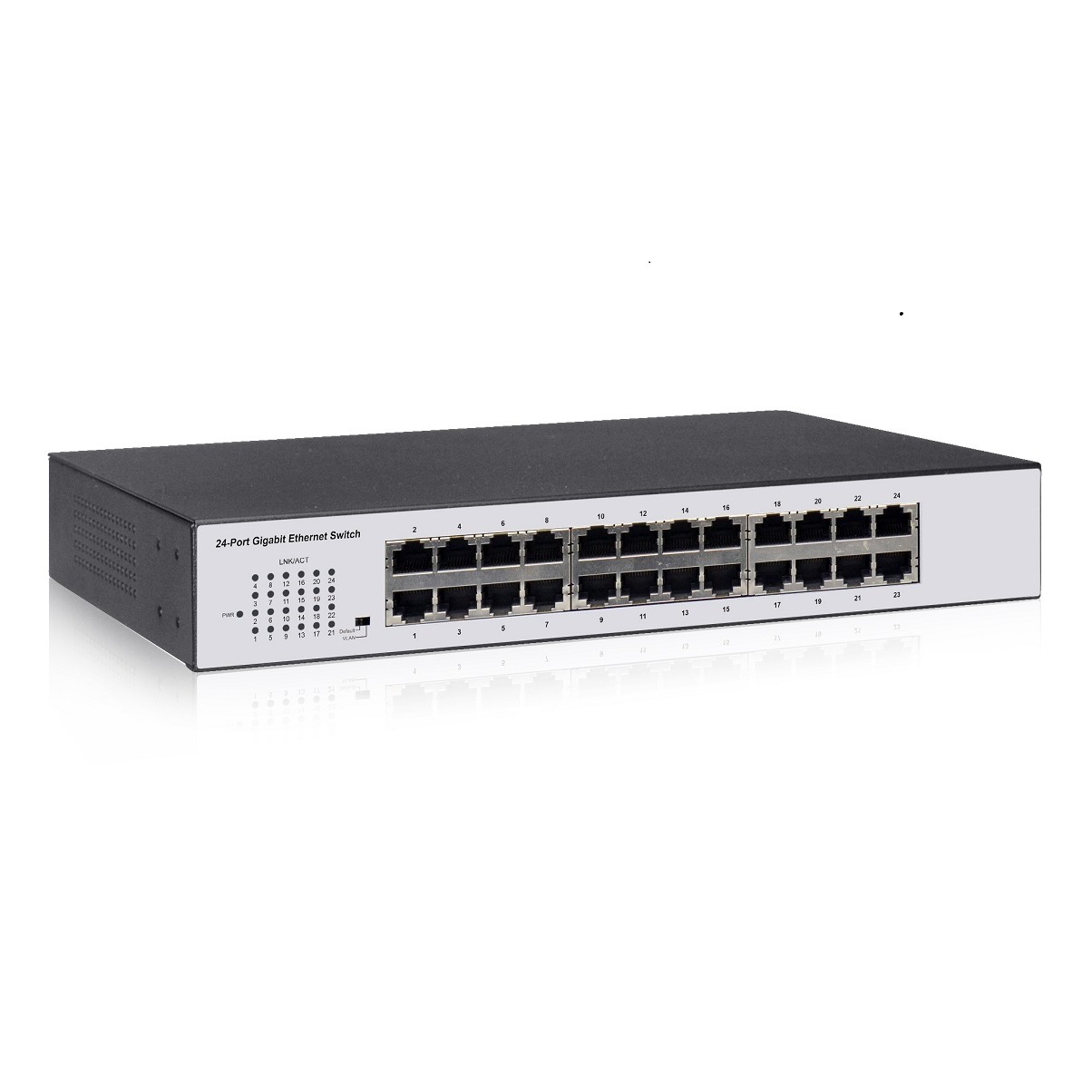

PM124GS V1 Product has 24*10/100/1000Mbps RJ45 port, among port23-24 is the Uplink ports, Using store and forward technology, combined with dynamic memory allocation, to ensure the effective allocation of bandwidth to each port. The have VLAN model, can improve the network environment and reduces network maintenance costs. It is easy to manage and maintain which can meet a lot of networking environments, such as Business building, Community, Hotel, Office, etc.
Product Features
- Support EEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3x, IEEE802.3az, Standard;
- Flow Control for Full-Duplex operation and backpressure for Half-Duplex Operation;
- support VLAN mode;
- Panel lights to monitor the working state and help fault analysis;
- Operation Temperature: 0°C ~ 40 °C;
- Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az);
- Line-speed forwarding, intelligent identification;
Product Specifications
Model | PM124GS V1 |
standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3x, IEEE802.3az , IEEE802.3ab |
Port | 24 x10/100/1000Mbps RJ45 Port |
Key function | VLAN |
Forwarding Mode | Storage-and-Forward |
Switching Capacity | 48Gbps |
MAC address table | 8K |
Jumbo frames | 9216K Byte |
Packet buffer | 4.1M bit |
Forwarding Rate | 35.7Mpps |

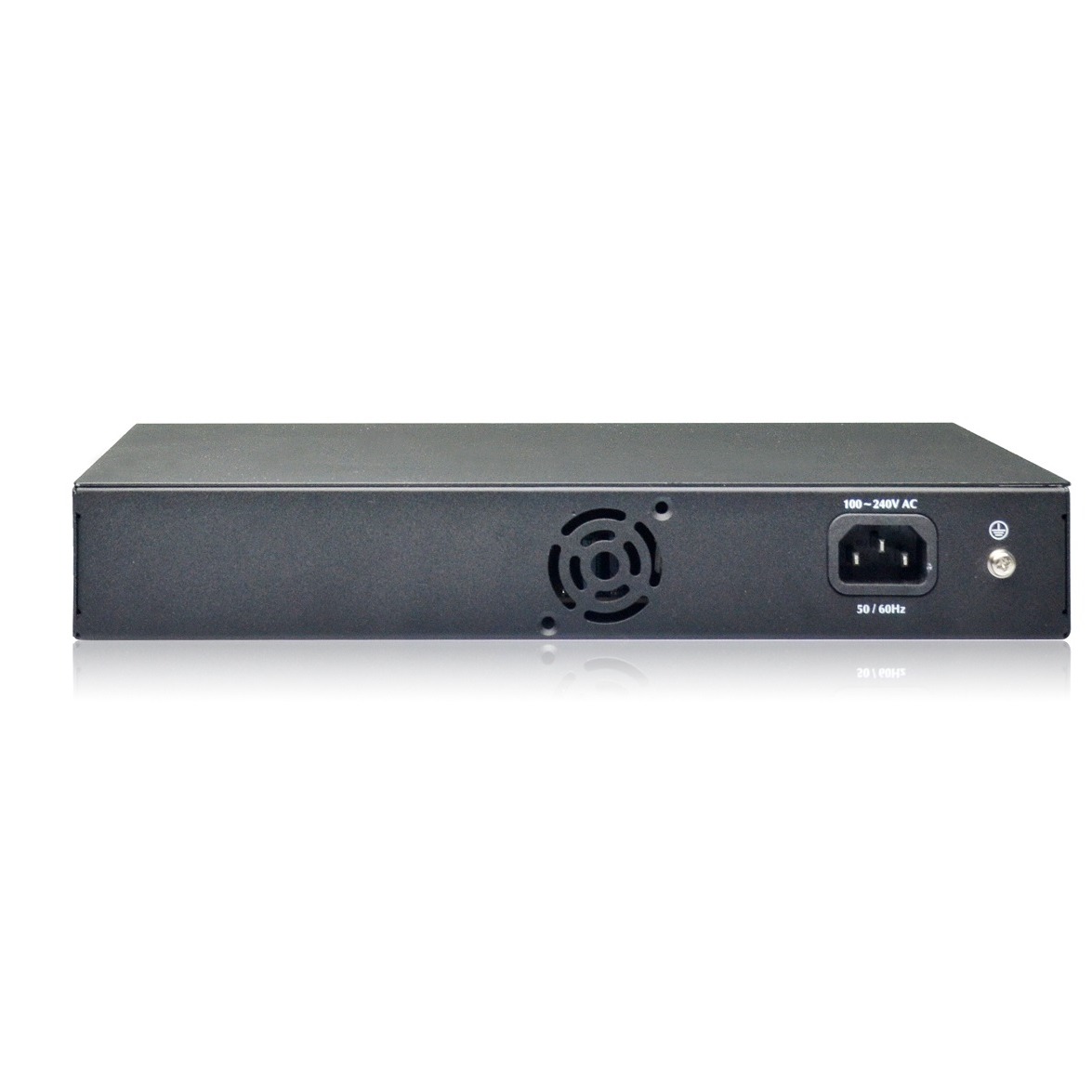

Input Power Supply | AC 100-240V 50/60Hz |
Operation Temperature | 0℃~40℃ |
Storage Temperature | -40℃~70℃ |
Operation Humidity | 10%~90% RH non-condensing |
Storage Humidity | 5%~90% RH non-condensing |
Dimensions(L*W*H) | 280*180*44mm |
Fan | Fanless |
Weight | <2.5Kg |
Green energy saving | IEEE 802.3az |
LED Indicator | PWR( Green), LNK/ACT( Green ) |
Network Media(Cable) | 10BASE-T: UTP category 3, 5 cable (≤100m)
100BASE-TX: UTP category 5, 5e cable (≤100m) 1000BASE-T: UTP category 5e, 6 cable(≤100m) |
Surge Protection | Different mode±1KV, common mode±2KV |
MTBF | >50000 hours |
Electrostatic standard | Contact 4KV, air 8KV |
Ordering information
Model | Product information |
PM124GS V1 | 24-port Gigabit Switch |
