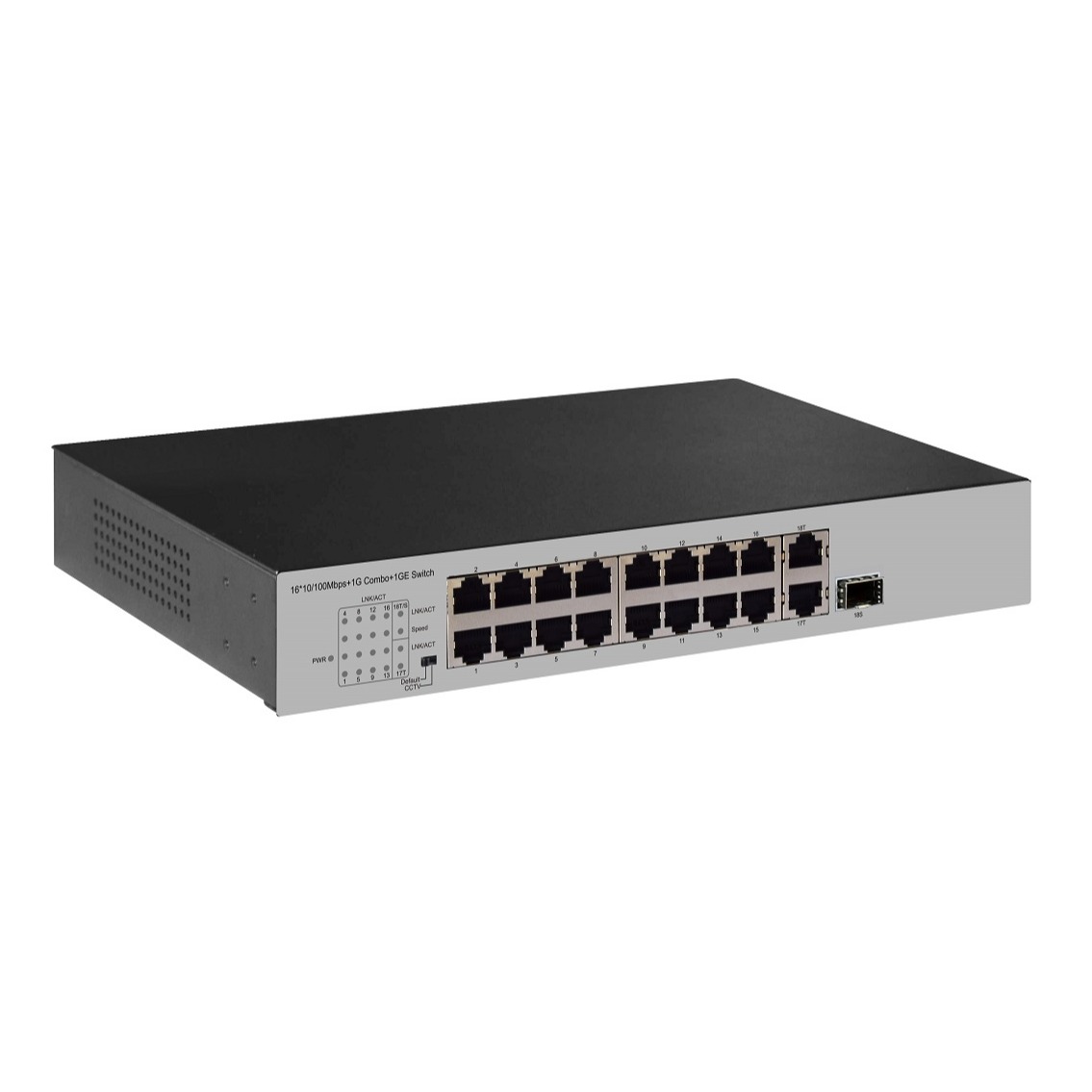

16*10/100Mbps+1G Combo+1GE Switch

Model NO.: PM119FS V1
Delivery:: FOB
Minimum order quantity:: 1

Quantity:

Product Description
Basic Information

Product Overview

PM119FS V1 Product is 16*10/100Mbps+1G Combo+1GE Switch, Using store and forward technology, combined with dynamic memory allocation, to ensure the effective allocation of bandwidth to each port. This switch is easy to install and does not require configuration, supports CCTV function which can improve the network environment, and reduces network maintenance costs. It is easy to manage and maintain which can meet a lot of networking environments, such as Business building, Community, Hotel, Office, etc.

Product Features

Support EEE802.3, IEEE802.3u , IEEE802.3z, IEEE802.3x, IEEE802.3az, Standard;
Flow Control for Full-Duplex operation and backpressure for Half-Duplex Operation;
Panel lights to monitor the working state and help fault analysis;
Operation Temperature: 0°C ~ 40°C;
Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az);
Line-speed forwarding, intelligent identification;
One key CCTV mode, Remote power and Data feeding up to 250m;

Product Specifications
Hardware Specification

Model	PM119FS V1
standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3x, IEEE802.3az, IEEE802.3ab
Port	16 x10/100Mbps RJ45 Port 1 x 10/100/1000Mbps Combo port 1 x 10/100/1000Mbps RJ45 Port
Function key	CCTV
Forwarding Mode	Storage-and-Forward
Switching Capacity	7.2Gbps
MAC address table	16K
Jumbo frames	16K Bytes
Packet buffer	4M bit
Forwarding Rate	5.36Mpps

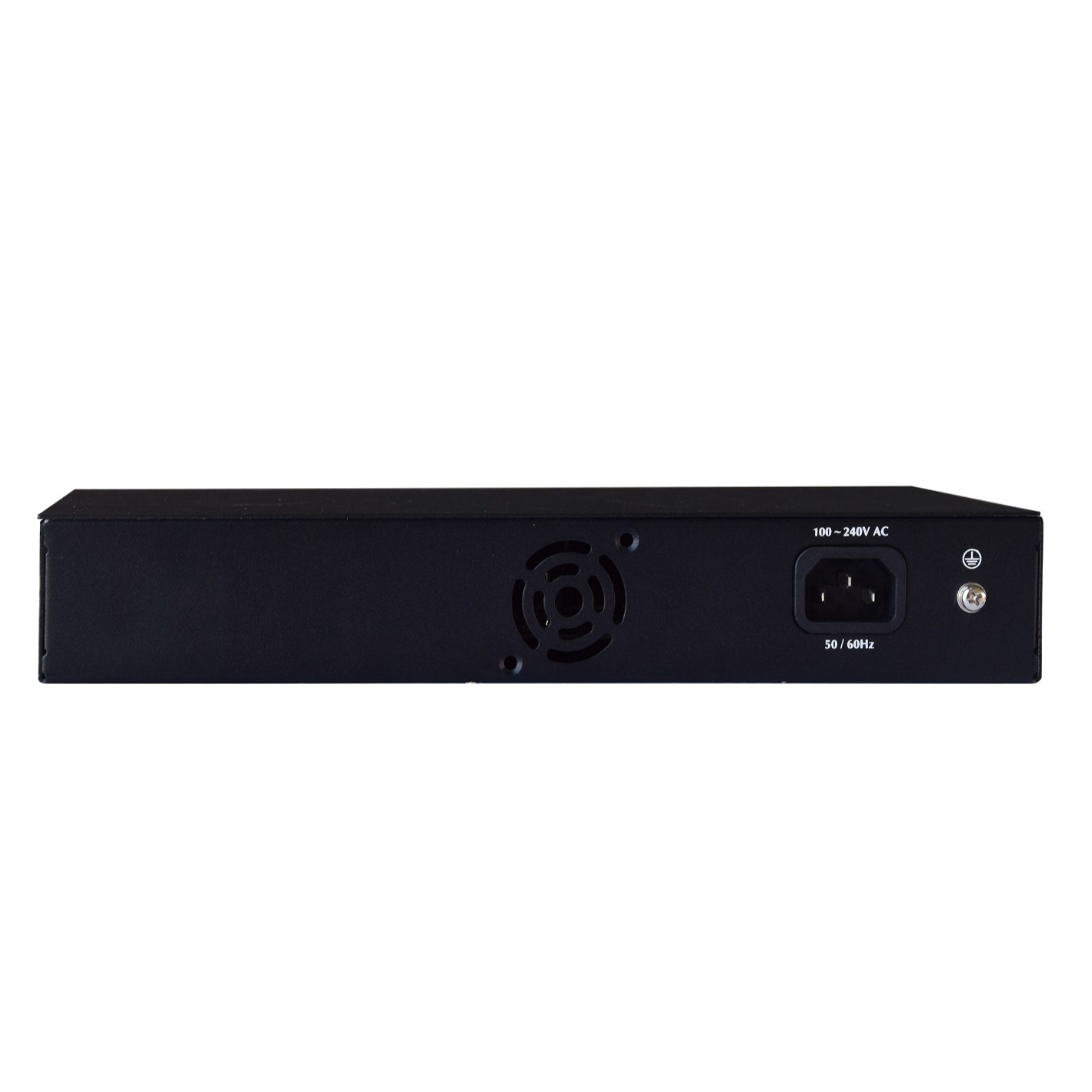

Input Power Supply	AC 100-240V 50/60Hz
Operation Temperature	0℃~40℃
Storage Temperature	-40℃~70℃
Operation Humidity	10%~90% RH non-condensing
Storage Humidity	5%~90% RH non-condensing
Dimensions(LWH)	28018044mm
Fan	Fanless
Weight	<2.5Kg
Green energy saving	IEEE 802.3az
LED Indicator	PWR(Green), LNK/ACT(Green)
Network Media(Cable)	10BASE-T: UTP category 3, 5 cable (≤100m) 100BASE-TX: UTP category 5, 5e cable (≤100m) 1000BASE-T: UTP category 5e, 6 cable(≤100m)
Surge Protection	Different mode±1KV, common mode±2KV
MTBF	>50000 hours
Electrostatic standard	Contact 6KV, air 8KV
