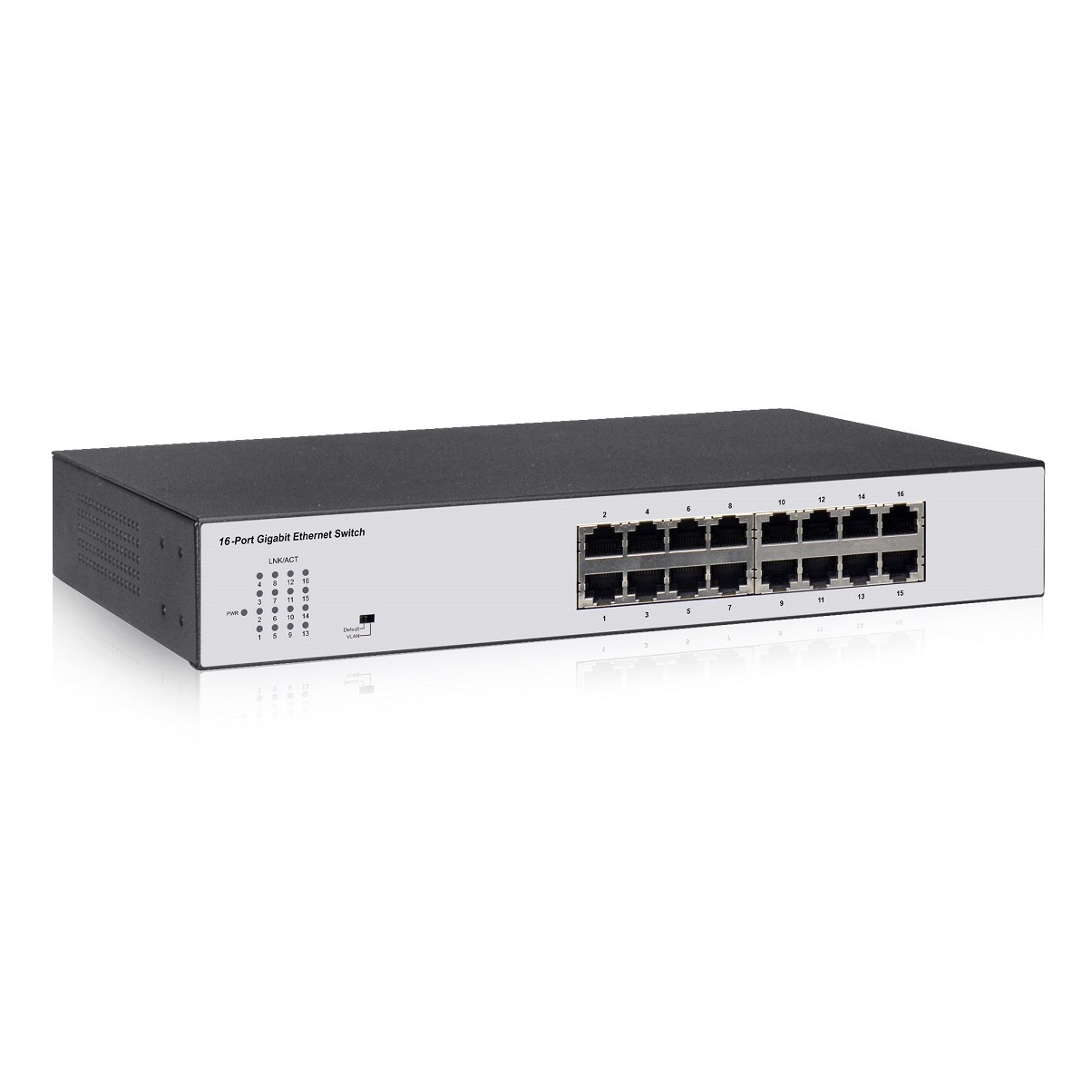

16-Port Gigabit Ethernet Switch
16-Port Gigabit Ethernet Switch
16-Port Gigabit Ethernet Switch
16-Port Gigabit Ethernet Switch
16-Port Gigabit Ethernet Switch
16-Port Gigabit Ethernet Switch
16-Port Gigabit Ethernet Switch

16-Port Gigabit Ethernet Switch

Model NO.
PM116GS V1
Delivery:
FOB
Minimum order quantity:
1
Quantity:

Product Overview

PM116GS V1 Product has 16*10/100/1000Mbps RJ45 port,   Using store and forward technology, combined with dynamic memory allocation, to ensure the effective allocation of bandwidth to each port. This switch is easy to install and does not require configuration, It is easy to manage and maintain which can meet a lot of networking environments, such as Business building, Community, Hotel, Office, etc.

Product Features

  • Support EEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3x, IEEE802.3az, Standard;
  • Flow Control for Full-Duplex operation and backpressure for Half-Duplex Operation;
  • Panel lights to monitor the working state and help fault analysis;
  • Operation Temperature: 0°C ~ 40 °C;
  • Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az) ;
  • Line-speed forwarding, intelligent identification;

Product Specifications

Model

PM116GS V1

standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3x, IEEE802.3az, IEEE802.3ab

Port

16 x10/100/1000Mbps RJ45 Port

Forwarding Mode

Storage-and-Forward

Switching Capacity

32Gbps

MAC address table

8K

Jumbo frames

9216K Byte

Packet buffer

4.1M bit

Forwarding Rate

23.8Mpps

Input Power Supply

AC 100-240V  50/60Hz

Operation Temperature

0℃~40℃

Storage Temperature

-40℃~70℃

Operation Humidity

10%~90% RH  non-condensing

Storage Humidity

5%~90% RH  non-condensing

Dimensions(L*W*H)

280*180*44mm

Fan

Fanless

Weight

<2.5Kg

Green energy saving

IEEE 802.3az

LED Indicator

PWR(Green), LNK/ACT(Green )

Network Media(Cable)

10BASE-T: UTP category 3, 5 cable (≤100m)
100BASE-TX: UTP category 5, 5e cable (≤100m)

1000BASE-T: UTP category 5e, 6 cable(≤100m)

Surge Protection

Different mode±1KV, common mode±2KV

MTBF

>50000 hours

Electrostatic standard

Contact 4KV, air 8KV

Ordering information

Model

Product information

PM116GS V1

16-port Gigabit Switch
