Product Overview

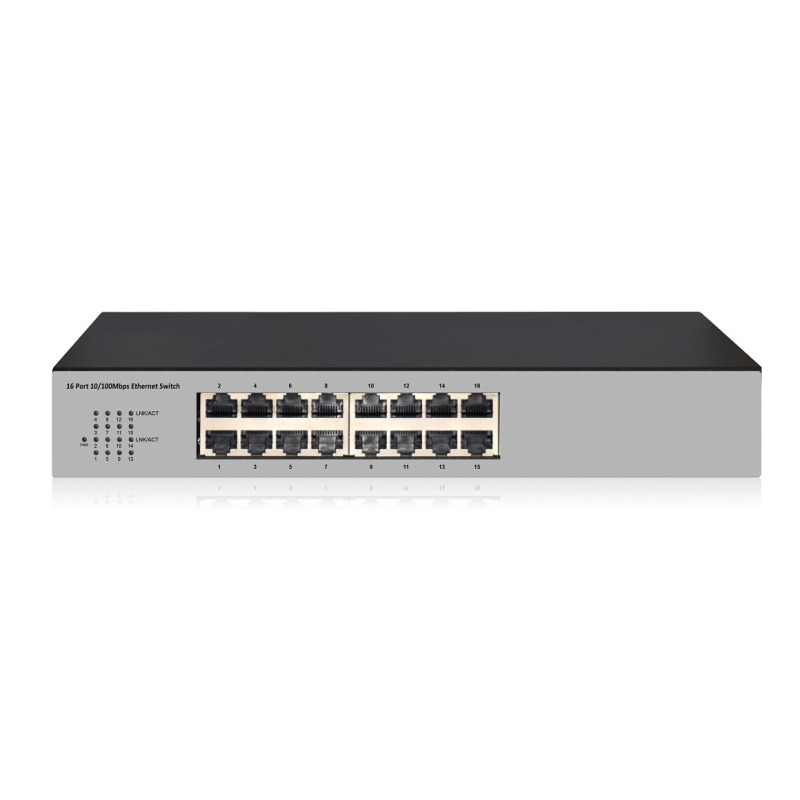

The PM116FS V1 Product has 16*10/100Mbps RJ45 port, Using store and forward technology, combined with dynamic memory allocation, to ensure the effective allocation of bandwidth to each port. It is easy to manage and maintain which can meet a lot of networking environments, such as Business building, Community, Hotel, Office, etc.
Product Features
- Support EEE802.3, IEEE802.3u, IEEE802.3x Standard;
- Flow Control for Full-Duplex operation and backpressure for Half-Duplex Operation;
- Operation Temperature: 0°C ~ 40 °C;
- Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az) ;
- Line-speed forwarding, intelligent identification;
- Store and forward;
Product Specifications
Model | PM116FS V1 |
standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3az, IEEE 802.3x |
Port | 16 x10/100Mbps RJ45 Port |
Forwarding Mode | Storage-and-Forward |
Switching Capacity | 3.2Gbps |
MAC address table | 8K |
Jumbo frames | 2K |
Packet buffer | 2M bit |
Forwarding Rate | 2.4Mpps |
Power supply | 12V/1.2A built-in |
Input Power Supply | AC 100-240V 50/60Hz |
Operation Temperature | 0℃~40℃ |
Storage Temperature | -40℃~70℃ |
Operation Humidity | 10%~90% RH non-condensing |
Storage Humidity | 5%~90% RH non-condensing |
Dimensions(L*W*H) | 280*179*44mm |
Fan | Fanless |
Weight | <2.5Kg |
Green energy saving | IEEE(802.3az) |
LED Indicator | PWR, LNK/ACT |
Network Media(Cable) | 10BASE-T: UTP category 3, 5 cable (≤100m) 100BASE-TX: UTP category 5, 5e cable (≤100m) |
MTBF | >50000 hour |
Surge Protection | Common mode ±2KV, Difference mode ±1KV |
Electrostatic standard | Contact ±2KV, air±1KV |
Ordering information
Model | Product information |
PM116FS V1 | 16*10/100Mbps Unmanaged Switch |
