Product Overview

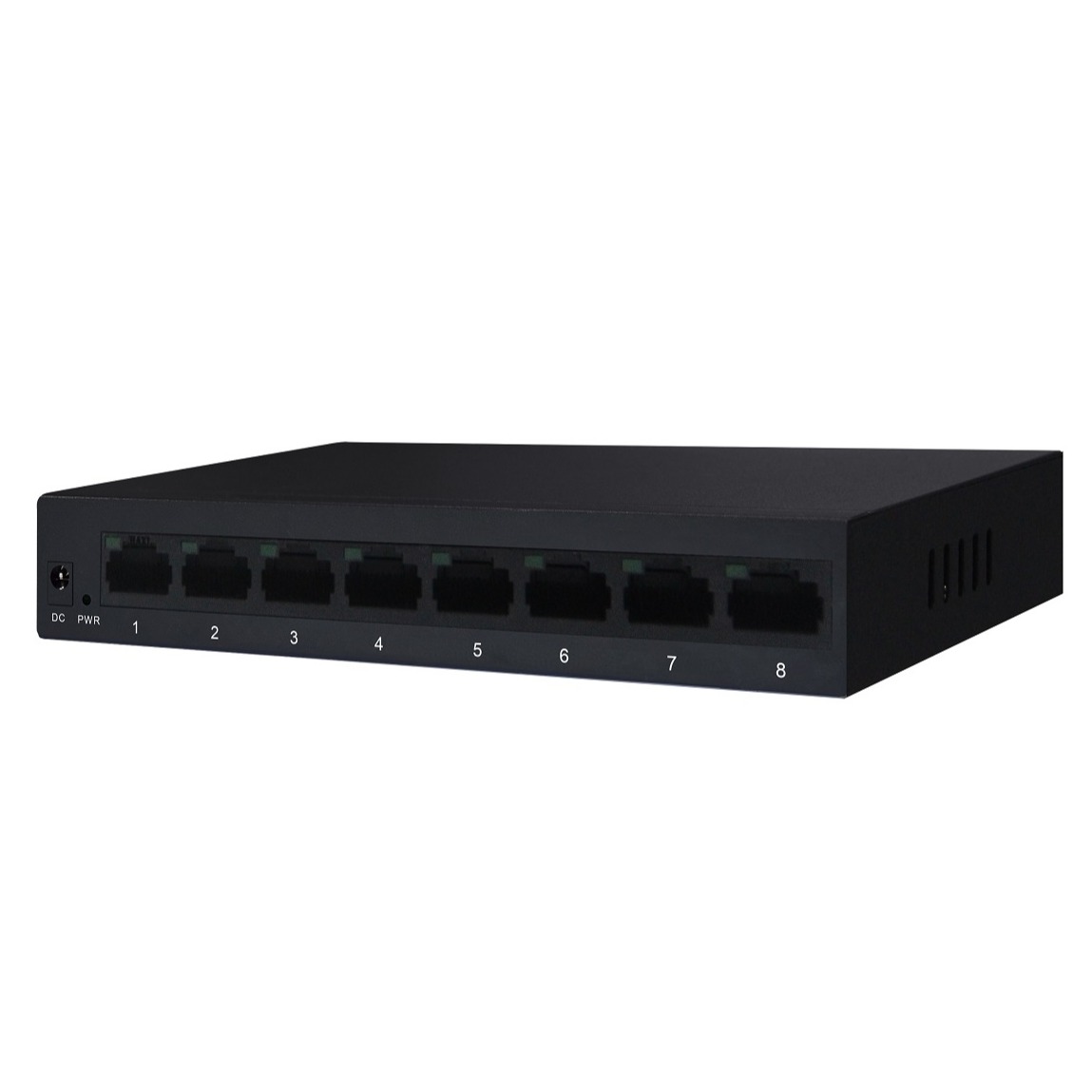

PM108GS V4 Product has 8*10/100/1000Mbps RJ45 ports, Using store and forward technology, combined with dynamic memory allocation, to ensure the effective allocation of bandwidth to each port. This product is easy to use and maintain which can meet a lot of networking environments, such as Business building, Community, Hotel, Office etc.
Product Features
- Support IEEE802.3, IEEE802.3u , IEEE802.3x, IEEE802.3ab, IEEE802.3az Standard;
- Flow Control for Full-Duplex operation and backpressure for Half-Duplex Operation;
- Operation Temperature: 0°C ~ 40 °C;
- Line-speed forwarding, intelligent identification;
- Perfect security mechanism;
- Support DC power input, Exquisite iron case design;
- Panel lights to monitor the working state and help fault analysis;
Product Specifications
Model | PM108GS V4 |
Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE802.3ab, IEEE802.3az |
Ports | 8 x10/100/1000Mbps RJ45 Port |
Forwarding Mode | Storage-and-Forward |
Switching Capacity | 16Gbps |
MAC address table | 4K |
Jumbo frames | 9216K Byte |
Packet buffer | 1.5 M bit |
Forwarding Rate | 11.9Mpps |
Input Voltage | DC:12V / 0.5A |
Power supply | 6W |
Operation Temperature | 0℃~40℃ |
Storage Temperature | -40℃~70℃ |
Operation Humidity | 10%~90% RH non-condensing |
Storage Humidity | 5%~90% RH non-condensing |
Dimensions(L*W*H) | 140*76.7*28mm |
Fan | Fanless |
Weight | <1Kg |
Green energy saving | IEEE 802.3az |
LED Indicator | PWR, LNK/ACT |
Network Media(Cable) | 10BASE-T: UTP category 3, 5 cable (≤100m)
100BASE-TX: UTP category 5, 5e cable (≤100m) 1000BASE-T: UTP category 5e, 6 cable(≤100m) |
Surge Protection | Difference module±1KV Common mode±2KV |
MTBF | >50000 hours |
Electrostatic standard | Contact 6KV, air 8KV |
Ordering information
Model | Product information |
PM108GS V4 | 8-port Gigabit Unmanaged Switch |
