Product Overview

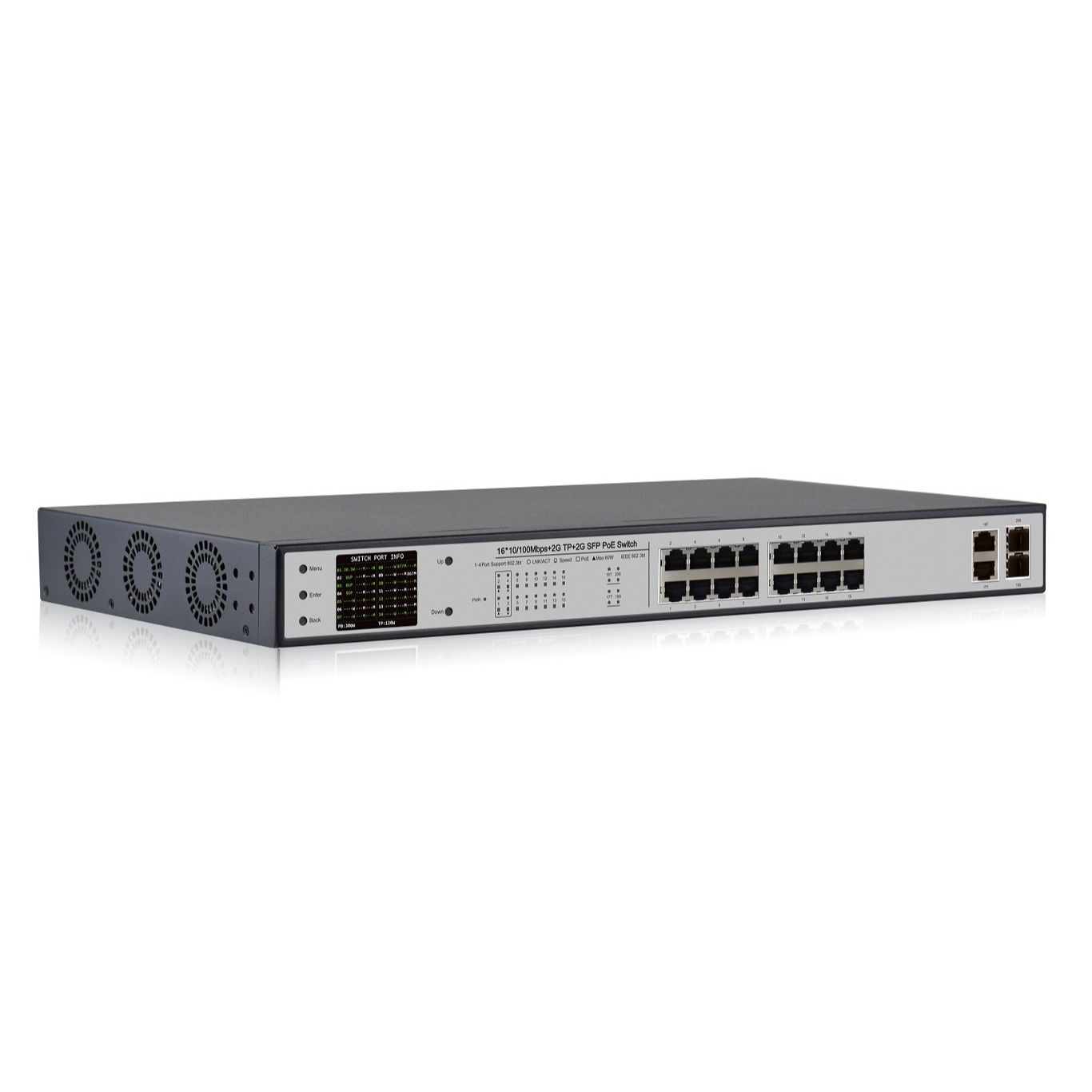

High Power PoE Switch P6-S20FL V3 is designed by UNIPOE company. It’s an Ethernet switch which has the function of colorful LCD and PoE. The PoE Switch provides intelligent PoE functions along with 16*10/100Mbps RJ45 port with 2-10/100/1000Mbps RJ45 and 2 gigabit SFP optical fiber Slot which support high-speed transmission of surveillance images and videos. The PoE ports can automatically detect and supply power to IEEE802.3bt/at/af compliant Powered Devices (PD). The electrical power and data transmission on the same cable can expand your network to the places where no power lines or outlets, where you can install devices such as APs, IP cameras, or IP phones etc.
P6-S20FL V3 support colorful LCD Display. The colorful LCD can display the PoE work status, accurate judgment port of load, can help customer and engineer timely discover and solve the network failure, improve work efficiency and quality.
Product Features
- Complies with IEEE802.3bt/af/at Power over Ethernet;
- 1~4 Port PoE output: 60W,5~16/20 Port PoE output: 32W ;
- Supports colorful LCD display;
- Supports IEEE802.3az high efficiency and energy saving function;
- Supports Energy-Efficient Ethernet (EEE) function (IEEE802.3az) ;
- Perfect security mechanism;
- Supports IEEE802.3 x full duplex flow control and Backpressure half duplex flow control;
- Supports VLAN function and CCTV model;
- 8K MAC address, automatic address learning and address aging;
- Operation Temperature：-10°C ~ 60 °C;
Specification
Model | P6-S20FL V3 |
Port | 16x10/100Mbps RJ45 Port 2x10/100/1000Mbps RJ45 Port 2x1000Mbps SFP Slots |
PoE Standard | IEEE802.3af/at/bt |
PoE Port | 1~ 4 Port: 60W 5~ 16 Port: 32W |
PoE Power Output | Max 60W |
PSE Power on RJ-45 | 1~ 4 Port: Mode A Anode1/2 Cathode3/6 Mode B Anode4/5 Cathode7/8 5~16 Port: Mode A Anode1/2 Cathode3/6 |
PoE Power Budget | P6-S20FL V3 :300W |
Power total | P6-S20FL V3 :330W |
PoE LCD | PoE Port Status display in real time |
Forwarding Mode | Storage-and-Forward |
Switching Capacity | P6-S20FL V3 11.2G |
MAC address table | 8K, Auto--learning, Auto-aging |
Jumbo frames | 9216Byte |
Packet buffer | 4.1M bit |
Forwarding Rate | P6-S20FL V3：8.33Mpps |

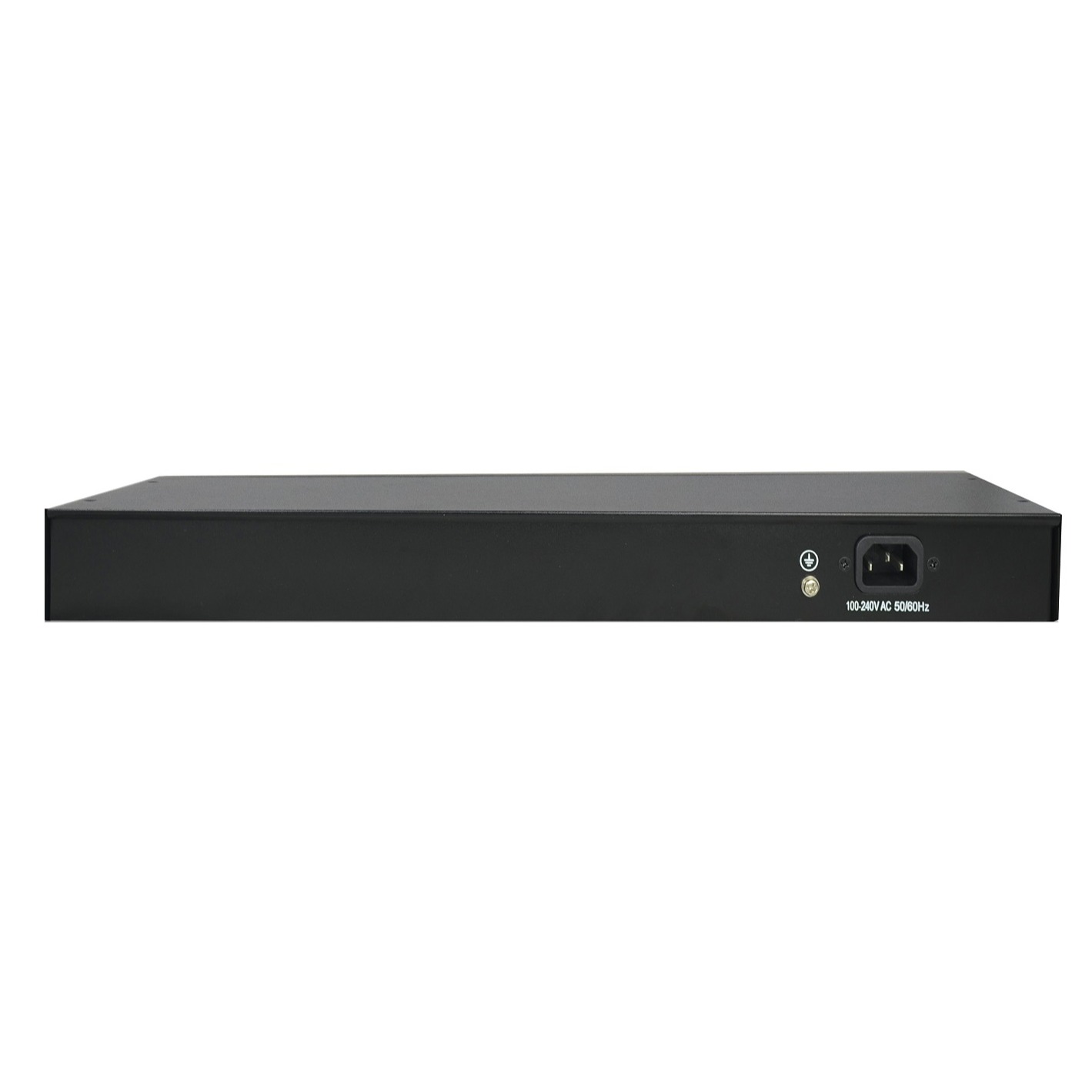

Input Power Supply | AC 100-240V 50/60Hz |
Operation Temperature | -10℃~60℃ |
Storage Temperature | -40℃~70℃ |
Operation Humidity | 10%~90% RH non-condensing |
Storage Humidity | 5%~90% RH non-condensing |
Dimensions(L*W*H) | 440*232*45mm |
Fan | 3*Fan |
Weight | <5Kg |
LED Indicator | PWR, LNK/ACT, PoE, Speed |
Network Media(Cable) | 10BASE-T: UTP category 3, 5 cable (≤100m) 1000BASE-T: UTP category 5e,6 cable(≤100m) 1000BASE-X: MMF, SMF |
Surge Protection | ±6KV |
Certification | CE、FCC ClassA |
MTBF | >50000hour |
Electrostatic standard | Contact 6KV,air 8KV |
LCD Features
The produce is with the function of the colorful LCD display and PoE Ethernet switch. The colorful LCD not only display the working condition of PoE port, but also accurately show the state of each port, such as Output power, Overload, Short circuit, Light load, Low voltage, Over voltage, High temperature, and so on...
In addation, The third generation colorful LCD display add colorful logo display, upload and download speed of every port and ten interface setting functions base on the second generation LCD Display. The ten interface setting functions is include of Switch Mode, Band Width Warning, PD Type Setting, PSE Power Fine, PSE Port Priority, PSE Port Enable, Fan Control, Language, Factory Setting, Factory Setting. See the operation manual of the screen. The picture is only displayed with this information. The data is incomplete.
Ordering information
Model | Product information |
P6-S20FL V3 | 16*10/100Mbps +2GE+2G SFP Gigabit Uplink PoE Switch with V3 LCD display （16-Port PoE，1-4 Port:60W,5-16 Port:32W Support 802.3bt/af/at Standard） |
