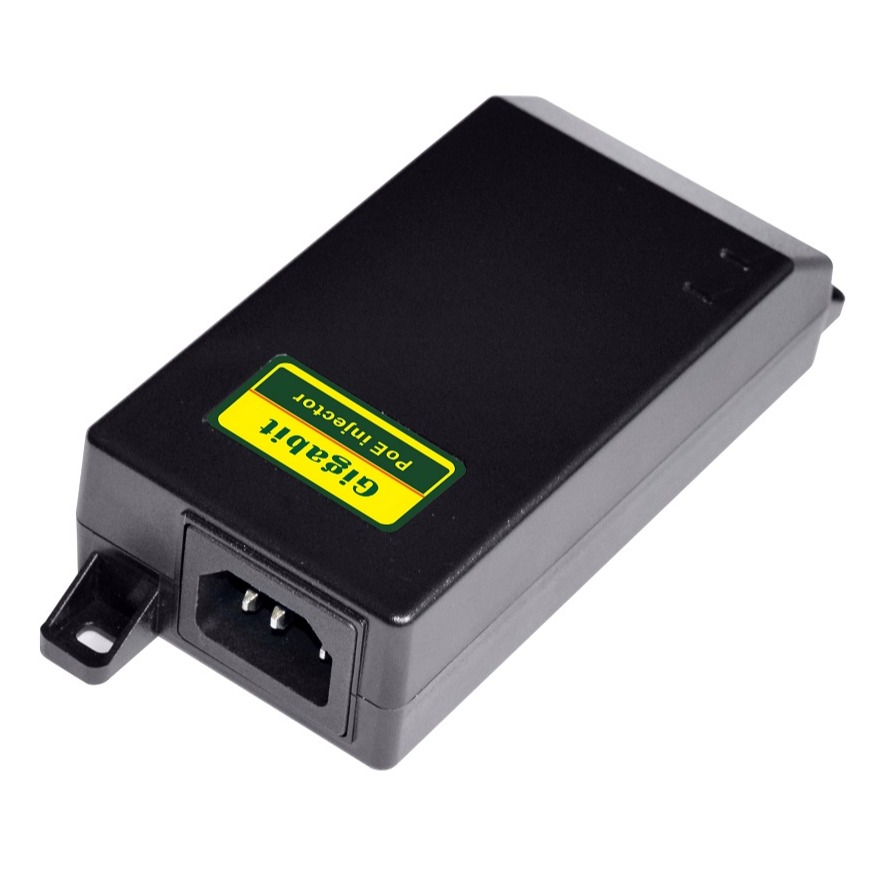

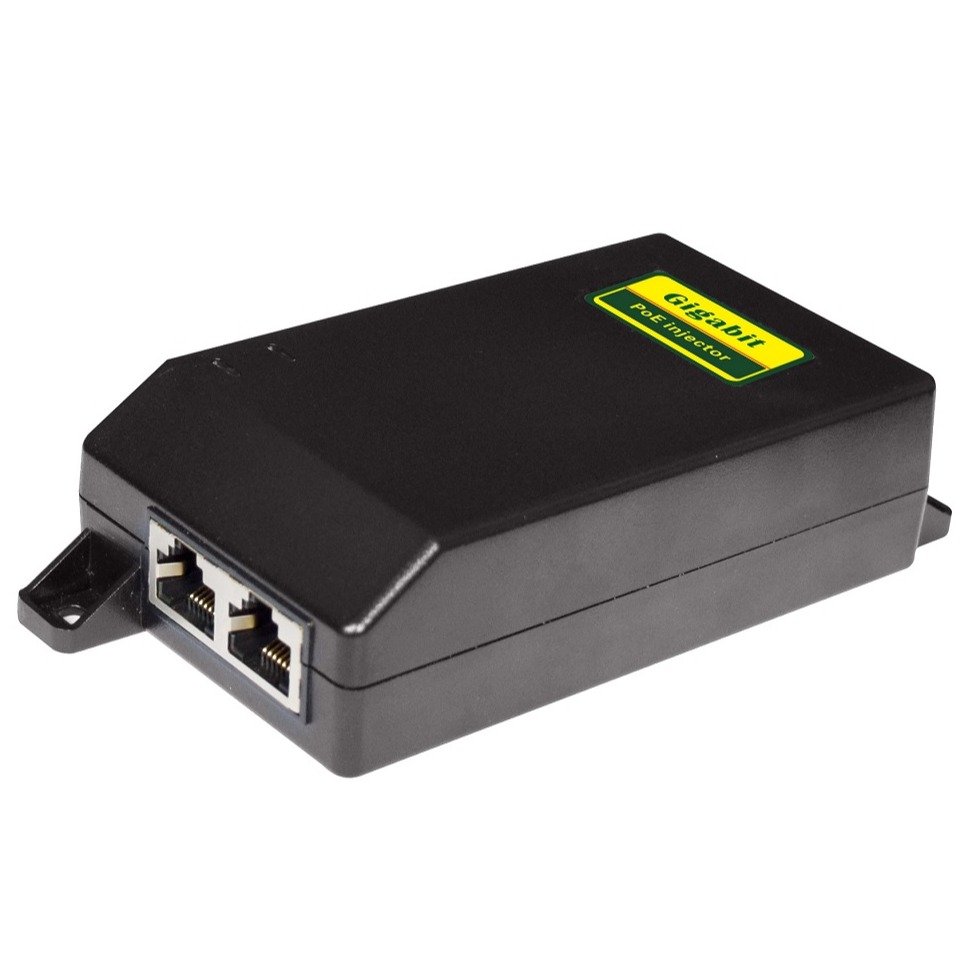

30W PoE Injector

Model NO.: PM3001GIN V2
Delivery:: FOB
Minimum order quantity:: 1

Quantity:

Product Description
Basic Information

Product Overview

The PM3001GIN V2 PoE Injector fully complies with IEEE 802.3af/at standard, and can work with all IEEE 802.3af /at PoE compliant PD (Powered Devices) or PoE Receiver Adapters or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

Product Features

Complies with IEEE802.3af/at Standard;
Use 2 pairs of power supply, and output power more;
Auto detect power device;
Support PoE power up to 32W ;
Remote power and Data feeding up to 100m;
Gigabit Internet port;
built-in Power,Plug-and-play, requires no configuration;
Intelligent protection and power supply;
Working temperature: 0 ℃ to 40 ℃;
Short Circuit Protection;
Elegant plastic shell design;

Product Specifications

Model	PM3001GIN V2
Port	LAN: 1x10/100/1000Mbps RJ45 Port PoE: 1x10/100/1000Mbps RJ45 Port
PoE Standard	IEEE802.3af/at
PSE Power on RJ-45	Data Pairs 1/2(+),3/6(-)
PoE Power Output	30W Max
Input Voltage	AC 100-240V 50/60Hz
Input Current	0.6Amax,@100V AC/60HZ (Full Load)
Inrush Current	70A (RMS) maximum for AC 230V/50HZ (Full Load)
Leakage Current	5mA(Max)AC 230V/50HZ (Full Load)
No-Load Voltage	DC55V±5%,AC 230V/50HZ (No-Load)
Output Voltage	DC55V±5%,AC 230V/50HZ (Full Load)
Output current	0.58A Max
output ripple voltage	≤200mV,Test conditions: rated input voltage, full load output, Tested with 20MHz bandwidth oscilloscope, Parallel connected a 0.1uF ceramic capacitor and a 10uF electrolytic capacitor to the output
Efficiency	≥85%,@230V AC 50HZ,(Full Load)
Operation Temperature	0℃~40℃
Storage Temperature	-40℃~70℃
Operation Humidity	10%~90% RH non-condensing
Storage Humidity	5%~90% RH non-condensing
Dimensions(LWH)	142 60 32 mm
LED Indicator	PWR(Green) , LNK/ACT(Green)
Network Media(Cable)	10BASE-T: UTP category 3, 5 cable (≤100m) 100BASE-TX: UTP category 5,5e cable (≤100m) 1000BASE-T: UTP category 5e,6 cable(≤100m)
MTBF	>50000 hours
Certification	ETL, CB, GS, FCC, CE, RCM，ITS,UKCA,SAA
