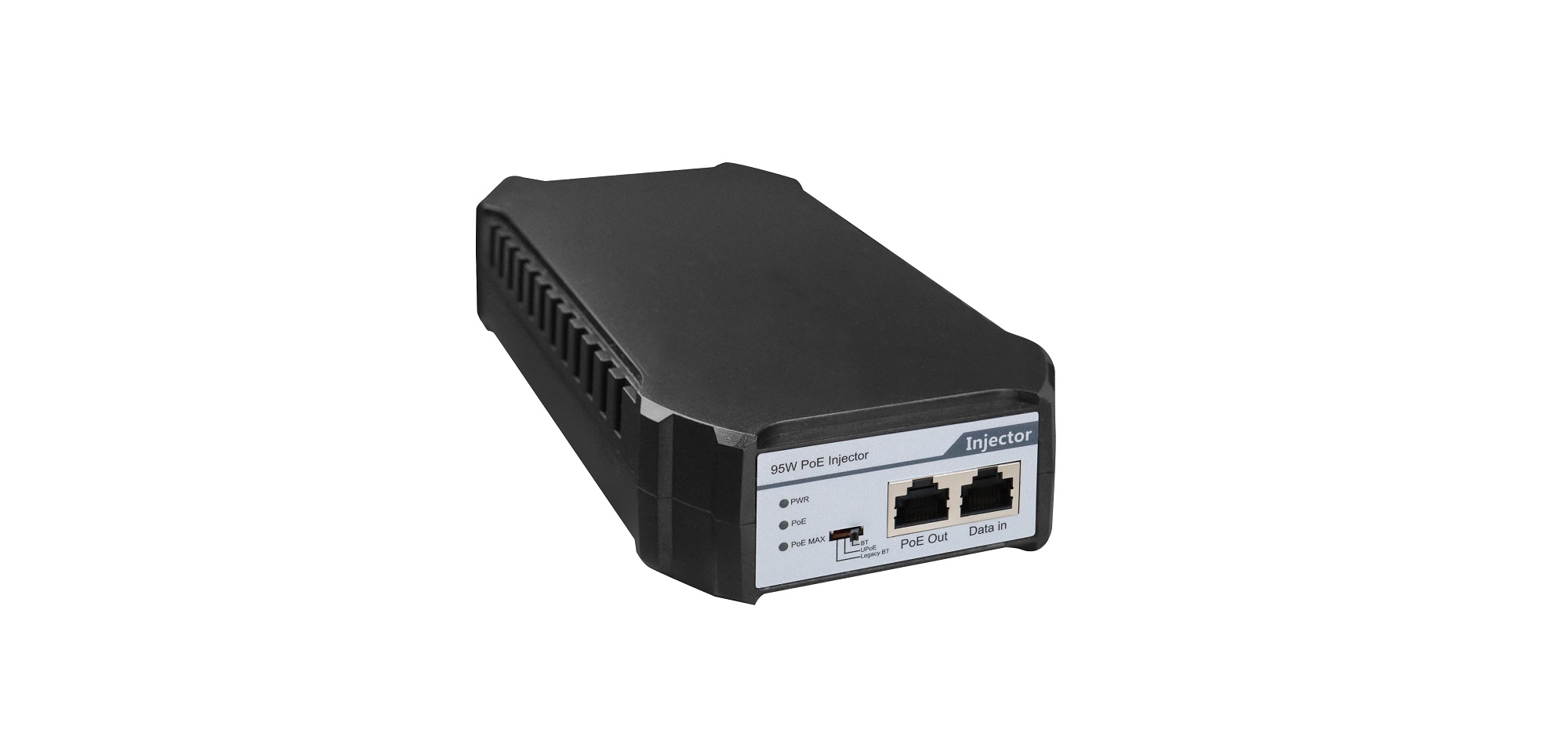

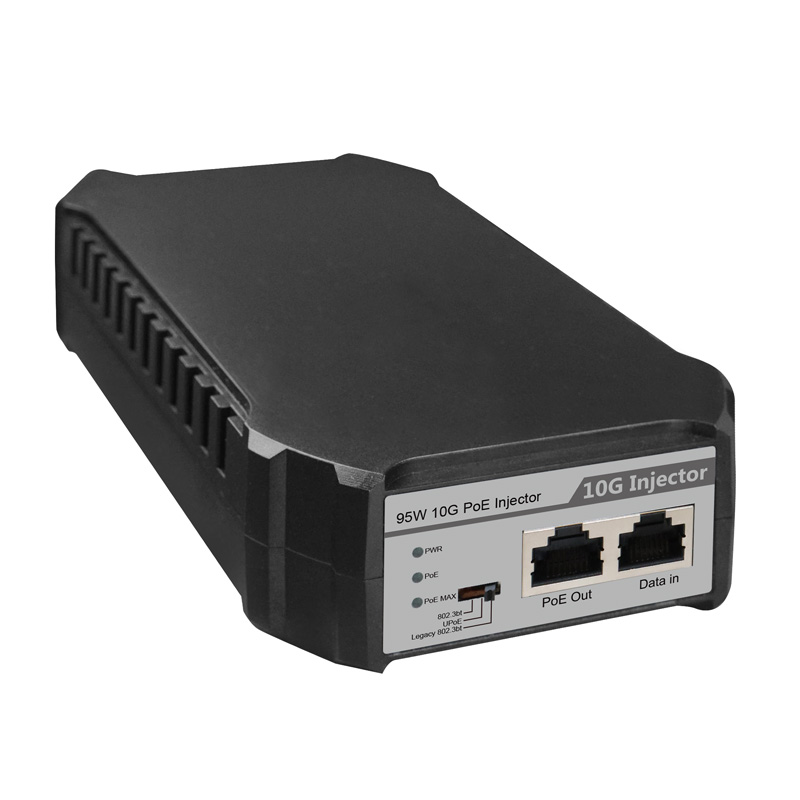

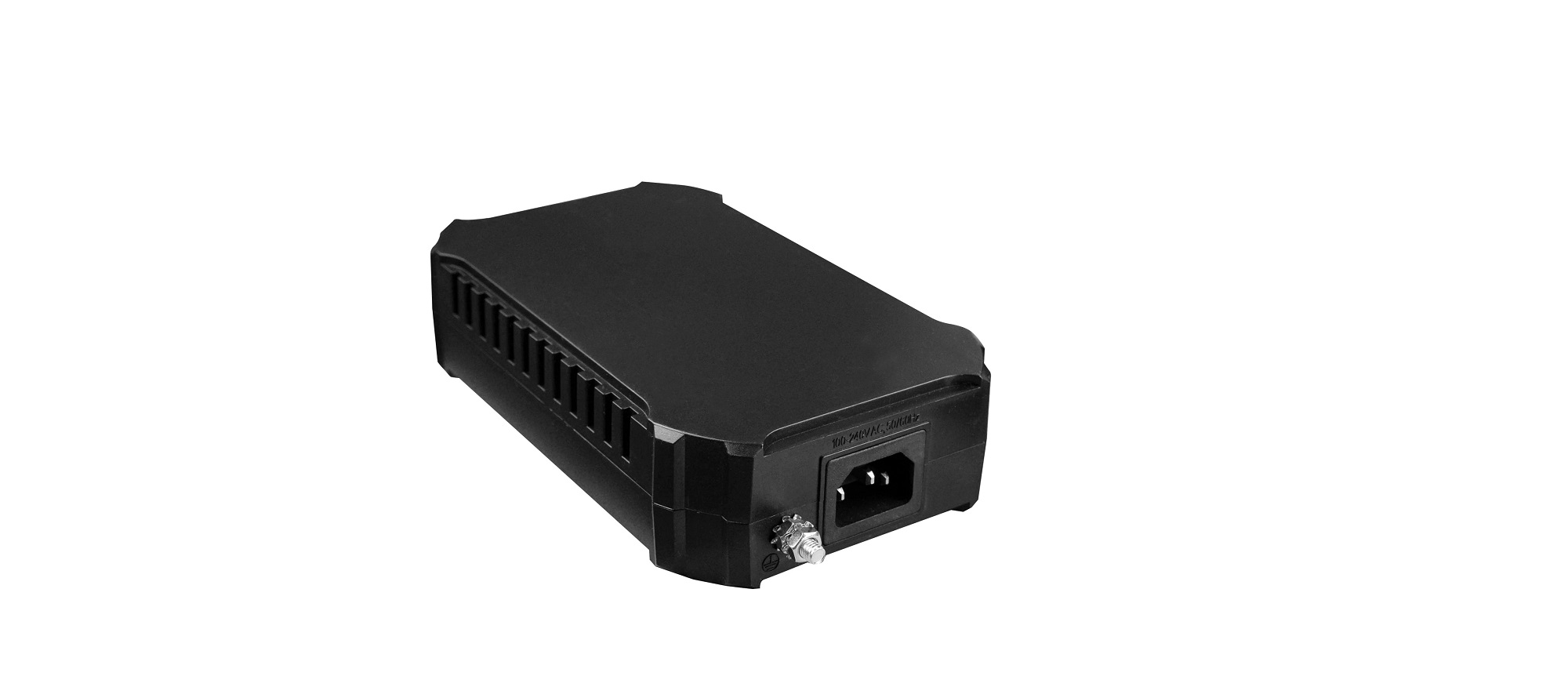

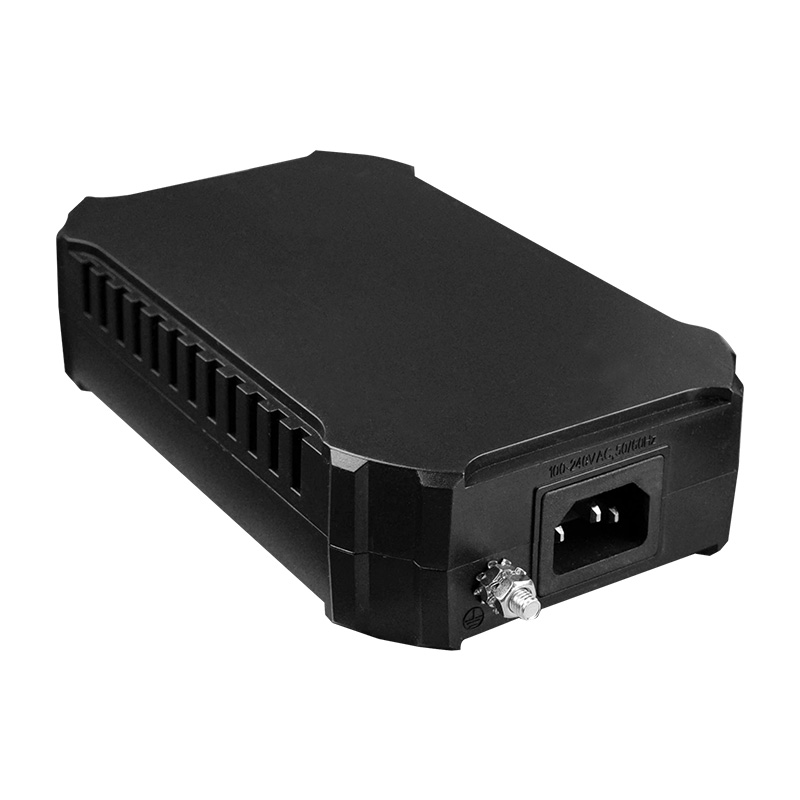

95W PoE Injector

Model NO.
PM9501GIN V6
Quantity:
Product Overview
PM9501GIN V6 is a 95W GigabIit PoE crossover power supply device independently developed by UNIPOE. It adopts 4-pair power supply mode and complies with IEEE802.3af/at/bt standards. It can load electric energy on network cables for transmission with the maximum transmission distance of 100m.

PM9501GIN V6 can automatically detect and identify IEEE802.3af/at/bt standard electrical equipment, and automatically match the output power for its power supply.
For terminals that do not support the PoE function, a PoE separator can be used together to expand the traditional power line network and reduce power line usage.



Product Features
  • Support IEEE 802.3bt standard, compatible with IEEE 802.3 af/at/bt electrical equipment (PD);
  • Four pairs of power supply are adopted to reduce power loss on the network cables and increase the output power;
  • Automatic detection and identification standard PoE power receiving devices, intelligent power supply, does not burn non-standard PoE power receiving devices or common devices;
  • Single port maximum output power up to 95W;
  • Data transmission and power supply distance up to 100 meters;
  • Gigabit Internet port;
  • Three-in-one design, plug and play, no management;
  • Intelligent protection and power supply;
  • Exquisite plastic shell design;
  • Working temperature: 0℃~40℃.


Product Specifications

Hardware Specification
ModelPM9501GIN V6
PortData in: 1x10/100/1000Mbps RJ45 Port
PoE Out: 1x10/100/1000Mbps RJ45 Port
PoE StandardIEEE802.3af/at/bt
PSE Power on RJ-454Pairs power lines
1/2 (-)和 3/6 (+)
4/5 (+)和7/8 (-)
Function keysLegacy Bt/Bt/UPoE
Input Power SupplyAC 100-240V  50/60Hz  2A MAX
PoE Power Output55V DC, 95W
Power supply100W
Operation Temperature0℃~40℃
Storage Temperature-40℃~70℃
Operation Humidity10%~90% RH  non-condensing
Storage Humidity5%~90% RH  non-condensing
Dimensions(L*W*H)160*94*40mm
LED IndicatorPWR(Green) , PoE(Green), PoE Usage(80%)(Green)
Network Media(Cable)10BASE-T: UTP category 3, 4, 5 cable (≤100m)
100BASE-TX: UTP category 5 cable (≤100m)
1000BASE-T: UTP category 5e cable(≤100m)
Surge ProtectionDifference Mode: ±2KV, Common mode: ±4KV
MTBF>50000 hours
Electrostatic standardContact 6KV, air 8KV



Ordering information
Modelproduct information
PM9501GIN V695W PoE Injector
