Model NO.
PM3010GSMC V1
Quantity:
Product Overview

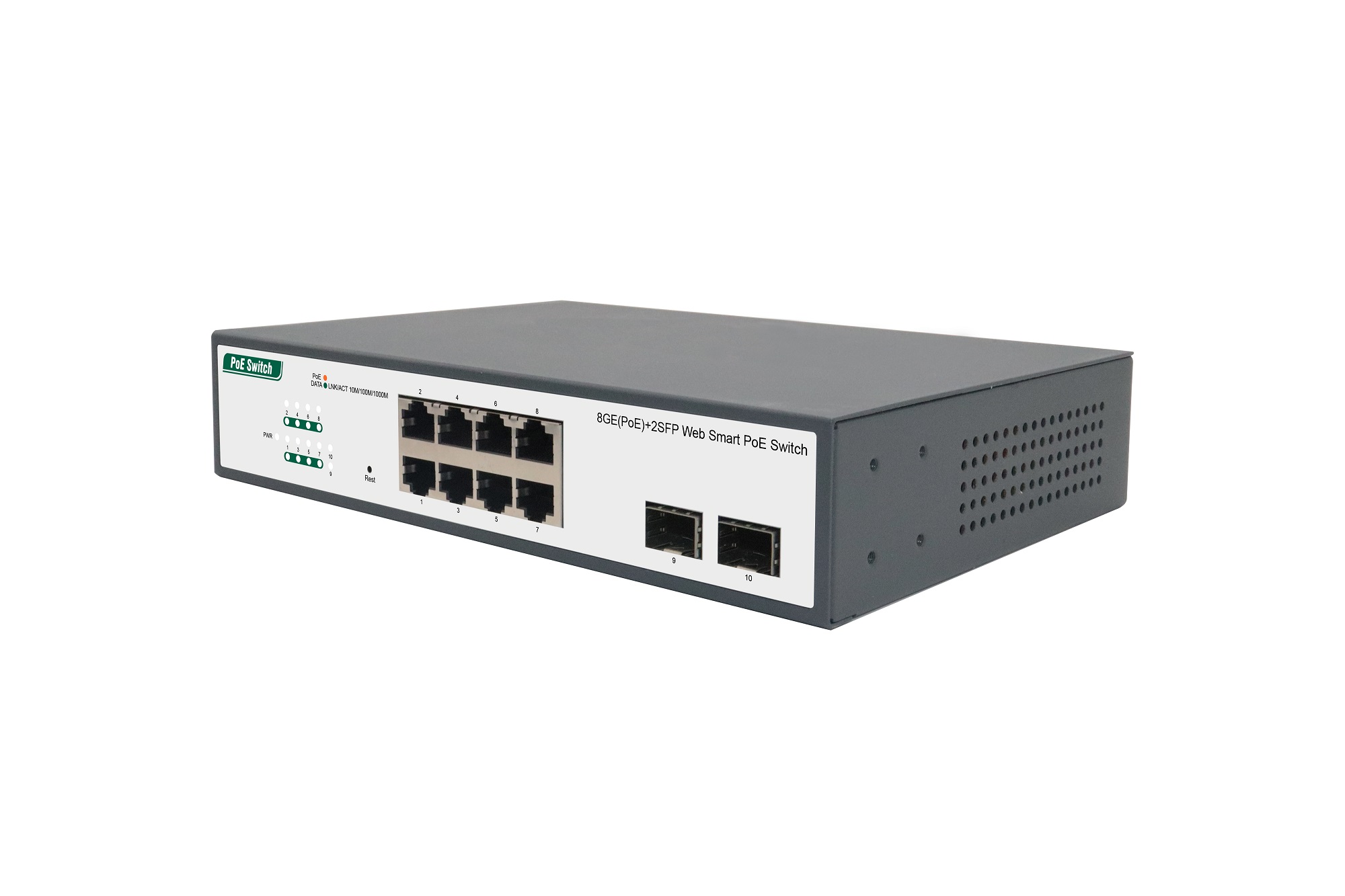

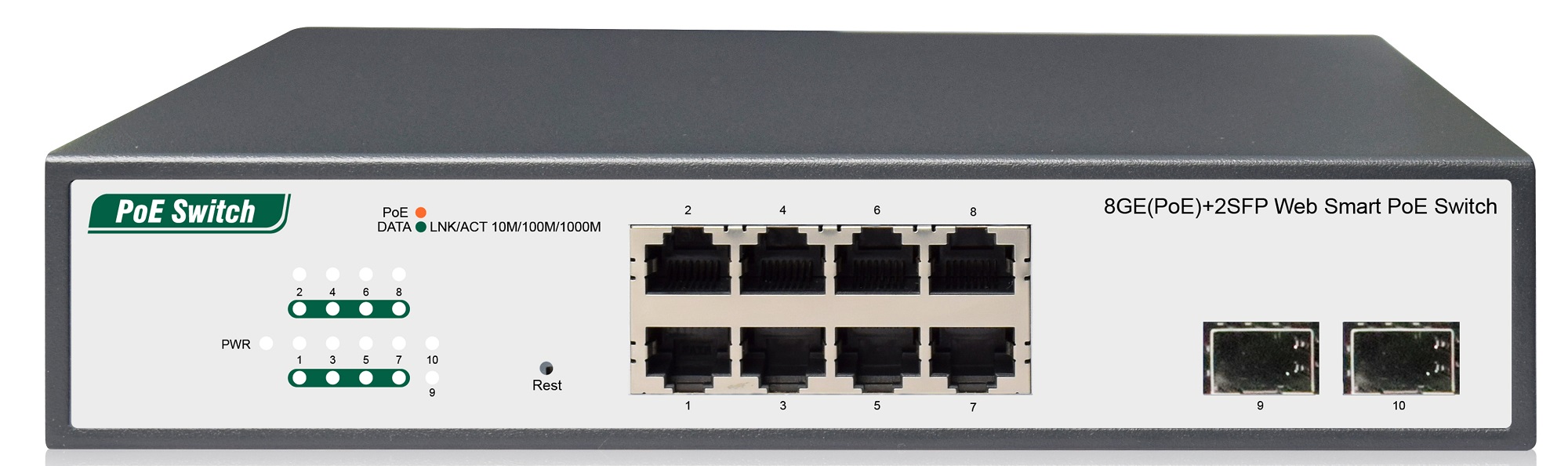

PM3010GSMC V1 is a Web Smart Managed PoE Switch independently developed by UNIPOE. It provides 8*10/100/1000Mbps RJ45 ports and 2*1000Mbps SFP slots. Each RJ45 port supports MDI/MDIX automatic rollover and wire-speed forwarding. Ports 1-8 have the PoE power supply function and comply with IEEE 802.3af/at standards. They can be used as Ethernet power supply devices to automatically detect and identify compliant power receiving devices and supply power to them through network cables. The storage and forwarding technology and dynamic memory allocation ensure that bandwidth is effectively allocated to each port.
PM3010GSMC V1 is easy to use and can flexibly expand home and office networks without limitation of power line layout. It is easy to manage and maintain and meets the requirements of different scenarios


Features
  •     IEEE 802.3at standard compliant IEEE 802.3af electrical receiving device (PD);
  •     Automatic detection and identification standard PoE power receiving devices, intelligent power supply, does not burn non-standard PoE power receiving devices or common devices;
  •     Port power supply priority is supported to ensure continuous power supply for key nodes on the network;
  •     Supports the PD-ALIVE function;
  •     Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control;
  •     Supports 802.1Q VLAN, Port VLAN, QoS, bandwidth control, and storm suppression;
  •     Supports port traffic statistics, port monitoring, cable detection, and loopback protection;
  •     Fast PoE and permanent PoE are supported;
  •     Panel indicators monitor working status and assist in fault analysis;
  •     Intelligent identification of wire speed forwarding;
  •     Data exchange adopts store-and-forward mode;
  •     Operating temperature: 0°C ~ 40 °C;
  •     Mainboard, Power supply, PoE (three in one PCBA).
Product Specifications

ModelPM3010GSMC V1
Interface8*10/100/1000Mbps RJ45 Ports
2*1000Mbps SFP Slots
StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1x, IEEE 802.1q, IEEE 802.1p, IEEE 802.1d, IEEE 802.1w, IEEE 802.3ad, IEEE802.3af, IEEE802.3at

Network Media(Cable)
10BASE-T: UTP category 3, 5 cable (≤100m)
100BASE-TX: UTP category 5, 5e cable (≤100m)
1000BASE-T: UTP category 5e, 6 cable(≤100m)
PoE PortPort1~8
PoE Port Output30W

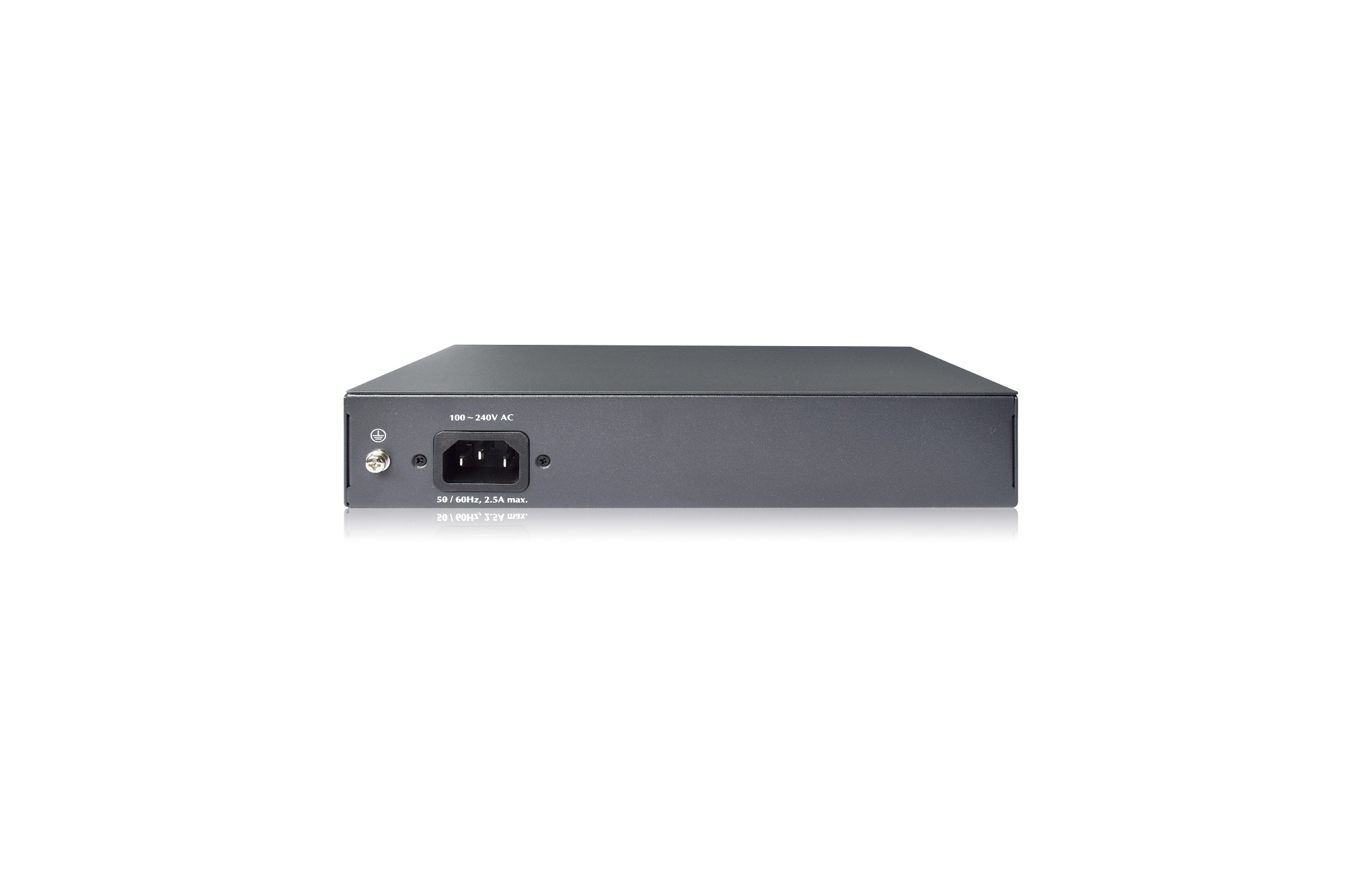

Input VoltageAC 100-240V 50/60Hz
PoE Power Budget120W
Power Input130W.
RJ45 PoE Power SupplyMode A 1/2(+)3/6(-)
Transfer ModeStore-and-forward
Switching Capacity20Gbps
MAC Address Table8K, Auto-learning, Auto-aging
jumbo Frame9216Byte
Packet Buffer4.1M bit
Packet Forward Speed14.88Mpps
Input VoltageAC 100-240V 50/60Hz
Operating Temperature0°C ~ 40 °C
Storage Temperature-40 °C ~70°C
Operating Humidity10% ~ 90% non-condensing
Storage Humidity5% ~ 90% non-condensing
Dimensions(L*W*H)220*150*44mm
Fan Quantity1
Surge ProtectionDifferential mode ±2KV ,  Common mode ±4KV
MTBF>50000 hour
Electrostatic StandardContact ±6KV , Air ±8KV


Software Specification
Function menuFunctional descriptionAdded


Basic
Login authentication and logout
Bilingual (Chinese-English Switching)
Port panel (dual color rate differentiator)1000 m green
100 m / 10 m orange yellow






System configuration

Equipment information
Device name
Device contact
Location of equipment
IP Address SettingStatic
DHCP Client
Support the DNS
Web configurationWeb Timeout Setting
User managementThe password must contain at least six letters and digits
The firmware updateLocal upgrade
Equipment managementEquipment to restart
Save Settings
factory data reset

Monitoring management
The port statistical
Cable testing
Ring network configurationrlpp






Switch Configuration

Port configuration
Status
Speed/Duplex/Flow Control
Port mirrorEntrance/exit /ALL
Port isolation
Static MAC
MAC filtering
MAC query
MAC listCategories display static/dynamic
VLAN configurationMember of the VLAN
VLAN configurationAccess, Trunk

QOS configuration
Port speed limit
The broadcast storm

PoE configuration

The basic configuration
Enable/disable power supply
Mandatory power supply
Power limit
PD Alive
MCU Upgrade


Ordering Information
ModelProduct Information
PM3010GSMC V18GE(PoE)+2SFP Web Smart PoE Switch
