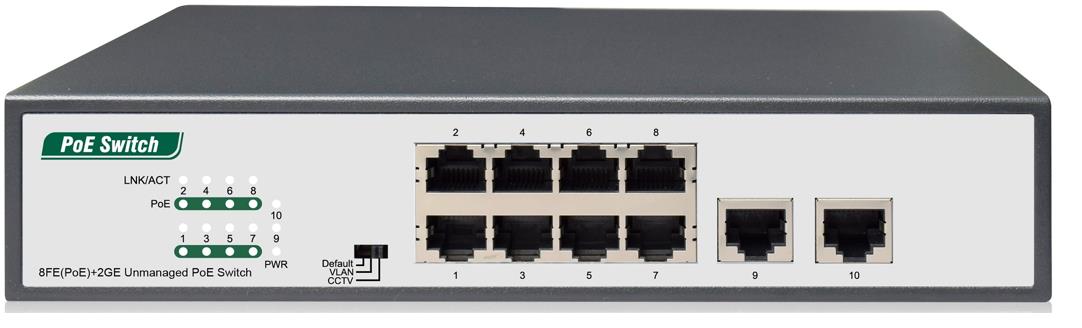

8FE(PoE)+2GE Unmanaged PoE Switch
8FE(PoE)+2GE Unmanaged PoE Switch

8FE(PoE)+2GE Unmanaged PoE Switch

Model NO.
PM3010FSN V7
Quantity:
Product Overview
PM3010FSN V7 is a non-management PoE switches independently developed by UNIPOE. It provides eight 100 MBIT/s adaptive RJ45 ports and two 1000 MBIT/s electrical ports. Each RJ45 port supports MDI/MDIX automatic rollover and wire-speed forwarding. Ports 1 to 8 have the PoE power supply function and support IEEE 802.3af/at standards. They can be used as Ethernet power supply devices. They can automatically detect and identify electrical devices that meet the standards and supply power to them through network cables. Store-and-forward technology combined with dynamic memory allocation ensures efficient bandwidth allocation to each port.
PM3010FSN V7 has one-button VLAN and CCTV functions and can transmit over 250 meters. Users can enable or disable the CCTV function according to different application environments to improve network security and suppress network storms. It is easy to manage and maintain and meets the networking and access requirements of enterprises, communities, hotels, office networks, and campus networks.



Product Features
  • Support IEEE 802.3at standard,  compatible with IEEE 802.3af electrical equipment (PD);
  • With VLAN and CCTV functions;
  • Stand-up output power up to 30W;
  • Automatic detection of PD devices;
  • Automatic detection and identification of standard PoE power receiving devices,  intelligent power supply,  will not burn non-standard PoE power receiving devices or common devices;
  • Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control;
  • Panel indicators monitor working status and help fault analysis;
  • Perfect security mechanism;
  • Wire speed forwarding,  intelligent recognition;
  • Data exchange adopts store-and-forward mode;
  • Operating temperature: 0°C ~ 40 °C;
  • Support PD-alive function;
  • Support online switching between CCTV and VLAN toggle switch;
  • Mainboard,  Power supply,  PoE (three in one)


Product Specifications
ModelPM3010FSN V7
Interface8*10/100Mbps RJ45 ports
2*10/100/1000Mbps ports
StandardIEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
PoE Port1~8 port
PoE Total120W
Power Supply130W
Key Function CCTV&VLAN
RJ45 PoE Power SupplyMode A   Anode1/2  Cathode3/6
PoE Output-PortMax 30W
Transfer Modestore-and-forward
Bandwidth5.6Gbps
MAC Address Table8K,  Automatic study,  automatic updates
Jumbo Frame9216Byte
Packet Forwarding Rate4.17Mpps
Mains Input100~240V AC,   50/60Hz
Operating Temperature0°C ~ 40 °C
Storage Temperature-40°C ~ 70 °C
Operating Humidity10% ~ 90% RH  non-condensing
Storage Humidity5% ~ 90% RH  non-condensing
Device Dimension220*150*44mm
Machine Weight>1kg
IndicatorPWR、LNK/ACT、PoE
Network Media10BASE-T:    UTP category 3, 4, 5 cable (≤100m)
100BASE-TX:  UTP category 5,  5e cable (≤100m)
Green Energy SavingSupport IEEE(802.3az)
Surge ProtectionCommon mode ±4KV,  differential mode ±2KV
MTBF>50000 hour
Electrostatic StandardContact 6KV, air 8KV



Ordering information
ModelProduct information
PM3010FSN V78FE(PoE)+2GE Unmanaged PoE Switch
