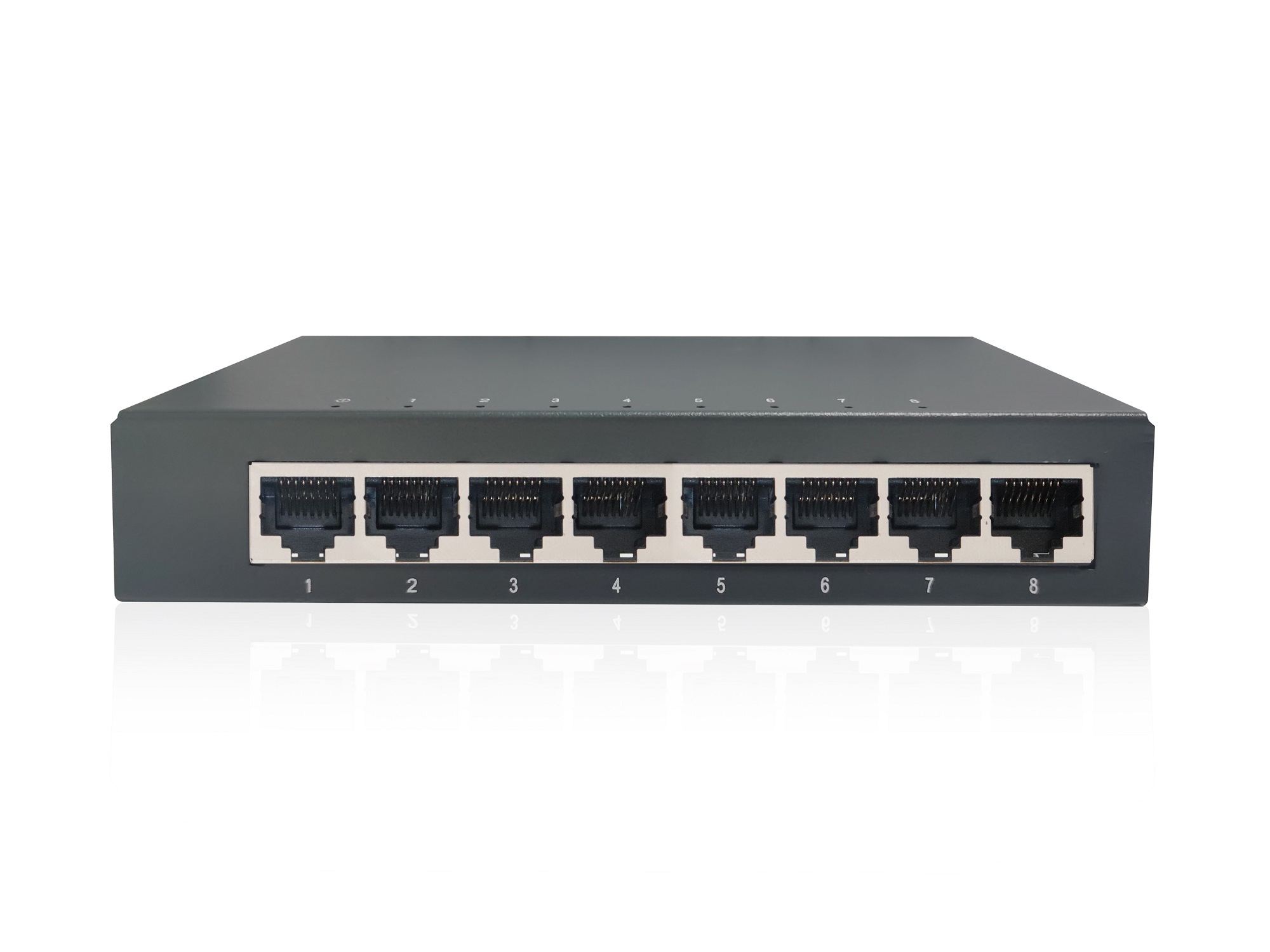

8-Port Gigabit Switch
8-Port Gigabit Switch
8-Port Gigabit Switch
8-Port Gigabit Switch
8-Port Gigabit Switch
8-Port Gigabit Switch
8-Port Gigabit Switch

8-Port Gigabit Switch

Model NO.
PM108GS V7
Quantity:
Product Overview

PM108GS V7 product have 8*10/100/1000Mbps RJ45 ports. Using store and forward technology,  combined with dynamic memory allocation,  to ensure the effective allocation of bandwidth to each port.  This product is easy to use and maintain which can meet a lot of networking environment,  such as Business building,  Community,  Hotel,  Office etc.


Product Features
  •     Support IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3az Standard;
  •     Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control;
  •     Panel indicators monitor working status and help fault analysis;
  •     Perfect security mechanism;
  •     Intelligent identification of wire speed forwarding;
  •     External power supply,  exquisite iron shell structure design;
  •     Operation Temperature: 0°C ~ 40 °C.

Product Specifications
ModelPM108GS V7
StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE802.3ab, IEEE802.3az
Ports8*10/100/1000Mbps RJ45 Port
LED IndicatorPWR, LNK/ACT
Network Media(Cable)10BASE-T: UTP category 3,  5 cable (≤100m)
100BASE-TX: UTP category 5, 5e cable (≤100m)
1000BASE-T: UTP category 5e, 6 cable(≤100m)
MAC Address Table4K, Auto-learning,  Auto-aging
Jumbo Frames9216 Byte
Packet Buffer1.5Mbit
Forwarding ModeStorage-and-Forward
Forwarding Rate11.9Mpps
Switching Capacity16Gbps
Dimensions(L*W*H)140*76.7*27.65mm
Weight<1Kg
FanFanless
Input VoltageDC:12V/0.5A
Power Supply6W
Operation Temperature0°C ~ 40 °C
Storage Temperature-40 °C ~ 70 °C
Operation Humidity10%~90% RH  non-condensing
Storage Humidity5%~90% RH  non-condensing
Surge ProtectionDifference module±2KV  Common mode±4KV
MTBF>50000 hours
Electrostatic StandardContact ±6KV, Air ±8KV



Ordering Information
ModelProduct Information
PM108GS V78-Port Gigabit Switch
