Model NO.
PM9010GSI V1
Quantity:
Product Overview

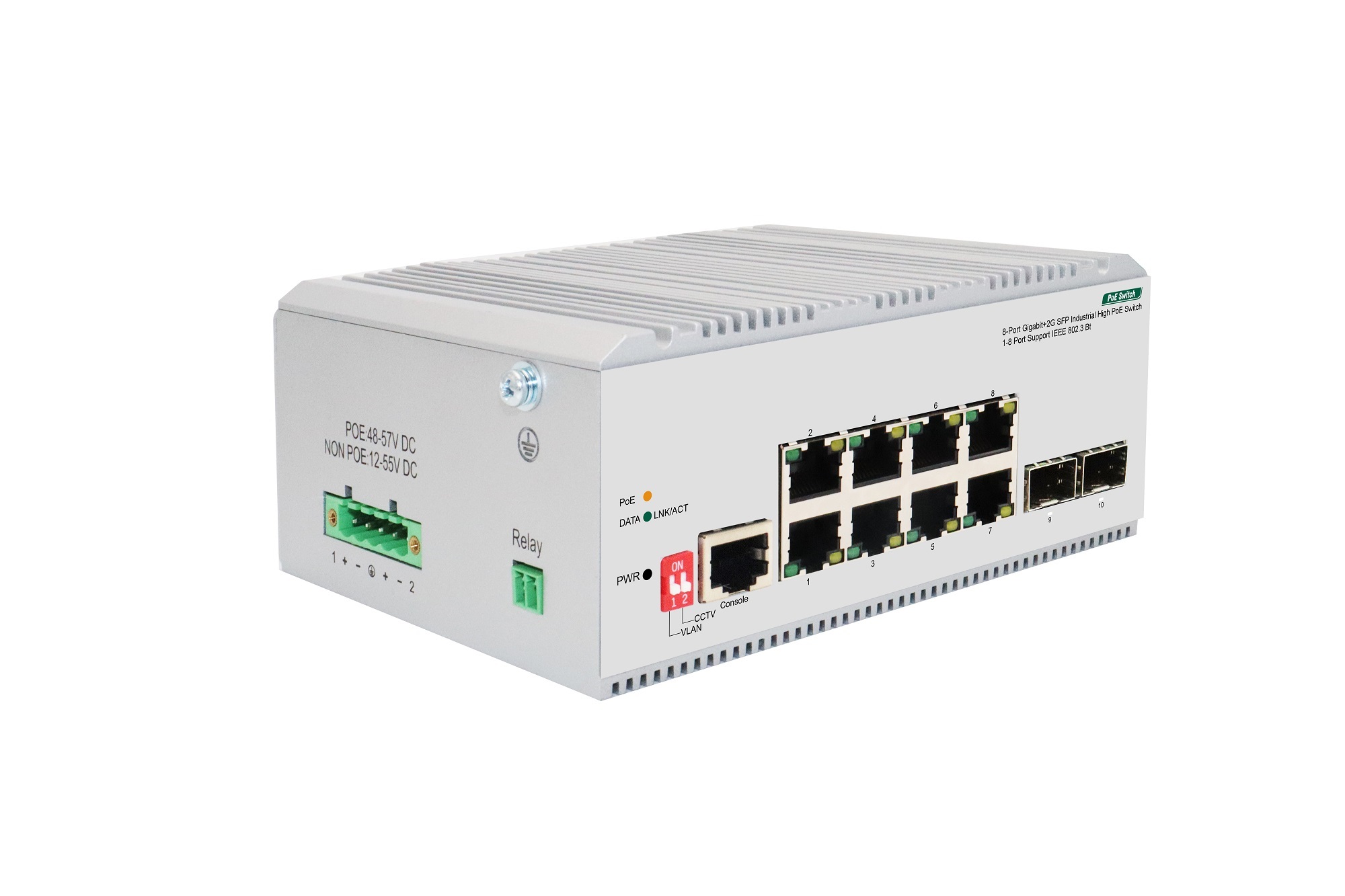

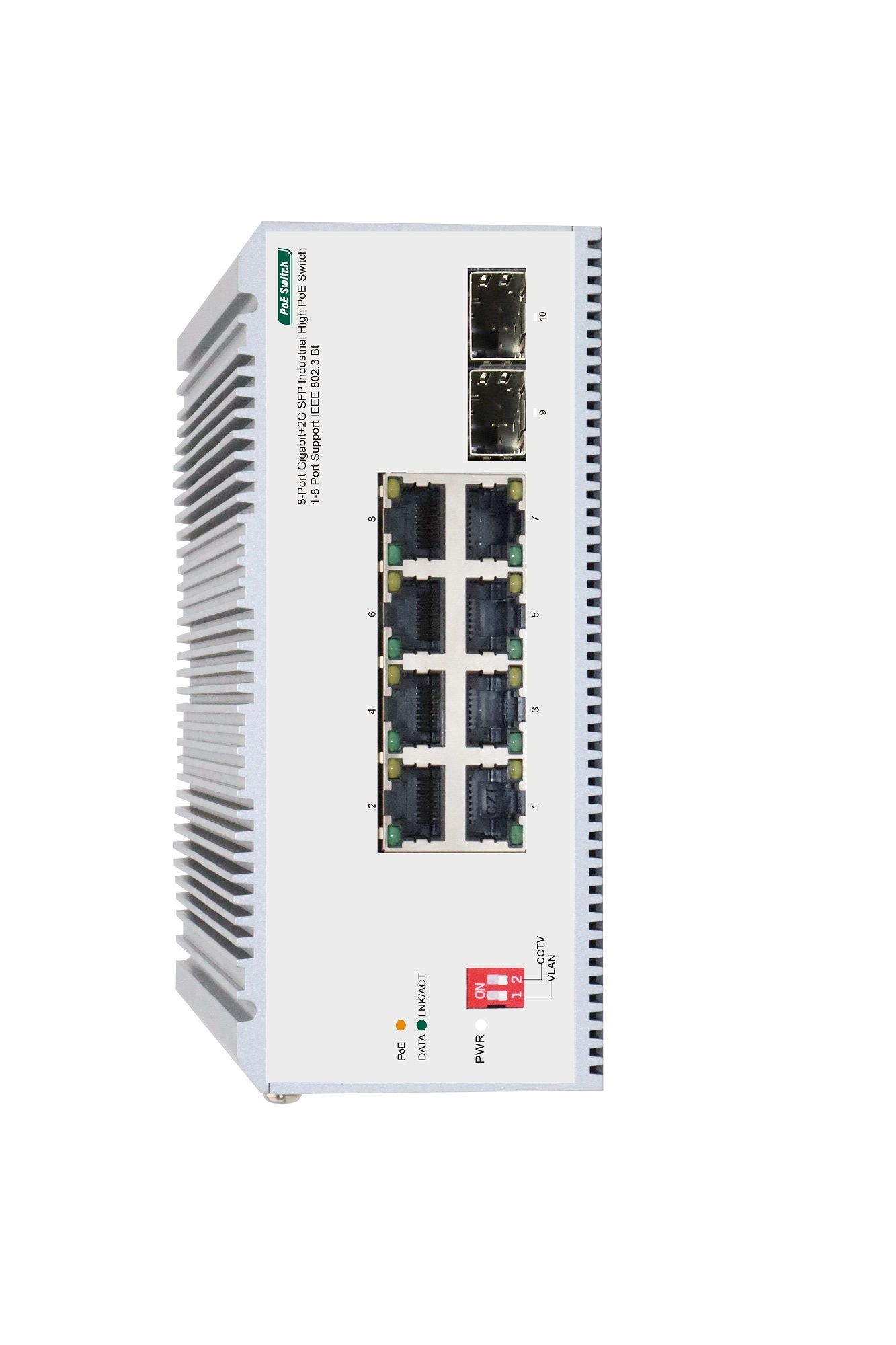

PM9010GSI V1 is an industrial-grade Unmanaged PoE Switch independently developed by UNIPOE. It has 8*10/100/1000Mbps adaptive RJ45 ports and 2*1000Mbps SFP fiber module slots. Ports 1-8 RJ45 support PoE power supply, each port up to 90W. Each RJ45 port supports MDI/MDIX automatic rollover and wire-speed forwarding.
The device adopts storage and forwarding, no fan, low power consumption design, has the advantages of easy to use, compact and beautiful, simple installation. The product is designed to meet Ethernet standards, with lightning protection, static protection mechanism, operating temperature range of -40°C to 75°C, stable performance, safety and reliability, can be widely used in intelligent transportation, telecommunications, security, financial securities, customs and other broadband data transmission fields.


Product Features
  •     Complies with IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x standards;
  •     RJ45 supports automatic port flip (Auto MDI/MDIX);
  •     PoE supports IEEE 802.3af/at/bt standards. Each port has a maximum output of 90W;
  •     Automatic detection of PD devices;
  •     Port power priority is supported to ensure continuous power supply for key nodes on the network;
  •     IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control;
  •     No fan, all aluminum alloy high energy roof heat conduction tank;
  •     Panel indicators monitor working status and help fault analysis;
  •     Perfect security mechanism;
  •     Supports CCTV and VLAN functions;
  •     Wire speed forwarding and intelligent recognition;
  •     Data exchange adopts store-and-forward mode;
  •     Operating temperature: -40℃~75℃.

Product Specifications

Hardware Specification


ModelPM9010GSI V1
StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3bt
Interface8*10/100/1000Mbps RJ45 Ports
2*1000Mbps SFP Slots
IndicatorPWR, LNK/ACT, PoE
Network Media10BASE-T: UTP category 3, 4, 5 cable(≤100m)
100BASE-TX: UTP category 5, 5e cable(≤100m)
1000BASE-T: UTP category 5e, 5 cable(≤100m)
1000BASE-X: MMF, SMF
MAC Address Table4K, Auto-learning, Auto-aging
Jumbo Frame9216Byte
Packet Buffer1.5Mbit
Transfer ModeStore-and-forward
Packet Forward Speed14.88Mpps
Switching Capacity20Gbps
Dimensions(L*W*H)145*109*62mm
Fan QuantityFanless
Power Supply200W
PoE Budget185W
PoE PortPort1~8
PoE Power On RJ45Mode A  1/2(-), 3/6(+)
Mode B  4/5(+), 7/8(-)
PoE Power Output90W(MAX)
Green Energy SavingIEEE 802.3az
Input Power SupplyDC: 48-57V
Operating Temperature-40°C ~ 75 °C
Storage Temperature-40 °C ~ 80 °C
Operating Humidity5% ~ 95% non-condensing
Storage Humidity0% ~ 95% non-condensing
Surge ProtectionDifferential mode ±2KV  Common mode ±6KV
MTBF>100000 hour
Electrostatic StandardContact ±6KV, Air ±8KV

Ordering Information
ModelProduct Information
PM9010GSI V18-Port Gigabit+2G SFP Industrial High PoE Switch(1-8 Port Support IEEE 802.3bt)
