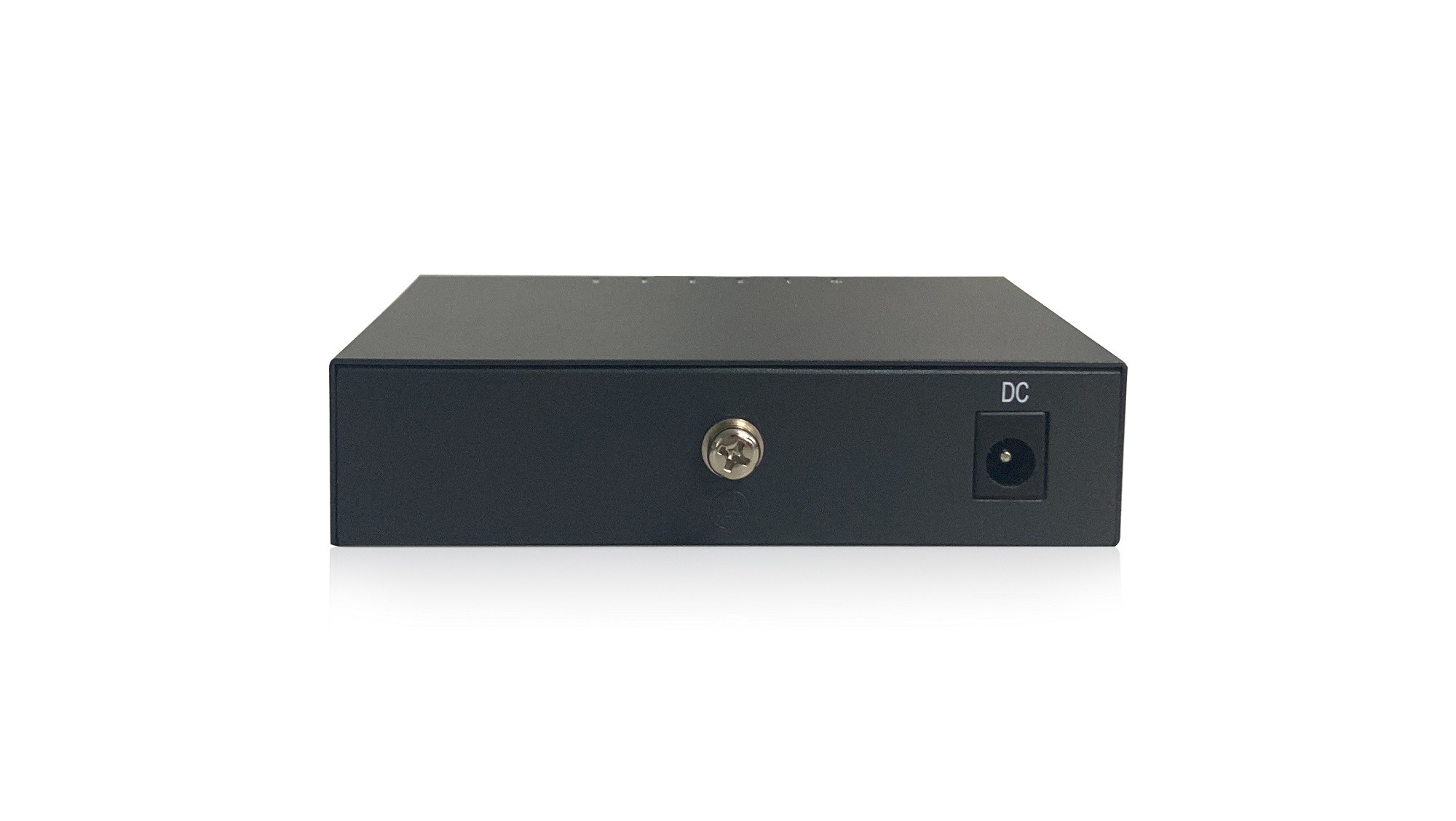

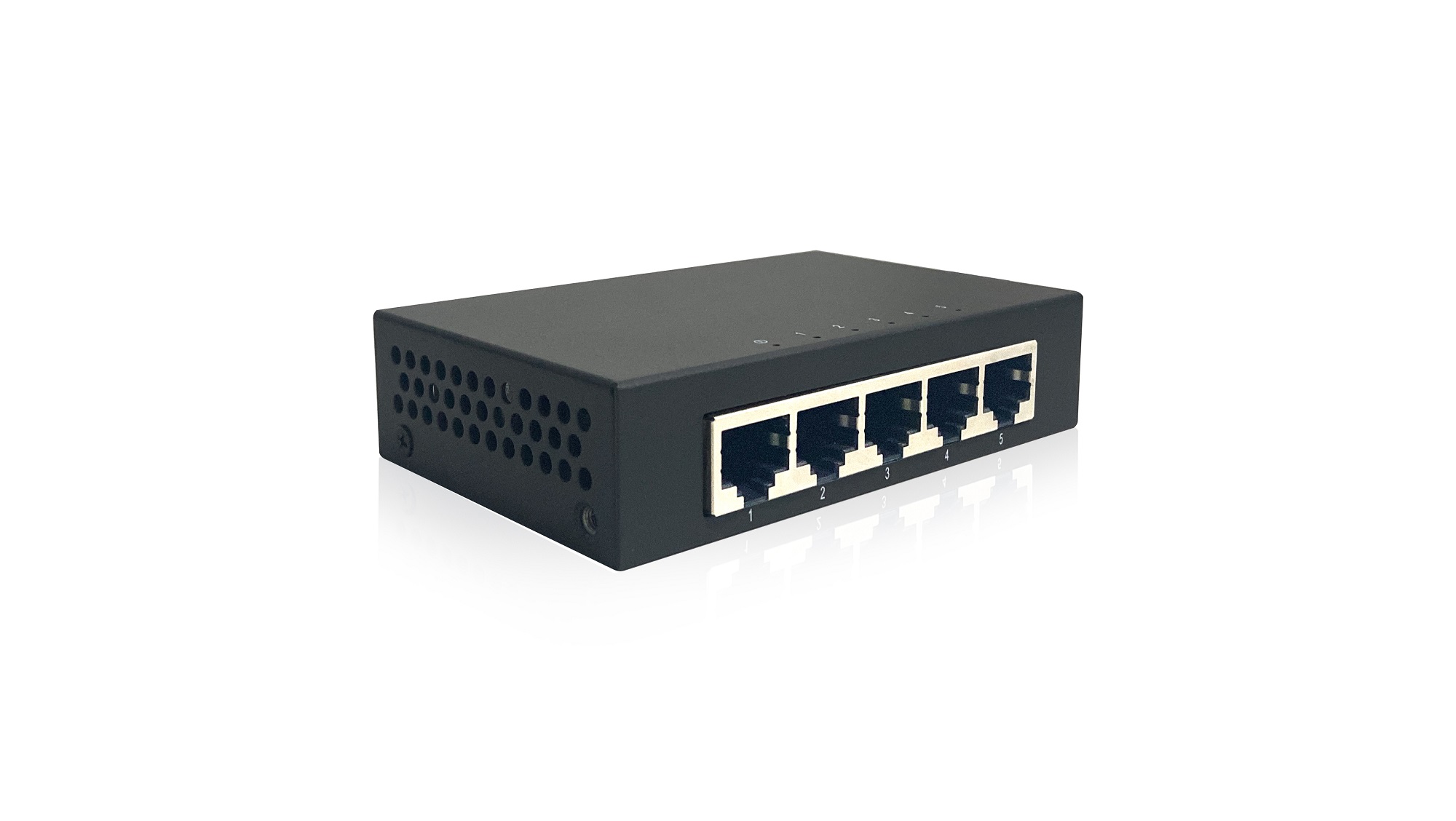

5-port Gigabit Switch
5-port Gigabit Switch
5-port Gigabit Switch
5-port Gigabit Switch
5-port Gigabit Switch
5-port Gigabit Switch
5-port Gigabit Switch

5-port Gigabit Switch

Model NO.
PM105GS V1
Minimum order quantity:
1
Quantity:
Product Overview

PM105GS V1 product have 5*10/100/1000Mbps RJ45 ports. Using store and forward technology, combined with dynamic memory allocation, to ensure the effective allocation of bandwidth to each port.  This product is easy to use and maintain which can meet a lot of networking environment, such as Business building, Community, Hotel, Office etc.




Product Features
  •     Support IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3az Standard;
  •     Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control;
  •     Panel indicators monitor working status and assist in fault analysis;
  •     Perfect security mechanism;
  •     Intelligent identification of wire speed forwarding;
  •     Support DC power input, Exquisite iron case design:
  •     Operation Temperature: 0°C ~ 40 °C:

Product Specifications

ModelPM105GS V1
StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE802.3ab , IEEE802.3az
Interface5*10/100/1000Mbps RJ45 Port
LED IndicatorPWR, LNK/ACT
Network Media10BASE-T: UTP category 3, 5 cable (≤100m)
100BASE-TX: UTP category 5, 5e cable (≤100m)
1000BASE-T: UTP category 5e, 6 cable(≤100m)
MAC Address Table2K, Auto-learning, Auto-aging
Jumbo Frame9K Bytes
Packet Buffer1M bit
Transfer ModeStorage-and-Forward
Packet Forward Speed7.44Mpps
Switching Capacity10Gbps
Dimensions (L*W*H)100*64*24mm
Machine Weight<1kg
Fan QuantityFanless
Input VoltageDC:5V/1A
Power Supply5W
Operation Temperature0°C ~ 40 °C
Storage Temperature-40 °C ~ 70 °C
Operation Humidity10%~90% RH  non-condensing
Storage Humidity5%~90% RH  non-condensing
Surge ProtectionDifference module±1KV  Common mode±2KV
MTBF>50000 hours
Electrostatic StandardContact 6KV, air 8KV



Ordering information

Modelproduct information
PM105GS V15-port Gigabit Switch
