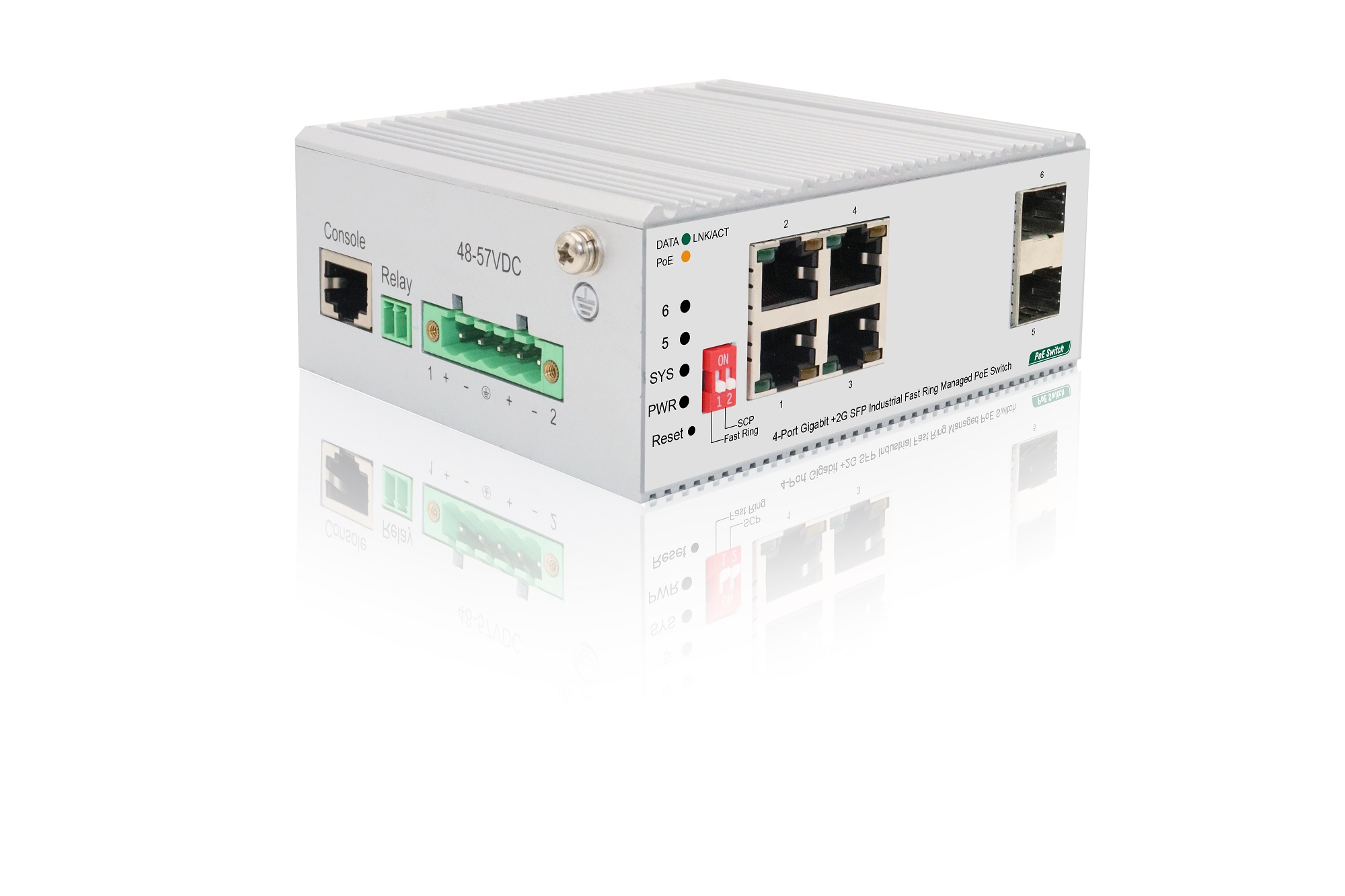

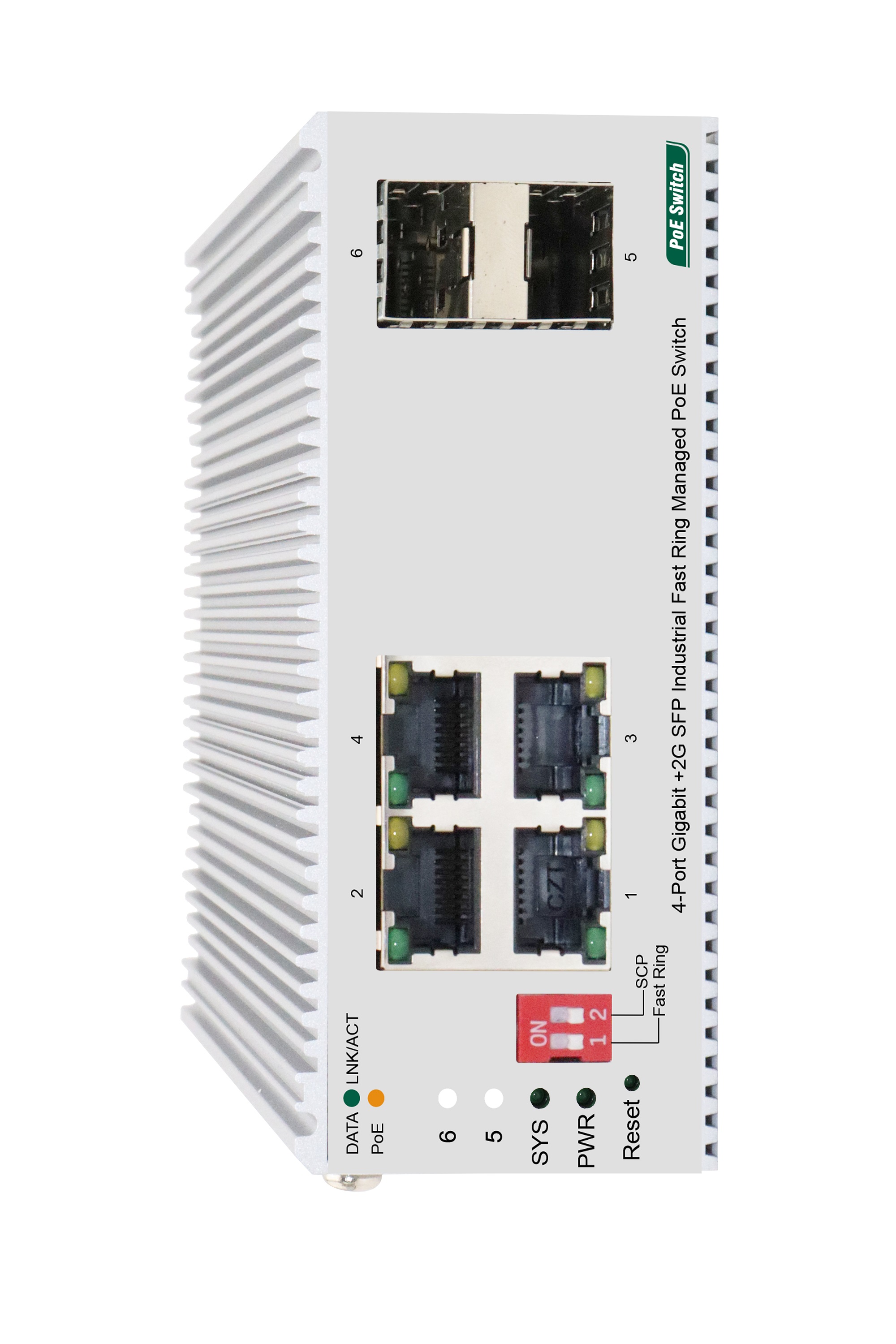

Product Overview PM3006GSMI V2 is a Managed Ring-network Industrial PoE Switch independently developed by UNIPOE. It provides 4*10/100/1000Mbps adaptive RJ45 ports and 2*1000Mbps SFP fiber module expansion slots. The four RJ45 ports support PoE power supply, each with a maximum of 30W. Support static routing functions, provide perfect security, QoS, and plenty of VLAN function has ring network function, can form a ring network, switch between by hand in hand form a ring network topology, the redundancy, high reliability characteristics can make in a ring online link disconnected all the way, will not affect the forwarding of data on the network. The device adopts no fan, low power consumption design, has the advantages of easy to use, compact and beautiful, simple installation. The product is designed to meet Ethernet standards, with lightning protection, static protection mechanism, operating temperature range of -40°C to 75°C, stable performance, safety and reliability, can be widely used in intelligent transportation, telecommunications, security, financial securities, customs and other broadband data transmission fields.
Supports IEEE802.3u, IEEE802.3ab, IEEE802.3z, and IEEE802.3x standards;
RJ45 Supports automatic port flip (Auto MDI/MDIX);
PoE supports IEEE 802.3af/at standards and provides a maximum output of 30W for each port;
Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control;
Panel indicators monitor working status and assist in fault analysis;
High energy aluminum alloy roof heat conduction groove design;
Supports one-click ring network and one-click storm suppression, featuring redundancy and high reliability;
High reliability design, supporting traditional STP/MSTP/RSTP layer 2 link protection technology;
Support static convergence and dynamic convergence (LACP) 2 convergence modes, effectively increase the link bandwidth, improve the reliability of the link, and at the same time can achieve load balancing, link backup;
Flexible and convenient management and maintenance Supports various management modes, such as Console, Telnet, and SSH;
Supports WEB management, which is simple and efficient, and facilitates installation and debugging by engineering and maintenance personnel. Supports file upload and download management through TFTP.
