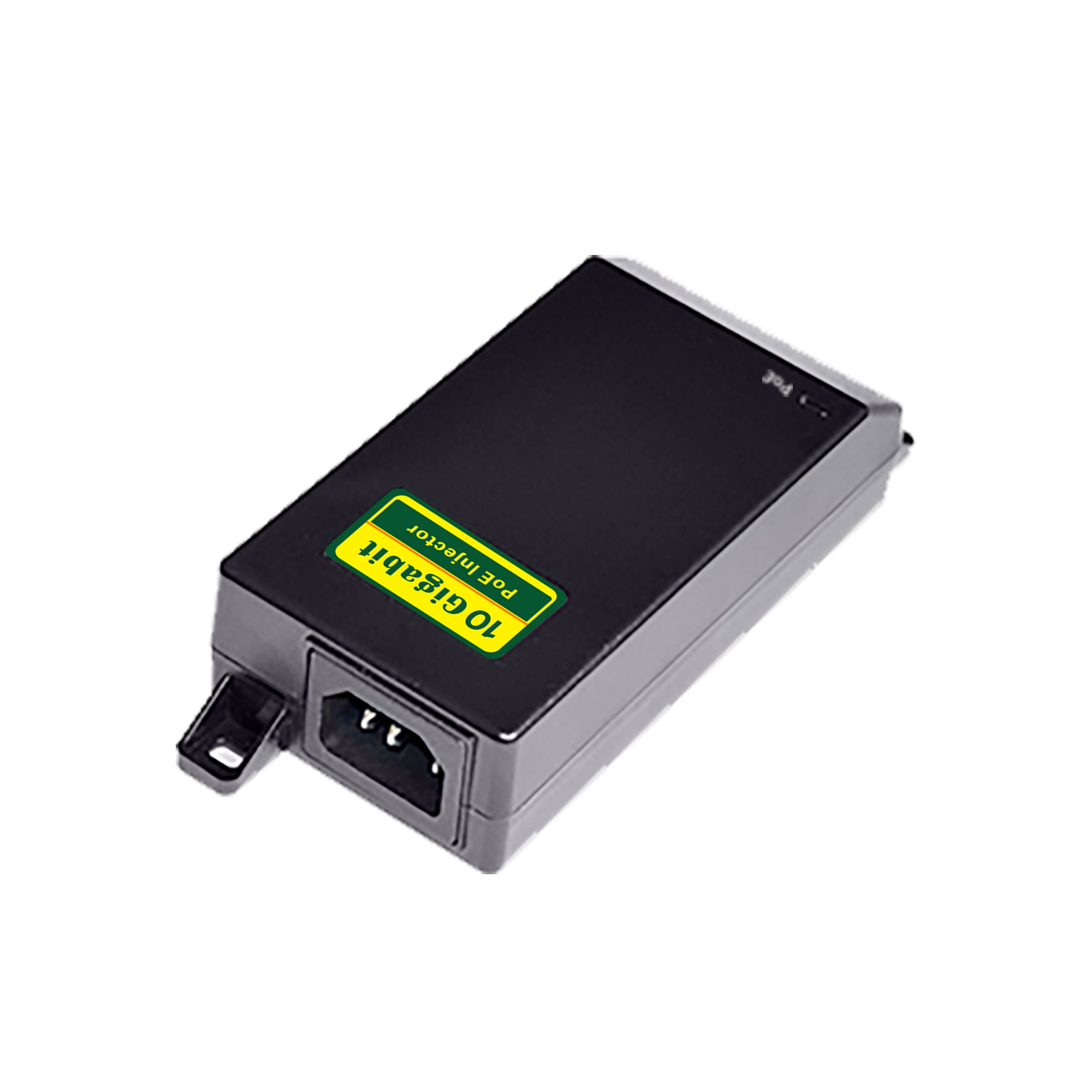

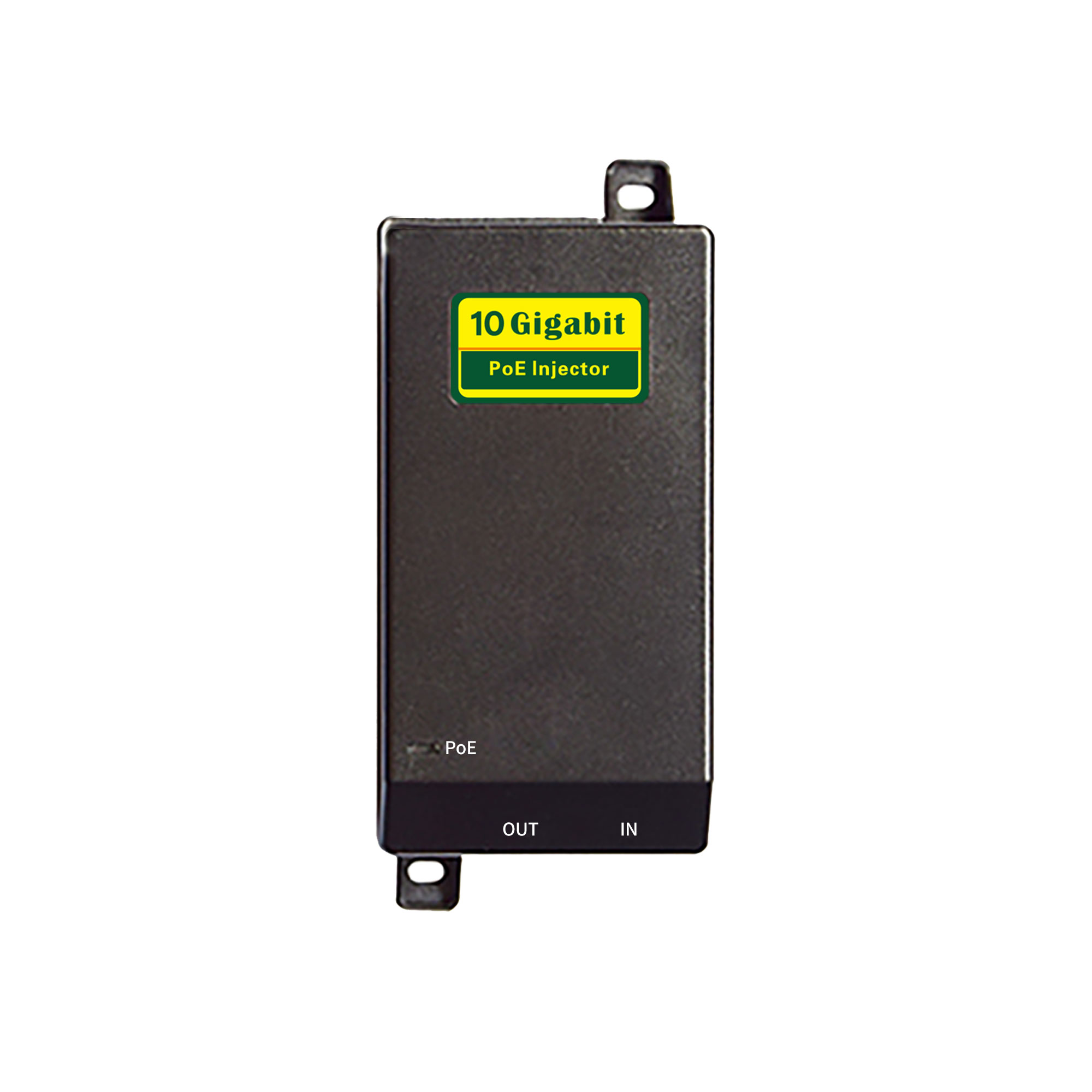

The PM3001TIN V1 PoE Injector fully complies with IEEE 802.3af/at standard, and can work with all IEEE 802.3af /at PoE compliant PD (Powered Devices) or PoE Receiver Adapters or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
Product Features
Complies with IEEE802.3af/at Standard;
Use 2 pairs of power supply, and output power more;
Auto detect power device;
Support PoE power up to 30W ;
Remote power and Data feeding up to 100m;
10 Gigabit Internet port;
built-in Power, Plug-and-play, requires no configuration;
Intelligent protection and power supply;
Working temperature：0 ℃-40 ℃;
Short Circuit Protection；
Elegant plastic shell design;
Product Specifications
Model
PM3001TIN V1
Port
OUT: 1*10Gbps RJ45 Port
IN: 1*10Gbps RJ45 Port
PoE Standard
IEEE802.3af/at
PSE Power on RJ-45
Data Pairs 1/2(+),3/6(-)
PoE Power Output
30W Max
Input Voltage
AC 100-240V 50/60Hz
Input Current
0.6Amax,@100V AC/60HZ (Full Load)
Inrush Current
70A (RMS) maximum for AC 230V/50HZ (Full Load)
Leakage Current
5mA(Max)AC 230V/50HZ (Full Load)
No-Load Voltage
DC55V±5%,AC 230V/50HZ (No-Load)
Output Voltage
DC55V±5%,AC 230V/50HZ (Full Load)
Output current
0.58A Max
output ripple voltage
≤200mV,Test conditions: rated input voltage, full load output, Tested with 20MHz bandwidth oscilloscope, Parallel connected a 0.1uF ceramic capacitor and a 10uF electrolytic capacitor to the output
