Model NO.
PM3026GSMC V1
Quantity:
Product Overview

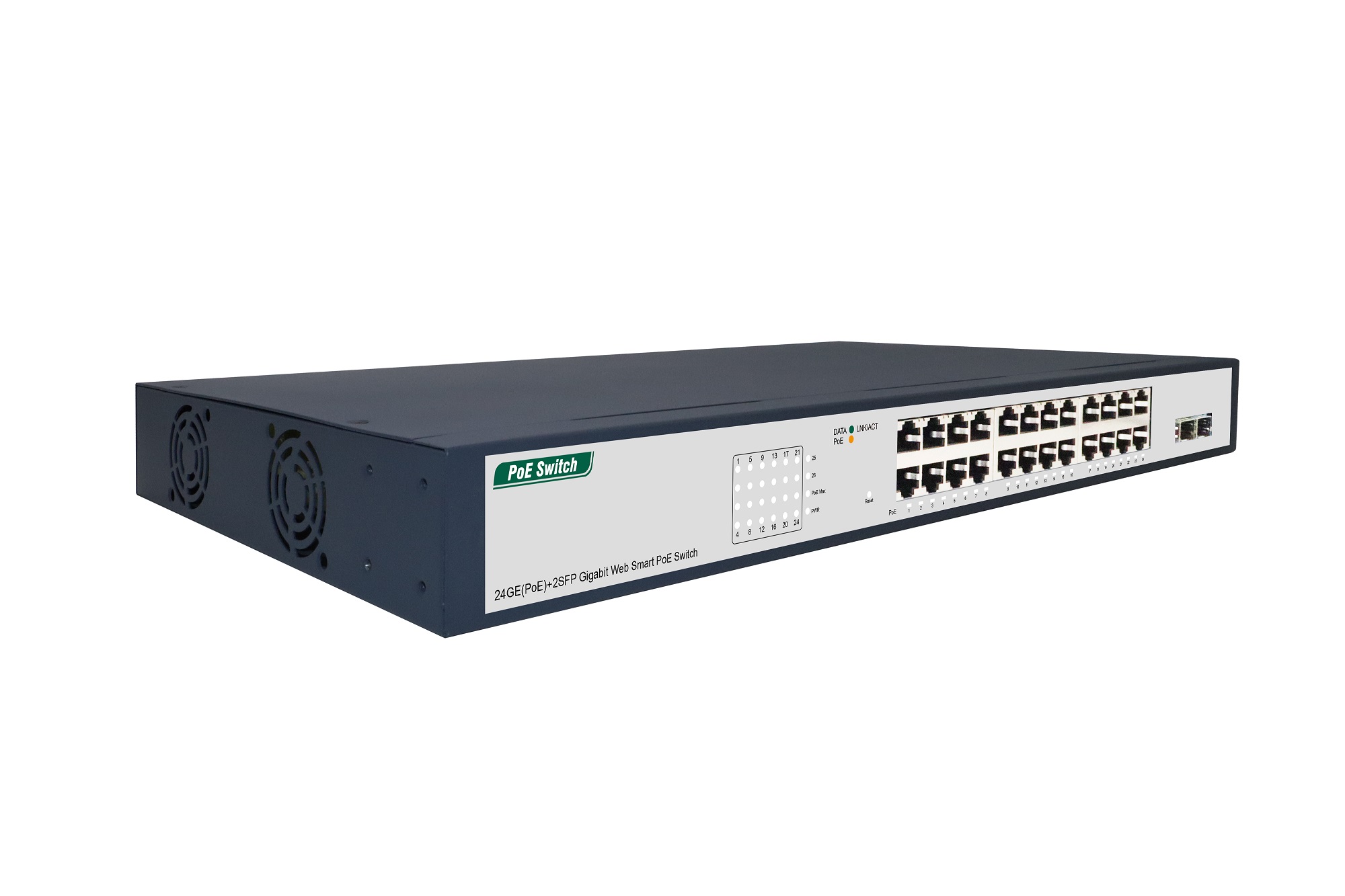

PM3026GSMC V1 is a Web Smart Managed PoE Switch independently developed by UNIPOE. It provides 24*10/100/1000Mbps RJ45 ports and 2*1000Mbps SFP slots. Each RJ45 port supports MDI/MDIX automatic rollover and wire-speed forwarding. Ports 1-24 have the PoE power supply function and comply with IEEE 802.3af/at standards. They can be used as Ethernet power supply devices to automatically detect and identify compliant power receiving devices and supply power to them through network cables. The storage and forwarding technology and dynamic memory allocation ensure that bandwidth is effectively allocated to each port.
PM3026GSMC V1 is easy to use and can flexibly expand home and office networks without limitation of power line layout. It is easy to manage and maintain and meets the requirements of different scenarios


Features
  •     Supports IEEE 802.3af/at standards;
  •     Automatic detection and identification standard PoE power receiving devices, intelligent power supply, does not burn non-standard PoE power receiving devices or common devices;
  •     Port power supply priority is supported to ensure continuous power supply for key nodes on the network;
  •     Supports the PD-ALIVE function;
  •     Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control;
  •     Supports 802.1Q VLAN, Port VLAN, QoS, bandwidth control, and storm suppression;
  •     Supports port traffic statistics, port monitoring, cable detection, and loopback protection;
  •     Panel indicators monitor working status and assist in fault analysis;
  •     Intelligent identification of wire speed forwarding;
  •     Data exchange adopts store-and-forward mode;
  •     Operating temperature: 0°C ~ 40 °C.
Product Specifications

ModelPM3026GSMC V1
Interface24*10/100/1000Mbps RJ45 Ports
2*1000Mbps SFP Slots
StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1x, IEEE 802.1q, IEEE 802.1p, IEEE 802.1d, IEEE 802.1w, IEEE 802.3ad, IEEE802.3af, IEEE802.3at
Network Media(Cable)10BASE-T: UTP category 3, 5 cable (≤100m)
100BASE-TX: UTP category 5, 5e cable (≤100m)
1000BASE-T: UTP category 5e, 6 cable(≤100m)
MAC Address Table8K, Auto-learning, Auto-aging
Jumbo Frame9K Byte
Packet Buffer4.1M bit
Transfer ModeStore-and-forward
Switching Capacity52Gbps
Packet Forward Speed39.69Mpps
PoE PortPort1~24
PoE Port OutputVoltage: 55V DC      30W Max
RJ45 PoE Power SupplyMode A  1/2(+)3/6(-)
PoE Power Budget250W370W(Optional)
Power Input280W400W(Optional)
Input VoltageAC 100-240V 50/60Hz
Operating Temperature0°C ~ 40 °C
Storage Temperature-40 °C ~70°C
Operating Humidity10% ~ 90% non-condensing
Storage Humidity5% ~ 90% non-condensing
Dimensions(L*W*H)440*207*44mm
Fan Quantity2
Surge ProtectionDifferential mode ±2KV ,  Common mode ±4KV
MTBF>50000 hour
Electrostatic StandardContact ±6KV , Air ±8KV


Software Specification

Function menuFunctional descriptionAdded


Basic
Login authentication and logout
Bilingual (Chinese-English Switching)
Port panel (dual color rate differentiator)1000 m green
10 m / 100 m orange yellow






System configuration

Equipment information
Device name
Device contact
Location of equipment
IP Address SettingStatic
DHCP Client
Support the DNS
Web configurationWeb Timeout Setting
User managementThe password must contain at least six letters and digits
The firmware updateLocal upgrade
Equipment managementEquipment to restart
Save Settings
factory data reset

Monitoring management
The port statistical
Cable testing
Ring network configurationrlpp






Switch Configuration

Port configuration
Status
Speed/Duplex/Flow Control
Port mirrorEntrance/exit /ALL
Port isolation
Static MAC
MAC filtering
MAC query
MAC listCategories display static/dynamic
VLAN configurationMember of the VLAN
VLAN configurationAccess, Trunk

QOS configuration
Port speed limit
The broadcast storm

PoE configuration

The basic configuration
Enable/disable power supply
Mandatory power supply
Power limit
PD Alive
MCU Upgrade


Ordering Information
ModelProduct Information
PM3026GSMC V124GE(PoE)+2SFP Gigabit Web Smart PoE Switch
