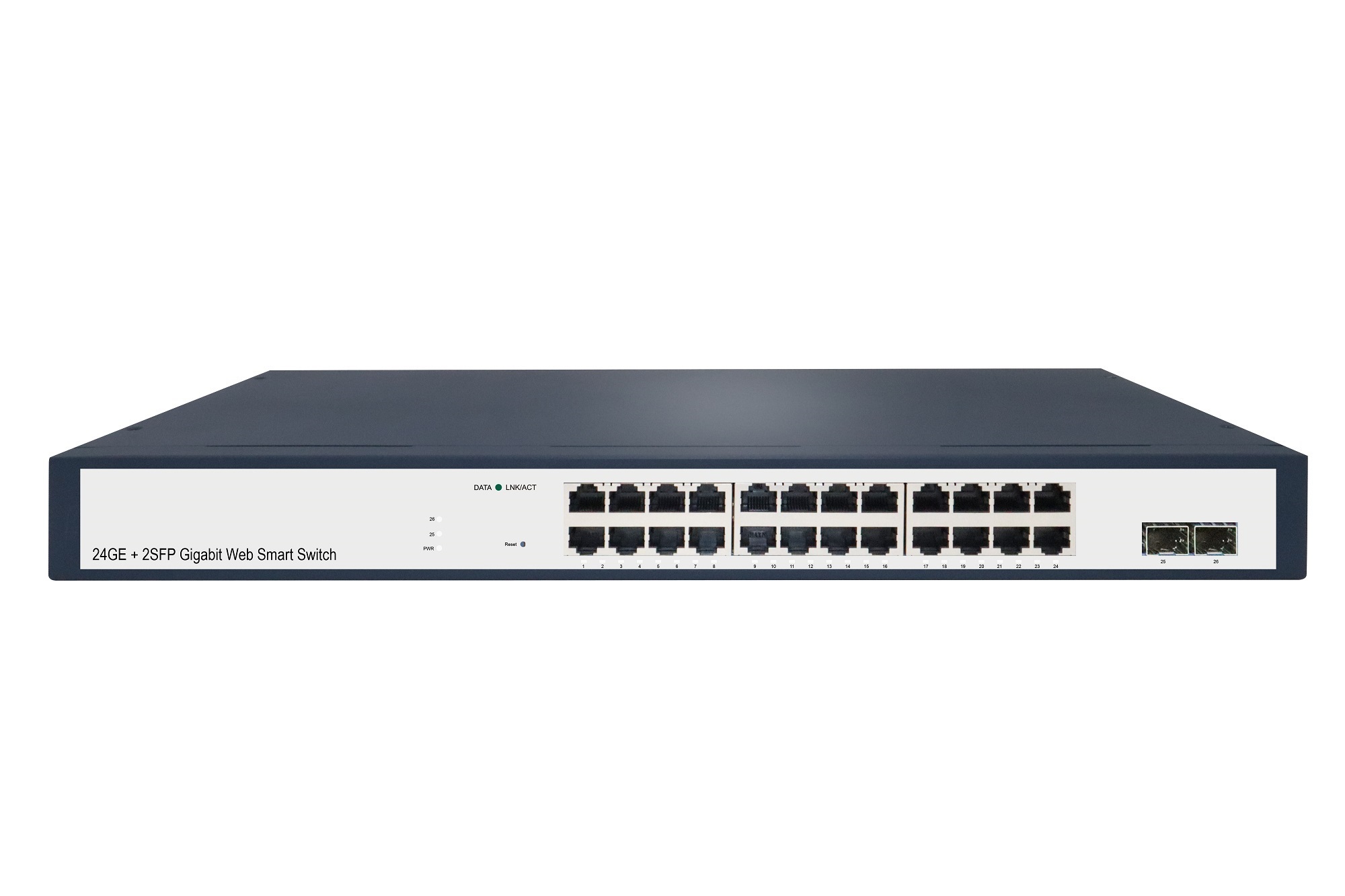

24GE + 2SFP Gigabit Web Smart Switch
24GE + 2SFP Gigabit Web Smart Switch

24GE + 2SFP Gigabit Web Smart Switch

Model NO.
PM126GMC V1
Quantity:
Product Overview

PM126GMC V1 is a Web Smart Switch with 24*10/100/1000Mbps RJ45 ports and 2*1000Mbps SFP optical module slots. Each RJ45 port supports MDI/MDIX automatic turn-over and wire-speed forwarding, which is easy to use and can flexibly expand home and office networks without limitation of power line layout, easy to manage and maintain, and can meet the requirements of different scenarios.


Features
  •     Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control;
  •     Supports 802.1Q VLAN, Port VLAN, QoS, bandwidth control, and storm suppression;
  •     Supports port traffic statistics, port monitoring, cable detection, and loopback protection;
  •     Panel indicators monitor working status and assist in fault analysis;
  •     Intelligent identification of wire speed forwarding;
  •     Data exchange adopts store-and-forward mode;
  •     Operating temperature: 0°C ~ 40 °C;

Product Specifications

ModelPM126GMC V1
Interface24*10/100/1000Mbps RJ45 Ports
2*1000Mbps SFP Slots
Network Media10BASE-T: UTP category 3, 5 cable (≤100m)
100BASE-TX: UTP category 5, 5e cable (≤100m)
1000BASE-T: UTP category 5e, 6 cable(≤100m)
StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1x, IEEE 802.1q,
IEEE 802.1p, IEEE 802.1d, IEEE 802.1w, IEEE 802.3ad
MAC Address Table8K, Auto-learning, Auto-aging
Jumbo Frame9K Byte
Packet Buffer4.1M bit
Transfer ModeStore-and-forward
Switching Capacity52Gbps
Packet Forward Speed38.69Mpps
Power Input12V/ 2A
Input VoltageAC 100-240V 50/60Hz
Operating Temperature0°C ~ 40 °C
Storage Temperature-40 °C ~70°C
Operating Humidity10% ~ 90% non-condensing
Storage Humidity5% ~ 90% non-condensing
Dimensions(L*W*H)440*207*44mm
Fan QuantityFanless
Surge ProtectionDifferential mode ±1KV, Common mode ±2KV
MTBF>50000 hour
Electrostatic StandardContact ±6KV , Air ±8KV


Software Specification

Function menuFunctional descriptionAdded


Basic
Login authentication and logout
Bilingual (Chinese-English Switching)
Port panel (dual color rate differentiator)1000 m green
100 m / 10 m orange yellow






System configuration

Equipment information
Device name
Device contact
Location of equipment
IP Address SettingStatic
DHCP Client
Support the DNS
Web configurationWeb Timeout Setting
User managementThe password must contain at least six letters and digits
The firmware updateLocal upgrade
Equipment managementEquipment to restart
Save Settings
factory data reset

Monitoring management
The port statistical
Cable testing
Ring network configurationrlpp






Switch Configuration

Port configuration
Status
Speed/Duplex/Flow Control
Port mirrorEntrance/exit /ALL
Port isolation
Static MAC
MAC filtering
MAC query
MAC listCategories display static/dynamic
VLAN configurationMember of the VLAN
VLAN configurationAccess, Trunk

QOS configuration
Port speed limit
The broadcast storm




Ordering Information
ModelProduct Information
PM126GMC V124GE + 2SFP Gigabit Web Smart Switch
