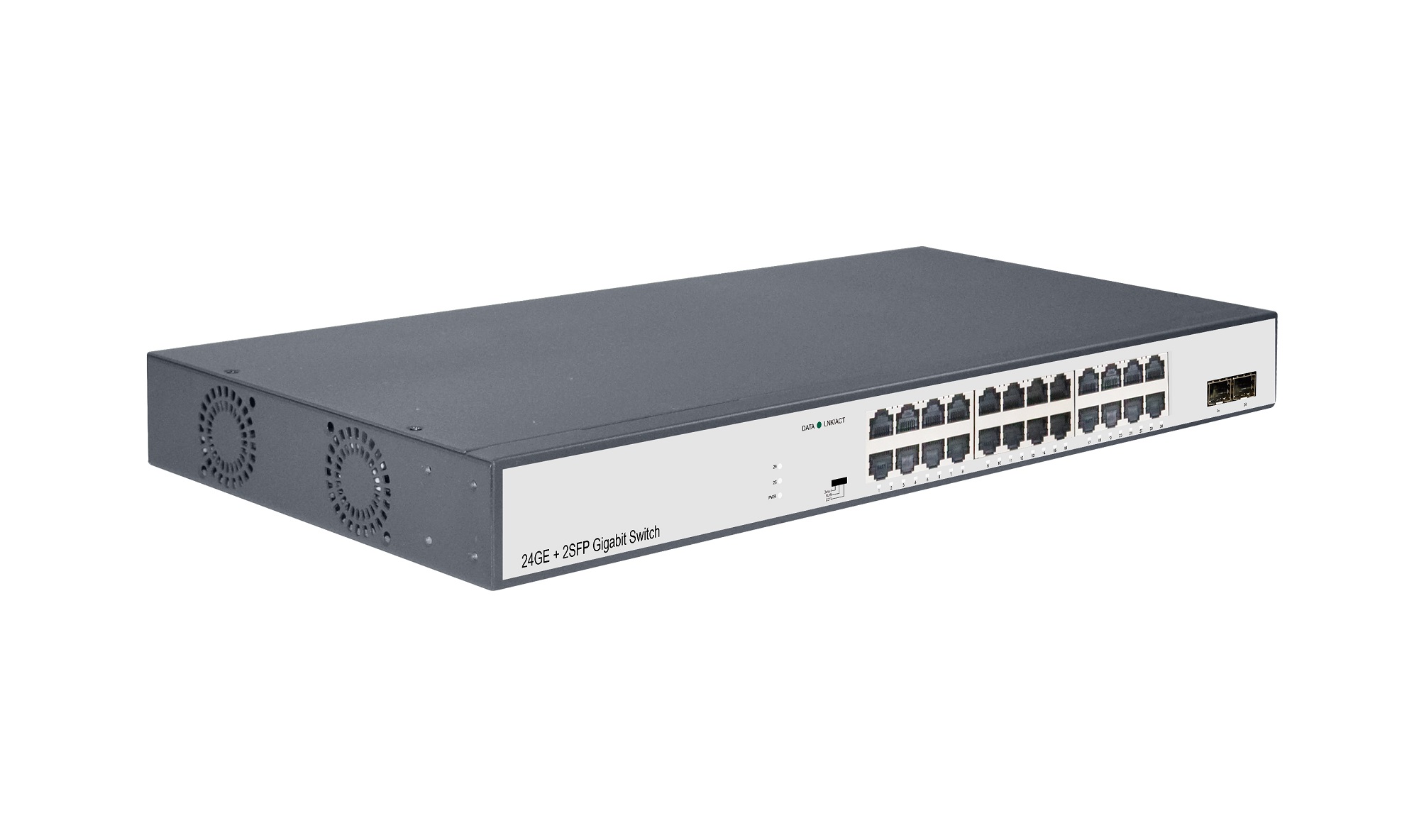

24GE + 2SFP Gigabit Switch

Model NO.: PM126GS V2
Minimum order quantity:: 1

Quantity:

Product Description
Basic Information

Product Overview
The PM126GS V2 is a Layer 2 Gigabit Unmanagement Switch. It provides 24*10/100/1000Mbit/s RJ45 ports and 2 independent Gigabit SFP expansion slots. It uses the storage and forwarding technology and dynamic memory allocation to ensure efficient bandwidth allocation to each port. The Switch is easy to install and does not require configuration. It has the functions of one-click VLAN and CCTV. Users can choose to enable or disable the Switch according to different application environments.

Product Features

Complies with IEEE802.3, IEEE802.3U, IEEE802.3Z, IEEE802.3AZ, IEEE802.3X standards;
RJ45 Supports automatic port flip (Auto MDI/MDIX);
Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control;
Perfect security mechanism;
Intelligent recognition of wire speed forwarding;
Data exchange adopts store-and-forward mode;
Supports Switching between VLAN and CCTV modes;
Operating temperature: 0°C ~ 40 °C.

Product Specifications

Model	PM126GS V2
Standard	IEEE 802.3、IEEE 802.3u、IEEE 802.3z、IEEE 802.3x、IEEE802.3az 、IEEE802.3ab
Interface	2410/100Mbps RJ45 ports 21000Mbps Slots
Indicator	PWR,LNK
Network Media	10BASE-T： UTP category 3,4,5 cable （≤100m） 100BASE-TX： UTP category 5, 5e cable （≤100m） 1000BASE-T: UTP category 5e,6 cable(≤100m)
Transfer Mode	store-and-forward
MAC Address Table	8K，Automatic study, automatic updates
Jumbo Frame	9216Byte
Packet Buffer	4.1M bit
Packet Forwarding Rate	38.69Mpps
Bandwidth	52Gbps
Device Dimension	44020744mm
Power Supply	12V/2A
Fan	fanless
Green Energy Saving	IEEE 802.3az
Mains Input	100~240V AC， 50/60Hz
Operating Temperature	0°C ~ 40 °C
Storage Temperature	-40 °C ~ 70 °C
Operating Humidity	10% ~ 90% RH non-condensing
Storage Humidity	5% ~ 90% RH non-condensing
Surge Protection	Common mode ±2KV, Differential mode ±1KV
MTBF	>50000 hour
Electrostatic Standard	Contact ±4KV, Air±6KV
