24FE(PoE)+1G Combo+1GE Long-range PoE Switch poe switch switch poe 1port poe midspan poe switch PoE power supply distance up to 800m Single port output power up to 30W

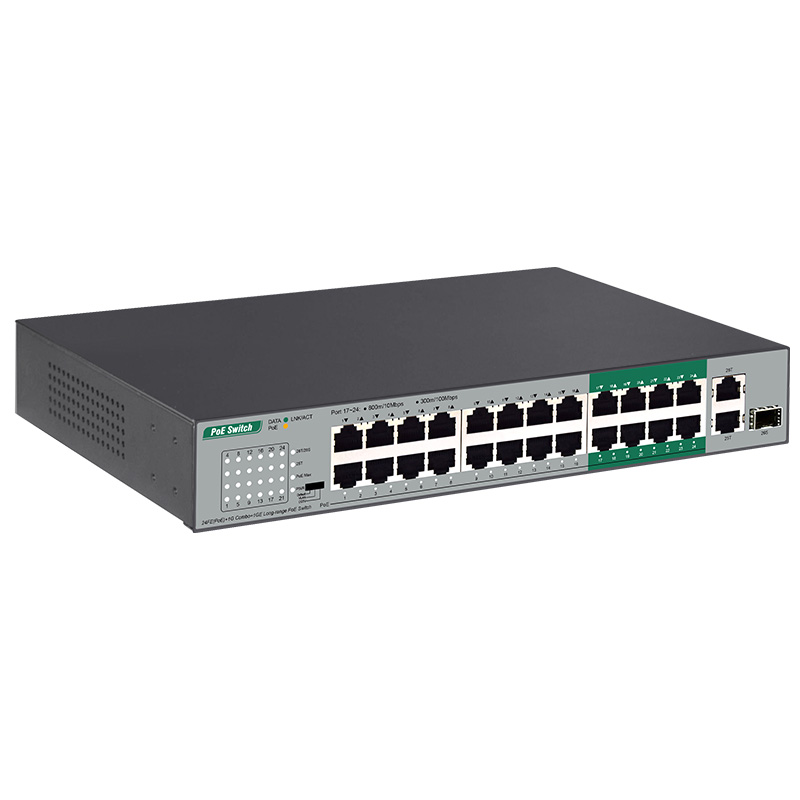

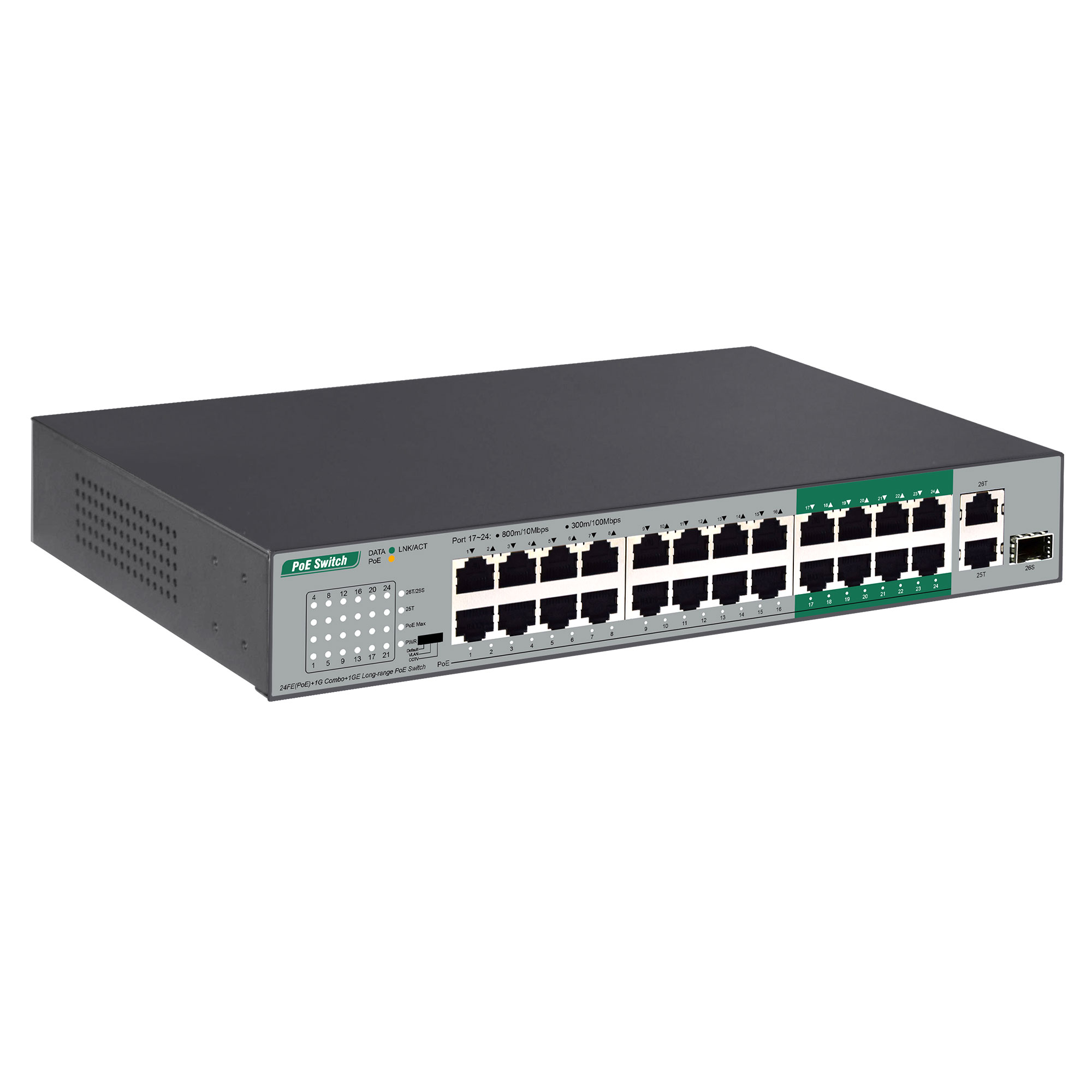

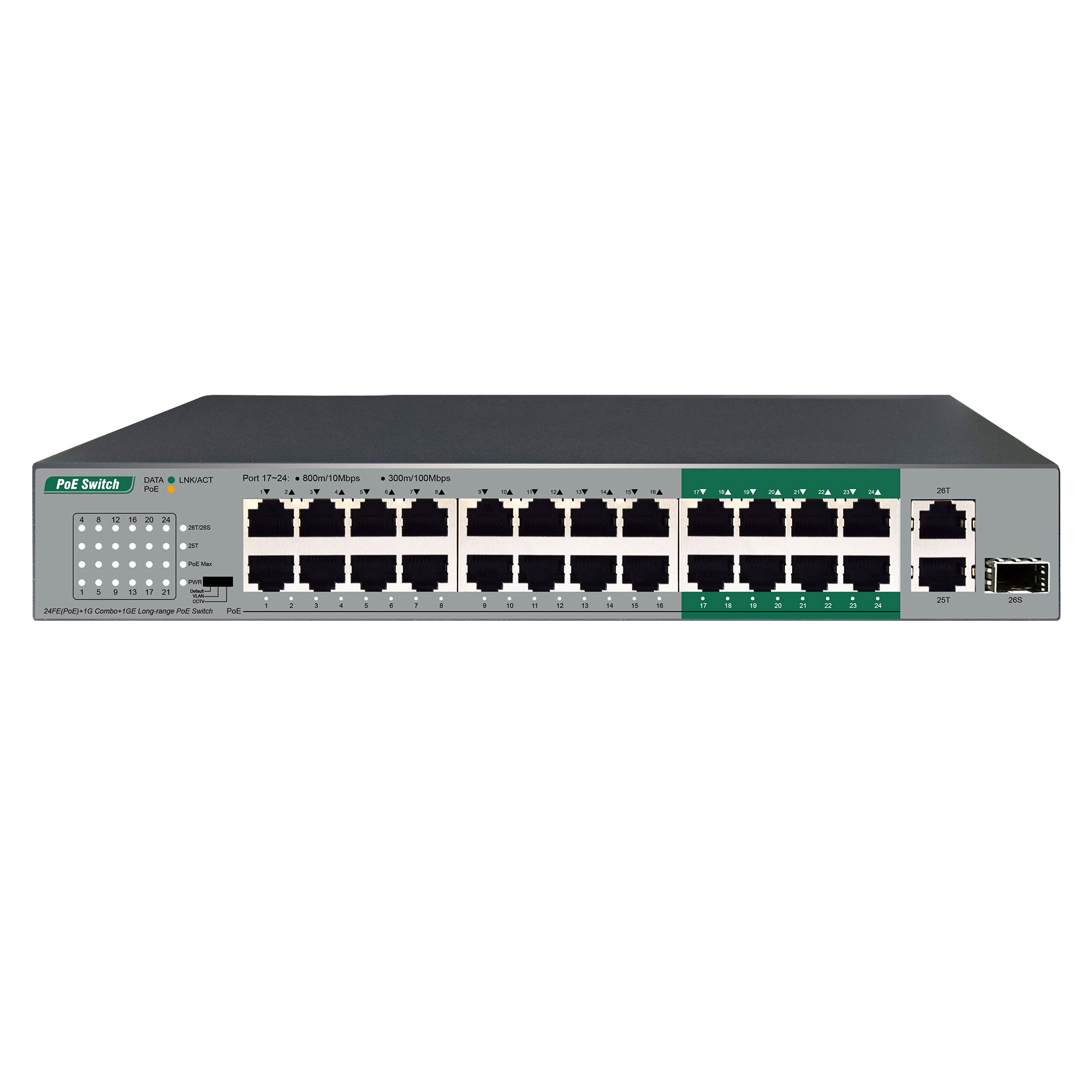

PM3027FSNR V1 is an unmanaged Long-range PoE Switch independently developed by UNIPOE. It has 24*10/100Mbps adaptive RJ45 ports, 1*1000Mbps Combo port and 1*1000Mbps RJ45 port, each of which supports MDI/MDIX automatic flip and wire-speed forwarding. Ports 1-24 have the PoE power supply function, which supports IEEE 802.3af/at standards. Ports 17-24 can be selected to support long-distance transmission up to 800 meters (used with remote devices). Ports 17-24 can be used as Ethernet power supply devices to automatically detect and identify compliant power receiving devices and supply power to them through network cables.
Features
Support IEEE802.3at/af standard;
Single port output power up to 30W;
Automatic detection of PD devices;
100Mbps data transmission and PoE power supply distance up to 300m(Typical);
10Mbps data transmission and PoE power supply distance up to 800m;
Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control;
Support for one-click VLAN and CCTV modes;
Panel indicators monitor operating status and help with fault analysis;
Port1~24(17-24 ports support up to 800 meters long distance transmission) Use with long-range devices
PoE Power On RJ45
Mode A 1/2(+),3/6(-)
PoE Power Output
Voltage: 54V DC Power: 30W(Max)
Operating Temperature
0°C ~ 40 °C
Storage Temperature
-40 °C ~ 70 °C
Operating Humidity
10% ~ 90% non-condensing
Storage Humidity
5% ~ 90% non-condensing
Surge Protection
Different mode±2KV, Common mode±6KV
MTBF
>50000 hours
Electrostatic Standard
Contact ±6KV,Air ±8KV
Green Energy Saving
Support IEEE 802.3az
With long-range Equipment Test data：
Cable Length
(m)
PD Side Power（W）
Irate/Vmin
A/V
Negotiating speed (Mbps)
P-17
P-18
P-19
P-20
P-21
P-22
P-23
P-24
200
22.88
22.87
22.87
22.86
22.87
22.87
22.88
22.87
0.61/37.59
100
300
19.29
19.28
19.28
19.26
19.27
19.27
19.28
19.27
0.6/32.22
100
17.30
17.28
17.30
17.28
17.29
17.29
17.30
17.29
0.48/36.05
400
14.29
14.28
14.29
14.28
14.28
14.29
14.29
14.29
0.44/32.51
100
12.92
12.92
12.92
12.90
12.91
12.92
12.92
12.92
0.36/36.02
500
12.07
12.06
12.08
12.05
12.07
12.09
12.10
12.10
0.38/32.71
100
10.77
10.77
10.77
10.76
10.77
10.77
10.77
10.77
0.3/36.41
600
9.94
9.93
9.94
9.93
9.93
9.93
9.94
9.94
0.31/32.48
10
8.89
8.89
8.89
8.88
8.89
8.89
8.89
8.89
0.25/36.22
700
8.38
8.37
8.37
8.37
8.38
8.37
8.38
8.38
0.26/32.77
10
7.51
7.51
7.50
7.49
7.51
7.49
7.51
7.49
0.21/36.29
800
7.07
7.06
7.07
7.05
7.06
7.05
7.07
7.07
0.21/34.33
10
6.67
6.68
6.68
6.67
6.68
6.67
6.67
6.66
0.19/36.0
Instructions ：
Vmin is the minimum voltage value of 8 ports under rated load.
The power value is the measured value directly read from the electronic load meter connected to the electronic load meter through the fixture adapter plate.
The speed is the test result matched with our PM3001FPR-W V2.
Ordering Information
Model
Product Information
PM3027FSNR V1
24FE(PoE)+1G Combo+1GE Long-range PoE Switch((24 ports PoE, of which 17-24 ports PoE can be selected to support 800 long-distance transmission, support IEEE802.3af/at standard ) Use with long-range devices
