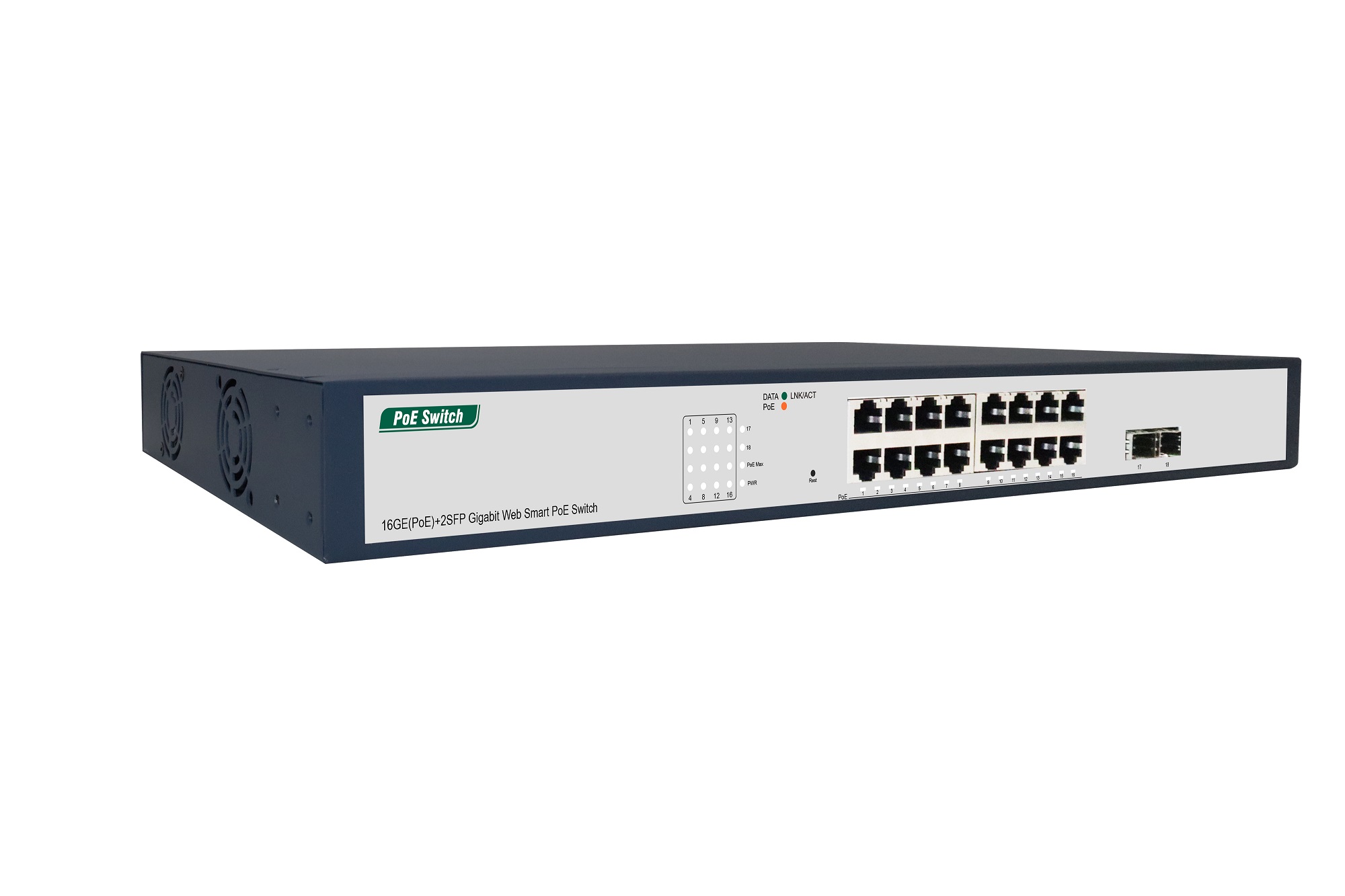

16GE(PoE)+2SFP Gigabit Web Smart PoE Switch
16GE(PoE)+2SFP Gigabit Web Smart PoE Switch
16GE(PoE)+2SFP Gigabit Web Smart PoE Switch
16GE(PoE)+2SFP Gigabit Web Smart PoE Switch
16GE(PoE)+2SFP Gigabit Web Smart PoE Switch
16GE(PoE)+2SFP Gigabit Web Smart PoE Switch
16GE(PoE)+2SFP Gigabit Web Smart PoE Switch

16GE(PoE)+2SFP Gigabit Web Smart PoE Switch

Model NO.
PM3018GSMC V1
Quantity:

Product Overview

PM3018GSMC V1 is a Web Smart Managed PoE Switch independently developed by UNIPOE. It provides 16*10/100/1000Mbps RJ45 ports and 2*1000Mbps SFP slots. Each RJ45 port supports MDI/MDIX automatic rollover and wire-speed forwarding. Ports 1-16 have the PoE power supply function and comply with IEEE 802.3af/at standards. They can be used as Ethernet power supply devices to automatically detect and identify compliant power receiving devices and supply power to them through network cables. The storage and forwarding technology and dynamic memory allocation ensure that bandwidth is effectively allocated to each port.
PM3018GSMC V1 is easy to use and can flexibly expand home and office networks without limitation of power line layout. It is easy to manage and maintain and meets the requirements of different scenarios


Features

  •     IEEE 802.3at standard compliant IEEE 802.3af electrical receiving device (PD);
  •     Automatic detection and identification standard PoE power receiving devices, intelligent power supply, does not burn non-standard PoE power receiving devices or common devices;
  •     Port power supply priority is supported to ensure continuous power supply for key nodes on the network;
  •     Supports the PD-ALIVE function;
  •     Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control;
  •     Supports 802.1Q VLAN, Port VLAN, QoS, bandwidth control, and storm suppression;
  •     Supports port traffic statistics, port monitoring, cable detection, and loopback protection;
  •     Fast PoE and permanent PoE are supported;
  •     Panel indicators monitor working status and assist in fault analysis;
  •     Intelligent identification of wire speed forwarding;
  •     Data exchange adopts store-and-forward mode;
  •     Operating temperature: 0°C ~ 40 °C;
  •     Mainboard, Power supply, PoE (three in one PCBA).
Product Specifications


Model

PM3018GSMC V1

Interface

16*10/100/1000Mbps RJ45 Ports
2*1000Mbps SFP Slots

Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1x, IEEE 802.1q, IEEE 802.1p, IEEE 802.1d, IEEE 802.1w, IEEE 802.3ad, IEEE802.3af, IEEE802.3at

Network Media(Cable)

10BASE-T: UTP category 3, 5 cable (≤100m)
100BASE-TX: UTP category 5, 5e cable (≤100m)
1000BASE-T: UTP category 5e, 6 cable(≤100m)

MAC Address Table

8K, Auto-learning, Auto-aging

Jumbo Frame

9K Byte

Packet Buffer

4.1M bit

Transfer Mode

Store-and-forward

Switching Capacity

36Gbps

Packet Forward Speed

26.78Mpps

PoE Port

Port1~16

PoE Port Output

Voltage: 55V DC      30W Max

RJ45 PoE Power Supply

Mode A 1/2(+) 3/6(-)

PoE Power Budget

250W

135W(Optional)

Power Input

260W

150W(Optional)

Input Voltage

AC 100-240V 50/60Hz

Operating Temperature

0°C ~ 40 °C

Storage Temperature

-40 °C ~70°C

Operating Humidity

10% ~ 90% non-condensing

Storage Humidity

5% ~ 90% non-condensing

Dimensions(L*W*H)

440*207*44mm

Fan Quantity

2

1

Surge Protection

Differential mode ±2KV ,  Common mode ±4KV

MTBF

>50000 hour

Electrostatic Standard

Contact ±6KV , Air ±8KV



Software Specification

Function menu

Functional description

Added



Basic

Login authentication and logout

Bilingual (Chinese-English Switching)

Port panel (dual color rate differentiator)

1000 m green

100 m / 10 m orange yellow







System configuration


Equipment information

Device name

Device contact

Location of equipment

IP Address Setting

Static

DHCP Client

Support the DNS

Web configuration

Web Timeout Setting

User management

The password must contain at least six letters and digits

The firmware update

Local upgrade

Equipment management

Equipment to restart

Save Settings

factory data reset


Monitoring management

The port statistical

Cable testing

Ring network configuration

rlpp







Switch Configuration


Port configuration

Status

Speed/Duplex/Flow Control

Port mirror

Entrance/exit /ALL

Port isolation

Static MAC

MAC filtering

MAC query

MAC list

Categories display static/dynamic

VLAN configuration

Member of the VLAN

VLAN configuration

Access, Trunk


QOS configuration

Port speed limit

The broadcast storm


PoE configuration


The basic configuration

Enable/disable power supply

Mandatory power supply

Power limit

PD Alive

MCU Upgrade



Ordering Information

Model

Product Information

PM3018GSMC V1

16GE(PoE)+2SFP Gigabit Web Smart PoE Switch
