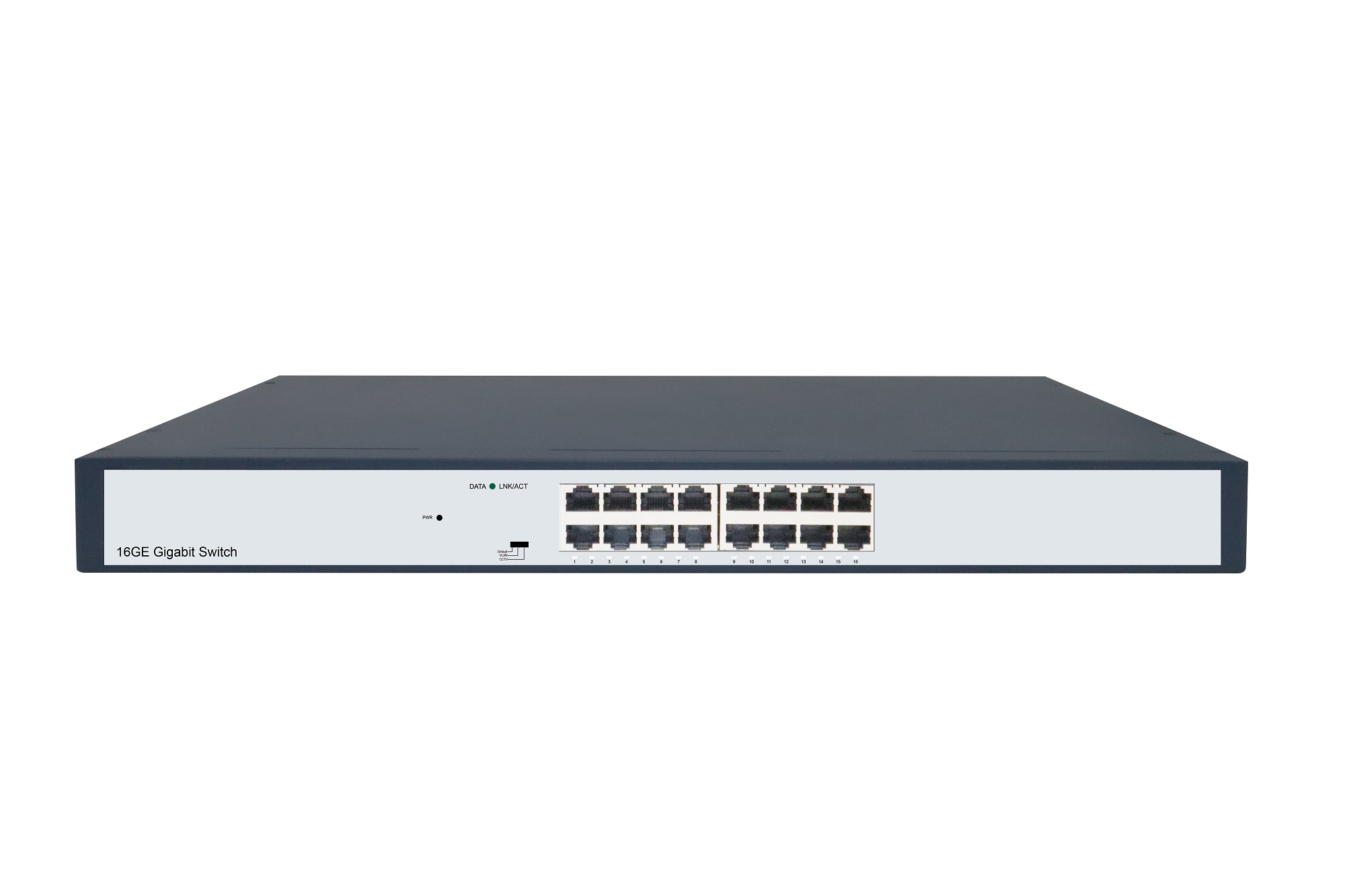

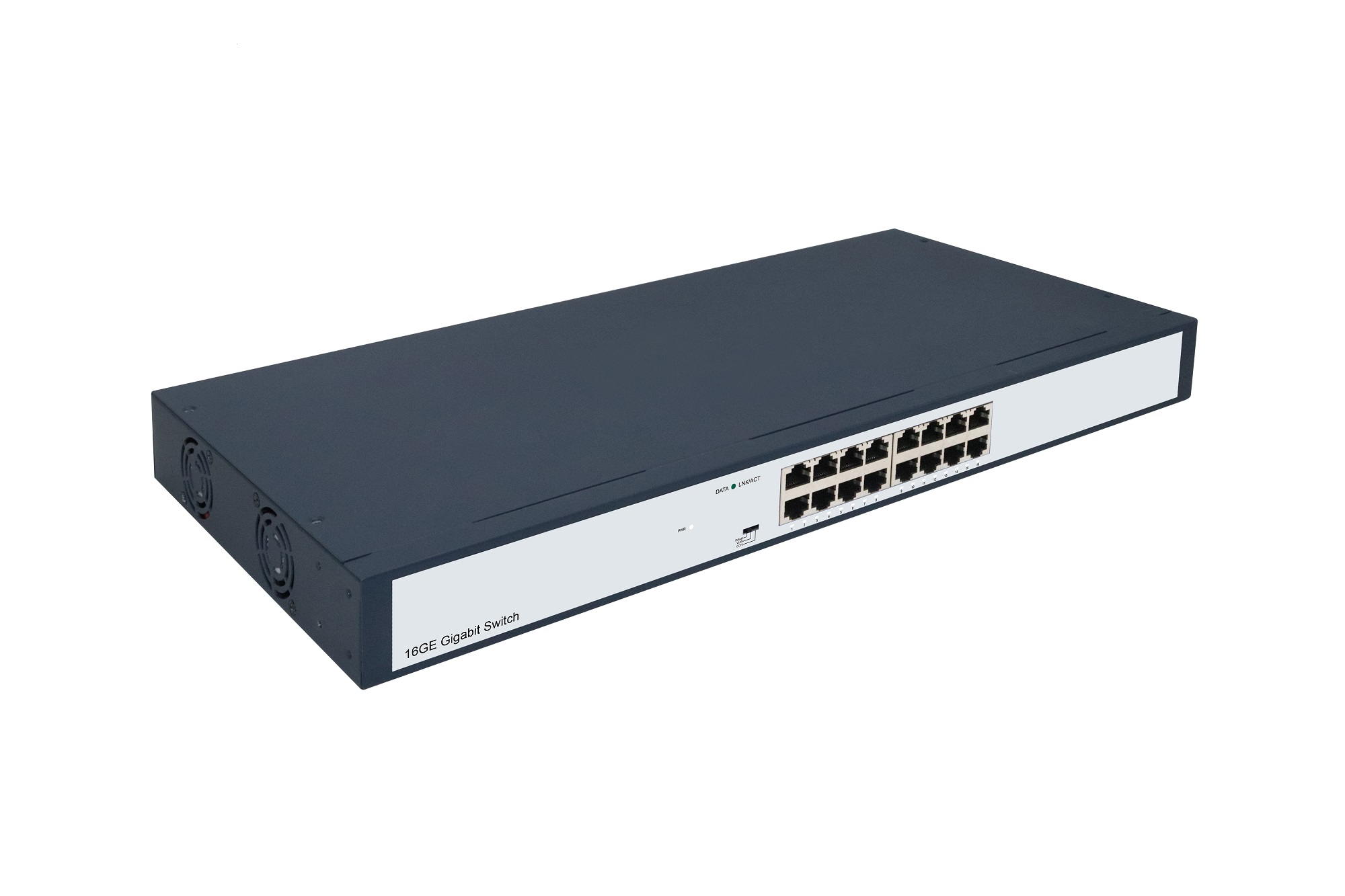

16GE Gigabit Switch
16GE Gigabit Switch
16GE Gigabit Switch
16GE Gigabit Switch
16GE Gigabit Switch
16GE Gigabit Switch
16GE Gigabit Switch

16GE Gigabit Switch

Model NO.
PM116GS V3
Minimum order quantity:
1
Quantity:
Product Overview
The PM116GS V3 is a Layer 2 Gigabit Unmanagement Switch. It provides 16 RJ45 ports compatible with 10/100/1000Mbps. The ports use the storage and forwarding technology and dynamic memory allocation to ensure that bandwidth is allocated to each port effectively. The Switch is easy to install without configuration and easy to manage and maintain. It has the function of one-click VLAN and CCTV. Users can choose to enable or disable the Switch according to different application environments.


Product Features
  •  Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control;
  •  Panel indicators monitor working status and assist in fault analysis;
  •  Perfect security mechanism;
  •  Intelligent identification of wire speed forwarding;
  •  Data exchange adopts store-and-forward mode;
  •  Supports VLAN mode and CCTV mode;
  •  Operation Temperature: 0°C ~ 40 °C;


Product Specifications
ModelPM116GS V3
StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3x, IEEE802.3az, IEEE802.3ab
Port16 x10/100/1000Mbps RJ45 Ports
LED IndicatorPWR(Green), LNK/ACT(Green )
Network Media(Cable)10BASE-T: UTP category 3, 5 cable (≤100m)
100BASE-TX: UTP category 5, 5e cable (≤100m)
1000BASE-T: UTP category 5e, 6 cable(≤100m)
Key SupplyCCTV&VLAN
MAC Address Table8K
Jumbo Frames9216K Byte
Packet Buffer4.1M bit
Forwarding ModeStorage-and-Forward
Forwarding Rate23.8Mpps
Switching Capacity32Gbps
Dimensions(L*W*H)440*207*44mm
Power12V/1.2
FanFanless
Green Energy SavingIEEE 802.3az

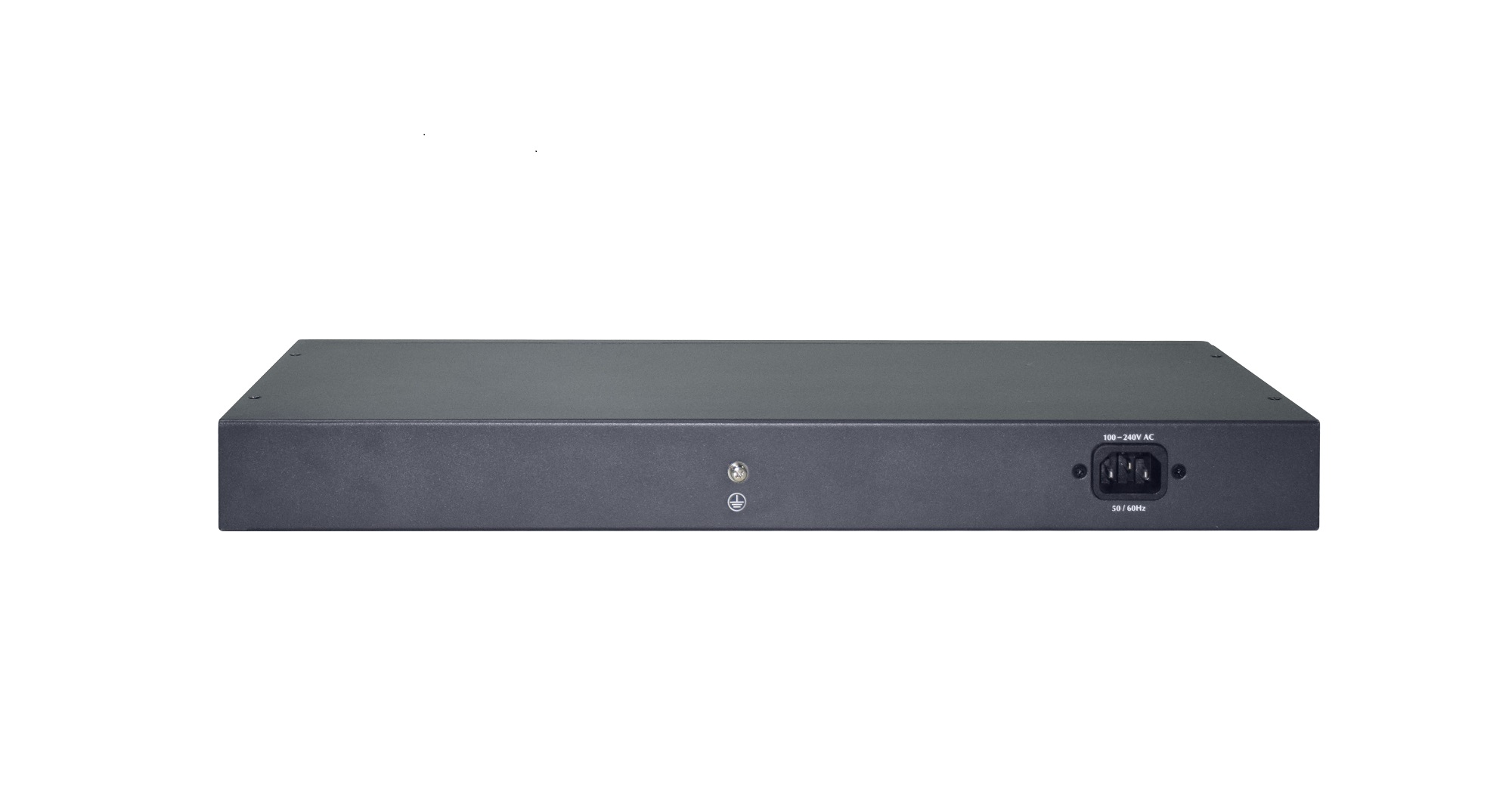

Input Power SupplyAC 100-240V 50/60Hz
Operation Temperature0℃~40℃
Storage Temperature-40℃~70℃
Operation Humidity10%~90% RH non-condensing
Storage Humidity5%~90% RH non-condensing
Surge ProtectionDifferent mode±1KV, Common mode±2KV
MTBF>50000 hours
Electrostatic StandardContact 4KV, Air 6KV


Ordering Information
ModelProduct Information
PM116GS V316GE Gigabit Switch

Send Message

*
*
* clear input

Related Products

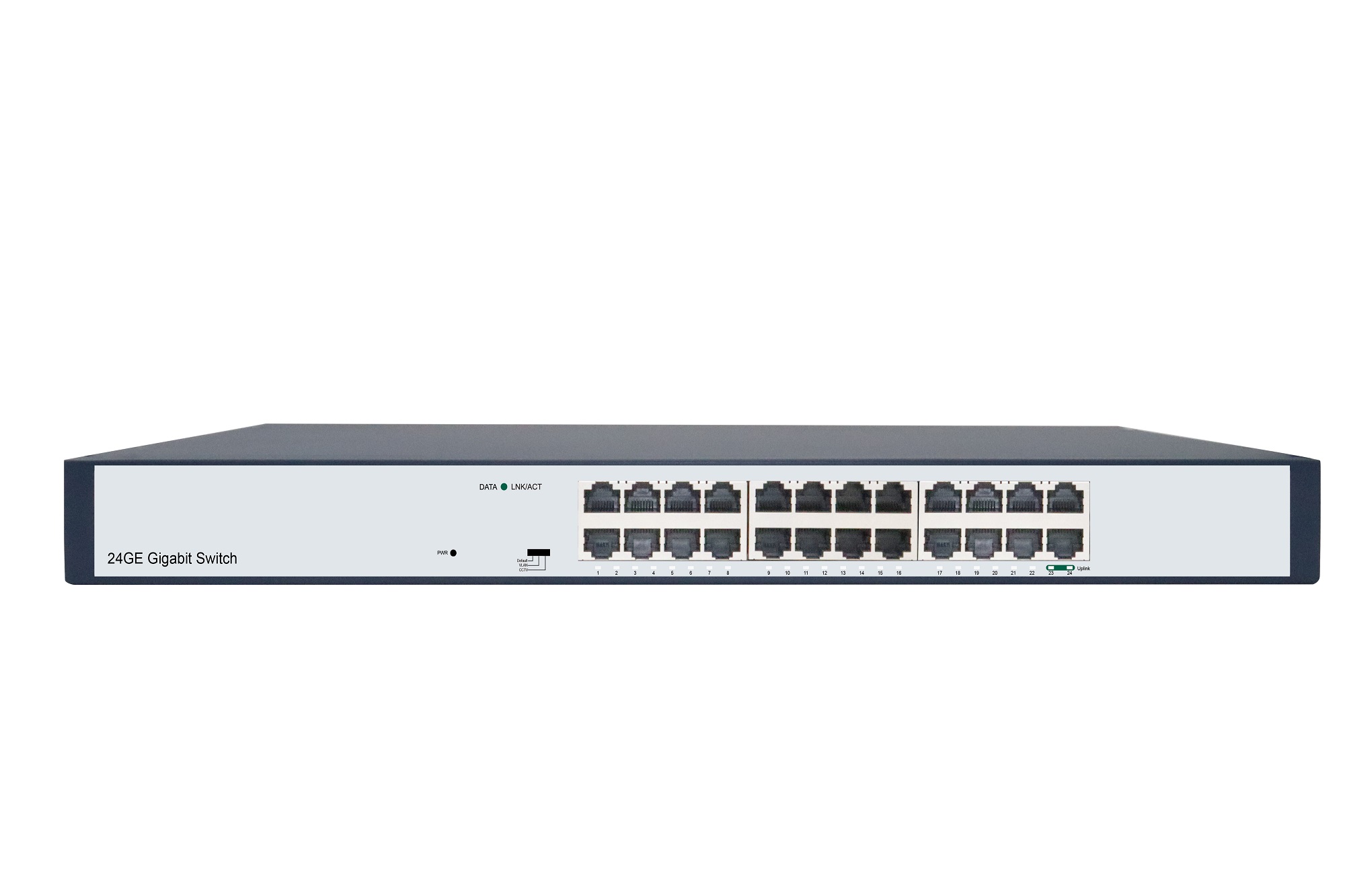

Model NO. PM124GS V2

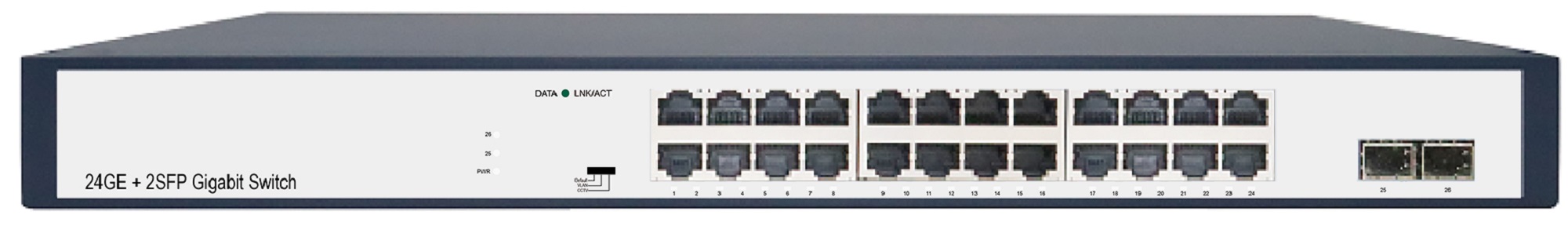

Model NO. PM126GS V2
