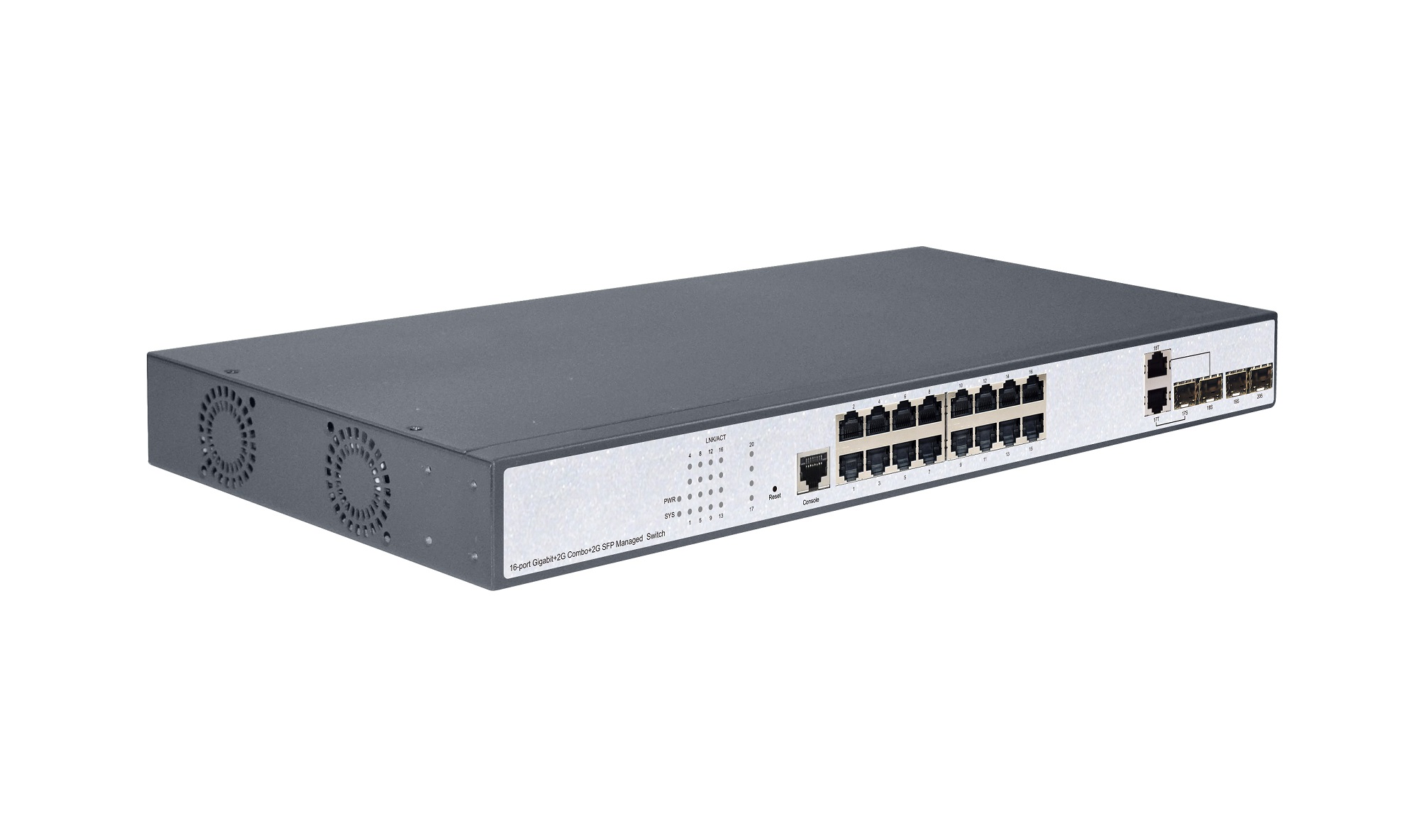

16-Port Gigabit+2G Combo+2G SFP Managed Switch
16-Port Gigabit+2G Combo+2G SFP Managed Switch
16-Port Gigabit+2G Combo+2G SFP Managed Switch
16-Port Gigabit+2G Combo+2G SFP Managed Switch
16-Port Gigabit+2G Combo+2G SFP Managed Switch
16-Port Gigabit+2G Combo+2G SFP Managed Switch
16-Port Gigabit+2G Combo+2G SFP Managed Switch

16-Port Gigabit+2G Combo+2G SFP Managed Switch

Model NO.:
PM122GM V1
Quantity:

Product Overview

The PM122GM V1 is Gigabit Uplink managed switch it have 16*10/100/1000MbpsRJ45 port and 2G Combo With 2*1000 Mbps SFP Slots , Using store-and-forward technology, combined with dynamic memory allocation, to ensure the effective bandwidth allocated to each port, support static routing capabilities, to provide complete security policy, improve the QoS strategy, easy to maintenance management, satisfy the business enterprise, village, hotel, office network and campus network of the network and access requirements.

Product Features

  • Support RJ45 Auto-MDI/MDIX;
  • Auto detect power device;
  • The power supply supports AC and DC output;
  • Panel lights to monitor working state and help fault analysis;
  • Flow Control for Full Duplex operation and back pressure for Half Duplex Operation;
  • Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az) ;
  • Supports a complete lineup of L2 features, including 802.1Q tag VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol and 802.3x Flow Control function;
  • Web, CLI (Console Port, Telnet, SSH), SNMP and RMON bring abundant management policies;
  • Double AC redundancy power input;

Product Specifications

Hardware Specifications

Model

PM122GM V1

Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3z, IEEE 802.3x, IEEE 802.1X, IEEE 802.1q , IEEE 802.1p, IEEE 802.1d , IEEE 802.1w, IEEE 802.3ad

Interface

16*10/100/1000Mbps RJ45 Port (Auto Negotiation/Auto MDI/MDIX)
2*Gigabit Combo

2*Gigabit SFP Slots
1 Console Port

Indicator

PWR, LNK/ACT, SYS

Network media

10BASE-T: UTP category 3, 4, 5 cable(≤100m)

100BASE-TX: UTP category 5, 5e cable(≤100m)

1000BASE-TX: UTP category 5e, 5 cable(≤100m)
1000BASE-X: MMF, SMF

MAC Address Table

8K, Auto-learning, Auto-aging

Transfer Mode

Store-and-forward

Packet Forward Speed

29.76Mpps

Packet buffer

4.1M bit

Switching Capacity

40Gbps

Dimensions(L*W*H)

440*207*44mm

Fan Quantity

Fanless

Greenenergysaving

IEEE 802.3az

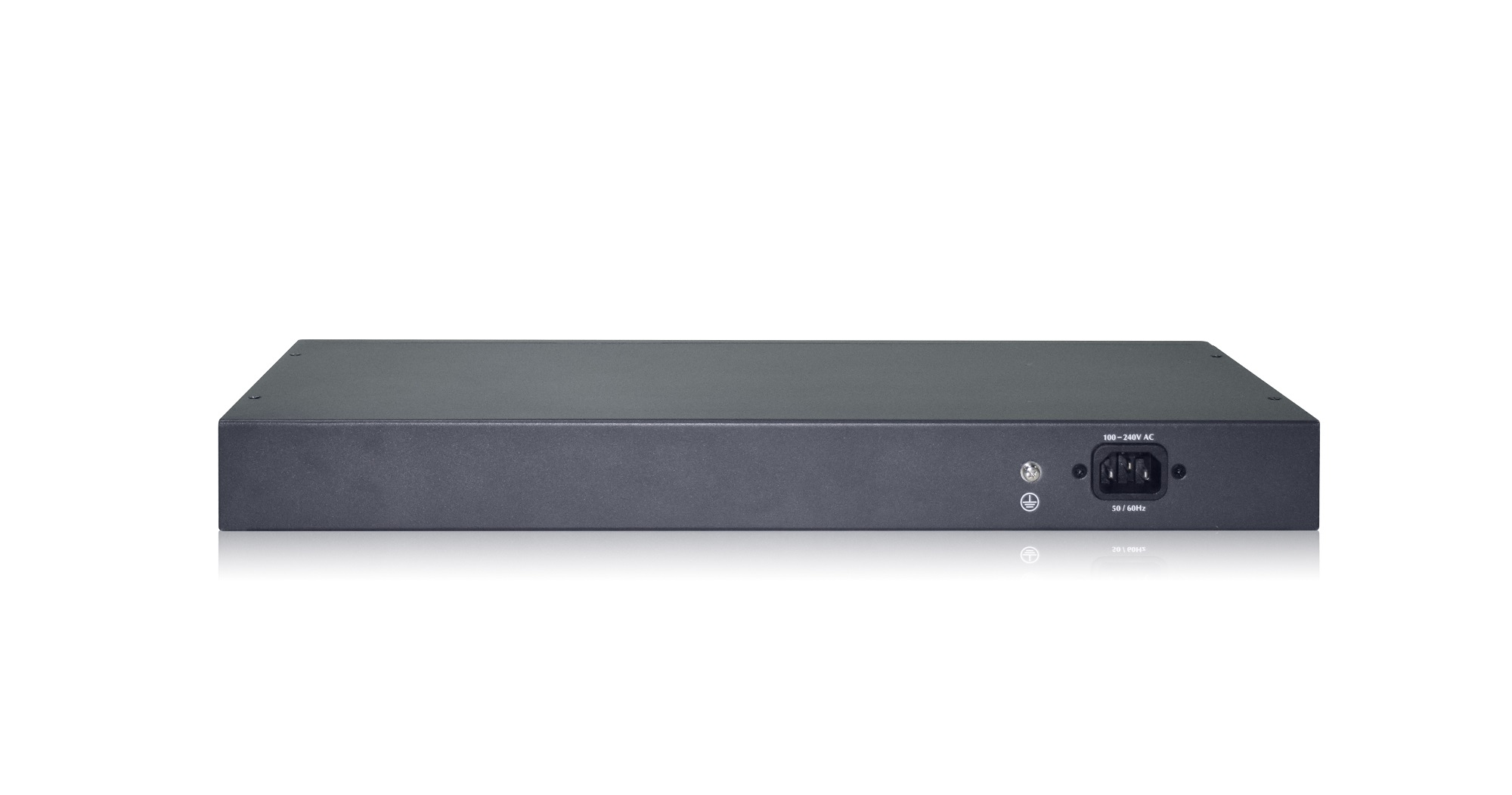

Input Power Supply

100~240V AC, 50/60Hz

Operating Temperature

0°C ~ 40 °C

Storage Temperature

-40 °C ~ 70 °C

Surge Protection

Different mode±4KV, common mode±6KV

Operating Humidity

10% ~ 90% non-condensing

Storage Humidity

5% ~ 90% non-condensing

MTBF

>50000 hours

Electrostatic standard

Contact 6KV, air 8KV

Software Specifications

L2 Switch Features


Link Aggregation

GE Port Aggregaiton

Static Aggregation

Dynamic Aggragation

Port Features

IEEE 802.3x flow control

Interface counters

Storm control

mac-address table management

Static mac-address management

Dynamic mac-address management

Filtering mac-address

VLAN

Port-based VLAN

Mirror

Port Mirroring

IEEE802.1w RSTP

STP

RSTP

MSTP

G.8032

Major ring

Sub ring

Multicast Features

IGMP snooping

IGMP V1, V2, V3

IGMP snooping

ACL and QoS

ACL

IP Standard ACL

MAC extend ACL

IP extend ACL

QoS

QoS Class, Remarking

Support SP, WRR queue scheduling

Ingress Port-based Rate-limit

Egress Port-based Rate-limit

Management Features

SNMP

Supporting version(SNMPV2C)

Web management

Web management

Support HTTP V1.1

Firmware Upgrade

Firmware Upgrade

Syslog/Debug

Syslog/Debug

Application Protocol Features

DHCP Snooping

Dhcp snooping trust port

Telnet

Telnet Server

TFTP

TFTP Client

Security Features

User management

support password protection


Ordering information

Model

product information

PM122GM V1

16-Port Gigabit+2G Combo+2G SFP Managed Switch
