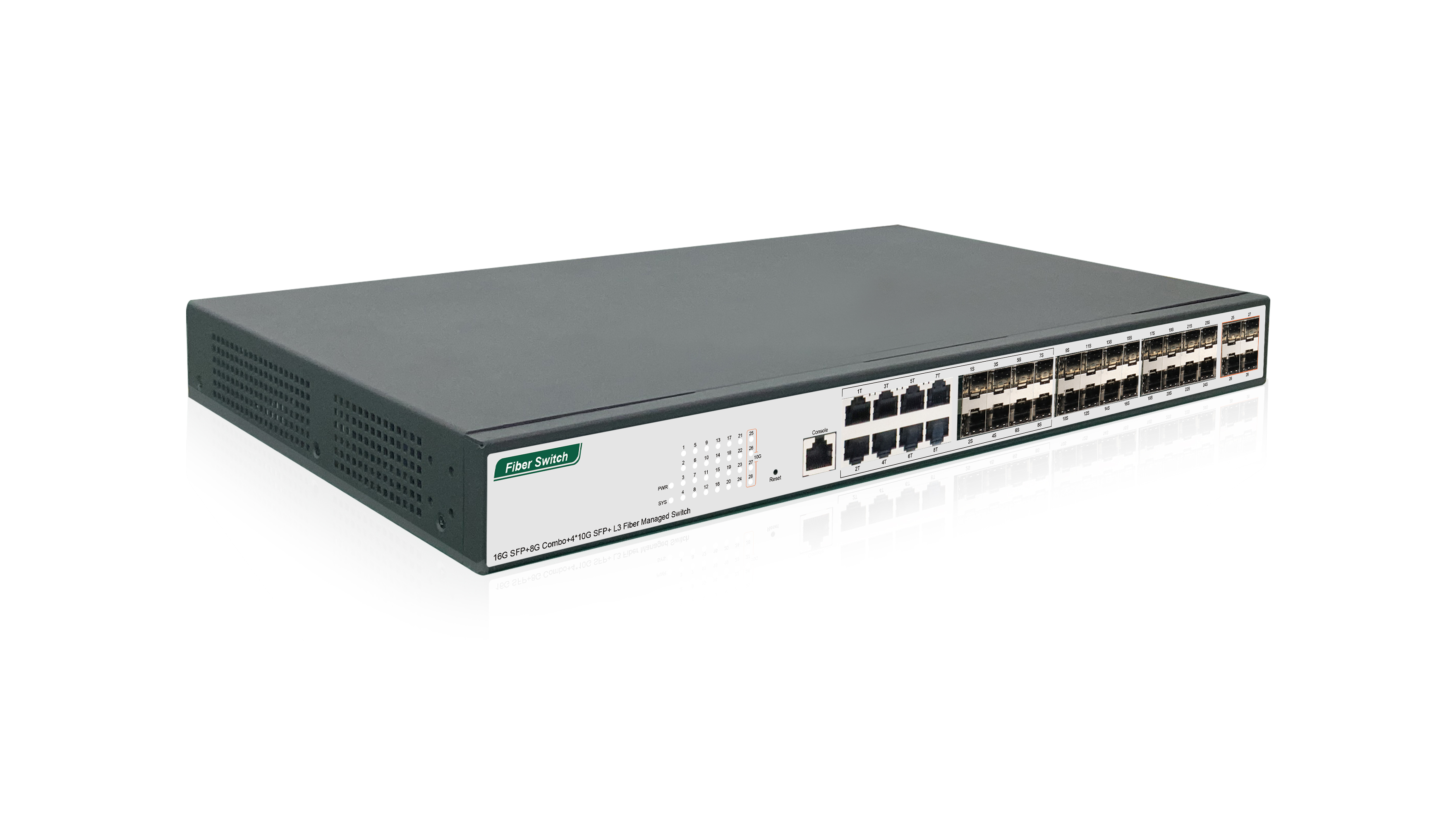

PM236GTM 正面
PM236GTM 正面
PM236GTM 侧面图

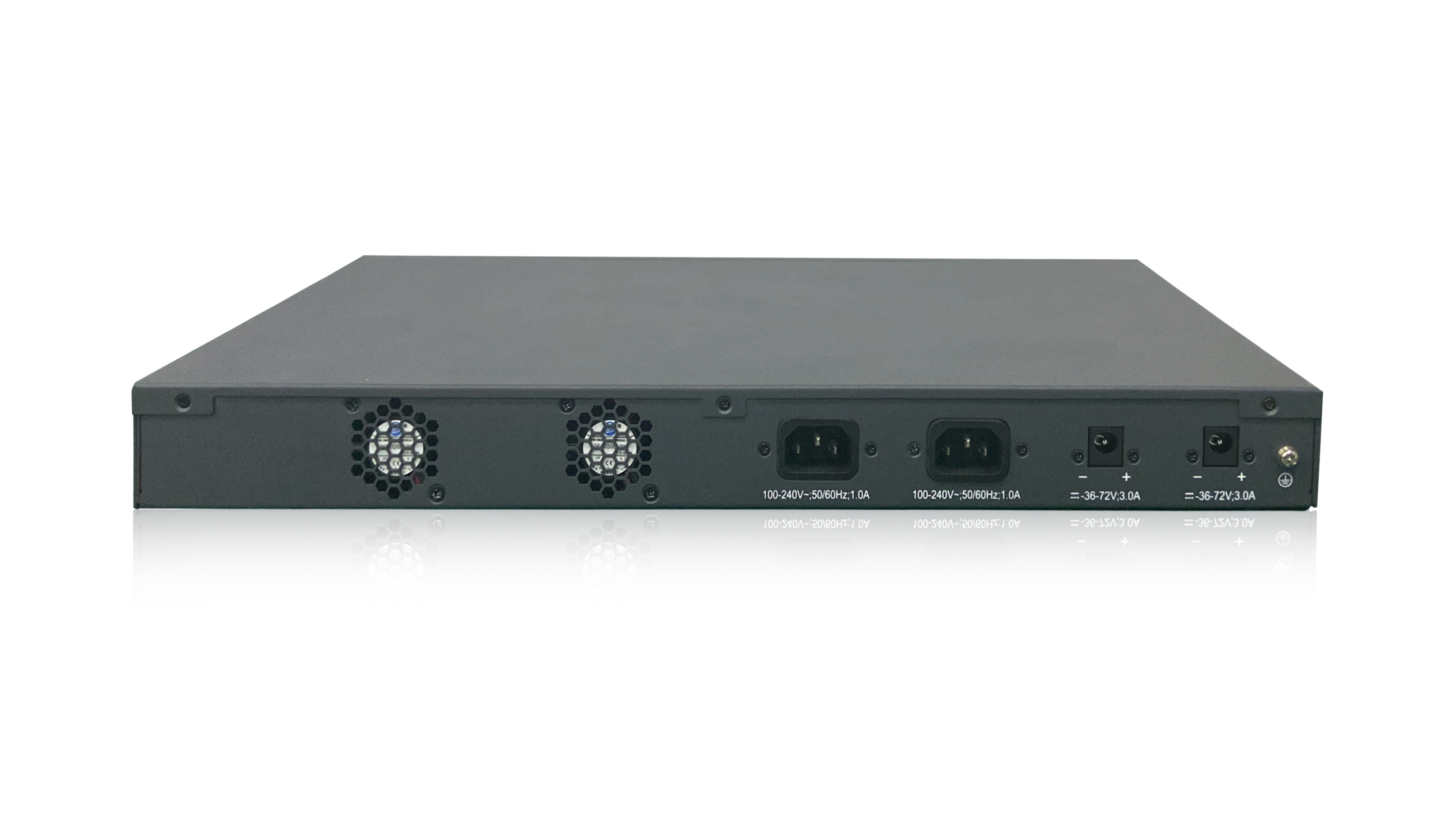

PM236GTM 背面图
PM236GTM 正面
PM236GTM 侧面图
PM236GTM 背面图

16G SFP+8G Combo+4*10G SFP+ L3 Fiber Managed Switch l3 switch switch l3 switch managed l3 managed switch

Model NO.
PM236GTM V1
Quantity:
Product Overview
PM236GTM V1 is a Fiber Managed Switch developed by UNIPOE, with 16*1000Mbps SFP slots, 8*1000Mbps Combo ports and 4*10Gbps SFP+ fiber modules and a Console port, providing complete security policies, perfect QoS policies and rich VLAN functions, easy to manage and maintain, meeting the networking and access requirements of enterprises, communities, hotels, office networks and campus networks.

Product Features
  • RJ45 supports automatic port flip (Auto MDI/MDIX);
  • IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control;
  • Panel indicators monitor working status and assist in fault analysis;
  • Perfect security mechanism;
  • Support for dynamic routing protocols;
  • Highly reliable design, supporting traditional STP/MSTP/RSTP 3-layer link protection technology;
  •  Support static convergence and dynamic convergence (LACP) 2 convergence modes, effectively increase the link bandwidth, improve the reliability of the link, and at the same time can achieve load balancing, and link backup;
  • Flexible and convenient management and maintenance Supports various management modes, such as Console, Telnet, and SSH;​​​​​​
  • Support WEB management, simple and efficient, convenient for installation and debugging of engineering and maintenance personnel;
  • Supports file upload and download management through TFTP.

Product Specifications
Hardware Specification
ModelPM236GTM V1
StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1X, EEE 802.1q, IEEE 802.1p, IEEE 802.1d, IEEE 802.1w, IEEE 802.3ad
Interface16*1000Mbps SFP Slots
8*1000Mbps Combo Ports
4* 10Gbps SFP+ Slots
1*Console Port
IndicatorPWR(Green), LNK/ACT(Green), SYS(Green)
Network Media10BASE-T: UTP category 3,4,5 cable(≤100m)
100BASE-TX: UTP category 5, 5e cable(≤100m)
100BASE-TX UTP category 5e, 5 cable(≤100m)
1000BASE-FX: MMF, SMF
10GBASE-X: MMF, SMF
MAC Address Table16K, Auto-learning, Auto-update
Jumbo Frame12KBytes
Packet Buffer 12Mbit
Transfer ModeStore-and-forward
Packet Forward Speed95.23Mpps
Switching Capacity128Gbps
Dimensions(L*W*H)440*260*44mm
Fan2 pcs
Power Supply12V/5A
Power Input100~240V AC, 50/60Hz
Operating Temperature0°C ~ 40 °C
Storage Temperature-40 °C ~ 70 °C
Operating Humidity10% ~ 90% non-condensing
Storage Humidity5% ~ 90% non-condensing
Surge ProtectionCommon mode ±4KV, Differential mode ±2KV
MTBF>100000 hour
Electrostatic StandardContact ±6KV , Air ±8KV


Software Specification
L2 FeaturesMAC Address TableMAC Address Size
MAC Aging Time
MAC Filter
MAC Notification
Basic ManagementConsole/Telnet/SSH
Http/Https、SSL/TLS
FTP/TFTP
Syslog
SNMP(v1/v2c/v3)、SNMP Trap
SNTP/NTP
CPU protect
Software/Hardware watchdog
Firmware Upgrade/Backup
Ping/Traceroute
Port ConfigBandwidth Control
Flow Control
EEE
MTU
CFM(802.1ag)
EFM OAM(802.3ah)
DDM
Storm Control
Port Isolation
Port Security
Virtual Cable Test
ULDP/Cisco UDLD
DiscoveryLLDP(802.1ab)
LLDP-MED
Link AggregationStatic
LACP(802.3ad)
Load Balance(src-mac/dst-mac/src-ip/dst-ip)
Max groups and ports per group
VLANVLAN(802.1Q 4K)
Access/Trunk/Hybrid
Private VLAN
VLAN Filter
MAC-based VLAN
Protocol-based VLAN
IP Subnet-based VLAN
Voice VLAN
GVRP/GMRP
QinQ/Selective-QinQ/Flexible QinQ
VLAN Translation/N:1 VLAN Translation
Guest VLAN
Network Loop DetectionLoopback Detection
ERPS
Spanning TreeSTP/RSTP/MSTP
MSTP Support 64 instance
BPDU Guard/Root Guard/BPDU Tunnel
ARPStatic ARP
ARP Scanning Prevention
ARP Spoofing Prevention
ARP Guard
Gratuitous ARP
Dynamic ARP Inspection
ARP Quantity Control
IPv4 Related FunctionICMPAnti ICMP Attack
ICMP Rate Limit
ICMP Unreachable Drop
IP ForwardStatic Route
Route Aggregation
Control MulticastDCSCM
Multicast VALNMulticast VALN
IGMPIGMP SNOOPING V1/V2/V3
Fast Leave
IGMP Proxy
DHCPDHCP Server
DHCP Client/BOOTP
DHCP Relay
DHCP Snooping
DHCP Option 82/43/60/61/67
IPv6 Related FunctionIPv6 BasicIPv6 ND Snooping
DHCPv6DHCPv6 Server
DHCPv6 Relay
DHCPv6 Snooping
IPv6 SAVI
Security RA
IPv6 Unicast RoutingStatic Route
IPv6 Multicast RoutingMLD v1/V2 Snooping
IPv6 FeaturesSNMP over IPv6 Support
HTTP over IPv6 Support
SSH over IPv6 Support
DNS over IPv6 Support
IPv6 ping/traceroute Support
IPv6 Telnet Support
IPv6 Radius+ Support
IPv6 Tacacs+ Support
IPv6 SNTP/NTP Support
IPv6 FTP/TFTP Support
IPv6 IPSec Support
IPv6 ACL
QoS(Quality Of Service)BasicTrust COS/DSCP
Trust Port
SchedulingSP
WRR
WDRR
PolicyMap StreamBased on VLAN
Based on COS/DSCP
Aggregate PolicyMap
Ingress PolicyMap
PolicingCAR Stream Shaping(leak algorithm)
Ingress Policing
RewriteCOS/802.1p Priority
IP Precedence
IPv4 DSCP/IPv6 DSCP
drop-precedence
internal-priority
Ingress/Egress Rewrite
QueuingDSCP to DSCP mapping
DSCP to DP mapping
DSCP to Queue mapping
COS to DP mapping
COS to Queue mapping
ACLIP-ACLSIP/DIP
IP Protocol
IP Priority(DSCP,TOS, Precedence)
TCP,UDP src,dst Port
MAC-ACLSRC/DST MAC
VLAN
COS
Tag/Untag
IP-MAC ACLMAC-ACL and IP-ACL
User-defined ACLBase on user defined profile
ACL FeaturesBased on time period ACL
ACL on VLAN
Based on ACL Stream
Security802.1xPort Based Authentication
Support EAPoR
MAC based Authentication
Guest VLAN
MABBased on Port Authentication
Based on MAC Authentication
MAC Address Count LimitBased on Port
Based on VLAN
IP Address Count LimitBased on Port
Based on VLAN
Access ManagementBased on source mac and IP address
Deny DoS AttackTCP Flag
TCP Flagment
IP Segment
ICMP
TACACS+Standard Support
RadiusStandard Support
Client, Support MD5
SSLOpenssl 1.1.0
Redundancy Related
Function
MRPPCompatiable ERRP
ULPPUplink Protection Protocol
Smart Link/Monitor Link
ULSMUplink State Monitor
Flow Monitor FunctionMirrorSupport one to one, multi to one
Port based mirror, support ingress, egress, and both
CPU based mirror
Flow based mirror
RSPAN


Ordering Information
ModelProduct Information
PM236GTM V1 16G SFP+8G Combo+4*10G SFP+ L3 Fiber Managed Switch
  • 16G SFP+8G Combo+4x10G SFP+ L3 Fiber Managed Switches User Guide.pdf:Downloads
  • PM236GTM V1-EN(2).pdf:Downloads
