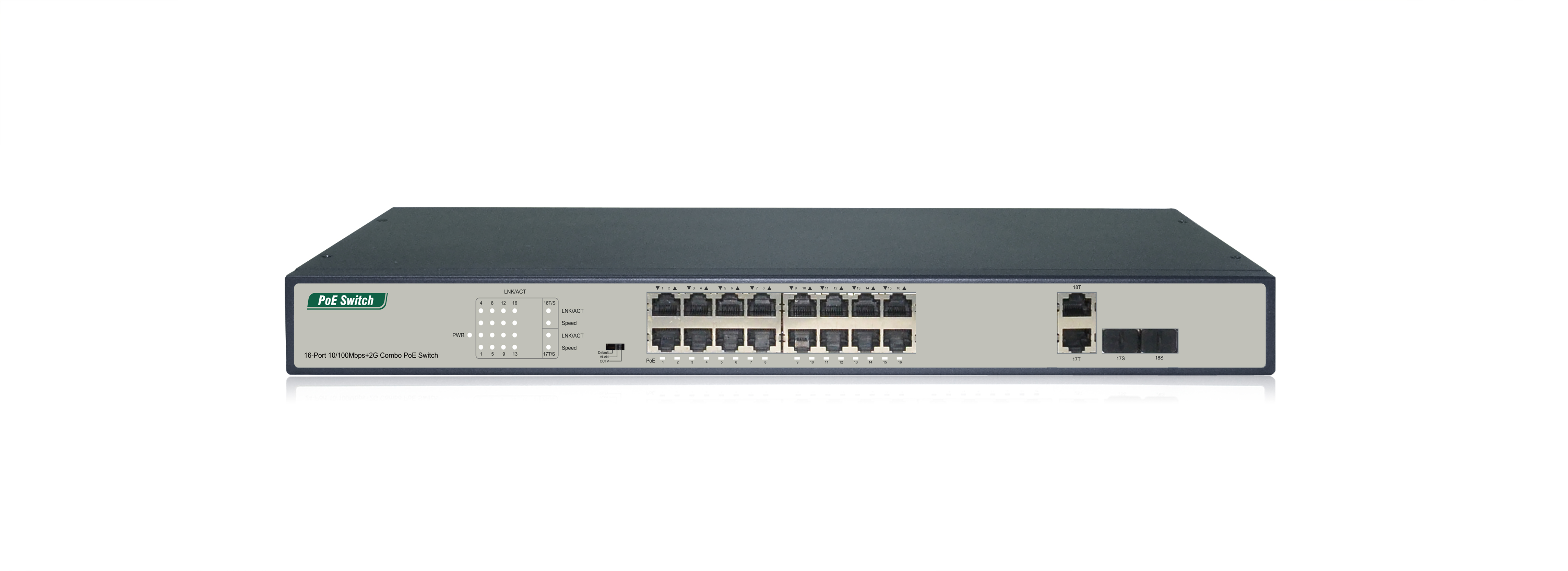

Product Overview
The PM3020FSN V6 provides 16*10/100Mbps adaptive RJ45 ports and 2*1000Mbps Combo ports, each supporting MDI/MDIX automatic flip and wire-speed forwarding. Ports 1-16 have the PoE power supply function and comply with IEEE 802.3af/at standards. They can serve as Ethernet power supply devices, automatically detect and identify the devices that meet the standards and supply power to them through network cables.
19"standard rack mount, plug-and-play, no management required Dynamic LED indicators provide simple working status indication and troubleshooting. One-touch VLAN and CCTV function, users can choose to turn on or off depending on the application environment.Features- Support 802.3af/at standard;
- Single PoE port output power up to 30W;
- Automatic detection of PD devices;
- Data transmission and power supply distance guaranteed 100 meters;
- Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control;
- Support one-click VLAN & CCTV mode;
- Panel indicators monitor operating status and help with fault analysis;
- Support green energy-saving IEEE802.3az;
- Motherboard, Power Supply, PoE (3 in 1);
- Support PD-ALIVE function.
Specification| Model | PM3020FSN V6 |
| Standard | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af, IEEE802.3at |
| Interface | 16*10/100Mbps RJ45 ports
2*1000Mbps Combo ports |
| Network Media | 10BASE-T: UTP category 3,4,5 cable (≤100m)
100BASE-TX: UTP category 5,5e cable (≤100m)
1000BASE-T: UTP category 5e,6 cable (≤100m)
1000BASE-X: SMF, MMF |
| LED | PWR, PoE, LINK/ACT, Speed |
| Function Keys | VLAN & CCTV |
| MAC Address Table | 8K, Auto-learning, Auto-aging |
| Transfer Mode | Store-and-Forward |
| Jumbo Frames | 9216Bytes |
| Switching Capacity | 7.2Gbps |
| Packet Forwarding Rate | 5.4Mpps |
| Packet Buffer | 4Mbit |
| PoE Port | Port1~16 |
| PoE Power on RJ45 | Mode A 1/2(+), 3/6(-) |
| PoE Power Output | Voltage: 55V DC Power: 30W(Max) |
| PoE Power Budget | 250W | 160W |
| Power Supply | 270W | 180W |
| Power Output | DC 55V/4.5A |
| Power Input | AC: 100~240V, 50/60Hz 5A（Max） |
| Dimensions (L*W*H) | 440*207*44mm |
| Fan Qty | 2 |
| Operating Temperature | 0°C ~ 40 °C (32 °F ~104°F) |
| Storage Temperature | -40 °C ~ 70 °C (-40 °F ~158°F) |
| Operating Humidity | 10% ~ 90% non-condensing |
| Storage Humidity | 5% ~ 90% non-condensing |
| Surge Protection | Different mode±2KV, Common mode±4KV |
| Certification | CE, FCC, LVD, UKCA, CB, UL |
| MTBF | >50000 hours |
| Electrostatic Standard | Contact ±6KV, Air ±8KV |
| Green Energy Saving | Support IEEE 802.3az |
Ordering Information| Model | Product Information |
| PM3020FSN V6 | 16-Port 10/100Mbps+2G Combo PoE Switch |
