Product Overview

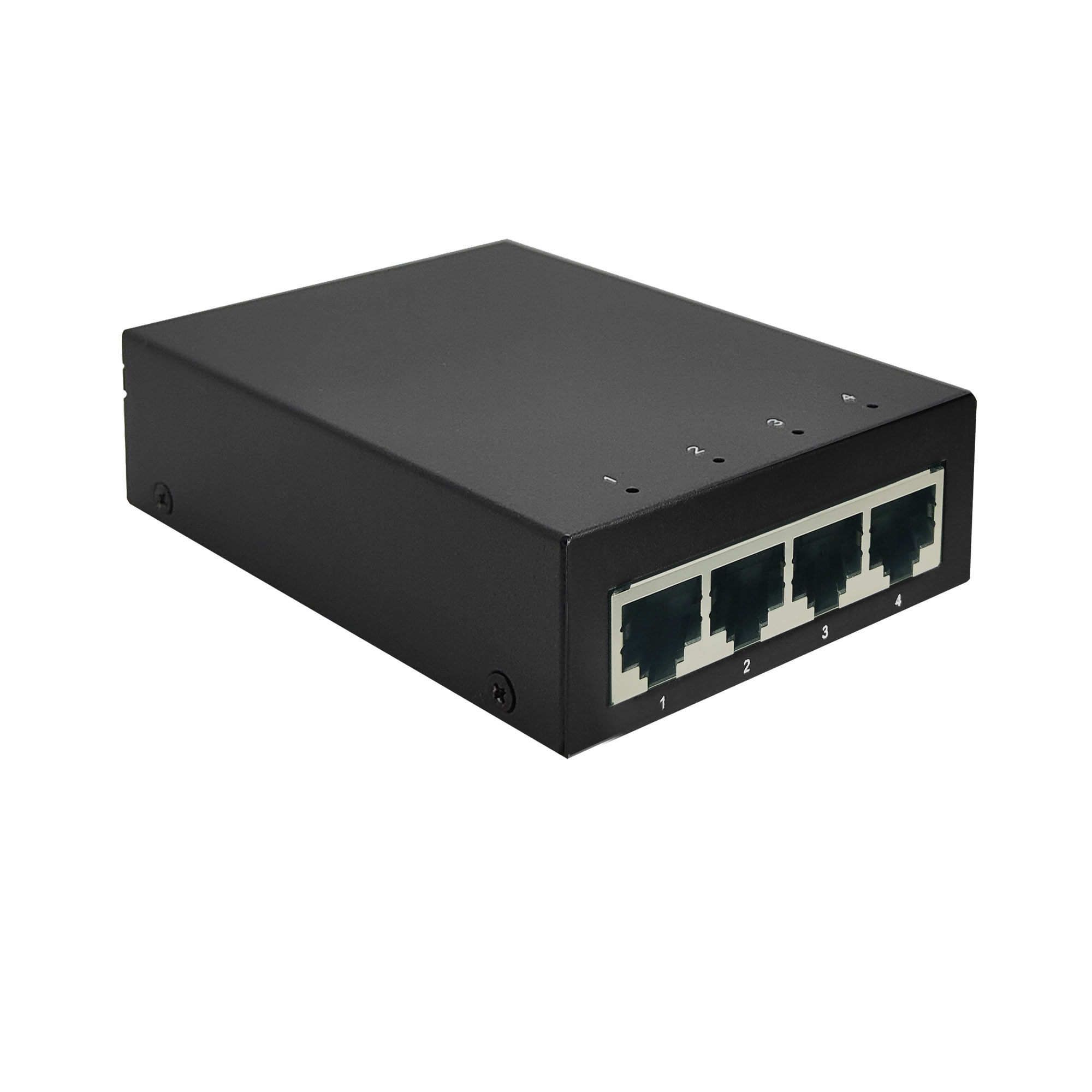

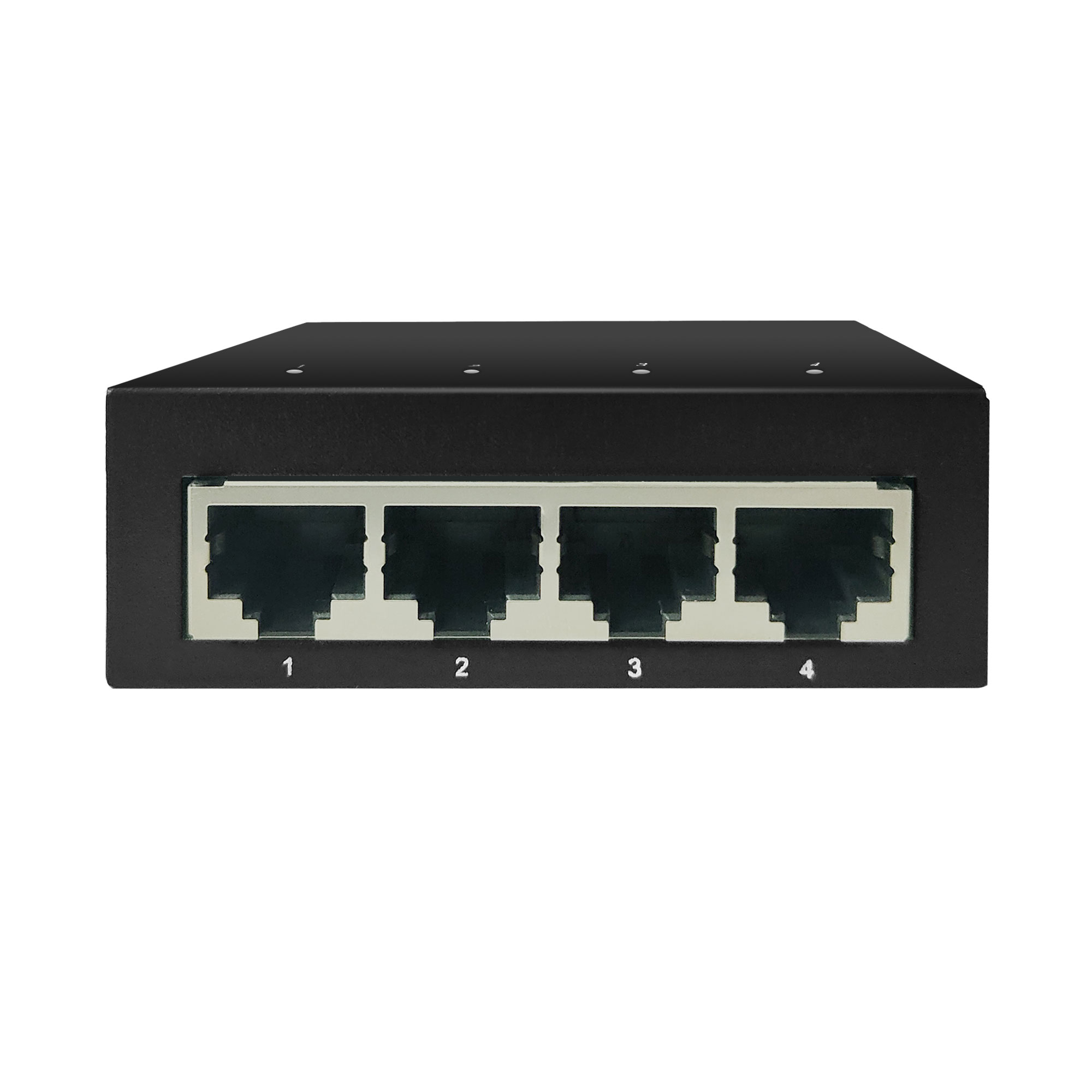

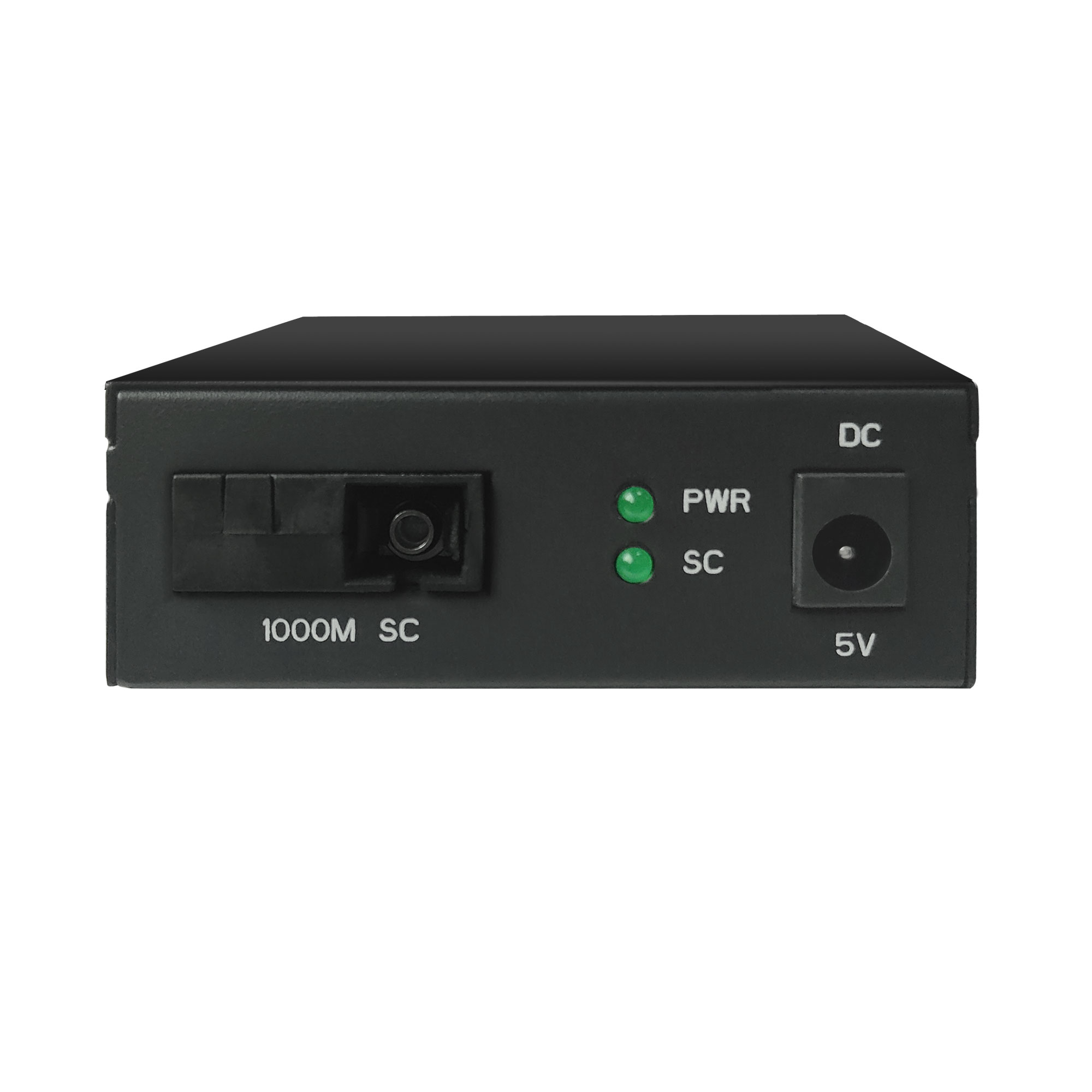

Our self-developed Ethernet single-mode fiber optic transmission equipment, PM304FSF-A/B V1 version (SC interface) and PM304FSF V1 version (SFP slot) are available. Provide 4*10/100Mbps adaptive RJ45 ports and 1*1000Mbps SC fiber interface/1*1000Mbps fiber module slot. Which can convert electric port signals to optical port signals and carry out long-distance data transmission through fiber optics. PM304FSF-A end operating wavelength: 1310nm (transmit), 1550nm (receive); PM304FSF-B end operating wavelength: 1550nm (transmit), 1310nm (receive).
The product can be used in pairs or with other equipment, and can be widely used in security monitoring, wireless networking, fiber optic access and other application scenarios.
Product Features
- Support for full or half duplex mode with auto-negotiation capability;
- Network port supports fully automatic cross recognition, full/half duplex MDI/MDI-X adaptive;
- PM304FSF-A/B V1 version supports the use of SC-type fiber optic interface;
- Single-mode fiber has strong anti-interference ability, small loss, maximum transmission distance of 20km, generally used for remote communication;
- Panel indicators monitor operating status and help with fault analysis;
- Plug-and-play, no configuration required, hot-plugging support;
- Working temperature: -20℃~60℃;
- Industrial grade protection design.
Product Specifications
Model | PM304FSF-A V1 | PM304FSF-B V1 | PM304FSF V1 |
Operating Wavelength | Emission Wavelength : 1310nm Reception Wavelength : 1550nm | Emission Wavelength : 1550nm Reception Wavelength : 1310nm | N/A |
Interface | 4*10/100Mbps RJ45 Ports 1*1000Mbps SC Fiber Optic interface | 4*10/100Mbps RJ45 Ports 1*1000Mbps SFP slot |
Protocol Standards | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3z 1000Base-X; IEEE802.3x; |
Packet Forwarding Rate | 10BASE-T:14881pps/port 100BASE-X:148810pps/port |
Indicator Light | PWR (Green), LNK/ACT (Green) |
Usage | Used in pairs | Use with optical modules |
Forwarding Type | Store-and-forward |
MAC Address Table | 2K, Auto-learning, Auto-update |
Packet Buffer | 2M bit |
Fiber Optic Port Media | Single-mode fiber/optical cable (9/125um) |
Fiber Optic Transmission Distance | 20KM |
Power Input | 5V/1A |
Appearance Size（L*W*H） | 94.2*71.2*26mm |
Operating Temperature | -20℃~60℃ |
Storage Temperature | -40℃~80℃ |
Operating Humidity | 10% ~ 90% non-condensing |
Storage Humidity | 5% ~ 90% non-condensing |
Surge Protection | Common mode ±6KV, Differential mode ±4KV |
| | | | |
Ordering Information
Model | Product Information |
PM304FSF-A/B V1 | 1 Optical 4 Electrical 10/100Mbps Single-mode Media Converter(SC port) |
PM304FSF V1 | 1 Optical 4 Electrical 10/100Mbps Single-mode Media Converter(SFP slot) |
