Product Overview
PM208TSM is our self-developed Layer 3 10G Fiber Managed Switch with 8*10Gbps SFP+ fiber modules and 1*Console port, providing complete security policy, perfect QoS policy and rich VLAN function, easy to manage and maintain, meeting the networking and access requirements of Enterprises, Communities, Hotels, Office Networks and Campus Networks.
Product Features
- IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control;
- Backward compatible with 1000M/2.5Gbps transmission rate;
- 10Gbps SFP+ optical modules are required, supporting SR/LR/LRM/ER/ZR and other models;
- Layer 3 routing protocol control, adaptable to multiple services, efficient and secure information transmission;
- Support static convergence and dynamic convergence (LACP) 2 convergence modes, effectively increase the link bandwidth, improve the reliability of the link, and at the same time can achieve load balancing, link backup;
- Flexible and convenient management and maintenance Supports various management modes, such as Console, Telnet, and SSH;
- Support WEB management, simple and efficient, convenient for installation and debugging of engineering and maintenance personnel;
- Supports file upload and download management through TFTP.
Product Specifications
Hardware Specifications
Model | PM208TSM V1 |

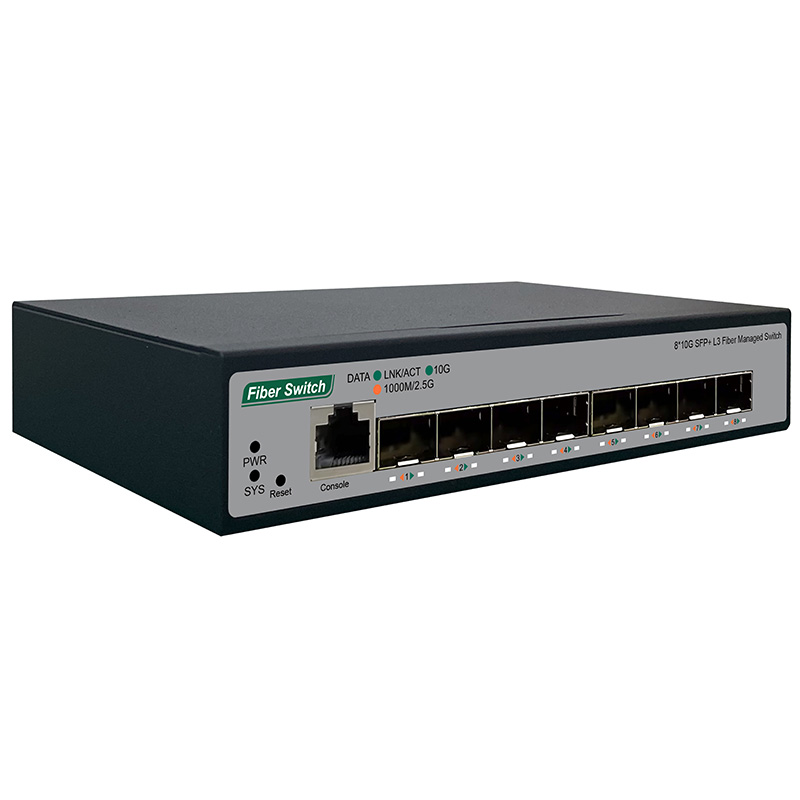

Interface | 8*1000M/2.5Gbps/10Gbps SFP+ Slots 1*Console Port |
Standard | IEEE802.3, IEEE802.3z, IEEE802.3ae, IEEE802.3x, IEEE802.1X, EEE802.1Q, IEEE802.1p, IEEE802.1d, IEEE802.1w, IEEE802.3ad |
Network Media | 1000BASE-X: MMF, SMF 10GBASE-X: MMF, SMF 10GBASE-SR: OM1/OM2/OM3 or above MMF (2m~300m) 10GBASE-LR: IEC's B1.1 and B1.3 SMF (2m~10000m) |
Indicator | PWR(Green), LNK/ACT(Green/Orange), SYS(Green) |
MAC Address Table | 16K, Auto-learning, Auto-updating |
Jumbo Frame | 12KBytes |
Packet Buffer | 12Mbits |
Transfer Mode | Store-and-forward |
Packet Forward Speed | 119.04Mpps |
Switching Capacity | 160Gbps |
Dimensions(L*W*H) | 168*94*32mm, Black |

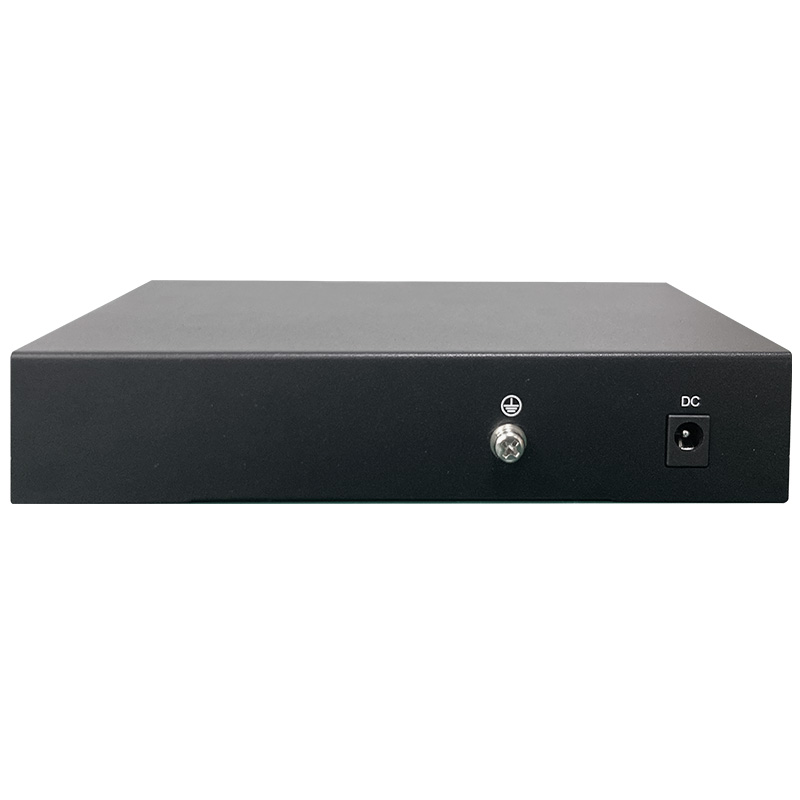

Power Inputs | External adapter,DC,12V/2A |
Operating Temperature | 0°C ~ 40°C |
Storage Temperature | -40°C ~ 70°C |
Operating Humidity | 10% ~ 90% non-condensing |
Storage Humidity | 5% ~ 90% non-condensing |
Surge Protection | Differential mode ±1KV, Common mode ±2KV |
Electrostatic Standard | Contact ±6KV , Air ±8KV |
MTBF | >100000 hours |
Software Specification
Ordering Information
Model | PM208TSM V1 |
Product Information | 8*10G SFP+ L3 Fiber Managed Switch |
Packaging Accessories | - Power Adapter *1
- Console*1
- Feet *4
- User Manual *1
|
