Product Overview

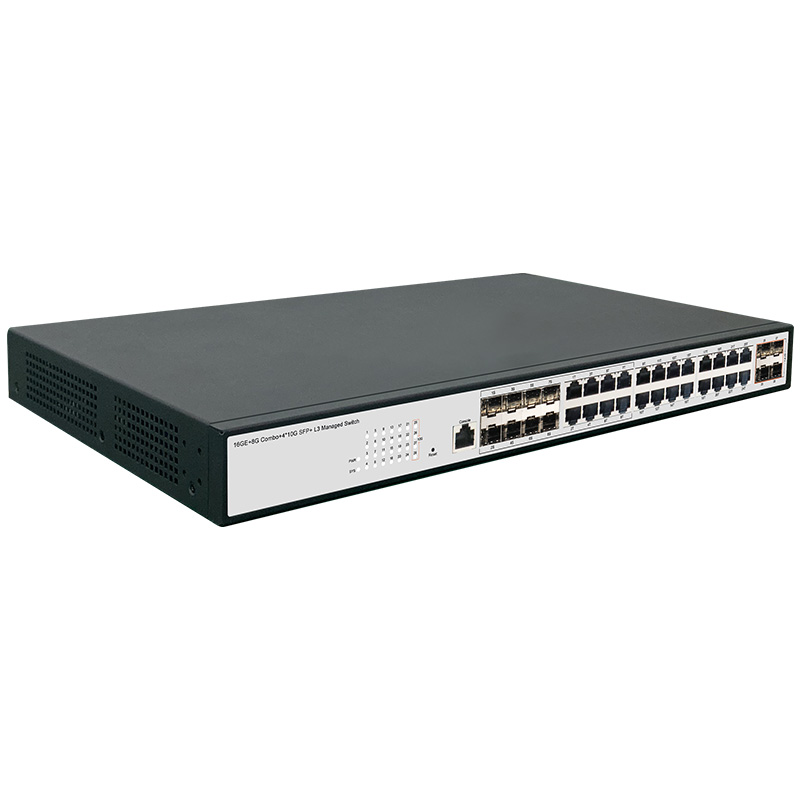

PM136GTM V1 is a Layer 3 10G Uplink Managed Switch developed by UNIPOE, with 16*10/100/1000Mbps RJ45 ports, 8 *Combo ports and 4*1000M/2.5G/10Gbps SFP+ fiber module slots and 1*Console port. Support static routing function, provide complete security policy, perfect QoS policy and rich VLAN function, easy to manage and maintain, meet the Networking and Access Requirements of Enterprise, Community, Hotel, Office Network and Campus Network.
Product Features
- Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control;
- Panel indicators monitor operating status and help with fault analysis;
- 10Gbps SFP+ optical modules are required, supporting SR/LR/LRM/ER/ZR and other models;
- Layer 3 routing protocol control, adaptable to multiple services, efficient and secure information transmission;
- IP dynamic routing protocols support RIP, OSPFv2, IPv4/IPv6 static routes;

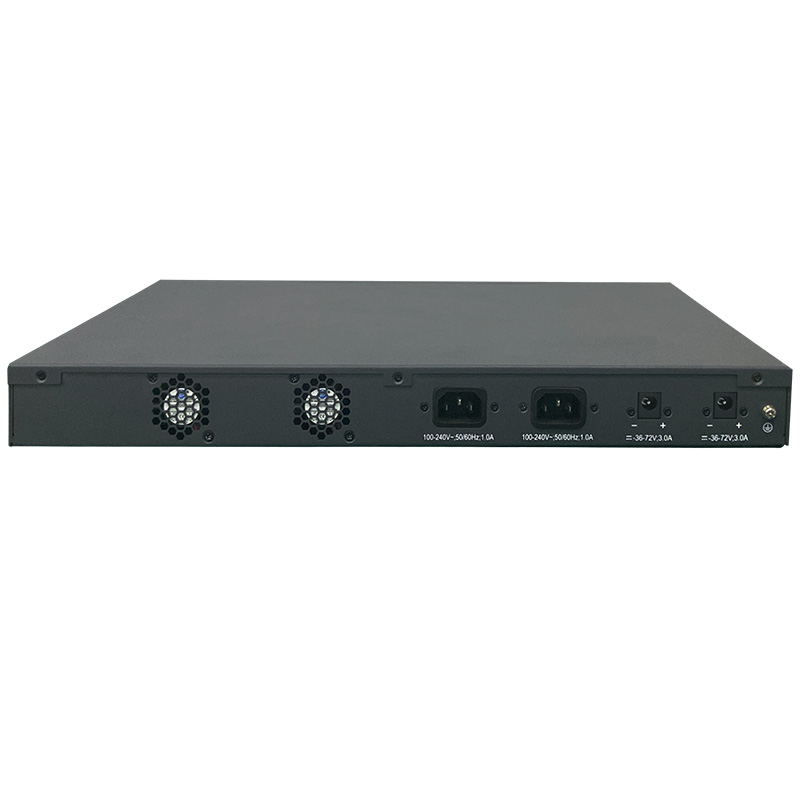

- Dual power supply design, supporting AC or DC 1+1 backup, reducing the risk of equipment power failure and business interruption;
- Support static convergence and dynamic convergence (LACP) 2 convergence modes, effectively increase the link bandwidth, improve the reliability of the link, and at the same time can achieve load balancing, link backup;
- Flexible and convenient management and maintenance support Console, Telnet, SSH and other management methods;
- Support WEB way management, more simple and efficient, easy to install and debug engineering and maintenance personnel;
- Support TFTP file upload and download management.
Product Specifications
Hardware Specifications
Model | PM136GTM V1(AC) | PM136GTM-DC V1 | PM136GTM-AC+DC V1 |
Interface | 16*10M/100M/1000Mbps RJ45 Ports 8*1000Mbps Combo Ports 4*1000M/2.5G/10Gbps SFP+ Slots 1 Console Port |
Standard | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3ad, IEEE802.3bz, IEEE802.3ae, IEEE802.1X, IEEE802.1Q, IEEE802.1p, IEEE802.1d, IEEE802.1w |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable(≤100m) 100BASE-TX: UTP category 5, 5e cable(≤100m) 1000BASE-TX UTP category 5e, 6 cable(≤100m) 1000BASE-X: MMF, SMF 10GBASE-X: MMF, SMF 10GBASE-SR: OM1/OM2/OM3 or above MMF (2m~300m) 10GBASE-LR: IEC's B1.1 and B1.3 SMF (2m~10000m) |
Indicator | PWR(Green), LNK/ACT(Green), SYS(Green) |
MAC Address Table | 16K, Auto-learning, Auto-updating |
Jumbo Frame | 12KBytes |
Packet Buffer | 12Mbit |
Transfer Mode | Store-and-forward |
Packet Forward Speed | 95.23Mpps |
Switching Capacity | 128Gbps |
Input Voltage | AC | Operating voltage: 100-240V, 50/60Hz, 2A Max Maximum voltage: 90V-240V, 47~63Hz |
DC | Maximum voltage range: 36~72V, 3A Max |
Total power supply | AC | 12V/5A, 60W |
DC | 12V/6.25A, 75W |
Dimensions(L*W*H) | 440*260*44mm, Black |
Operating Temperature | 0°C ~ 40°C |
Storage Temperature | -40°C ~ 70°C |
Operating Humidity | 10% ~ 90% non-condensing |
Storage Humidity | 5% ~ 90% non-condensing |
Surge Protection | Differential mode ±2KV, Common mode ±4KV |
Electrostatic Standard | Contact ±6KV, Air ±8KV |
MTBF | >100000 hours |
Software Specification
Ordering Information
Model | PM136GTM V1 |
Product Information | 16GE+8G Combo+4*10G SFP+ L3 Managed Switch |
Packaging Accessories | - AC power cord *1/2
- Feet *4
- Rack Mount Kit *2
- Screw *8
- User Manual *1
|
AC+DC power supply version equipped with an AC power cable, dual AC power supply version equipped with two AC power cables, DC power supply does not come with a power cable by default
