PM3010GSMC V1 is a Web Smart Managed PoE Switch independently developed by UNIPOE. It provides 8*10/100/1000Mbps RJ45 ports and 2*1000Mbps SFP slots. Each RJ45 port supports MDI/MDIX automatic rollover and wire-speed forwarding. Ports 1-8 have the PoE power supply function and comply with IEEE 802.3af/at standards. They can be used as Ethernet power supply devices to automatically detect and identify compliant power receiving devices and supply power to them through network cables. The storage and forwarding technology and dynamic memory allocation ensure that bandwidth is effectively allocated to each port. PM3010GSMC V1 is easy to use and can flexibly expand home and office networks without limitation of power line layout. It is easy to manage and maintain and meets the requirements of different scenarios
Features
IEEE 802.3at standard compliant IEEE 802.3af electrical receiving device (PD);
Automatic detection and identification standard PoE power receiving devices, intelligent power supply, does not burn non-standard PoE power receiving devices or common devices;
Port power supply priority is supported to ensure continuous power supply for key nodes on the network;
Supports the PD-ALIVE function;
Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control;
Supports 802.1Q VLAN, Port VLAN, QoS, bandwidth control, and storm suppression;
Supports port traffic statistics, port monitoring, cable detection, and loopback protection;
Fast PoE and permanent PoE are supported;
Panel indicators monitor working status and assist in fault analysis;
Intelligent identification of wire speed forwarding;
Data exchange adopts store-and-forward mode;
Operating temperature: 0°C ~ 40 °C;
Mainboard, Power supply, PoE (three in one PCBA).
Product Specifications
Software Specification
Function menu
Functional description
Added
Basic
Login authentication and logout
Bilingual (Chinese-English Switching)
Port panel (dual color rate differentiator)
1000 m green
100 m / 10 m orange yellow
System configuration
Equipment information
Device name
Device contact
Location of equipment
IP Address Setting
Static
DHCP Client
Support the DNS
Web configuration
Web Timeout Setting
User management
The password must contain at least six letters and digits
PM3010GSMC V1 is a Web Smart Managed PoE Switch independently developed by UNIPOE. It provides 8*10/100/1000Mbps RJ45 ports and 2*1000Mbps SFP slots. Each RJ45 port supports MDI/MDIX automatic rollover and wire-speed forwarding. Ports 1-8 have the PoE power supply function and comply with IEEE 802.3af/at standards. They can be used as Ethernet power supply devices to automatically detect and identify compliant power receiving devices and supply power to them through network cables. The storage and forwarding technology and dynamic memory allocation ensure that bandwidth is effectively allocated to each port. PM3010GSMC V1 is easy to use and can flexibly expand home and office networks without limitation of power line layout. It is easy to manage and maintain and meets the requirements of different scenarios

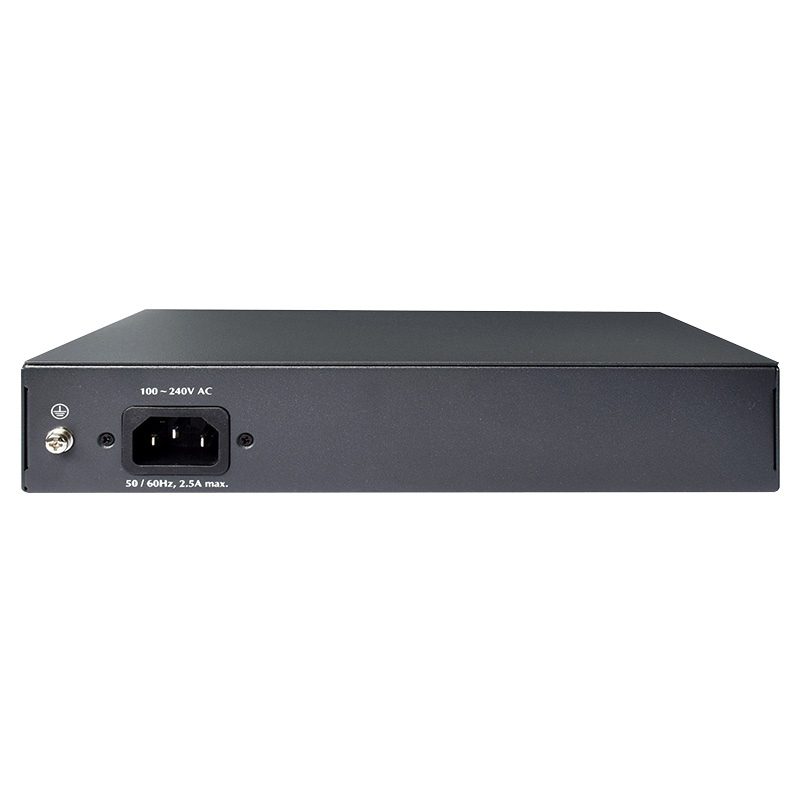

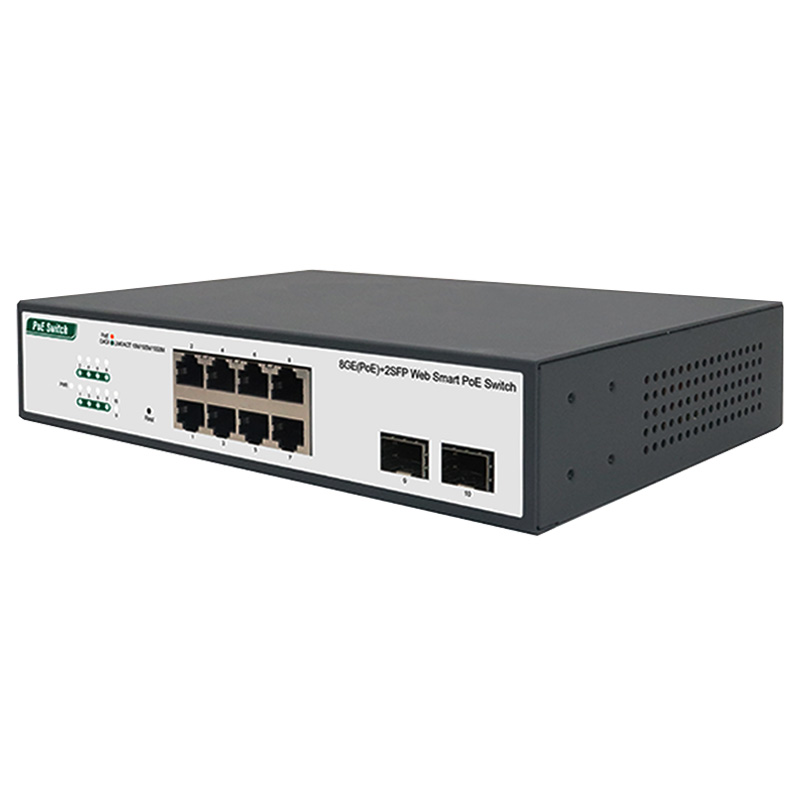

8GE(PoE)+2SFP Web Smart PoE Switch
PM3010GSMC V1
PM3010GSMC V1 is a Web Smart Managed PoE Switch independently developed by UNIPOE. It provides 8*10/100/1000Mbps RJ45 ports and 2*1000Mbps SFP slots. Each RJ45 port supports MDI/MDIX automatic rollover and wire-speed forwarding. Ports 1-8 have the PoE power supply function and comply with IEEE 802.3af/at standards. They can be used as Ethernet power supply devices to automatically detect and identify compliant power receiving devices and supply power to them through network cables. The storage and forwarding technology and dynamic memory allocation ensure that bandwidth is effectively allocated to each port. PM3010GSMC V1 is easy to use and can flexibly expand home and office networks without limitation of power line layout. It is easy to manage and maintain and meets the requirements of different scenarios
