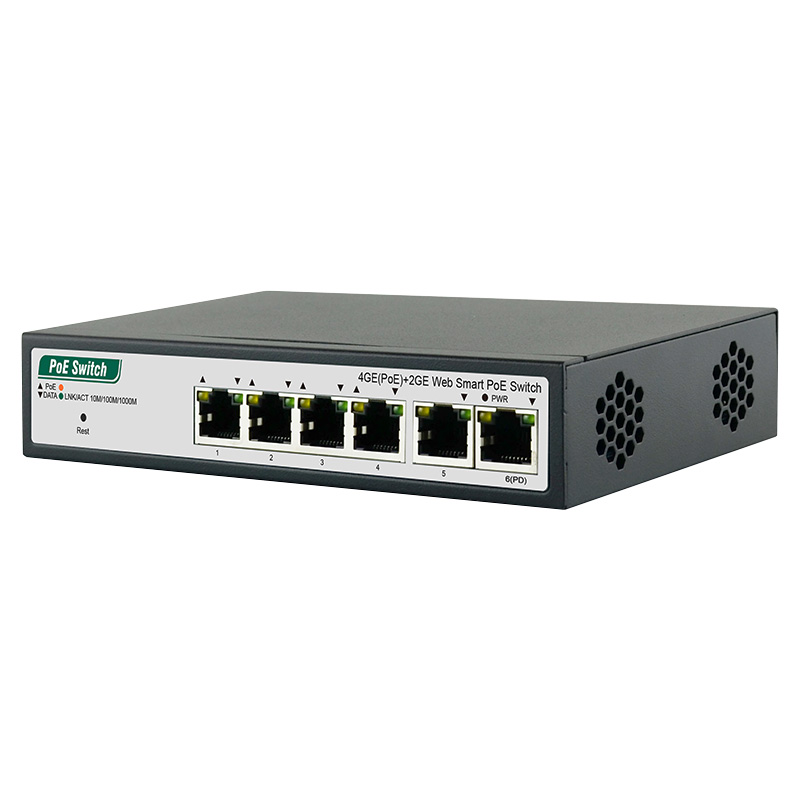

4GE(PoE)+1GE+1GE(PD) Web Smart PoE Switch

Model NO.
PM3006GSMC-PD V1
Quantity:
Product Overview
PM3006GSMC-PD V1 is a Web Smart PoE Switch product with 4 PSE and 1 PD port independently developed by UNIPOE. It has 6*10/100/1000Mbps adaptive RJ45 ports. Each RJ45 port supports MDI/MDIX automatic rollover and wire-speed forwarding. Ports 1-4 have PSE function and support a single port with a maximum output of 30W. Port 6 has PD function and supports 95W input.
The PM3006GSMC-PD V1 supports 2 power supply modes: three-in-one power supply and PoE power supply. The PM3006GSMC-PD V1 is easy to use and can flexibly expand home and office networks without limitation of power line layout. It is easy to manage and maintain and meets the requirements of different scenarios.



Features
Hardware Specification
ModelPM3006GSMC-PD V1
Interface4*10/100/1000Mbps RJ45 Ports (PSE)
1*10/100/1000Mbps RJ45
1*10/100/1000Mbps RJ45 Port (PD)
StandardIEEE 802.1X, IEEE 802.1q, IEEE 802.1p, IEEE 802.1d, IEEE 802.1w, IEEE 802.3ad, IEEE802.3af, IEEE802.3at
Network Media10BASE-T: UTP category 3,4,5 cable(≤100m)
100BASE-TX: UTP category 5, 5e cable(≤100m)
1000BASE-T: UTP category 5e, 5 cable(≤100m)
IndicatorPWR (Orange), PoE (Orange), DATA (Green)
MAC Address Table8K, Auto-learning, Auto-aging
Jumbo Frame9216Bytes
Packet Buffer4.1Mbit
Transfer ModeStore-and-forward
Switching Capacity12Gbps
Packet Forward Speed8.93Mpps

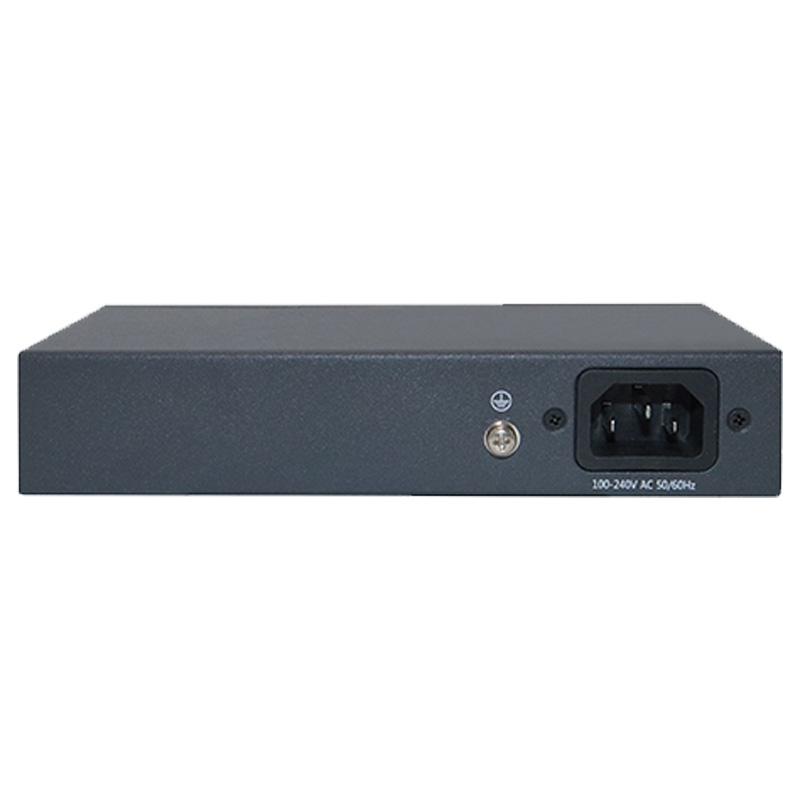

Power Supply ModeThree-in-one power supply and PoE power supply
PSE PortPort1~4
PSE Power on RJ45Mode A 1/2(+),3/6(-)
PSE Power OutputVoltage: DC 54V, Power: 30W (MAX)
PSE Total Power60W
PD StandardIEEE802.3af, IEEE802.3at, IEEE802.3bt
PD PortPort 6
PD Input95W
Dimensions(L*W*H)168*86*32mm
Fan QuantityFanless
Operating Temperature0°C ~ 40 °C
Storage Temperature-40 °C ~70°C
Operating Humidity10% ~ 90% non-condensing
Storage Humidity5% ~ 90% non-condensing
Surge ProtectionDifferential mode±2KV, Common mode±4KV
MTBF>50000 hour
Electrostatic StandardContact±6KV, Air±8KV



Software Specification
Function menuFunctional descriptionAdded


Basic
Login authentication and logout
Bilingual (Chinese-English Switching)
Port panel (dual color rate differentiator)1000m green
100m / 10m orange yellow






System configuration

Equipment information
Device name
Device contact
Location of equipment
IP Address SettingStatic
DHCP Client
Support the DNS
Web configurationWeb Timeout Setting
User managementThe password must contain at least six letters and digits
The firmware updateLocal upgrade
Equipment managementEquipment to restart
Save Settings
factory data reset

Monitoring management
The port statistical
Cable testing
Ring network configurationrlpp




Switch Configuration
Port configuration         Status
Speed/Duplex/Flow Control
Port mirrorEntrance/exit /ALL
Port isolation
Static MAC
MAC filtering
MAC query
MAC listCategories display static/dynamic
VLAN configurationMember of the VLAN
VLAN configurationAccess、Trunk

QoS configuration
Port speed limit
The broadcast storm

PoE configuration

The basic configuration
Enable/disable power supply
Mandatory power supply
Power limit
PD Alive
MCU Upgrade
ONVIFONVIF Detectionsupport



Ordering Information
ModelProduct Information
PM3006GSMC-PD V14GE(PoE)+1GE+1GE(PD) Web Smart PoE Switch
(4-Ports PSE, Support 802.3af/at Standard, Port 6 support 802.3bt)
  • PM3006GSMC-PD V1 User Manual.pdf:Downloads
  • PM3006GSMC-PD V1 Specification.pdf:Downloads
