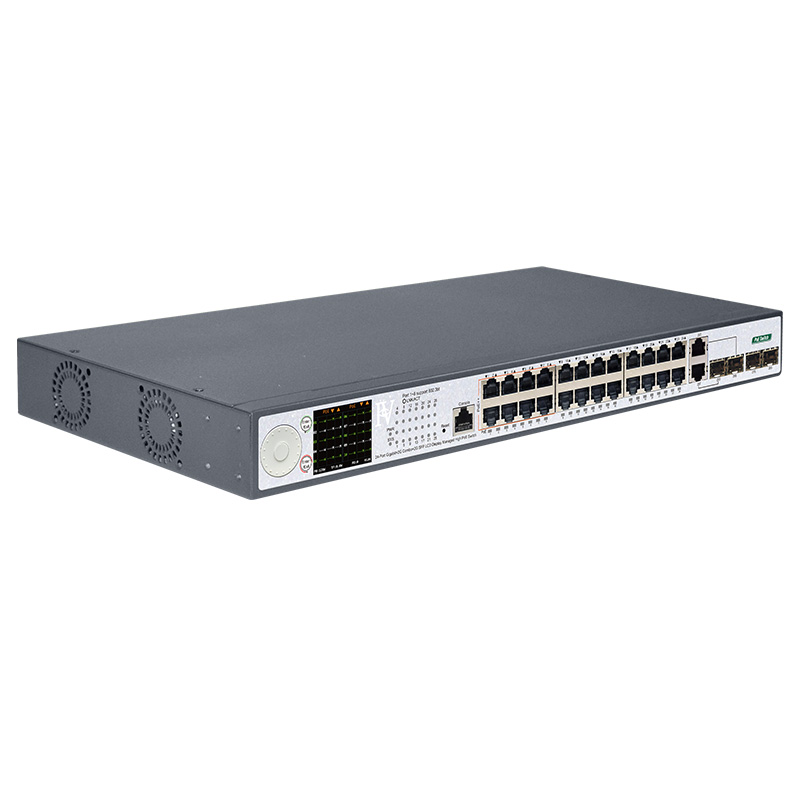

24-Port Gigabit+2G Combo+2G SFP+1Console LCD Display Managed High PoE switch

Model NO.
PM6030GSML V1
Quantity:

Product Overview

The PM6030GSML V1 provides 24 10/100/1000Mbps RJ45 ports, 2G Combo ports and 2G SFP ports that supports 802.3af/at Standard , with a total PoE power supply up to 480W, powerful and flexible enough for users to deploy wireless access points or IP-based network surveillance cameras. The switch also comes equipped with 2 SFP slots, expanding your network flexibly. In addition, it provides high performance, enterprise-level QoS, advanced security strategies and rich layer 2 management features. With all these advanced features, the PoE Switch is an ideal choice for small and medium business networking.

PM6030GSML V1 has functions of VLAN and CCTV. Users can choose to turn on or off according to different application environments to improve network security, restrain network storm and extend power supply distance.LCD can display the color screen logo, increase the bandwidth display, intelligent fan, display the PoE working status, accurately judge the port working condition and load condition, so as to help customers and wiring engineers find and solve problems in time, eliminate network faults, improve work efficiency and engineering quality.



Product Features

  •  Complies with IEEE802.3af/at/bt Standard, port 1-8 support 90W max, PoE total Budget 480W;
  •  Support RJ45 Auto-MDI/MDIX;
  •  Auto detect power device;
  •  Remote power and Data feeding up to 100m;
  •  Flow Control for Full Duplex operation and back pressure for Half Duplex Operation;
  •  Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az)
  •  Supports a complete lineup of L2 features, including 802.1Q tag VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol and 802.3x Flow Control function;
  •  Web, CLI (Console Port, Telnet, SSH), SNMP and RMON bring abundant management policies;

Product Specifications

Hardware Specification

Model

PM6030GSML V1

Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3z, IEEE 802.3x, IEEE 802.1X, IEEE 802.1q , IEEE 802.1p, IEEE 802.1d , IEEE 802.1w, IEEE 802.3ad, IEEE802.3af, IEEE802.3at , IEEE802.3bt

Interface

24*10/100/1000Mbps RJ45 Port (Auto Negotiation/Auto MDI/MDIX)

2*10/100/1000Mbps Combo ports
2* 1000Mbps SFP Slots
1 Console Port

Indicator

PWR, LNK/ACT, PoE, SYS

Network media

10BASE-T: UTP category 3,4,5 cable(≤100m)

100BASE-TX: UTP category 5, 5e cable(≤100m)

1000BASE-T: UTP category 5e, 5 cable(≤100m)
1000BASE-X: MMF, SMF

MAC Address Table

8K, Auto-learning, Auto-aging

jumbo frame

9216Bytes

Transfer Mode

Store-and-forward

Packet Forward Speed

41.66Mpps

Switching Capacity

56Gbps

Packet Buffer

4.1Mbit

Dimensions(L*W*H)

440*207*45mm

Fan Quantity

2

PoE Port

Port1~24(Port1-8support IEEE802.3bt)

PoE Power on RJ45

Port1-8 Support 4Pairs power lines: 1/2 (-),3/6 (+) and 4/5 (+)/7/8 (-)

Port9-24 Support 2Pairs power lines: 1/2 (-), 3/6 (+)

PoE Power Output

Voltage: 55V DC  Power:  port1-8: 90W(MAX), port9-24: 32W (MAX)

PoE Power Budget

480W

Power supply

500W

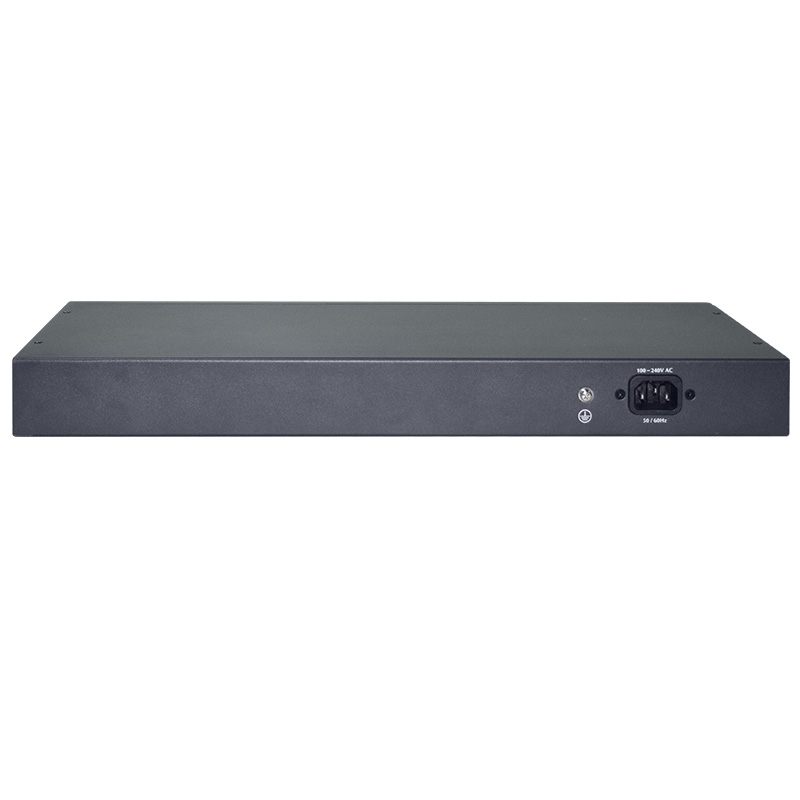

Input Power Supply

100~240V AC,  50/60Hz

Operating Temperature

0°C ~ 40 °C

Storage Temperature

-40 °C ~ 70 °C

Operating Humidity

10% ~ 90% non-condensing

Storage Humidity

5% ~ 90% non-condensing

Surge Protection

Common mode ±6KV  Differential mode ±4KV;

MTBF

>50000 hour

Electrostatic standard

Contact 6KV, Air 8KV

Green energy saving

Support IEEE 802.3az

Software Specification



spanning  Tree

IEEE  802.1D -Spanning Tree

IEEE  802.1w -Rapid Spanning Tree

IEEE  802.1s -Multiple Spanning Tree

BPDU Guard

STP Root Guard

Loop Detection

VLAN

Management VLAN

Private VLAN

Voice VLAN

Surveillance-VLAN

Q-in-Q (Double Tag)

802.1v Protocol VLAN

MAC-Based  VLAN

Port

IEEE 802.3ad witch LACP(Dynamic)

Static Trunk

EEE

Jumbo Frame

Error-Disable

IGMP  Snooping

IGMP  Snooping v1/v2/v3

MLD Snooping v1/v2

MVR

L3

Static Route

Static ARP

DHCP Server

QoS Features

Hardware Queues

Class Of Service

Port Based

802.1p

CoS

DSCP

IP Precedence

TCP/UDP (IPv4/IPv6)

Rate Limiting

Ingress

Egress

Priority Queue Scheduling

WRR

Strict Priority

DSCP & CS

IPv4 QoS (QCEs)

IPv6 QoS (QCEs)

Security

Port Security

Port Isolation

IEEE802.1x AAA

ACLs

L2+/L3/L4

IPv6 Support

Management Access List

Management ACL/Management ACE

IP Source Guard (IP-MAC-Port-VALN Binding)

IP Source Guard (IP-MAC-Port Binding)

Dynamic ARP Inspection

Storm Control

RADIUS/TACACS+

RADIUS Authentication (RFC2138)

DDoS Prevention

HTTPs and SSL (Secured Web)

SSH v1.5/v2.0 (Secured Telnet Session)

DHCP Snooping

DHCP Relay

Management

SNMP (v1, v2c, v3)

RMON ( 1,2,3 & 9 groups)

Software Upgrade

Configuration Export/Import

DHCP

Client

Option 82

Option 66

Option 67

Event/Error Log

Syslog

Management Access Filtering

Console

SNMP

HTTP/HTTPS

Telnet

Port Mirroring

LLDP (IEEE802.1AB)

LLDP-MED

UDLD

DNS Client

Traceroute

Ping

Cable Test

DDMI

NTP/ SNTP (RFC2030)

IPv6 Support

Dual IPv6/IPv4 stack

IPv6 Web/SSL

IPv6 SNTP (Simple Network Time Protocol)

IPv6 Telnet / SSH

IPv6 Ping/Traceroute

IPv6 TFTP

IPv6 RADIUS/TACACS+

IPv6 SNMP

PoE Management

Port Config

Alive Checking for PD

PoE Delay

PoE Schedule

ONVIF

ONVIF Deteciton

ONVIF Server(NLM)



Ordering information

Model

product information

PM6030GSML V1

24-Port Gigabit+2G Combo+2G SFP+1Console LCD Display Managed High PoE switch(24-Port PoE, Port1-8 Support 802.3af/at/bt Standard, Port9-24 Support 802.3af/at Standard)
