24-Port Gigabit+2G Combo+2G SFP+1Console Managed PoE Switch

24-Port Gigabit+2G Combo+2G SFP+1Console Managed PoE Switch

Model NO.: PM3030GSM V2

Quantity:

Product Description
Basic Information

Product Overview

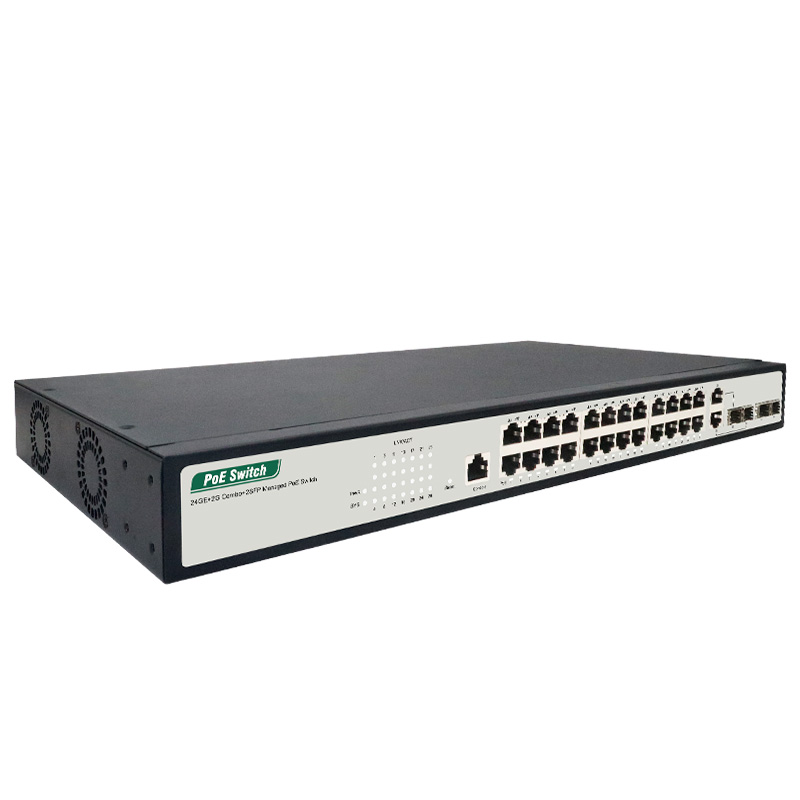

The PM3030GSM V2 provides 24*10/100/1000Mbps RJ45 interface, 2G Combo interface and 2G SFP interface, 24 RJ45 interface all support PoE power supply, support static routing function, provide complete security policy, perfect QoS strategy and rich VLAN function, easy to manage and maintain, meet the enterprise, community, hotel, office network, campus network networking and access requirements

Product Features

Complies with IEEE802.3af/at Standard;
Support RJ45 Auto-MDI/MDIX;
Supports PoE Power up to 32W for each PoE port;
Auto detect power device;
Remote power and Data feeding up to 100m;
Flow Control for Full Duplex operation and back pressure for Half Duplex Operation;
Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az)
Supports a complete lineup of L2 features, including 802.1Q tag VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol and 802.3x Flow Control function;
Web, CLI (Console Port, Telnet, SSH), SNMP and RMON bring abundant management policies;
Support PD Alive function(the switch port is disconnected will automatically connected);

Product Specifications
Hardware Specification

Model	PM3030GSM V2
Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3z, IEEE 802.3x, IEEE 802.1X, IEEE 802.1q , IEEE 802.1p, IEEE 802.1d , IEEE 802.1w, IEEE 802.3ad IEEE802.3af, IEEE802.3at
Interface	2410/100/1000Mbps RJ45 Port (Auto Negotiation/Auto MDI/MDIX) 210/100/1000Mbps Combo ports 2* 100/1000Mbps SFP Slots 1 Console Port
Indicator	PWR, LNK/ACT, PoE
Network media	10BASE-T: UTP category 3, 4, 5 cable(≤100m) 100BASE-TX: UTP category 5, 5e cable(≤100m) 1000BASE-T: UTP category 5e, 5 cable(≤100m) 100BASE-FX:MMF, SMF 1000BASE-X: MMF, SMF
MAC Address Table	16K, Auto-learning, Auto-aging
jumbo frame	12KBytes
Transfer Mode	Store-and-forward
Packet Forward Speed	41.66Mpps
Packet buffer	12M
Switching Capacity	56Gbps
Dimensions(LWH)	44020744mm
Fan Quantity	2
PoE Port	Port1~24
PoE Power on RJ45	Mode A 1/2(-), 3/6(+)
PoE Power Output	Voltage: 55V DC Power: 32W(MAX)
PoE Power Budget	250W	370W
Power supply	280W	400W

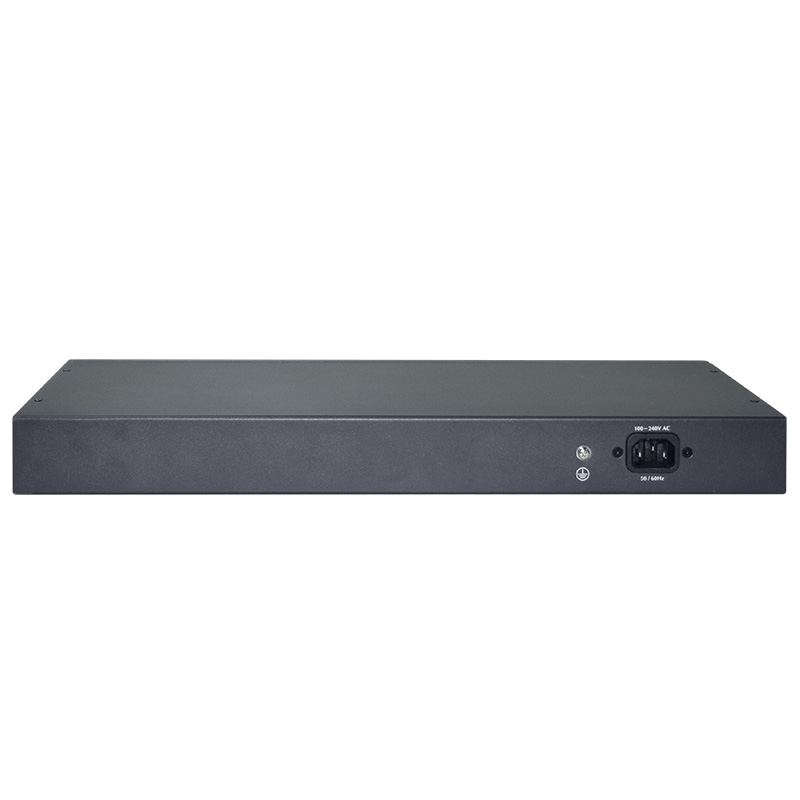

Input Power Supply	100~240V AC, 50/60Hz
Operating Temperature	0°C ~ 40 °C
Storage Temperature	-40 °C ~ 70 °C
Operating Humidity	10% ~ 90% non-condensing
Storage Humidity	5% ~ 90% non-condensing
Surge Protection	Common mode ±6KV Differential mode ±4KV:
MTBF	>50000 hour
Electrostatic standard	Contact 6KV, Air 8KV
Green energy saving	Support IEEE 802.3az

Software Specification

spanning Tree	IEEE 802.1D -Spanning Tree
	IEEE 802.1w -Rapid SpanningTree
	IEEE 802.1s -Multiple Spanning Tree
	BPDU Guard
	STP Root Guard
	Loop Detection
VLAN	Management VLAN
	Private VLAN
	Voice VLAN
	Surveillance-VLAN
	Q-in-Q (Double Tag)
	802.1v Protocol VLAN
	MAC-Based VLAN
Port	IEEE 802.3ad witch LACP(Dynamic)
	Static Trunk
	EEE
	Jumbo Frame
	Error-Disable
IGMP Snooping	IGMP Snooping v1/v2/v3
	MLD Snooping v1/v2
	MVR
QoS Features	Hardware Queues
	Class Of Service	Port Based
		802.1p
		CoS
		DSCP
		IP Precedence
		TCP/UDP (IPv4/IPv6)
	Rate Limiting	Ingress
		Egress
	Priority Queue Scheduling	WRR
		Strict Priority
		DSCP & CS
	IPv4 QoS (QCEs)
	IPv6 QoS (QCEs)
Security	Port Security
	Port Isolation
	IEEE802.1x AAA
	ACLs	L2+/L3/L4
		IPv6 Support
		Management Access List
	Management ACL/Management ACE
	IP Source Guard (IP-MAC-Port-VALN Binding)
	IP Source Guard (IP-MAC-Port Binding)
	Dynamic ARP Inspection
	Storm Control
	RADIUS/TACACS+
	RADIUS Authentication (RFC2138)
	DDoS Prevention
	HTTPs and SSL (Secured Web)
	SSH v1.5/v2.0 (Secured Telnet Session)
	DHCP Snooping
	DHCP Relay
Management	SNMP (v1, v2c, v3)
	RMON ( 1, 2, 3 & 9 groups)
	Software Upgrade
	Configuration Export/Import
	DHCP	Client
		Option 82
		Option 66
		Option 67
	Event/Error Log	Syslog
	Management Access Filtering	Console
		SNMP
		HTTP/HTTPS
		Telnet
	Port Mirroring
	LLDP (IEEE802.1AB)
	LLDP-MED
	UDLD
	DNS Client
	Traceroute
	Ping
	Cable Test
	DDMI
	NTP/ SNTP (RFC2030)
IPv6 Support	Dual IPv6/IPv4 stack
	IPv6 Web/SSL
	IPv6 SNTP (Simple Network Time Protocol)
	IPv6 Telnet / SSH
	IPv6 Ping/Traceroute
	IPv6 TFTP
	IPv6 RADIUS/TACACS+
	IPv6 SNMP
ONVIF	ONVIF Deteciton
	ONVIF Server(NLM)
