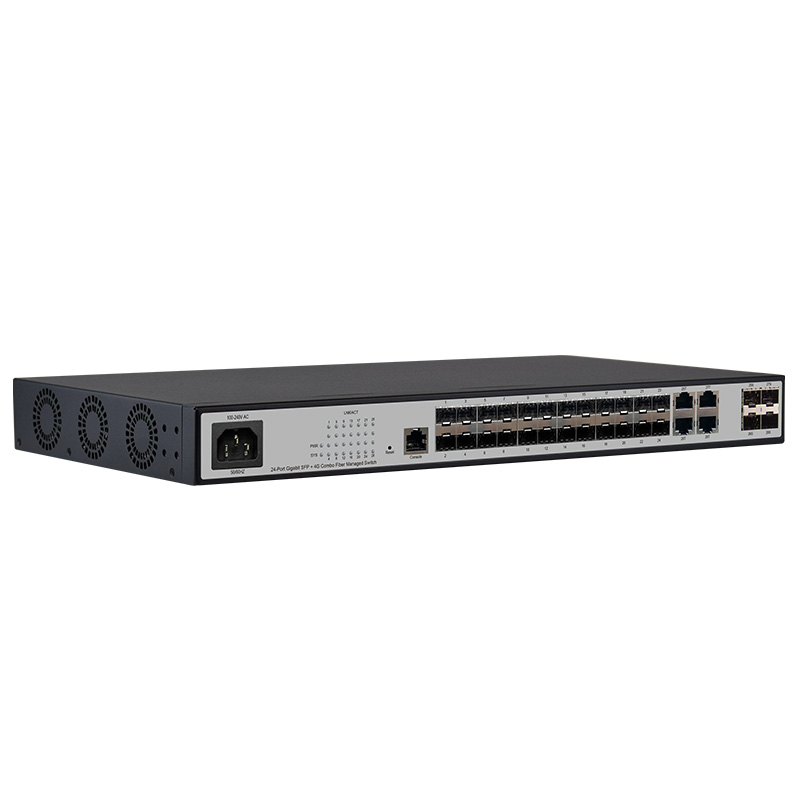

24-Port Gigabit SFP + 4G Combo Fiber Managed Switch

Model NO.: PM232GM V1 AC

Quantity:

Product Description
Basic Information

Product Overview

The PM232GM V1 is all-gigabit managed Switch with 24 all-gigabit SFP fiber module slots and 4 gigabit combo ports. Provides high performance, enterprise-class QoS, advanced security policies and rich network managed features. Use advanced features, this switch is powerful and flexible enough to deploy wireless access points or IP-based network surveillance cameras for users. It is an ideal choice for WIFI coverage, office, Internet bar, computer room and so on.

Product Features

Panel lights to monitor working state and help fault analysis;
Flow Control for Full Duplex operation and back pressure for Half Duplex Operation;
Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az);
Supports a complete lineup of L2 features, including 802.1Q tag VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol and 802.3x Flow Control function;
Web, CLI (Console Port, Telnet, SSH), SNMP and RMON bring abundant management policies;
Support Web management, simpler and more efficient, easy to install and debug engineering and maintenance personnel;

Product Specifications

Hardware Specification

Model	PM232GM V1
Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1X, IEEE 802.1q, IEEE 802.1p, IEEE 802.1d, IEEE 802.1w, IEEE 802.3ad
Interface	241000Mbps SFP Slots 4GCombo 1*Console Port
Indicator	PWR, LNK/ACT, SYS
Network media	10BASE-T: UTP category 3, 4, 5 cable(≤100m) 100BASE-TX: UTP category 5, 5e cable(≤100m) 1000BASE-T: UTP category 5e, 5 cable(≤100m) 1000BASE-X: MMF, SMF
MAC Address Table	16K, Auto-learning, Auto-aging
Jumbo Frame	12KBytes
Transfer Mode	Store-and-forward
Packet Forward Speed	41.66Mpps
Switching Capacity	56Gbps
Packet buffer	12Mbit
Dimensions(LWH)	441.520744.4mm
Fan Quantity	1
Greenenergysaving	IEEE 802.3az
Surge Protection	Different mode±2KV common mode±4KV
Electrostatic standard	Contact±6KV, air±8KV
Input Power Supply	100-240V/AC 50Hz
Operating Temperature	0°C ~ +40 °C
Storage Temperature	-40 °C ~ +70 °C
Operating Humidity	10% ~ 90% non-condensing
Storage Humidity	5% ~ 90% non-condensing
MTBF	>100000 hour

Software Function List

spanning Tree	IEEE 802.1D -Spanning Tree
	IEEE 802.1w -Rapid Spanning Tree
	IEEE 802.1s -Multiple Spanning Tree
	BPDU Guard
	STP Root Guard
	Loop Detection
VLAN	Management VLAN
	Private VLAN
	Voice VLAN
	Surveillance-VLAN
	Q-in-Q (Double Tag)
	802.1v Protocol VLAN
	MAC-Based VLAN
Port	IEEE 802.3ad witch LACP(Dynamic)
	Static Trunk
	EEE
	Jumbo Frame
	Error-Disable
IGMP Snooping	IGMP Snooping v1/v2/v3
	MLD Snooping v1/v2
	MVR
QoS Features	Hardware Queues
	Class of Service	Port Based
		802.1p
		CoS
		DSCP
		IP Precedence
		TCP/UDP (IPv4/IPv6)
	Rate Limiting	Ingress
		Egress
	Priority Queue Scheduling	WRR
		Strict Priority
		DSCP & CS
	IPv4 QoS (QCEs)
	IPv6 QoS (QCEs)
Security	Port Security
	Port Isolation
	IEEE802.1x AAA
	ACLs	L2+/L3/L4
		IPv6 Support
		Management Access List
	Management ACL/Management ACE
	IP Source Guard (IP-MAC-Port-VALN Binding)
	IP Source Guard (IP-MAC-Port Binding)
	Dynamic ARP Inspection
	Storm Control
	RADIUS/TACACS+
	RADIUS Authentication (RFC2138)
	DDoS Prevention
	HTTPs and SSL (Secured Web)
	SSH v1.5/v2.0 (Secured Telnet Session)
	DHCP Snooping
	DHCP Relay
Management	SNMP (v1, v2c, v3)
	RMON (1, 2, 3 & 9 groups)
	Software Upgrade
	Configuration Export/Import
	DHCP	Client
		Option 82
		Option 66
		Option 67
	Event/Error Log	Syslog
	Management Access Filtering	Console
		SNMP
		HTTP/HTTPS
		Telnet
	Port Mirroring
	LLDP (IEEE802.1AB)
	LLDP-MED
	UDLD
	DNS Client
	Traceroute
	Ping
	Cable Test
	DDMI
	NTP/ SNTP (RFC2030)
IPv6 Support	Dual IPv6/IPv4 stack
	IPv6 Web/SSL
	IPv6 SNTP (Simple Network Time Protocol)
	IPv6 Telnet / SSH
	IPv6 Ping/Trace route
	IPv6 TFTP
	IPv6 RADIUS/TACACS+
	IPv6 SNMP
ONVIF	ONVIF Detection
	ONVIF Server (NLM)
