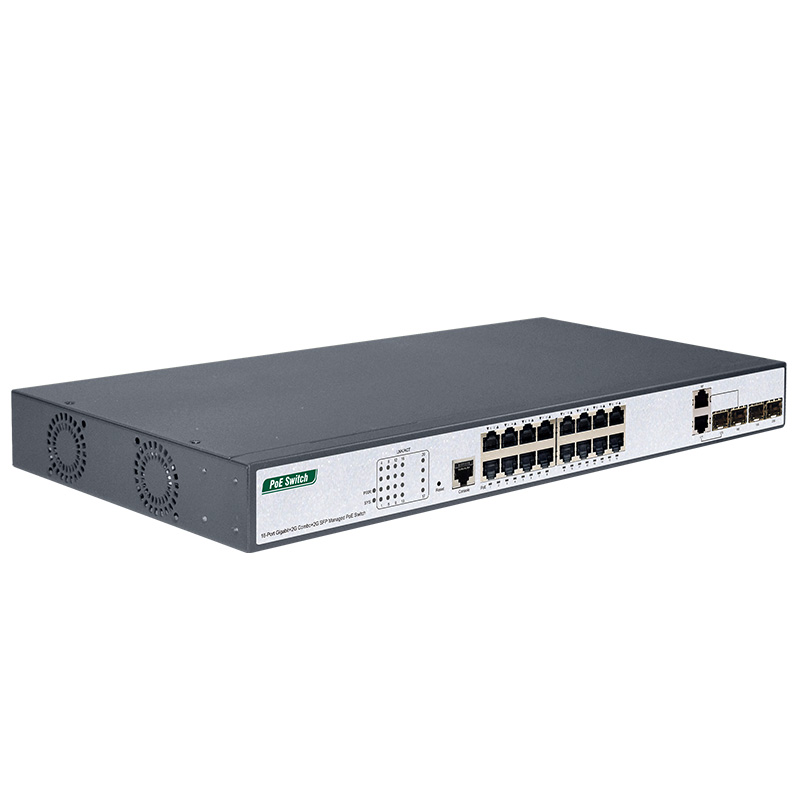

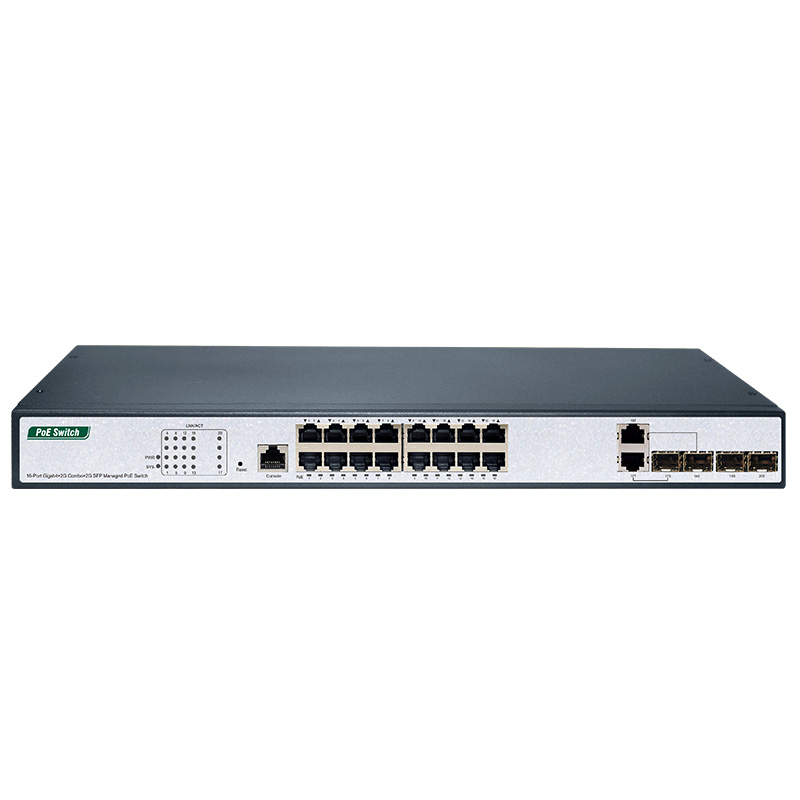

16-Port Gigabit+2G Combo+2G SFP Managed PoE Switch

Model NO.
PM3022GSM V1
Quantity:

Product Overview

The PM3022GSM V1 provides 16 10/100/1000Mbps RJ45 ports, 2G Combo ports and 2G SFP ports that supports 802.3af/at Standard , with a total PoE power supply up to 250W, powerful and flexible enough for users to deploy wireless access points or IP-based network surveillance cameras. The switch also comes equipped with 2 SFP slots, expanding your network flexibly. In addition, it provides high performance, enterprise-level QoS, advanced security strategies and rich layer 2 management features. With all these advanced features, the PoE Switch is an ideal choice for small and medium business networking.



Product Features

  • Complies with IEEE802.3af/at Standard;
  • Support RJ45 Auto-MDI/MDIX;
  • Supports PoE Power up to 32W for each PoE port;
  • Auto detect power device;
  • Remote power and Data feeding up to 100m;
  • Flow Control for Full Duplex operation and back pressure for Half Duplex Operation;
  • Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az)
  • Supports a complete lineup of L2 features, including 802.1Q tag VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol and 802.3x Flow Control function;
  • Web, CLI (Console Port, Telnet, SSH), SNMP and RMON bring abundant management policies;
  • Support PD Alive function(the switch port is disconnected will automatically connected);

Product Specifications

Hardware Specification

Model

PM3022GSM V1

Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3z, IEEE 802.3x, IEEE 802.1X, IEEE 802.1q , IEEE 802.1p, IEEE 802.1d , IEEE 802.1w, IEEE 802.3ad

IEEE802.3af, IEEE802.3at

Interface

16*10/100/1000Mbps RJ45 Port (Auto Negotiation/Auto MDI/MDIX)

2*10/100/1000Mbps Combo ports
2* 100/1000Mbps SFP Slots
1 Console Port

Indicator

PWR, LNK/ACT, PoE, SYS

Network media

10BASE-T: UTP category 3, 4, 5 cable(≤100m)

100BASE-TX: UTP category 5, 5e cable(≤100m)

1000BASE-T: UTP category 5e, 5 cable(≤100m)

100BASE-FX:MMF, SMF
1000BASE-X: MMF, SMF

MAC Address Table

8K, Auto-learning, Auto-aging

jumbo frame

9216Bytes

Packet buffer

4.1M

Transfer Mode

Store-and-forward

Packet Forward Speed

29.76Mpps

Switching Capacity

40Gbps

Dimensions(L*W*H)

440*207*44mm

Fan Quantity

2

PoE Port

Port1~16

PoE Power on RJ45

Mode A  1/2(-), 3/6(+)

PoE Power Output

Voltage: 55V DC  Power: 32W(MAX)

PoE Power Budget

250W

Power supply

280W

Input Power Supply

100~240V AC, 50/60Hz

Operating Temperature

0°C ~ 40 °C

Storage Temperature

-40 °C ~ 70 °C

Operating Humidity

10% ~ 90% non-condensing

Storage Humidity

5% ~ 90% non-condensing

Surge Protection

Common mode ±6KV  Differential mode ±4KV:

MTBF

>50000 hour

Electrostatic standard

Contact 6KV, Air 8KV

Green energy saving

Support IEEE 802.3az



Software Specification

spanning  Tree

IEEE  802.1D -Spanning Tree

IEEE  802.1w -Rapid SpanningTree

IEEE  802.1s -Multiple Spanning Tree

BPDU Guard

STP Root Guard

Loop Detection

VLAN

Management VLAN

Private VLAN

Voice VLAN

Surveillance-VLAN

Q-in-Q (Double Tag)

802.1v Protocol VLAN

MAC-Based  VLAN

Port

IEEE 802.3ad witch LACP(Dynamic)

Static Trunk

EEE

Jumbo Frame

Error-Disable

IGMP  Snooping

IGMP  Snooping v1/v2/v3

MLD Snooping v1/v2

MVR

L3

Static Route

Static ARP

DHCP Server

QoS Features

Hardware Queues

Class Of Service

Port Based

802.1p

CoS

DSCP

IP Precedence

TCP/UDP (IPv4/IPv6)

Rate Limiting

Ingress

Egress

Priority Queue Scheduling

WRR

Strict Priority

DSCP & CS

IPv4 QoS (QCEs)

IPv6 QoS (QCEs)

Security

Port Security

Port Isolation

IEEE802.1x AAA

ACLs

L2+/L3/L4

IPv6 Support

Management Access List

Management ACL/Management ACE

IP Source Guard (IP-MAC-Port-VALN Binding)

IP Source Guard (IP-MAC-Port Binding)

Dynamic ARP Inspection

Storm Control

RADIUS/TACACS+

RADIUS Authentication (RFC2138)

DDoS Prevention

HTTPs and SSL (Secured Web)

SSH v1.5/v2.0 (Secured Telnet Session)

DHCP Snooping

DHCP Relay

Management

SNMP (v1, v2c, v3)

RMON ( 1, 2, 3 & 9 groups)

Software Upgrade

Configuration Export/Import

DHCP

Client

Option 82

Option 66

Option 67

Event/Error Log

Syslog

Management Access Filtering

Console

SNMP

HTTP/HTTPS

Telnet

Port Mirroring

LLDP (IEEE802.1AB)

LLDP-MED

UDLD

DNS Client

Traceroute

Ping

Cable Test

DDMI

NTP/ SNTP (RFC2030)

IPv6 Support

Dual IPv6/IPv4 stack

IPv6 Web/SSL

IPv6 SNTP (Simple Network Time Protocol)

IPv6 Telnet / SSH

IPv6 Ping/Traceroute

IPv6 TFTP

IPv6 RADIUS/TACACS+

IPv6 SNMP

PoE Management

Port Config

Alive Checking for PD

PoE Delay

PoE Schedule

ONVIF

ONVIF Deteciton

ONVIF Server(NLM)

Ordering information

Model

product information

PM3022GSM V1

16-Port Gigabit+2G Combo+2G SFP+1Console Managed PoE switch(16-Port PoE, Support 802.3af/at Standard)
