Model NO.: PM3020FSN V6

Quantity:

Product Description
Basic Information

Product Overview

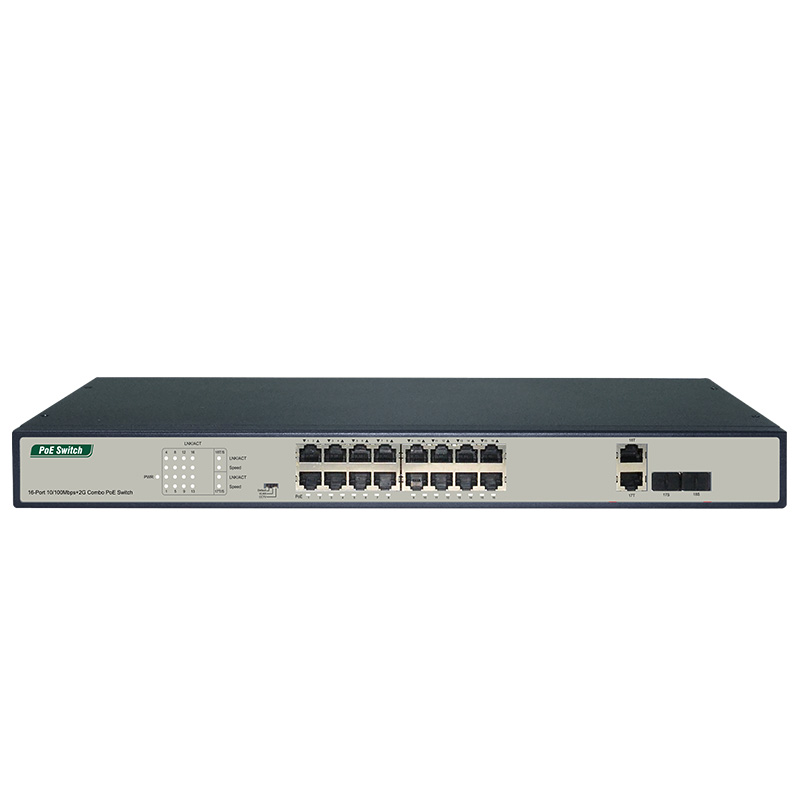

The PM3020FSN V6 provides 16*10/100Mbps adaptive RJ45 ports and 2*1000Mbps Combo ports, each supporting MDI/MDIX automatic flip and wire-speed forwarding. Ports 1-16 have the PoE power supply function and comply with IEEE 802.3af/at standards. They can serve as Ethernet power supply devices, automatically detect and identify the devices that meet the standards and supply power to them through network cables.

19"standard rack mount, plug-and-play, no management required Dynamic LED indicators provide simple working status indication and troubleshooting. One-touch VLAN and CCTV function, users can choose to turn on or off depending on the application environment.

Features

Support 802.3af/at standard;
Single PoE port output power up to 30W;
Automatic detection of PD devices;
Data transmission and power supply distance guaranteed 100 meters;
Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control;
Support one-click VLAN & CCTV mode;
Panel indicators monitor operating status and help with fault analysis;
Support green energy-saving IEEE802.3az;
Motherboard, Power Supply, PoE (3 in 1);
Support PD-ALIVE function.

Specification

Model	PM3020FSN V6
Standard	IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af, IEEE802.3at
Interface	1610/100Mbps RJ45 ports 21000Mbps Combo ports
Network Media	10BASE-T: UTP category 3,4,5 cable (≤100m) 100BASE-TX: UTP category 5,5e cable (≤100m) 1000BASE-T: UTP category 5e,6 cable (≤100m) 1000BASE-X: SMF, MMF
LED	PWR, PoE, LINK/ACT, Speed
Function Keys	VLAN & CCTV
MAC Address Table	8K, Auto-learning, Auto-aging
Transfer Mode	Store-and-Forward
Jumbo Frames	9216Bytes
Switching Capacity	7.2Gbps
Packet Forwarding Rate	5.4Mpps
Packet Buffer	4Mbit
PoE Port	Port1~16
PoE Power on RJ45	Mode A 1/2(+), 3/6(-)
PoE Power Output	Voltage: 55V DC Power: 30W(Max)
PoE Power Budget	250W	160W
Power Supply	270W	180W
Power Output	DC 55V/4.5A

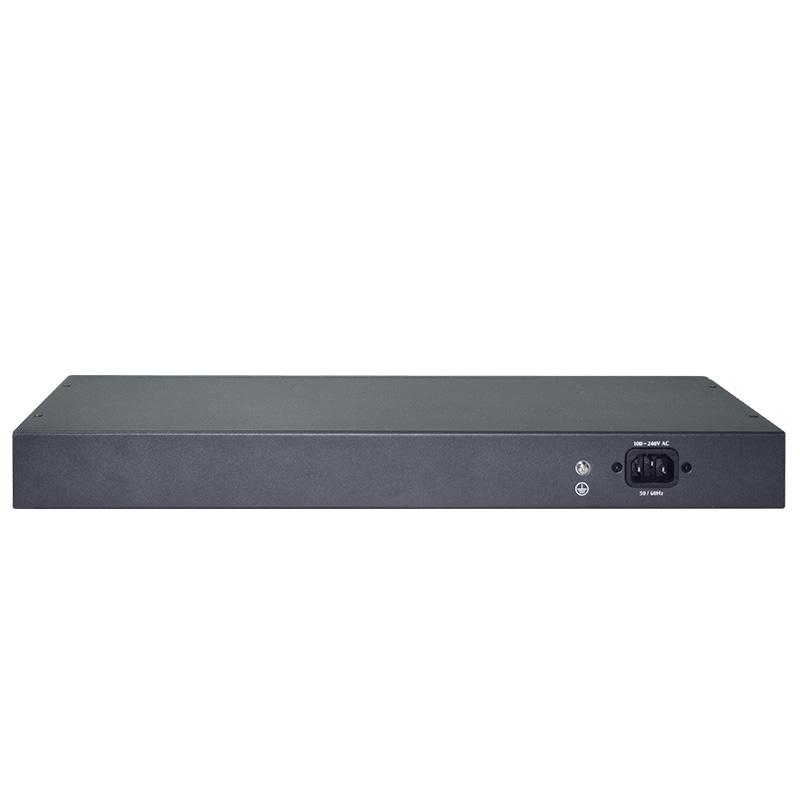

Power Input	AC: 100~240V, 50/60Hz 5A（Max）
Dimensions (LWH)	44020744mm

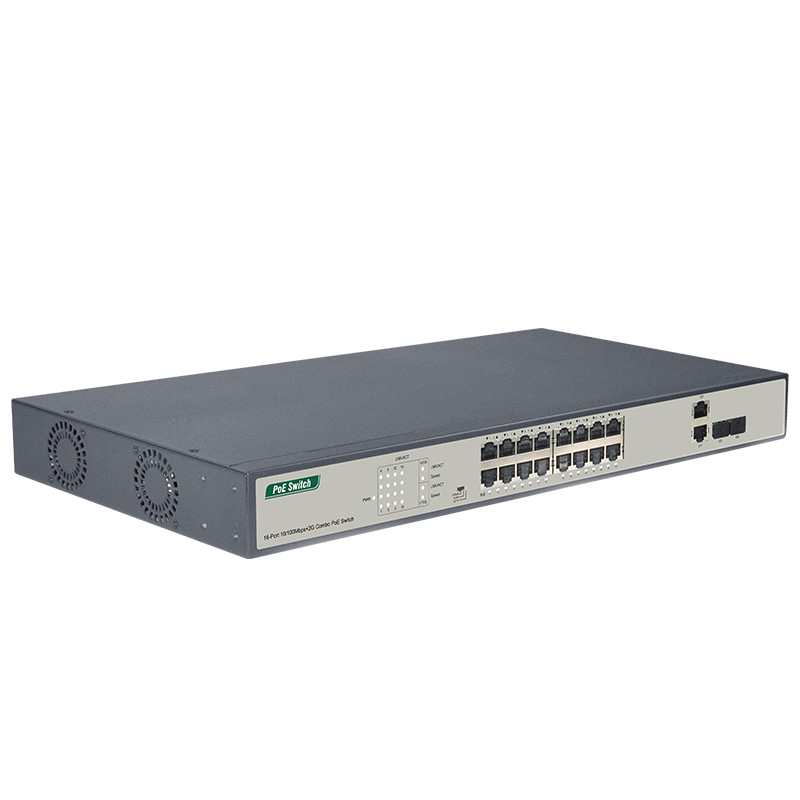

Fan Qty	2
Operating Temperature	0°C ~ 40 °C (32 °F ~104°F)
Storage Temperature	-40 °C ~ 70 °C (-40 °F ~158°F)
Operating Humidity	10% ~ 90% non-condensing
Storage Humidity	5% ~ 90% non-condensing
Surge Protection	Different mode±2KV, Common mode±4KV
Certification	CE, FCC, LVD, UKCA, CB, UL
MTBF	>50000 hours
Electrostatic Standard	Contact ±6KV, Air ±8KV
Green Energy Saving	Support IEEE 802.3az
