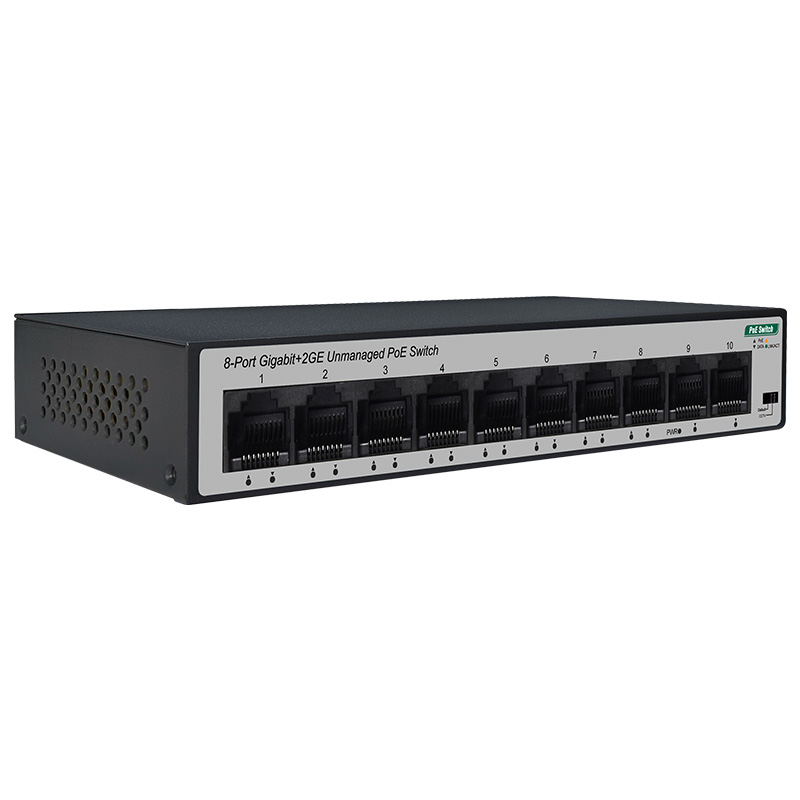

8-Port Gigabit+2GE Unmanaged PoE Switch

Model NO.
PM3010GSN V4
Quantity:
Product Overview
PM3010GSN V4 is all Gigabit unmanaged PoE switch, with 10 compatible 10/100/1000Mbps, each RJ45 port supports MDI/MDIX automatic flip and rotation and speed limit forwarding functions. Among them, 1-8 ports have PoE have PoE power supply function, each port can provide up to 30W power, support IEEE802af/at standard, can be used for Ethernet power supply equipment, can automatically monitor and identify the power receiving equipment that meets the standard, and use the network cable for it powered by.
PM3010GSN V4 has a CCTV function for 250 meters of ultra-long-distance transmission. Users can choose to turn on or off the CCTV function. Improve network security and restrain network storms, facilitate management and maintenance, and meet the networking and access requirements of enterprises, communities, hotelsoffice, networks, and campus networks.



Product Features
  • Support IEEE802.3 at standard, compatible with IEEE802.3 af by electrical equipment (PD);
  • Stand-up output power up to 30W;
  • Support IEEE802.3 x full duplex flow control and Backpressure half duplex flow control;
  • Panel lights to monitor working state and help fault analysis.
  • Perfect security mechanism
  • Line-speed forwarding intelligent identification
  • Support CCTV Function.
  • Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az);
  • Support PD Alive function( the switch port is disconnected will automatically connected);



Product Specifications
Hardware Specifications
ModelPM3010GSN V4
Interface10x10/100/1000Mbps auto-negotiation RJ45 port
PoE standIEEE802.3af/at
PoE port1~8
PoE total60W
Power supply65W
Key functionCCTV
PoE port outputMax 30W
RJ45 PoE power supplyMode A Anode1/2   Cathode3/6
IndicatorPWR( Green), LNK/ACT ( Green)PoE( Orange)
Network media10BASE-T: UTP category 3, 4, 5 cable ( ≤100m)
100BASE-TX: UTP category 5, 5e cable ( ≤100m)
1000BASE-T: UTP category 5, 5e cable ( ≤100m)
MAC Address Table2K, Automatic study, automatic updates
jumbo frame9216Bytes
Packet buffer2Mbit
Transfer ModeStore-and-forward
Packet Forward Speed14.88Mpps
Bandwidth20Gbps
Device Dimension168*94*32mm
Machine weight>1kg
green energy savingSupport IEEE( 802.3az)
mains input100~240V AC, 50/60Hz
Operating Temperature0°C ~ 40 °C
Storage Temperature-40 °C ~ 70 °C
Operating Humidity10% ~ 90% non-condensing
Storage Humidity5% ~ 90% non-condensing
Surge ProtectionCommon mode ±4KV, differential mode ±2KV
MTBF>50000 hour
Electrostatic standardContact ±6KV, air ±8KV



Ordering information
Modelproduct information
PM3010GSN V48-Port Gigabit+2GE Unmanaged PoE Switch
